Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

15 part groups · 4 illustrations

Illustrations

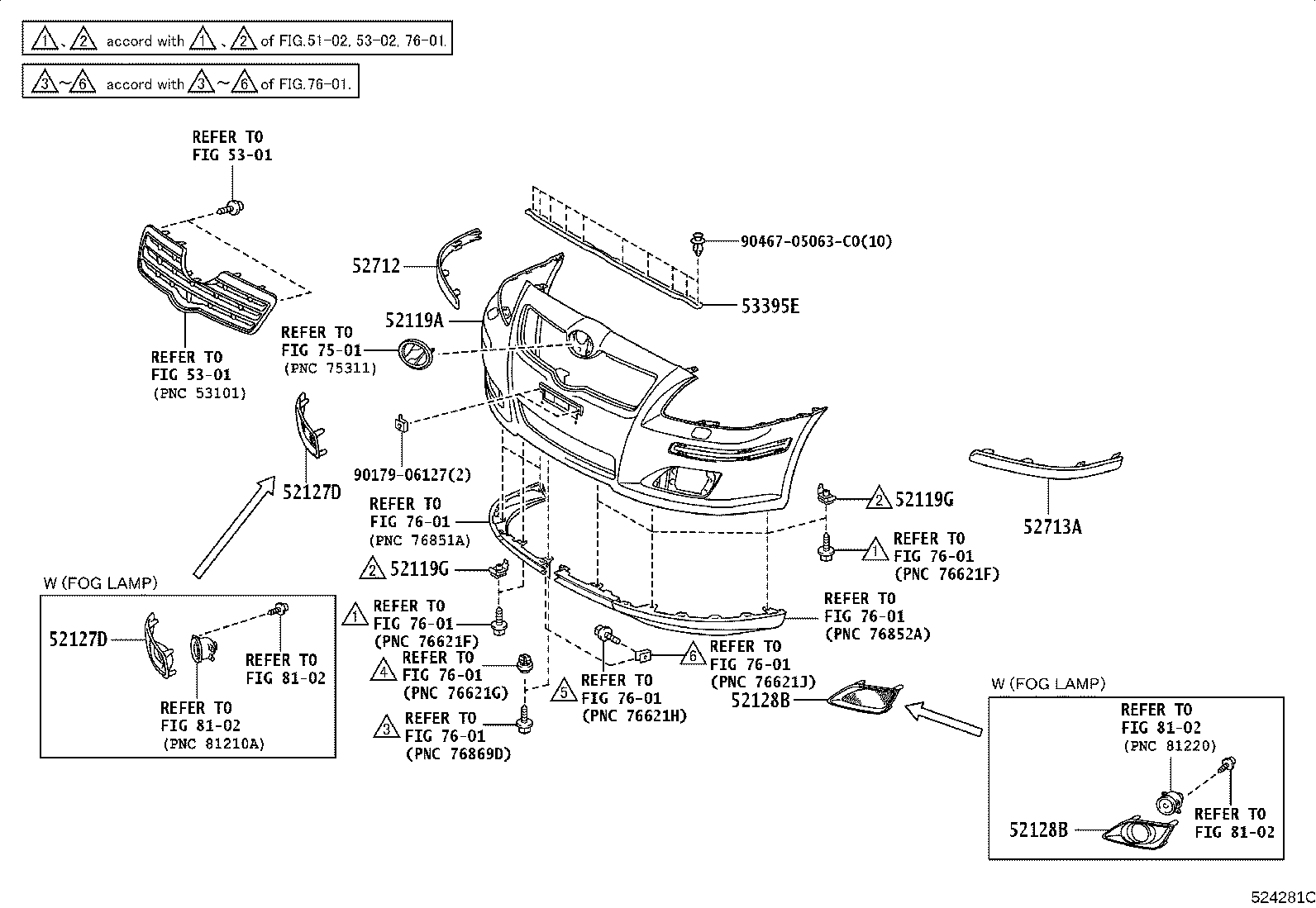

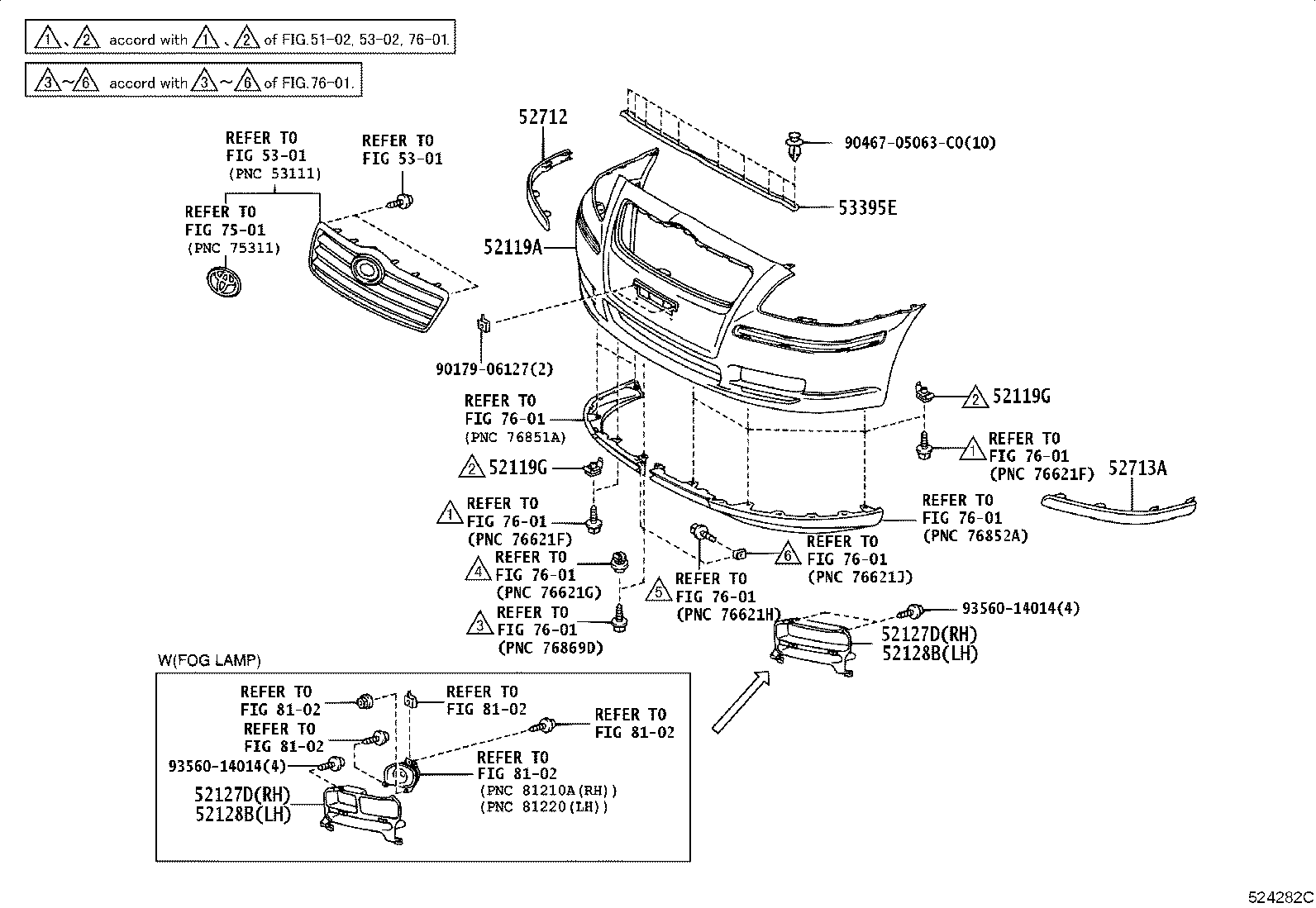

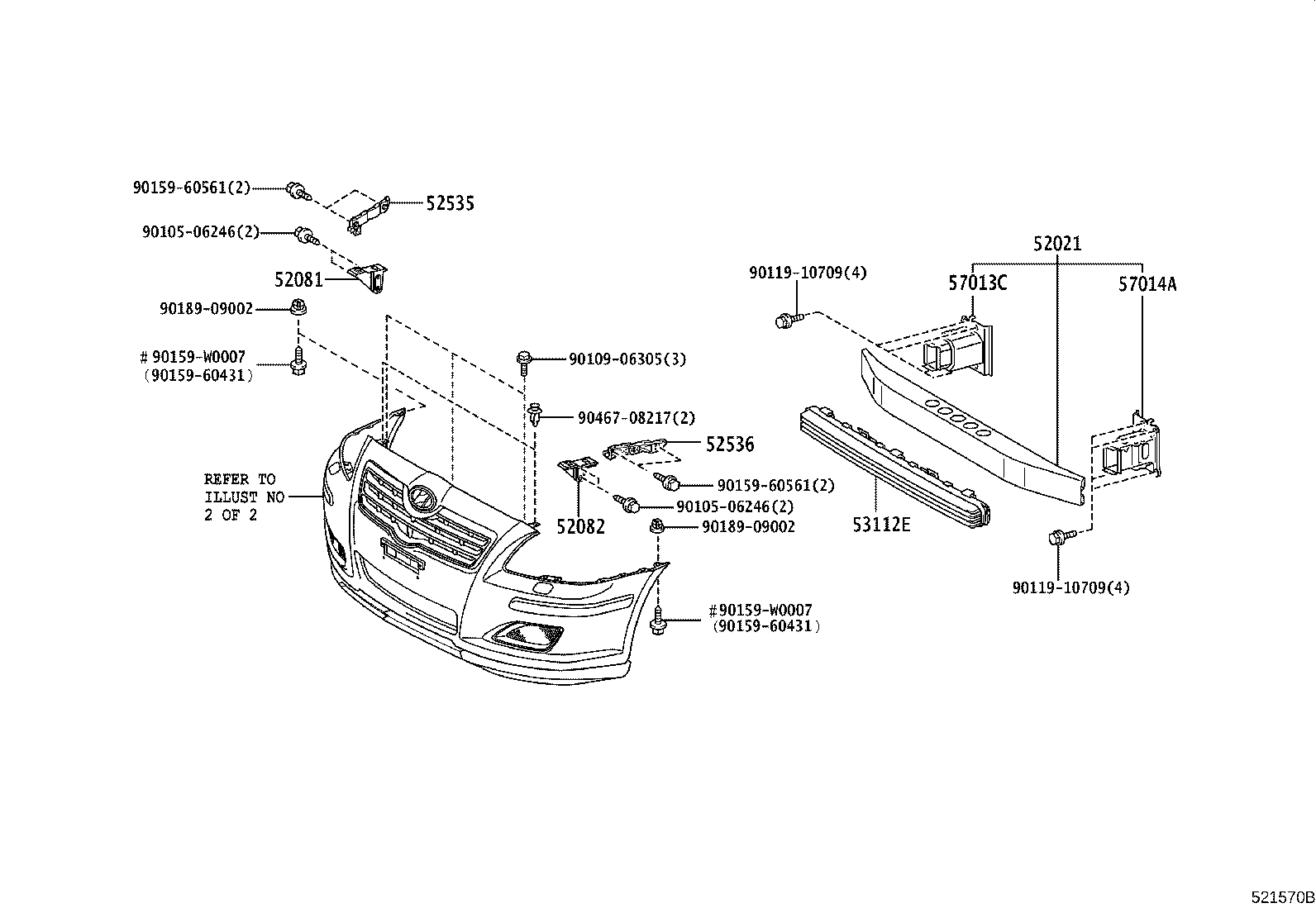

Figure 521364D 521364D 2003-01 → 2006-04 Figure 524282C 524282C 2003-01 → 2006-04 Figure 521570B 521570B 2006-04 → — Figure 524281C 524281C 2006-04 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52081 Stay Sub-assy, Front Bumper
52082 Stay Sub-assy, Front Bumper, LH
52119A Cover, Front Bumper
52119G Clip, NO.1
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
53112E Grille, Radiator, Lower NO.1
53395E Seal, Hood TO Front End Panel
57013C Bracket Sub-assy, Front Side Member, RH
57014A Bracket Sub-assy, Front Side Member, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
