Toyota Avensis
2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe
Supported model
Data version 2009-04

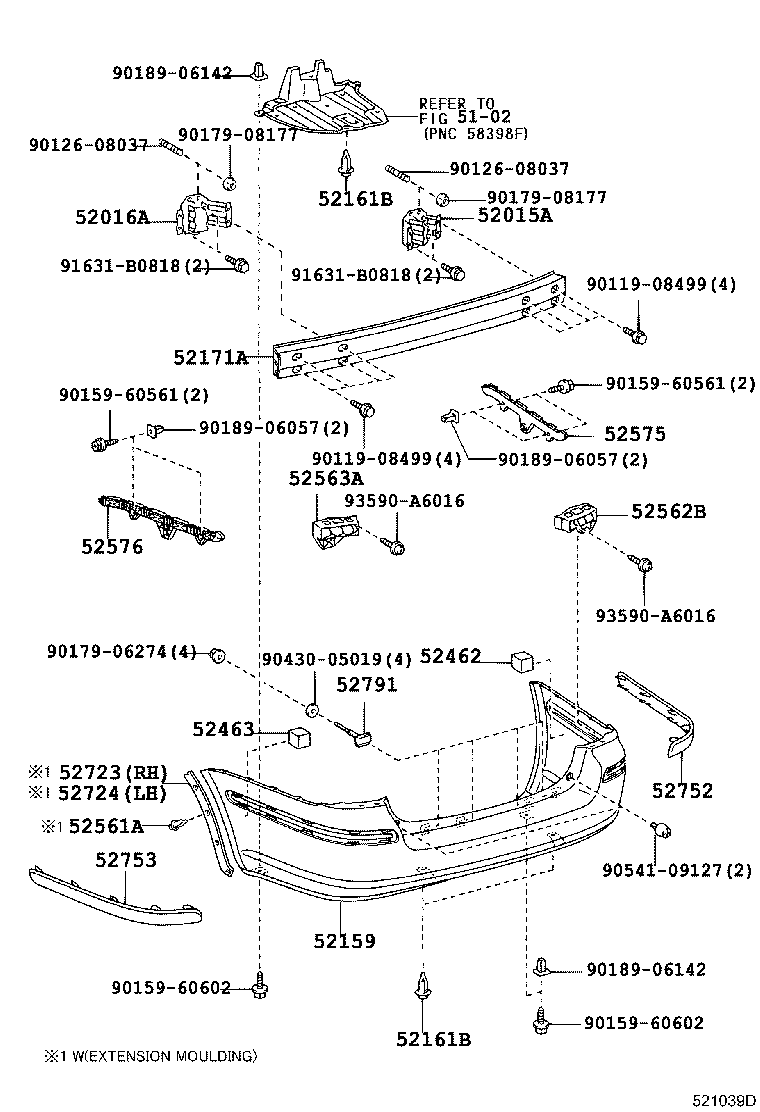

Rear Bumper & Bumper Stay
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52015A | Arm Sub-assy, Rear Bumper, RH |
| 52016A | Arm Sub-assy, Rear Bumper, LH |
| 52159 | Cover, Rear Bumper |
| 52161B | Piece, Rear Bumper |
| 52171A | Reinforcement, Rear Bumper, NO.1 |
| 52462 | Pad, Rear Bumper, RH |
| 52463 | Pad, Rear Bumper, LH |
| 52561A | Clip(FOR REAR BUMPER RETAINER) |
| 52562B | Retainer, Rear Bumper, Upper RH |
| 52563A | Retainer, Rear Bumper, Upper LH |
| 52575 | Retainer, Rear Bumper Side, RH |
| 52576 | Retainer, Rear Bumper Side, LH |
| 52581B | Protector, Rear Bumper |
| 52723 | Moulding, Rear Bumper Extension, RH |
| 52724 | Moulding, Rear Bumper Extension, LH |
| 52752 | Moulding, Rear Bumper Side, RH |
| 52753 | Moulding, Rear Bumper Side, LH |
| 52791 | Bolt, Bumper Moulding Set, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
