Toyota Avensis
2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe
Supported model
Data version 2009-04

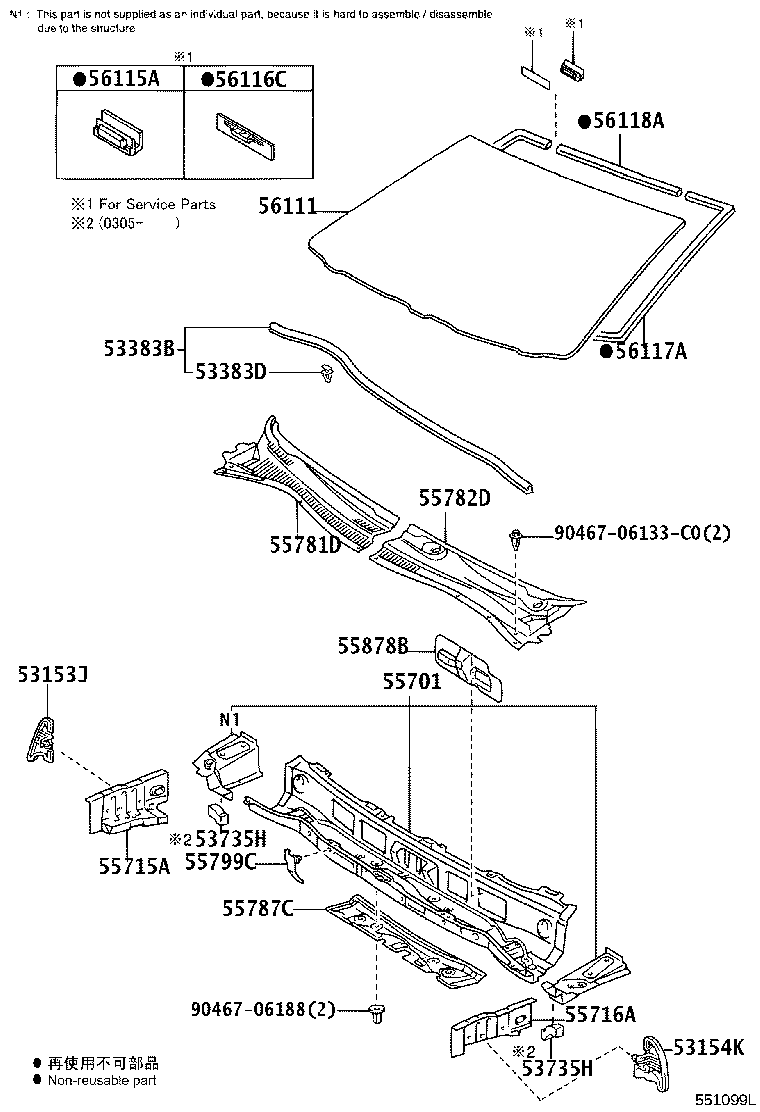

Cowl Panel & Windshield Glass
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53153J | Guide, Radiator Grille Side Air, RH |
| 53154K | Guide, Radiator Grille Side Air, LH |
| 53383B | Seal, Hood TO Cowl Top |
| 53383D | Clip(FOR HOOD TO COWL TOP SEAL) |
| 53735H | Seal, Front Fender Apron, Upper |
| 55701 | Panel Sub-assy, Cowl |
| 55715A | Brace, Cowl Top TO Apron, RH |
| 55716A | Brace, Cowl Top TO Apron, LH |
| 55781D | Louver, Cowl Top Ventilator, RH |
| 55782D | Louver, Cowl Top Ventilator, LH |
| 55787C | Insulator, Cowl Top Panel, NO.1 |
| 55799C | Clip, Cowl Top Ventilator Louver |
| 55877B | Cover, Cowl Vent, RH |
| 55878B | Cover, Cowl Vent, LH |
| 56111 | Glass, Windshield |
| 56115A | Stopper, Windshield Glass, NO.1 |
| 56116C | Stopper, Windshield Glass, NO.2 |
| 56117A | Dam, Window Glass Adhesive |
| 56118A | Dam, Window Glass Adhesive, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
