Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

6 part groups · 2 illustrations

Illustrations

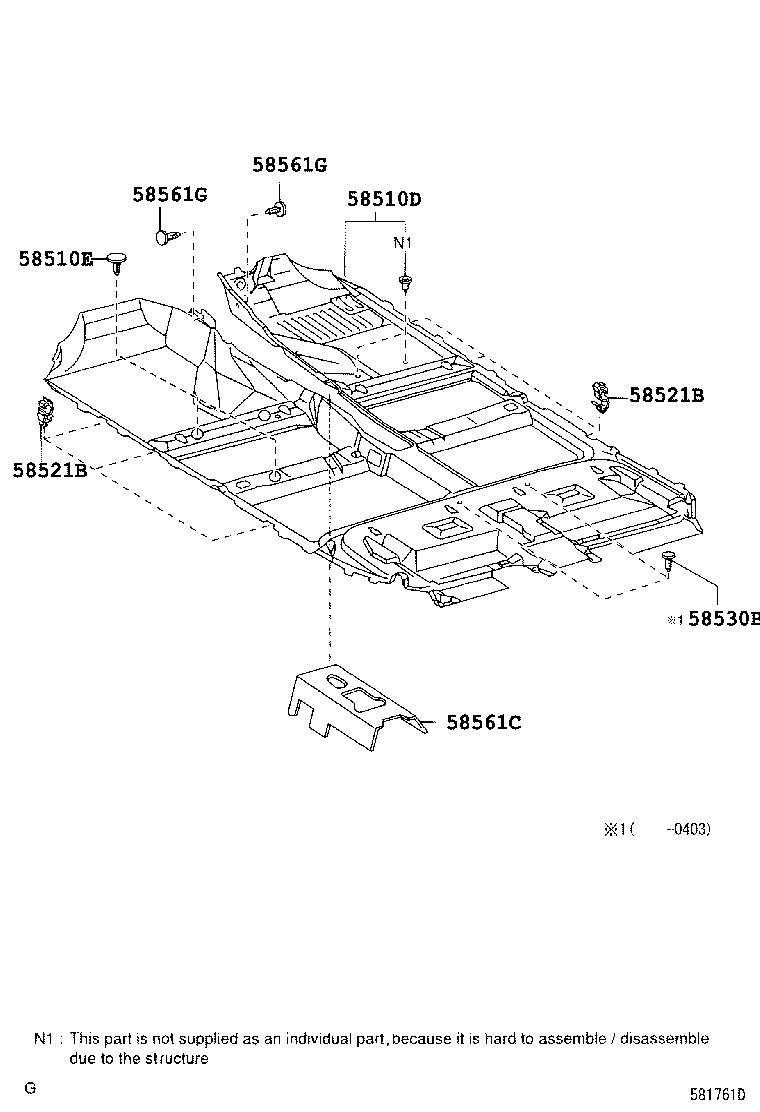

Figure 581760D 581760D 2003-01 → — Figure 581761D 581761D 2003-01 → —

Part groups

PNCDescription
58510D Carpet Assy, Floor, Front
58510E Retainer, Floor Carpet
58521B Hook, Floor Carpet
58530B Clip(FOR FRONT FLOOR CARPET)
58561C Silencer, Front Floor, NO.1
58561G Clip(FOR FRONT FLOOR SILENCER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
