Toyota Avensis
2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe
Supported model
Data version 2009-04

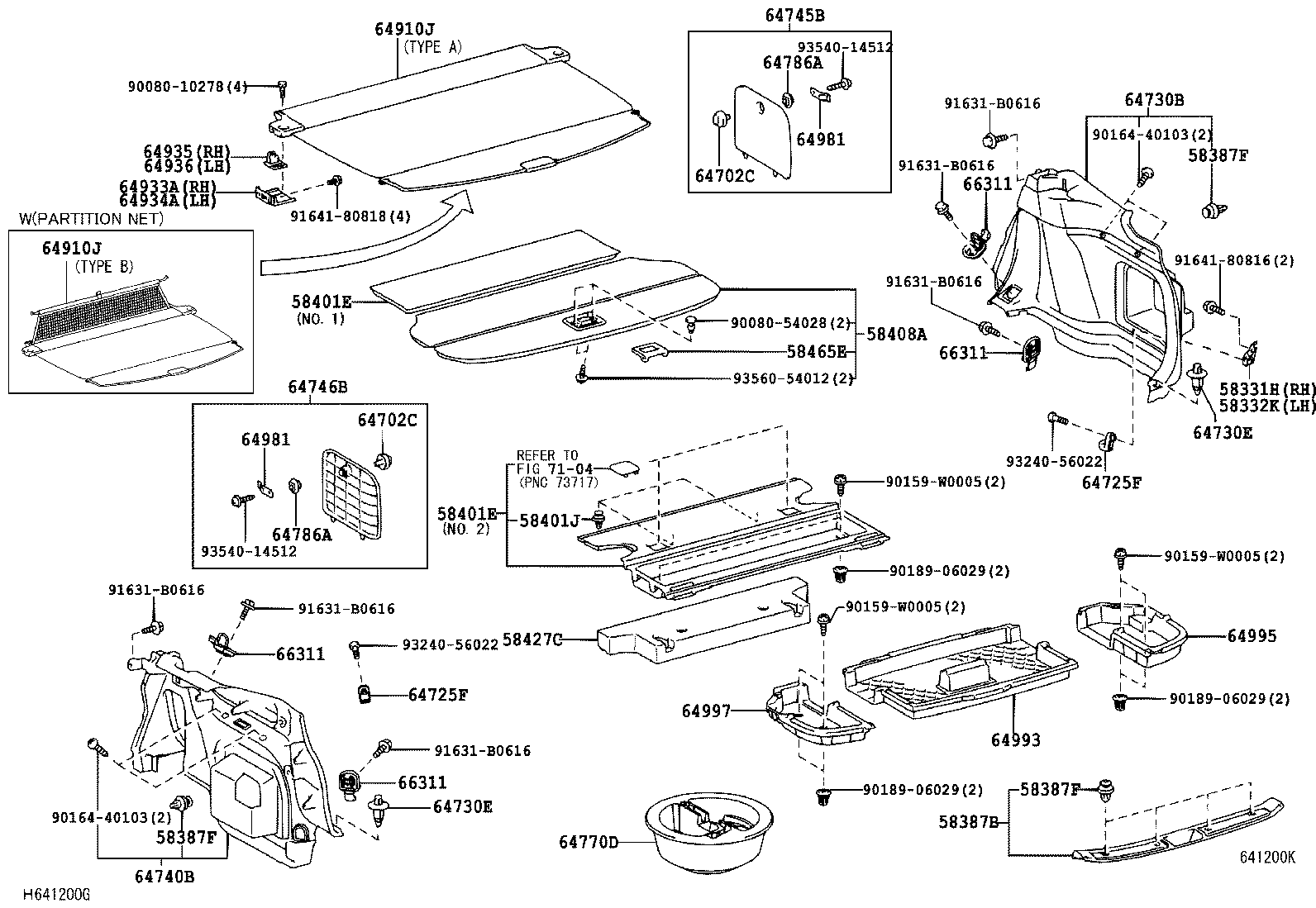

Deck Board & Deck Trim Cover
35 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58331H | Bracket, Luggage Compartment Trim, NO.1 |
| 58332K | Bracket, Luggage Compartment Trim, NO.2 |
| 58387B | Plate, Rear Floor Finish |
| 58387F | Clip, Rear Floor Finish Plate |
| 58401E | Board Sub-assy, Deck |
| 58401J | Clip(FOR DECK BOAD) |
| 58408A | Board Sub-assy, Deck, NO.2 |
| 58423B | Spacer, Rear Floor Board, NO.2 |
| 58424F | Spacer, Rear Floor Board, NO.3 |
| 58427C | Spacer, Rear Floor Board |
| 58465E | Handle, Deck Board |
| 58570D | Carpet Assy, Rear Floor |
| 64330D | Panel Assy, Package Tray Trim |
| 64350B | Shade, Rear Window |
| 64376 | Spacer, Package Tray Trim, NO.2 |
| 64702C | Knob, Washer Tank Cover |
| 64725F | Hook, Luggage Compartment Trim, NO.1 |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64730E | Clip(FOR DECK TRIM SIDE BOARD) |
| 64740B | Board, Deck Trim Side, LH |
| 64745B | Cover, Rear Combination Lamp Service, NO.2, RH |
| 64746B | Cover, Rear Combination Lamp Service, NO.2, LH |
| 64750F | Clip(FOR DECK SIDE TRIM PANEL) |
| 64770D | Cover Assy, Spare Wheel |
| 64786A | Plate, Jack Cover |
| 64910J | Cover Assy, Tonneau |
| 64933A | Bracket, Tonneau Cover Holder, RH |
| 64934A | Bracket, Tonneau Cover Holder, LH |
| 64935 | Holder, Tonneau Cover, RH |
| 64936 | Holder, Tonneau Cover, LH |
| 64981 | Stopper, Washer Tank Cover |
| 64993 | Box, Deck Floor, Rear |
| 64995 | Box, Deck Floor, RH |
| 64997 | Box, Deck Floor, LH |
| 66311 | Hook, Rope |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
