Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04

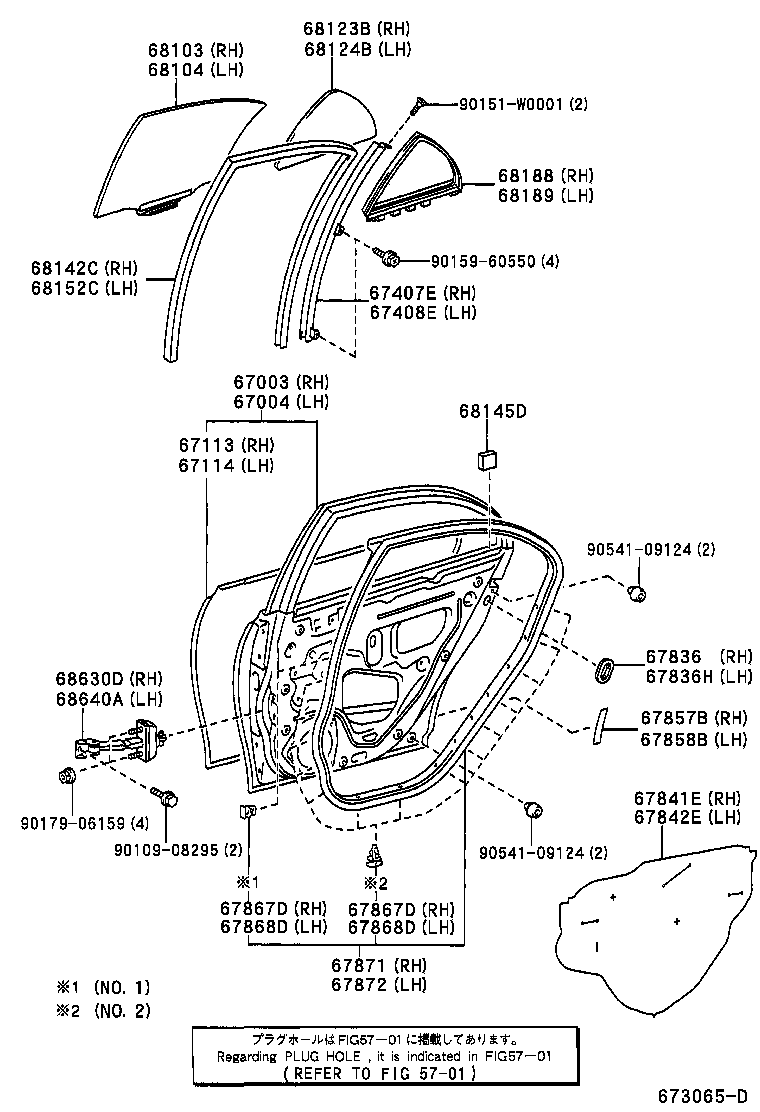

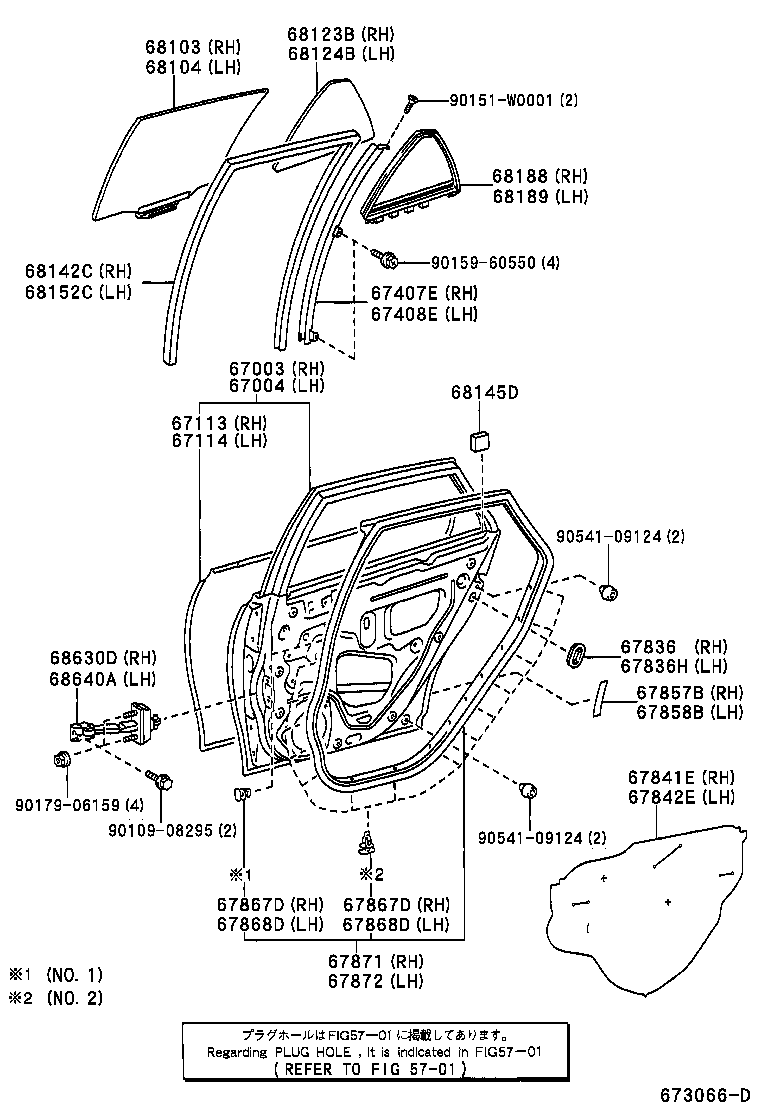

Rear Door Panel & Glass

40 part groups · 3 illustrations

PNC	Description
67003	Panel Sub-assy, Rear Door, RH
67004	Panel Sub-assy, Rear Door, LH
67113	Panel, Rear Door, Outer RH
67114	Panel, Rear Door, Outer LH
67407E	Bar Sub-assy, Rear Door Window Division, RH
67408E	Bar Sub-assy, Rear Door Window Division, LH
67603	Board Sub-assy, Rear Door Trim, RH
67604	Board Sub-assy, Rear Door Trim, LH
67617C	Base, Rear Door Trim, RH
67618A	Base, Rear Door Trim, LH
67721	Cover, Rear Door Trim, RH
67722	Cover, Rear Door Trim, LH
67745B	Seal, Rear Door Trim, RH
67746	Seal, Rear Door Trim, LH
67772F	Cap, Rear Door Trim Retainer
67775A	Cover, Rear Door Trim, Lower RH
67776A	Cover, Rear Door Trim, Lower LH
67836	Cover, Rear Door Lock Child Protection, RH
67836H	Cover, Rear Door Lock Child Protection, LH
67841E	Cover, Rear Door Service Hole, RH
67842E	Cover, Rear Door Service Hole, LH
67857B	Protector, Rear Door Panel, RH
67858B	Protector, Rear Door Panel, LH
67867D	Retainer, Rear Door Weatherstrip, RH
67868D	Retainer, Rear Door Weatherstrip, LH
67871	Weatherstrip, Rear Door, RH
67872	Weatherstrip, Rear Door, LH
68103	Glass Sub-assy, Rear Door, RH
68104	Glass Sub-assy, Rear Door, LH
68123B	Glass, Rear Door Quarter Window, RH
68124B	Glass, Rear Door Quarter Window, LH
68142C	Run, Rear Door Glass, RH
68145D	Cushion, Rear Door Window
68152C	Run, Rear Door Glass, LH
68173B	Weatherstrip, Rear Door Glass, Inner RH
68174A	Weatherstrip, Rear Door Glass, Inner LH
68188	Weatherstrip, Rear Door Quarter Window, RH
68189	Weatherstrip, Rear Door Quarter Window, LH
68630D	Check Assy, Rear Door, RH
68640A	Check Assy, Rear Door, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
