Toyota Avensis
2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe
Supported model
Data version 2009-04

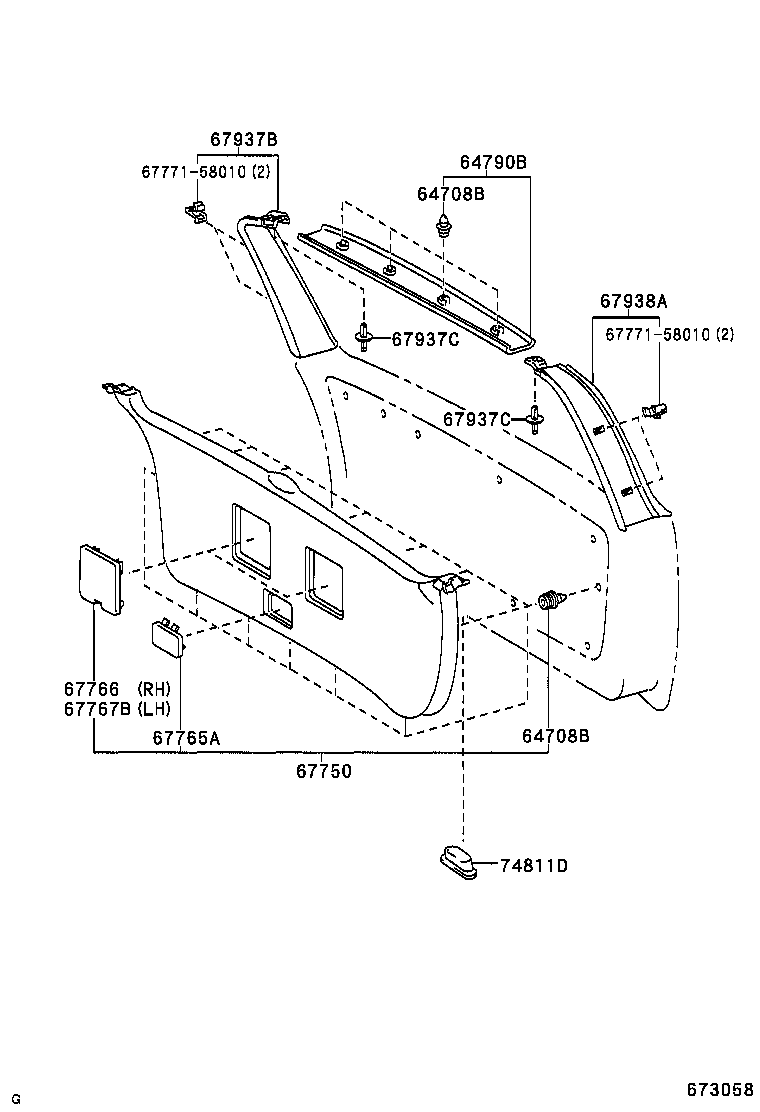

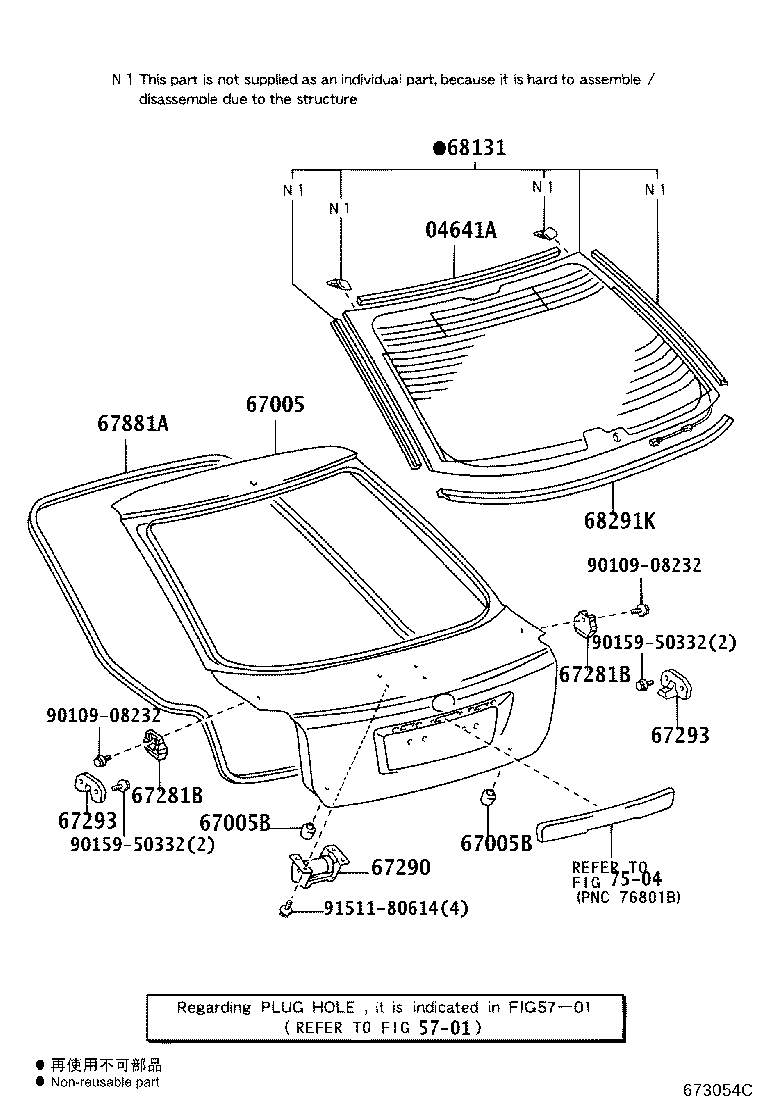

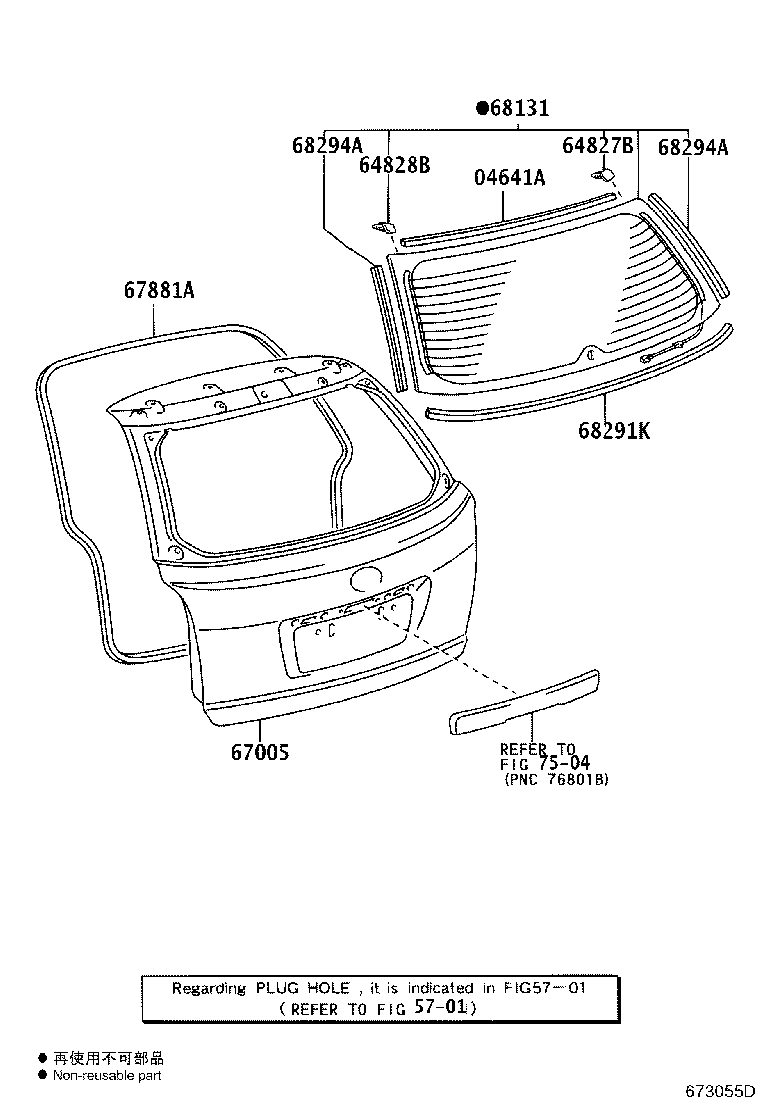

Back Door Panel & Glass
26 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04641A | Dam Kit, Back Window Glass Adhesive |
| 64708B | Clip, Back Door Trim |
| 64790B | Panel Assy, Back Door Trim, Upper |
| 64790C | Panel Assy, Back Door Trim, LH |
| 64827B | Clip, Back Window Glass, RH |
| 64828B | Clip, Back Window Glass, LH |
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67281B | Stopper, Back Door, Lower |
| 67290 | Damper Assy, Back Door |
| 67293 | Cushion, Back Door Lower Stopper |
| 67750 | Board Assy, Back Door Trim |
| 67750A | Clip(FOR BACK DOOR TRIM) |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67759A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67765A | Cover, Back Door Service Hole, NO.1 |
| 67766 | Cover, Back Door Service Hole, NO.2 |
| 67767B | Cover, Back Door Service Hole, NO.3 |
| 67881A | Weatherstrip, Back Door |
| 67937B | Garnish, Back Door Side, RH |
| 67937C | Clip(FOR BACK DOOR SIDE GARNISH) |
| 67938A | Garnish, Back Door Side, LH |
| 68131 | Glass, Back Door |
| 68291K | Dam Kit, Back Window Glass |
| 68294A | Dam, Back Door Glass Adhesive |
| 74811D | Handle, Door Pull |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
