Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Handle

12 part groups · 2 illustrations

Illustrations

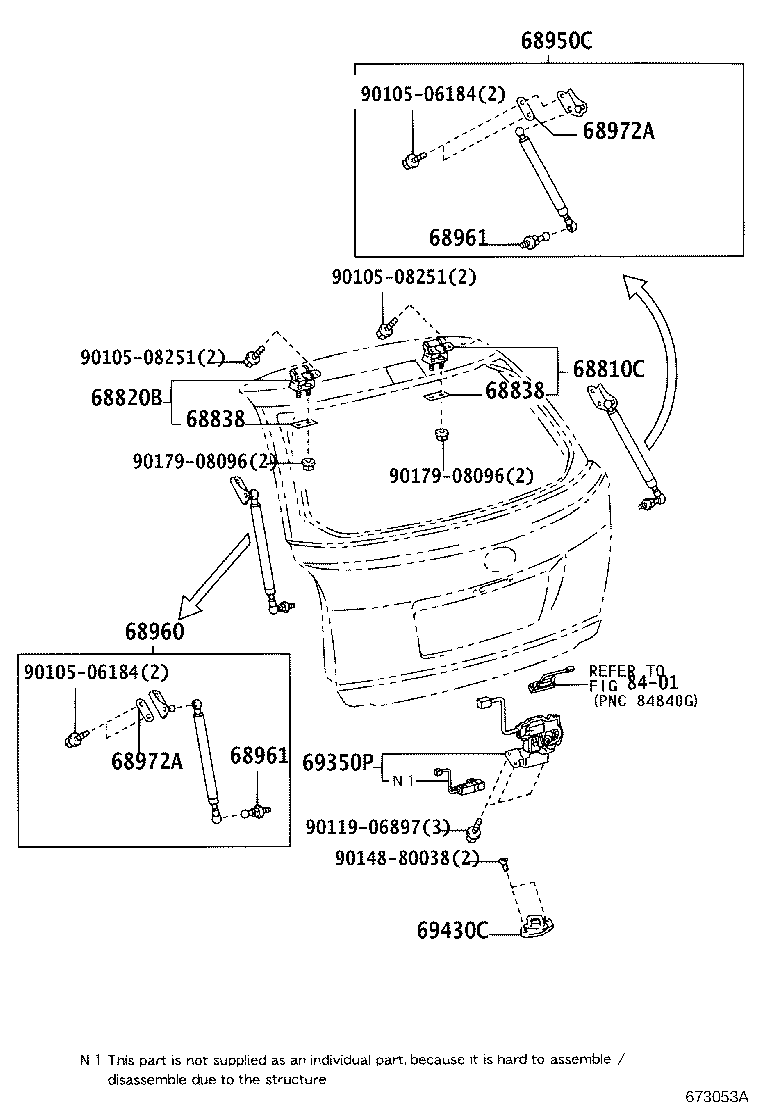

Figure 673052 673052 2003-01 → — Figure 673053A 673053A 2003-01 → —

Part groups

PNCDescription
68810C Hinge Assy, Back Door, RH
68820B Hinge Assy, Back Door, LH
68838 Pad, Back Door Hinge, NO.1
68947 Bracket, Back Door Damper Stay, Lower RH
68948 Bracket, Back Door Damper Stay, Lower LH
68950C Stay Assy, Back Door, RH
68960 Stay Assy, Back Door, LH
68961 Bolt, Back Door Stay
68972A Packing, Back Door Stay, NO.2
69350 Lock Assy, Back Door
69350P Lock Assy, Back Door, W/Courtesy Lamp Switch
69430C Striker Assy, Back Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
