Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

11 part groups · 4 illustrations

Illustrations

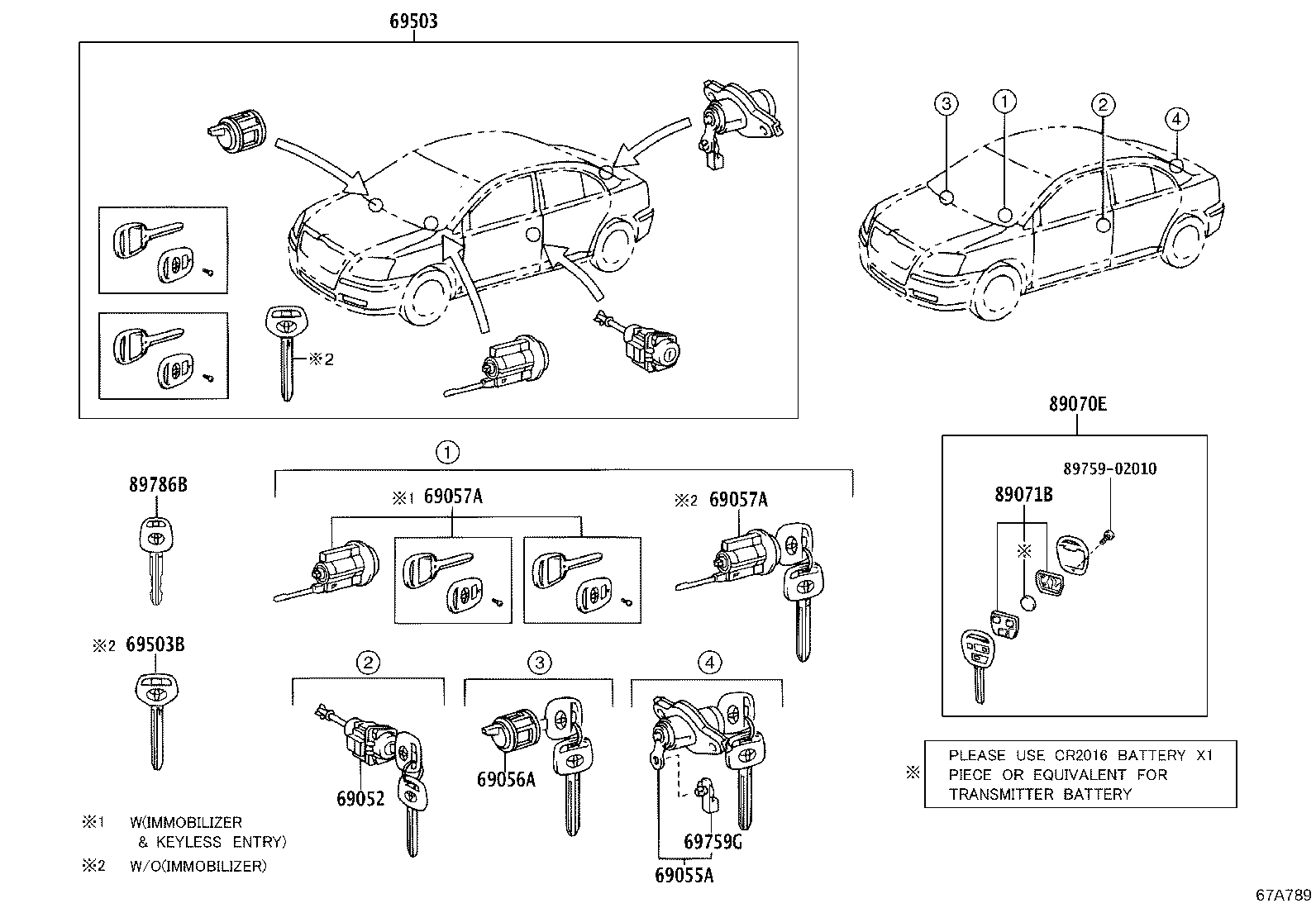

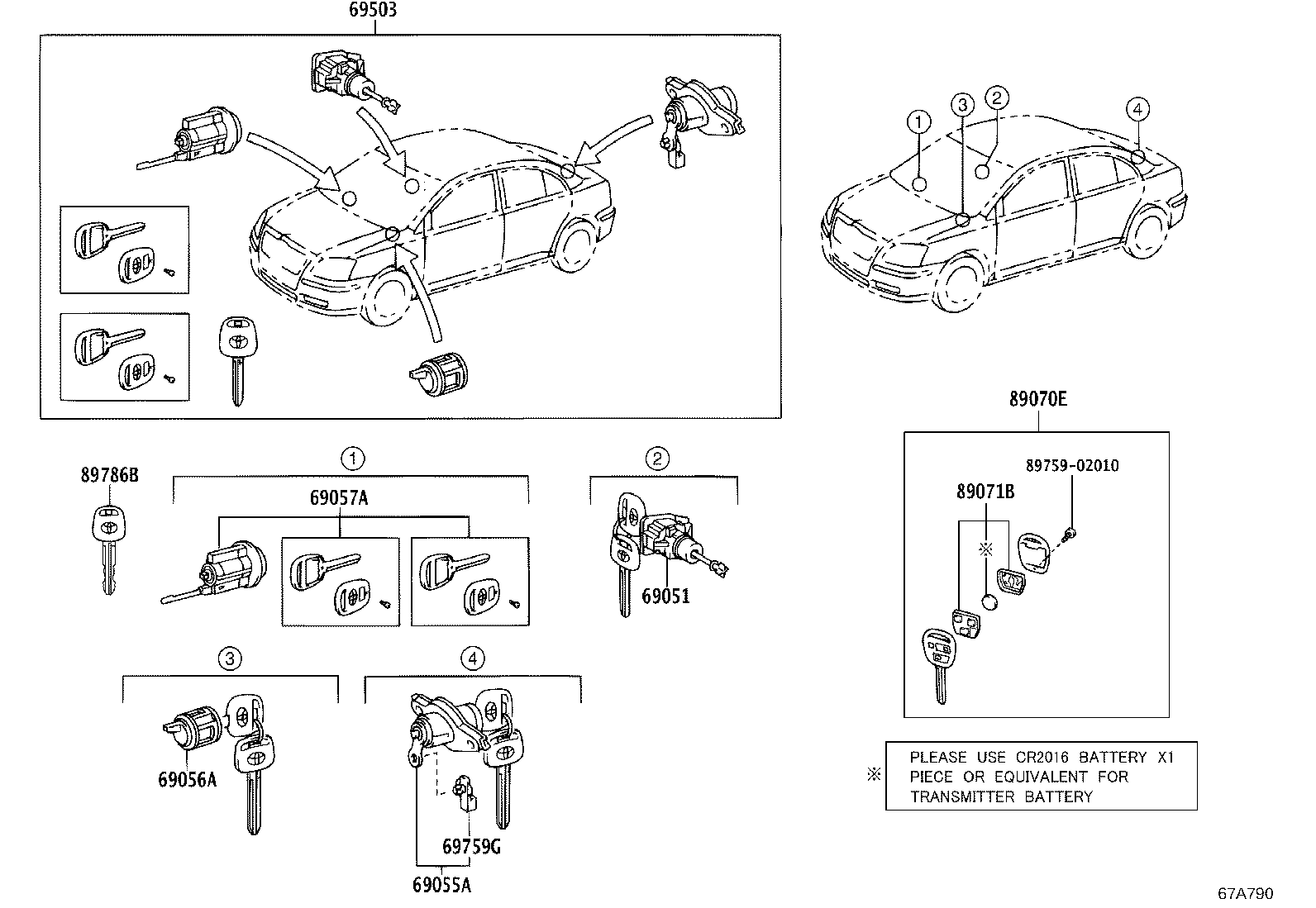

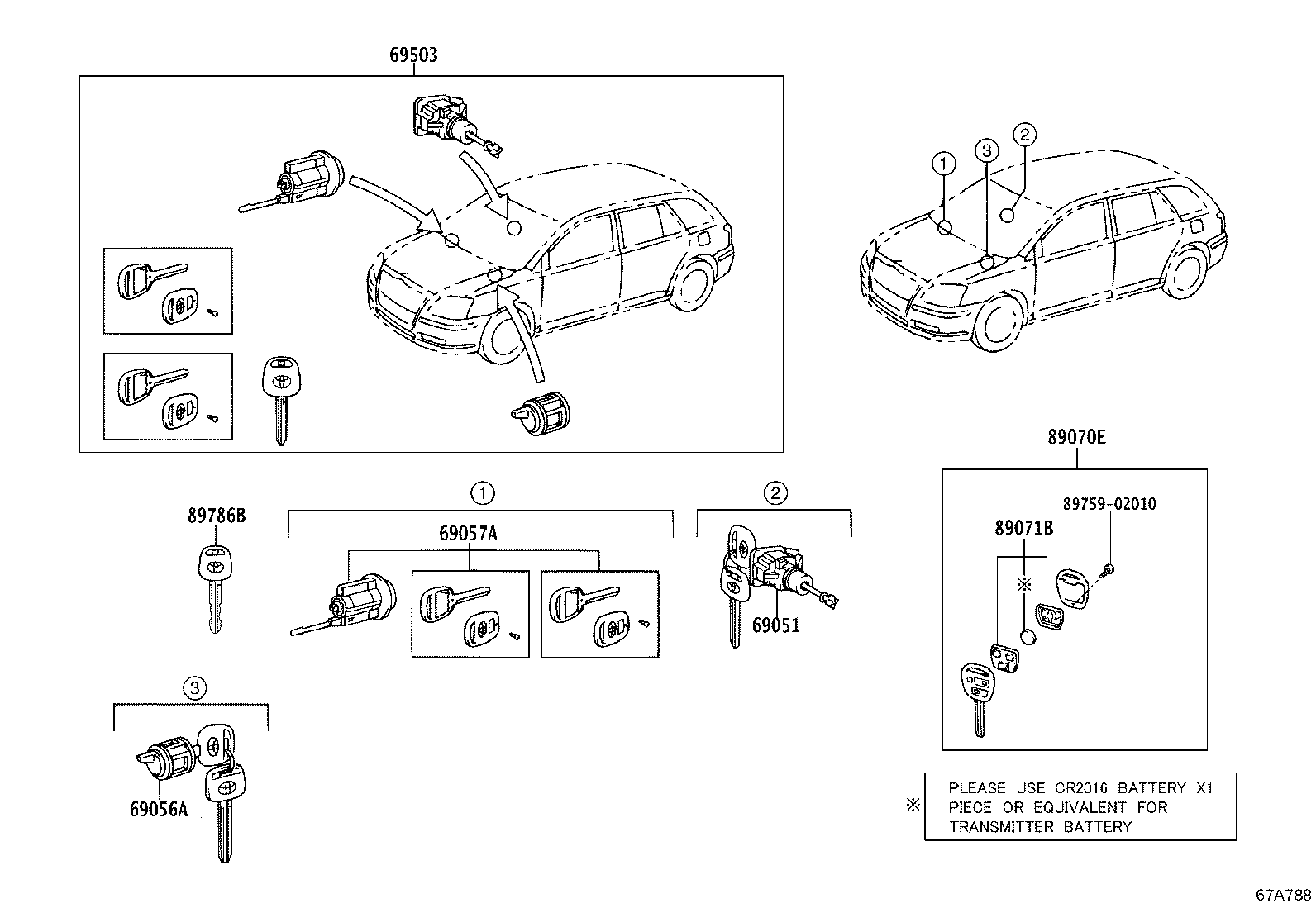

Figure 67A787 67A787 2003-01 → — Figure 67A788 67A788 2003-01 → — Figure 67A789 67A789 2003-01 → — Figure 67A790 67A790 2003-01 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055A Cylinder & Key Set, Luggage Compartment Lock
69056A Cylinder & Key Set, Glove Compartment Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503B Key, Cut
69759G Snap, Luggage Door Lock Cylinder
89070E Transmitter Assy, Door Control
89071B Module Set, Transmitter Sub-assy, Door Control
89786B Transmitter, Transponder Key Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
