Toyota Avensis
2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe
Supported model
Data version 2009-04

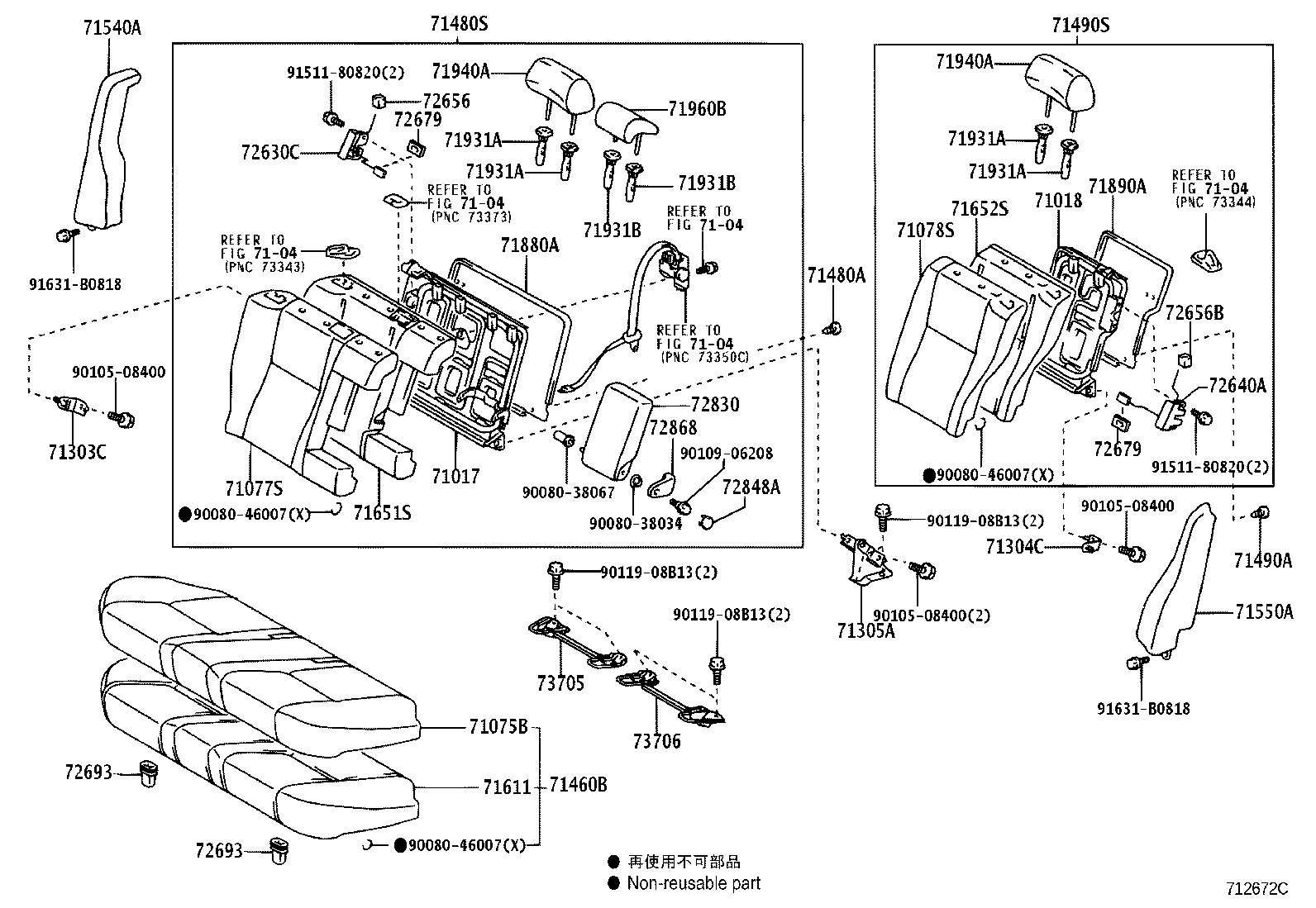

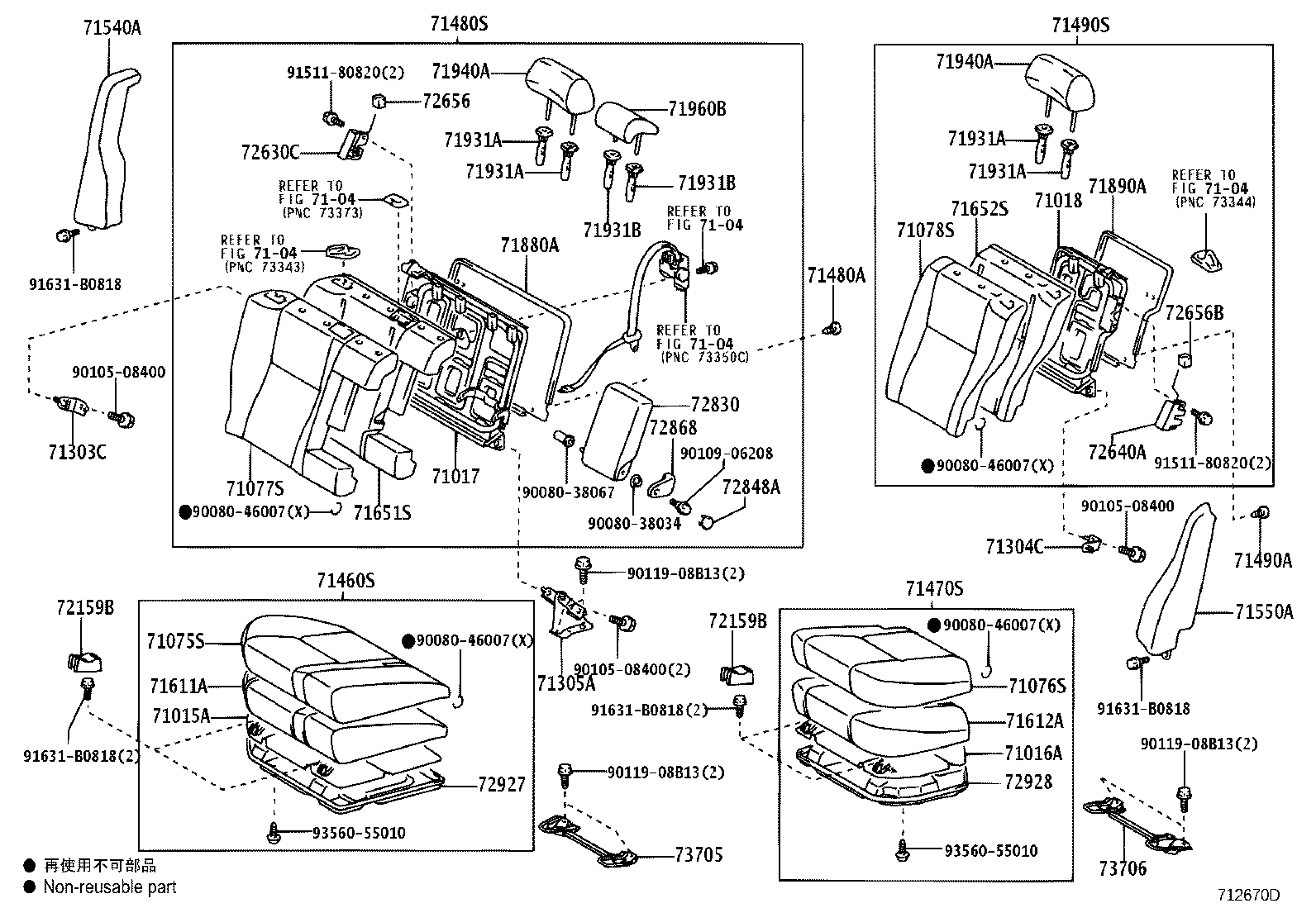

Rear Seat & Seat Track
49 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 71015A | Frame Sub-assy, Rear Seat Cushion, RH |
| 71016A | Frame Sub-assy, Rear Seat Cushion, LH |
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71075S | Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE) |
| 71076S | Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71077B | Cover, Rear Seatback (FOR BENCH TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71303C | Hinge Sub-assy, Rear Seatback, RH |
| 71304C | Hinge Sub-assy, Rear Seatback, LH |
| 71305A | Hinge Sub-assy, Rear Seatback, Center |
| 71460B | Cushion Assy, Rear Seat (FOR BENCH TYPE) |
| 71460S | Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE) |
| 71470S | Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE) |
| 71480A | Clip (FOR REAR SEATBACK) |
| 71480B | Back Assy, Rear Seat (FOR BENCH TYPE) |
| 71480S | Back Assy, Rear Seat, RH (FOR SEPARATE TYPE) |
| 71490A | Clip, Rear Seatback, LH |
| 71490S | Back Assy, Rear Seat, LH (FOR SEPARATE TYPE) |
| 71540A | Back Assy, Rear Side Seat, RH |
| 71550A | Back Assy, Rear Side Seat, LH |
| 71611 | Pad, Rear Seat Cushion |
| 71611A | Pad, Rear Seat Cushion, RH |
| 71612A | Pad, Rear Seat Cushion, LH |
| 71651B | Pad, Rear Seatback(FOR BENCH TYPE) |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71880A | Carpet Assy, Rear Seatback Board, RH |
| 71890A | Carpet Assy, Rear Seatback Board, LH |
| 71931A | Support, Rear Seat Headrest |
| 71931B | Support Assy, Rear NO.1 Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71960B | Headrest Assy, Rear Seat, Center |
| 72159B | Cover, Rear Seat Track Bracket, Outer |
| 72630C | Lock Assy, Rear Seatback, RH |
| 72640A | Lock Assy, Rear Seatback, LH |
| 72656 | Button, Rear Seatback Stop Release |
| 72656B | Button, Rear Seatback Stop Release |
| 72679 | Bezel, Rear Seatback Lock Control |
| 72693 | Hook, Rear Seat Cushion Lock |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72848A | Cap, Seat Armrest, NO.1 |
| 72868 | Cover, Center Armrest Hinge, RH |
| 72927 | Cover, Rear Seat Cushion Under, RH |
| 72928 | Cover, Rear Seat Cushion Under, LH |
| 73705 | Bracket Sub-assy, Child Restraint Seat Anchor, RH |
| 73706 | Bracket Sub-assy, Child Restraint Seat Anchor, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
