Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

23 part groups · 6 illustrations

Illustrations

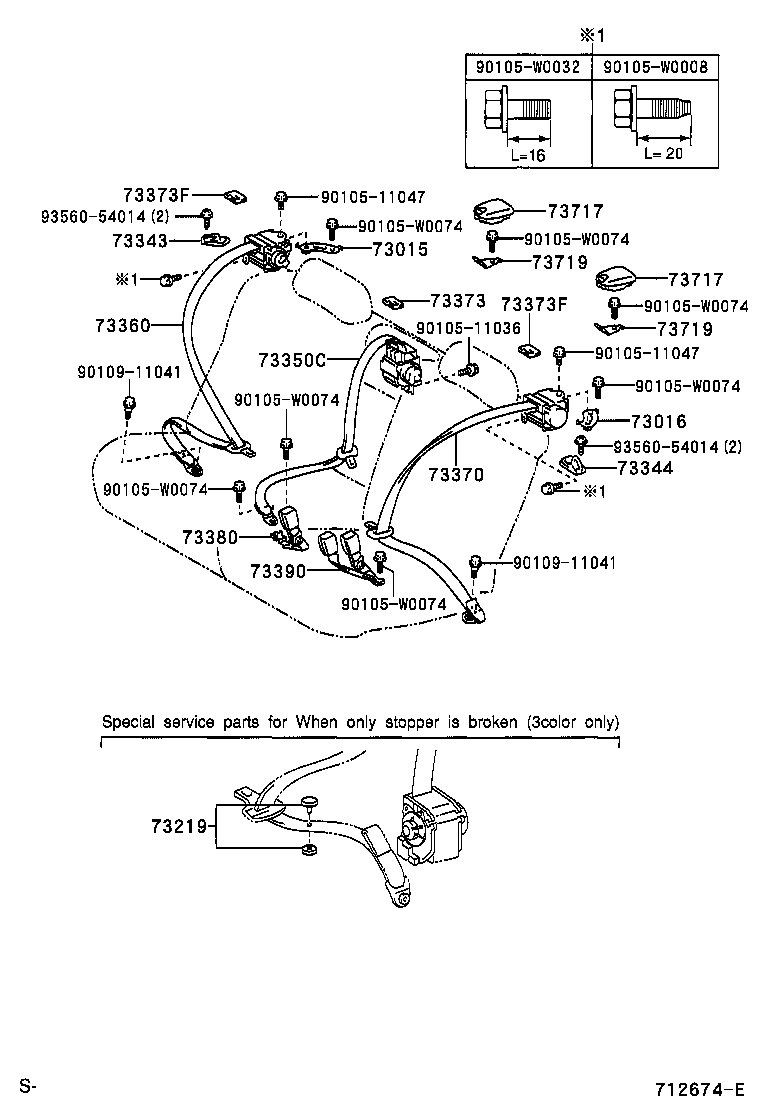

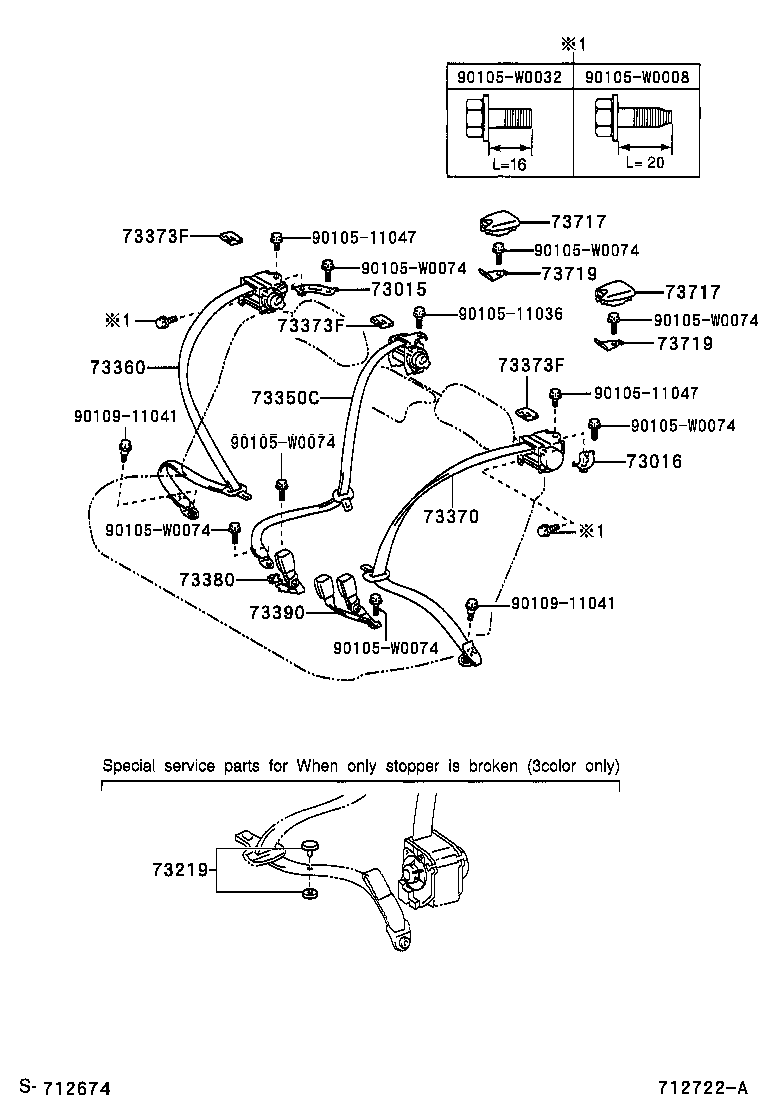

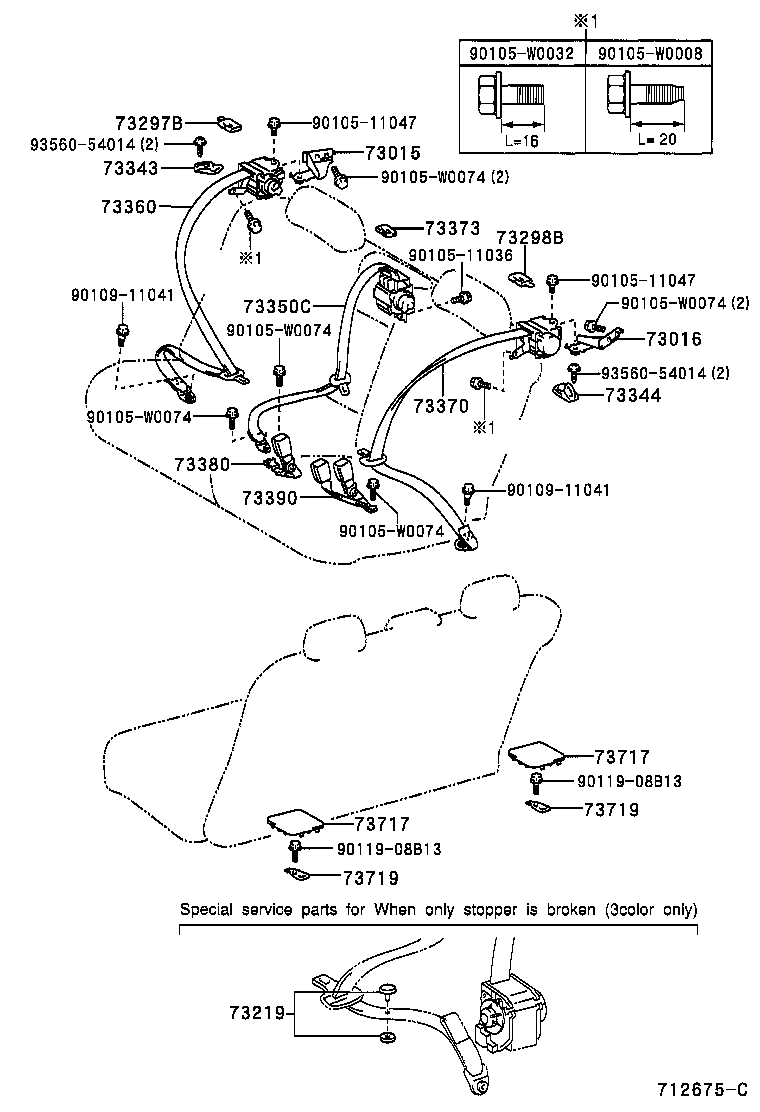

Figure 712673E 712673E 2003-01 → — Figure 712722A 712722A 2003-01 → 2006-04 Figure 712674E 712674E 2003-01 → 2006-04 Figure 712674E 712674E 2006-04 → — Figure 712675C 712675C 2003-01 → 2006-04 Figure 712675C 712675C 2006-04 → —

Part groups

PNCDescription
73015 Bracket Sub-assy, Belt Outer Anchor, RH
73016 Bracket Sub-assy, Belt Outer Anchor, LH
73135 Cover, Shoulder Belt Anchorage Plate
73136D Cover, Shoulder Belt Anchorage Plate
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73297B Cover, Quarter Trim Belt Hole, RH
73298B Cover, Quarter Trim Belt Hole, LH
73343 Guide, Rear Seat Shoulder Belt, RH
73344 Guide, Rear Seat Shoulder Belt, LH
73350C Belt Assy, Rear Seat, Outer Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73373 Cover, Rear Seat Shoulder Belt
73373F Cover, Rear Seat Shoulder Belt Hole
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
73717 Cover, Child Restraint Seat Tether Anchor
73719 Bracket, Child Restraint Seat Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
