Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

22 part groups · 3 illustrations

Illustrations

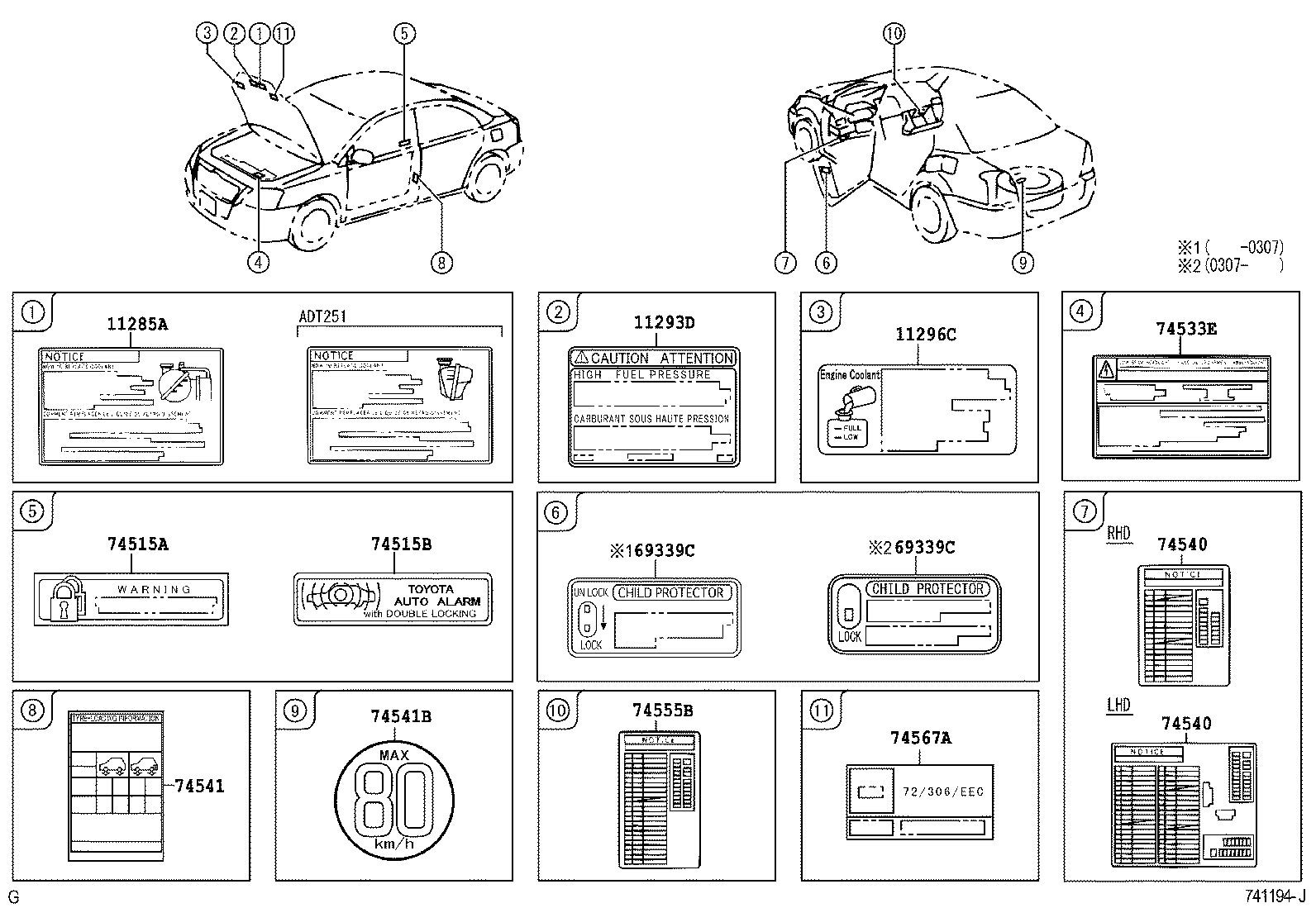

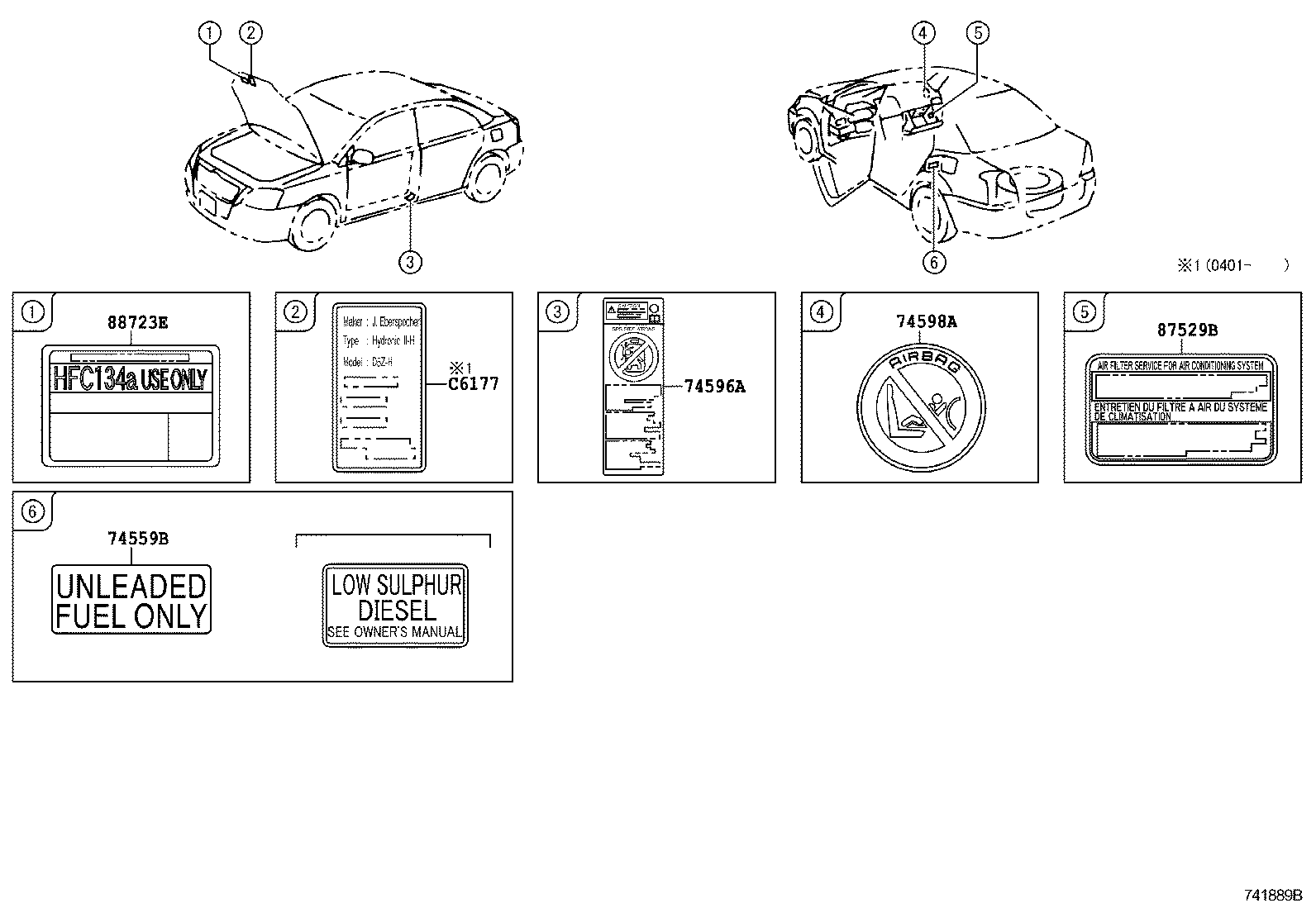

Figure 746131 746131 2003-01 → — Figure 741194J 741194J 2003-01 → — Figure 741889B 741889B 2003-01 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11289B Label, Spark Plug Notice
11291B Plate, Engine Name
11293D Label, Engine Caution
11295B Label, Engine Service Notice, NO.1
11296C Label, Engine Service Information
69339C Label, Child Protector Information
74515A Plate, Theft Warning
74515B Plate, Theft Warning
74533E Label, Headlamp Voltage Caution
74540 Plate, Fuse Block Caution
74541 Plate, Tire Pressure Caution
74541B Plate, Compact Spare Tire Caution
74555B Plate, Fuse Block Caution
74559B Label, Fuel Information
74559C Label, Fuel Information, NO.2
74567A Plate, E.C.E Approved Number
74596A Label, Side Airbag Caution
74598A Label, Passenger Airbag Caution
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
C6177 Label, Heater Notice
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
