Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

12 part groups · 7 illustrations

Illustrations

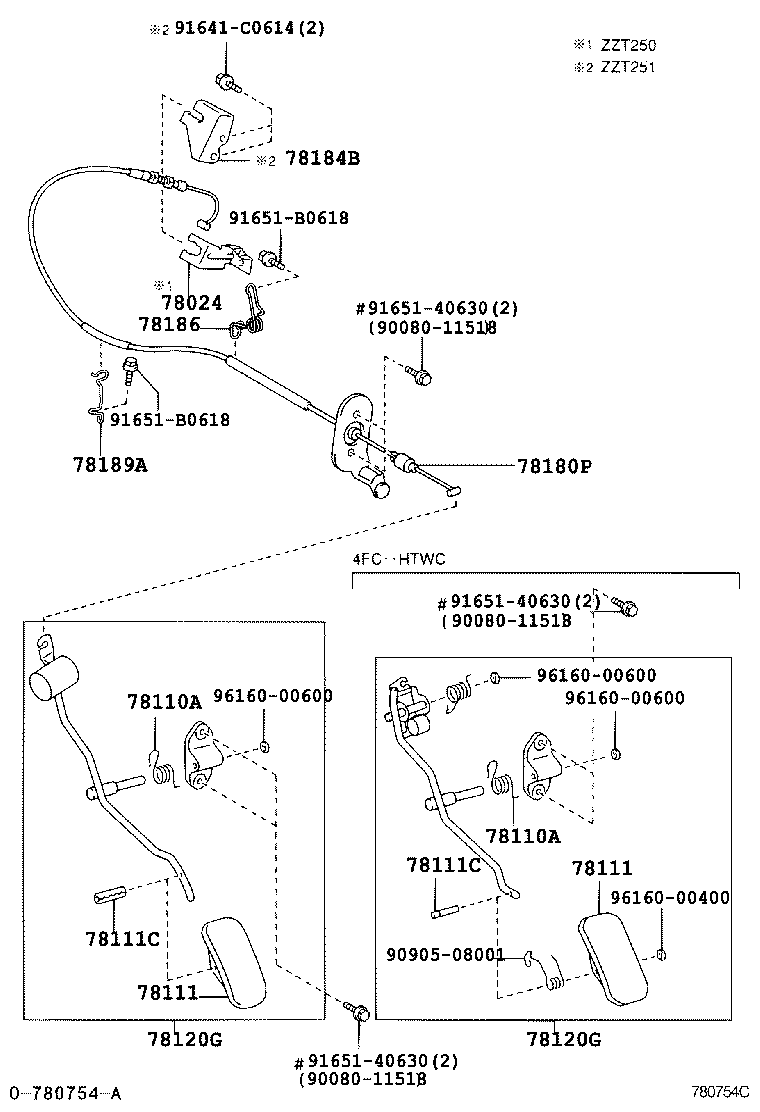

Figure 780753A 780753A 2003-01 → — Figure 780750A 780750A 2003-01 → — Figure 780750A 780750A 2004-02 → — Figure 780751 780751 2003-01 → — Figure 780751 780751 2004-02 → — Figure 780754C 780754C 2003-01 → 2004-02 Figure 780755A 780755A 2003-01 → 2004-02

Part groups

PNCDescription
78010F Pedal Assy, Accelerator
78024 Bracket Sub-assy, Accelerator Control Cable
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78111C Pin (FOR ACCELERATOR PEDAL)
78120G Rod Assy, Accelerator Pedal
78180P Cable Assy, Accelerator Control
78183B Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78186 Support, Accelerator Control Cable, NO.1
78189A Support, Accelerator Control Cable, NO.2
78193A Support, Accelerator Control Cable, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
