Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

8 part groups · 3 illustrations

Illustrations

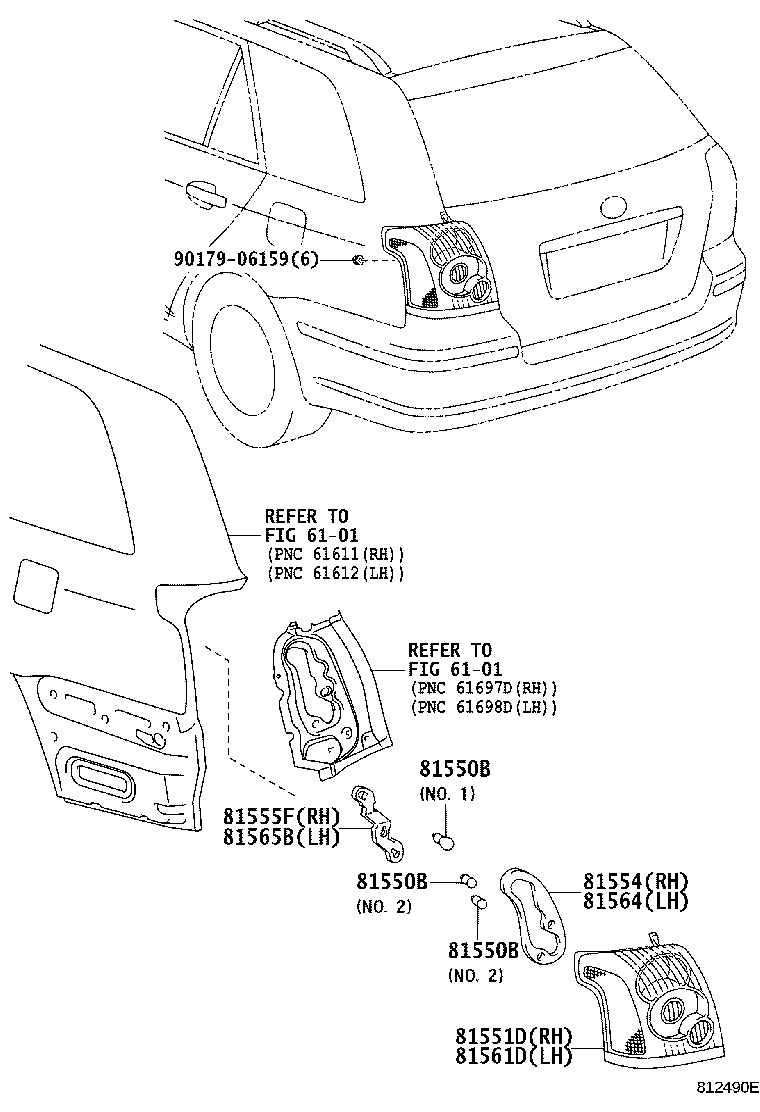

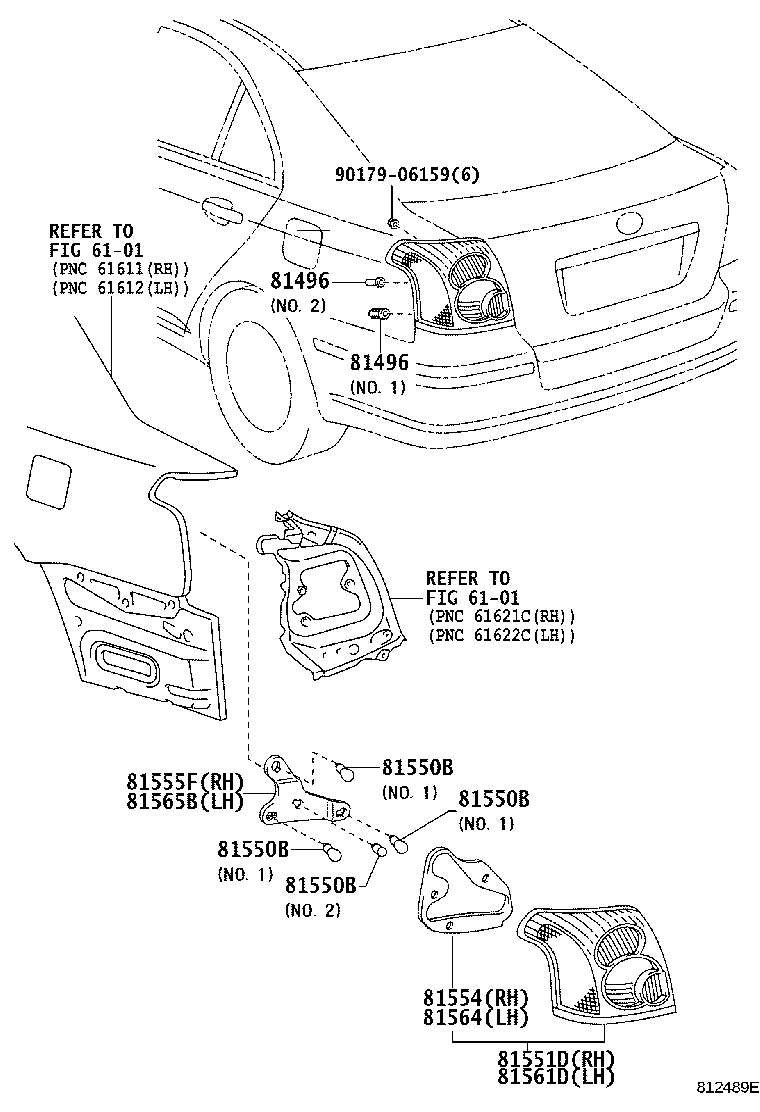

Figure 812488F 812488F 2003-01 → — Figure 812489E 812489E 2003-01 → — Figure 812490E 812490E 2003-01 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81550B Bulb(FOR REAR COMBINATION LAMP)
81551D Lens & Body, Rear Combination Lamp, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555F Holder, Rear Combination Lamp Bulb, RH
81561D Lens & Body, Rear Combination Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565B Holder, Rear Combination Lamp Bulb, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
