Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

14 part groups · 2 illustrations

Illustrations

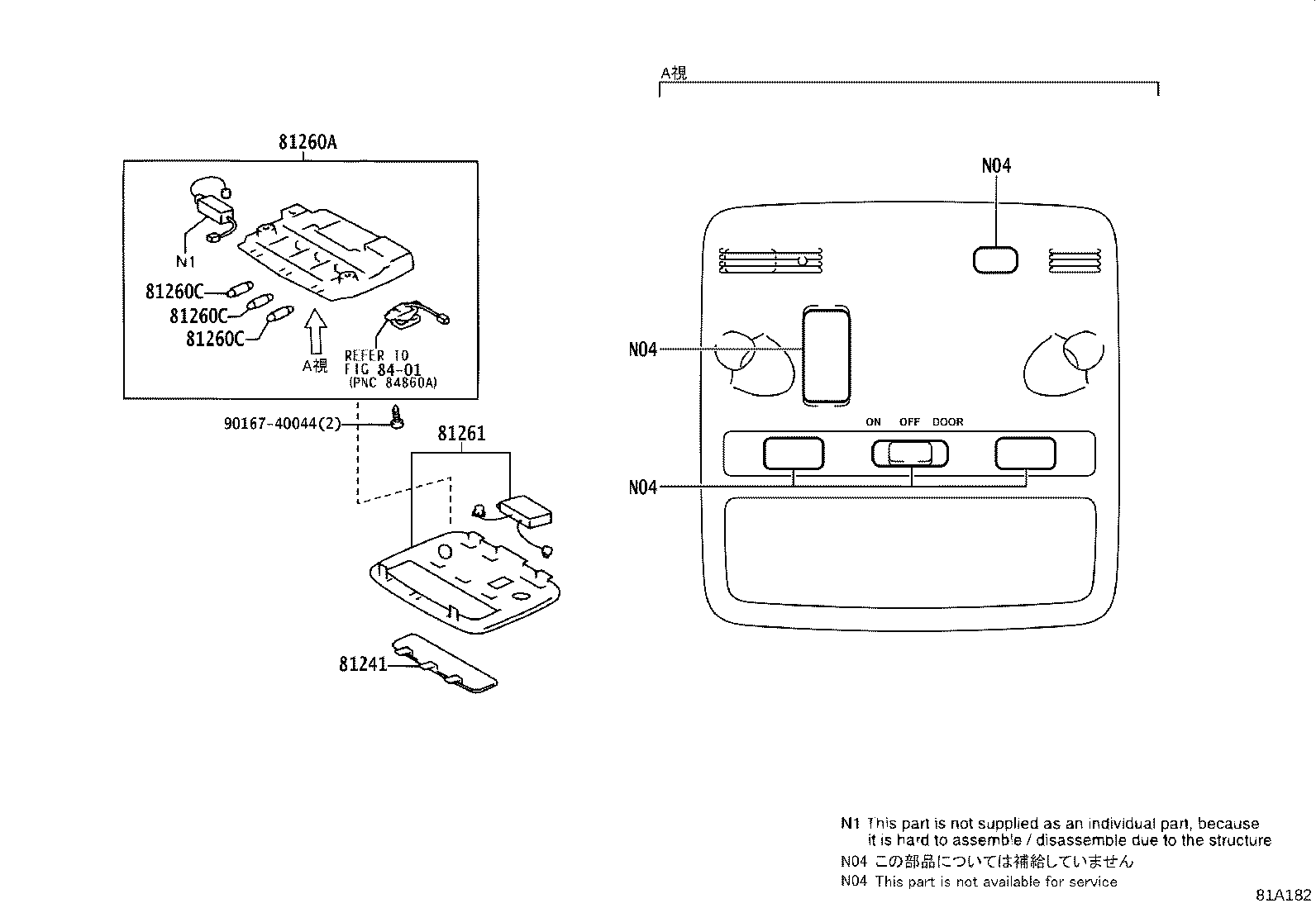

Figure 812478I 812478I 2003-01 → — Figure 81A182 81A182 2003-01 → —

Part groups

PNCDescription
81230 Lamp Assy, Courtesy
81230B Bulb(FOR COURTESY LAMP)
81240D Lamp Assy, Room, NO.2
81240E Bulb, Room Lamp, NO.2
81241 Lens, Room Lamp, NO.1
81241A Lens, Room Lamp, NO.2
81260 Lamp Assy, Glove Box
81260A Lamp Assy, Map
81260C Bulb(FOR MAP LAMP)
81260F Bulb(FOR GLOVE BOX LAMP)
81261 Lens And Cover, Map Lamp
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
81340B Bulb (FOR VANITY LAMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
