Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

62 part groups · 25 illustrations

Illustrations

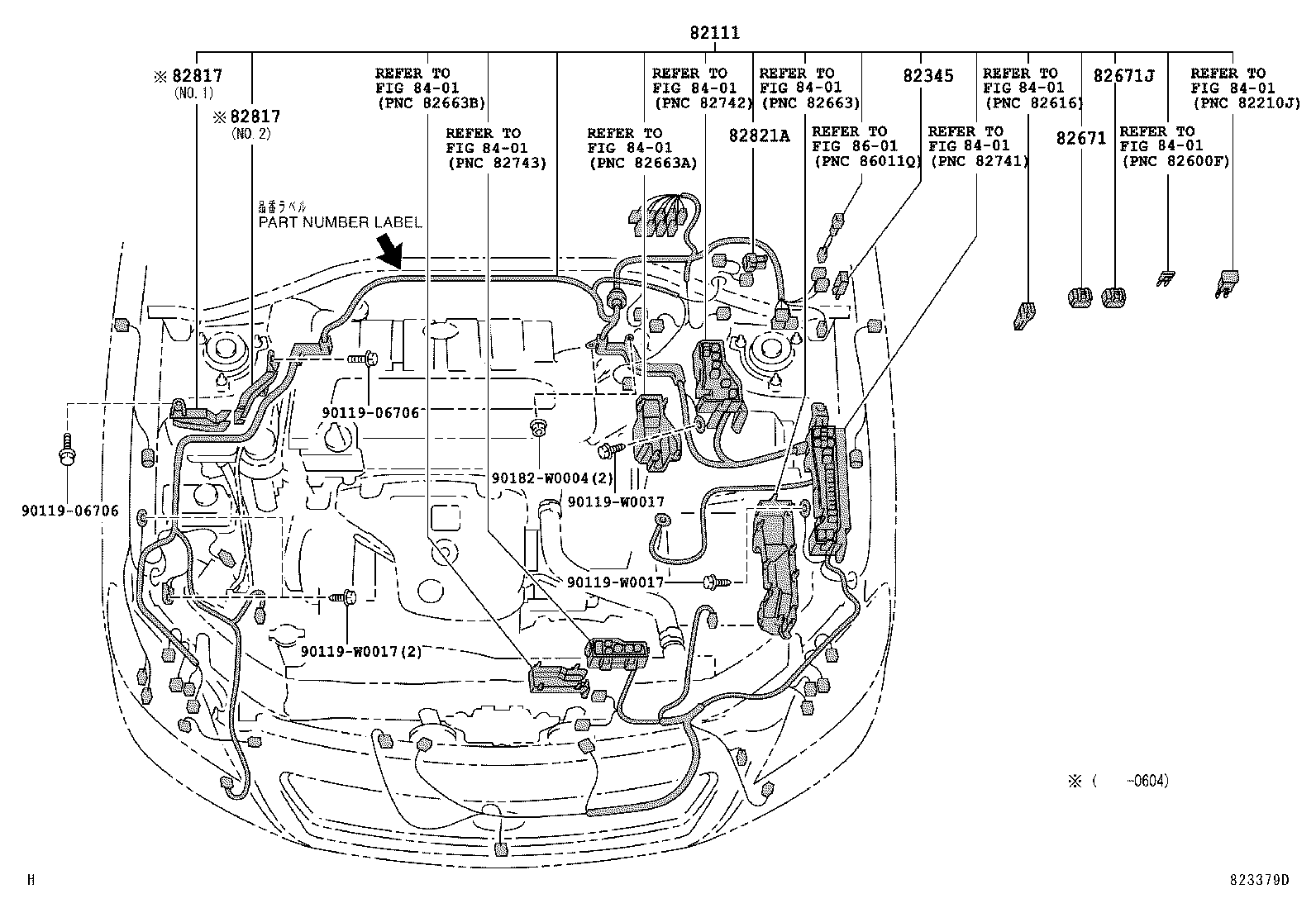

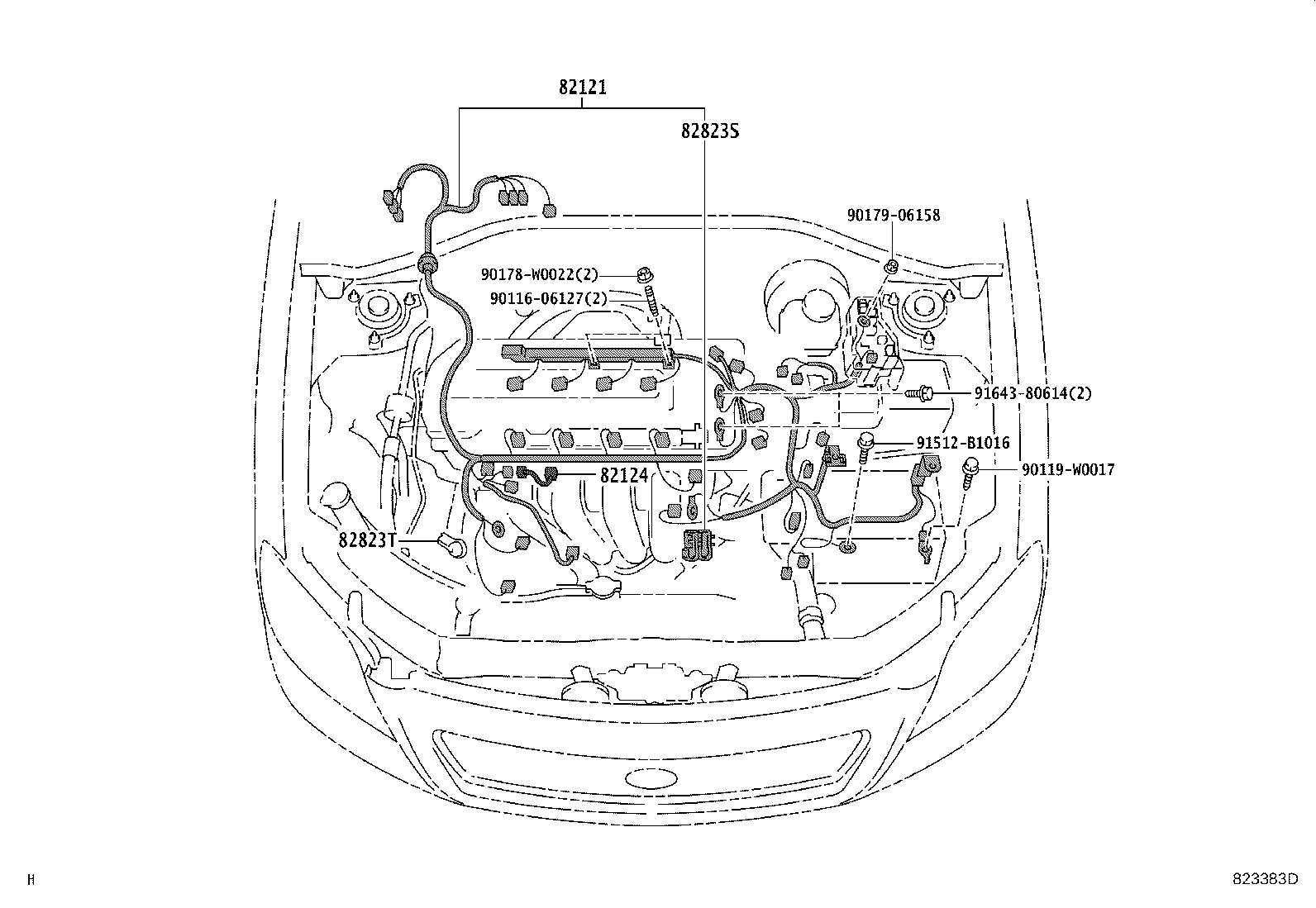

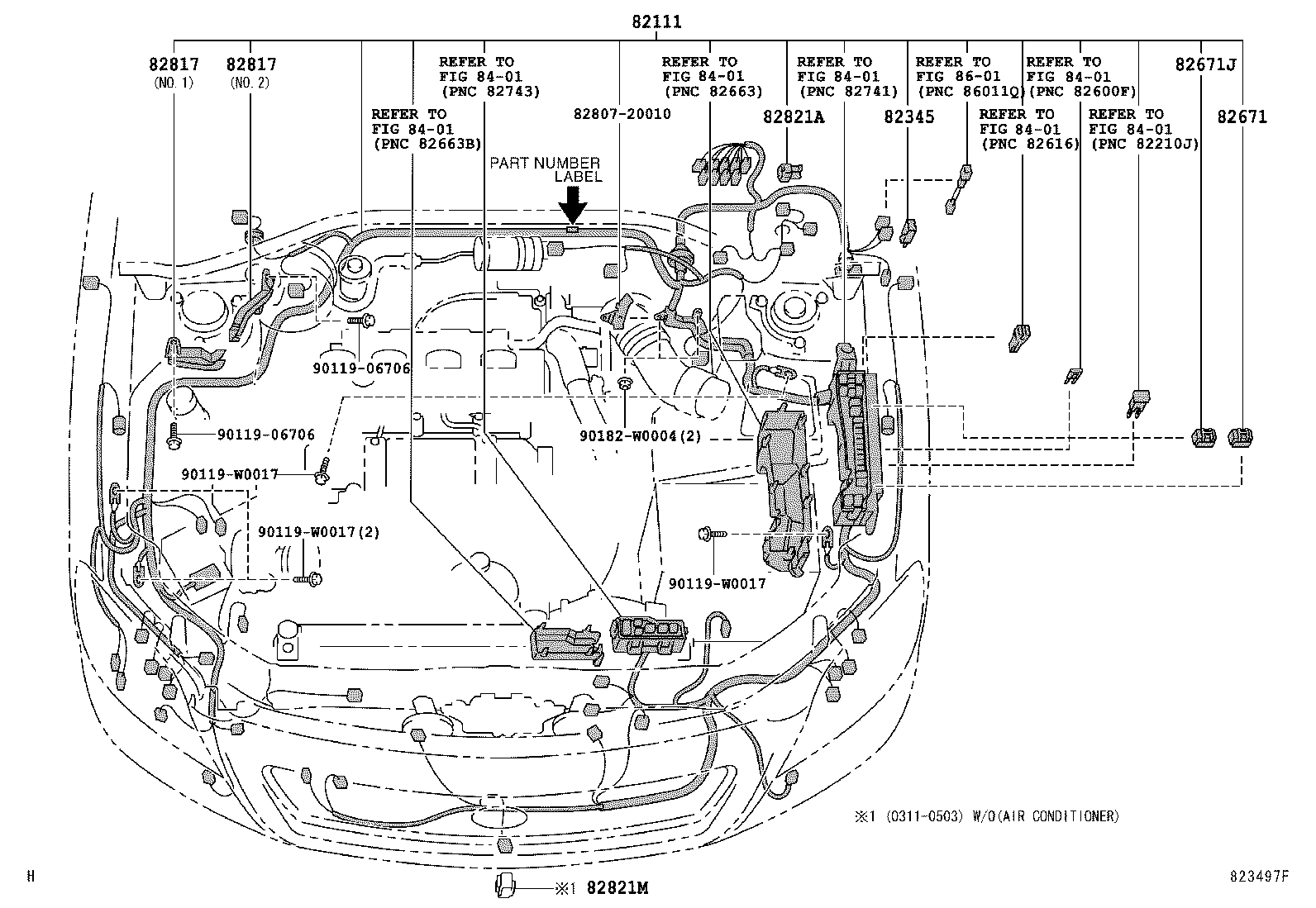

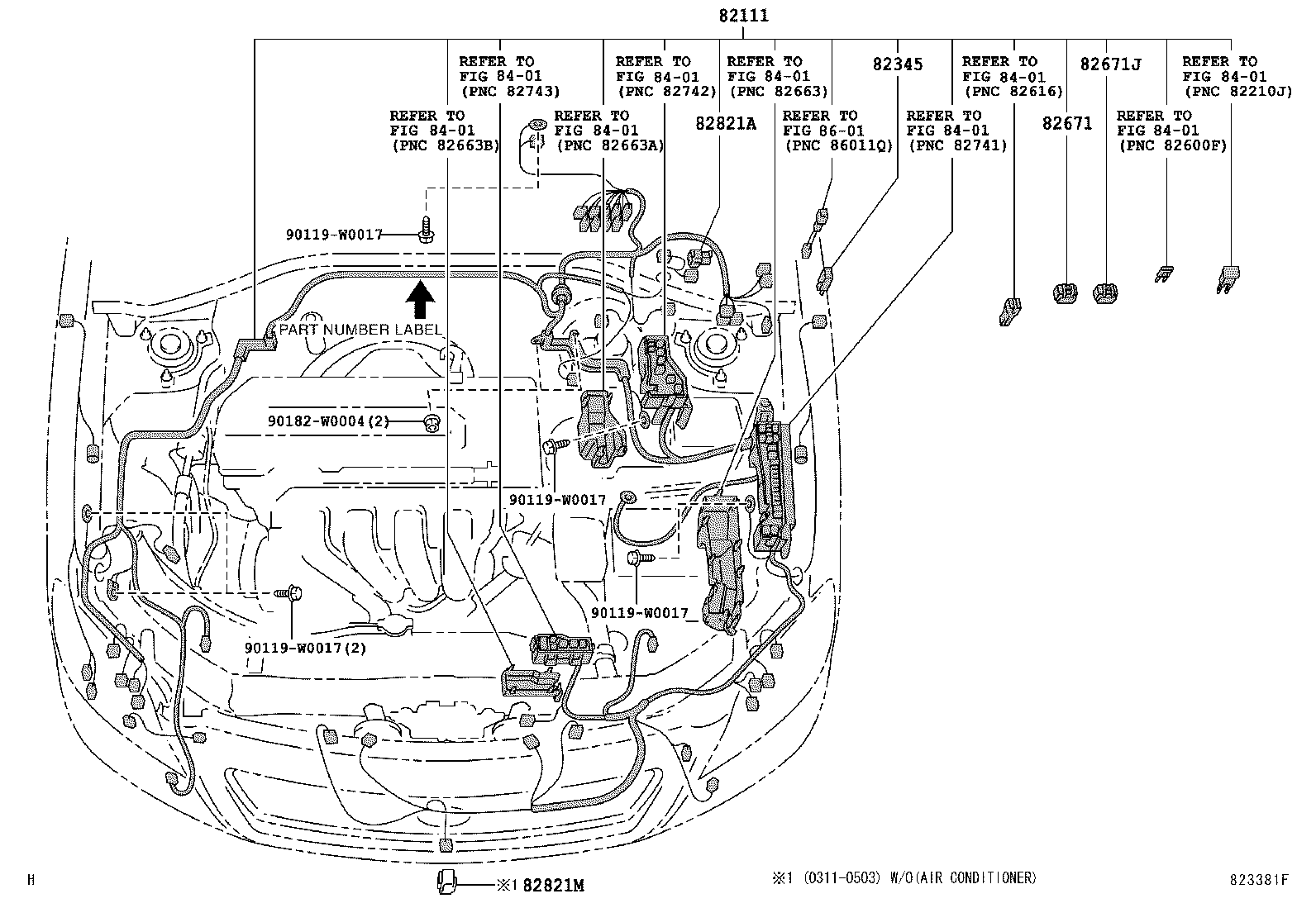

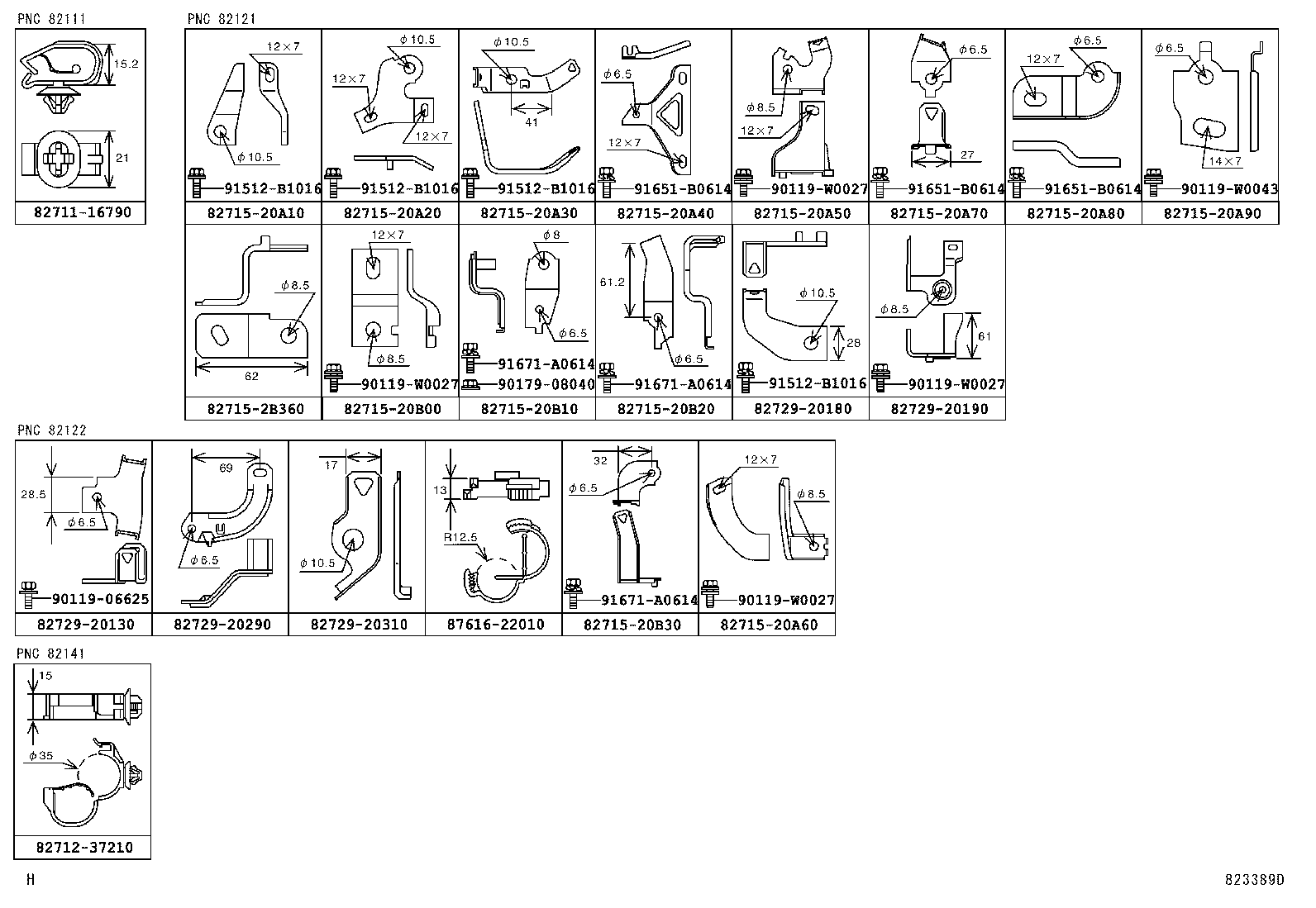

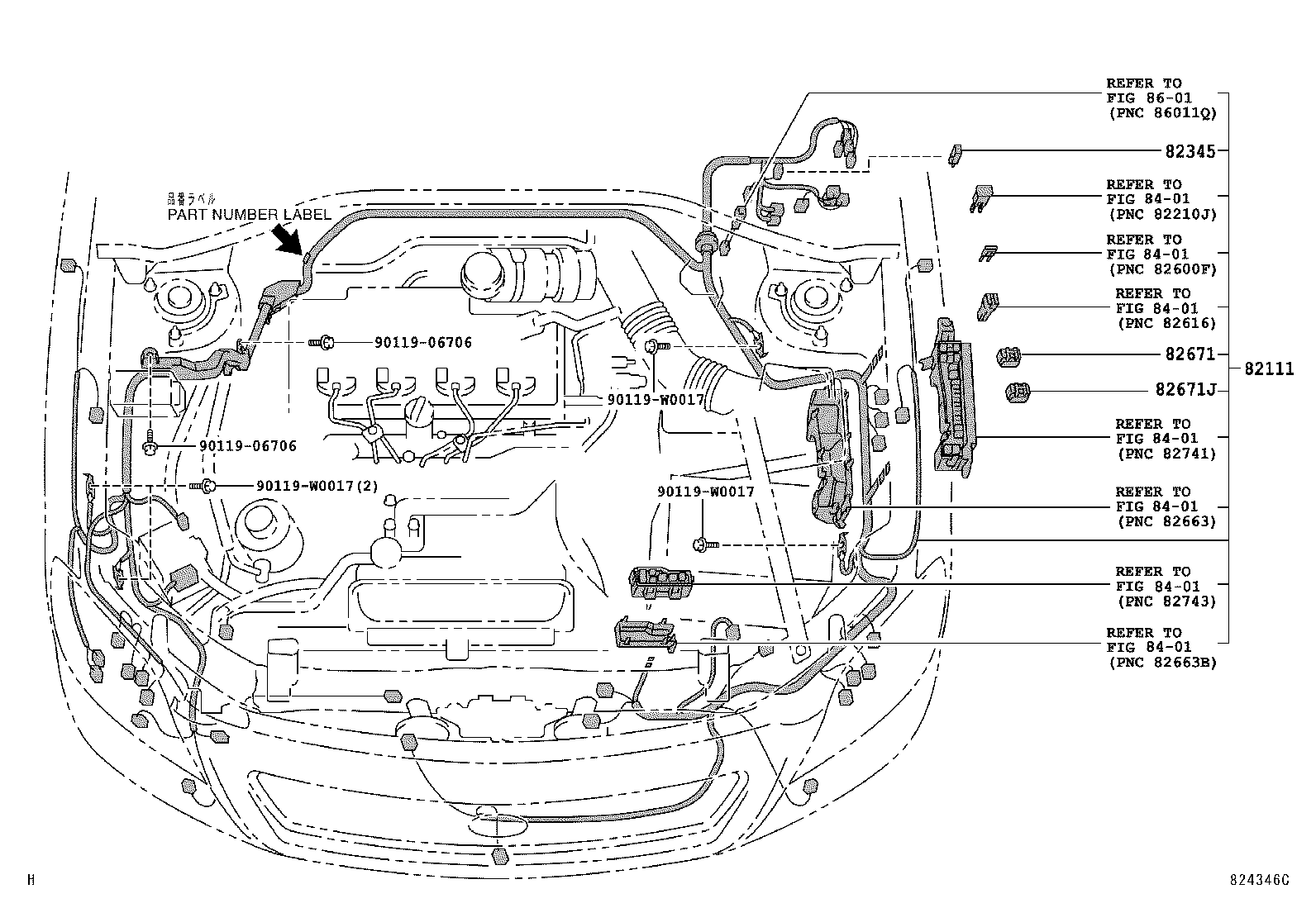

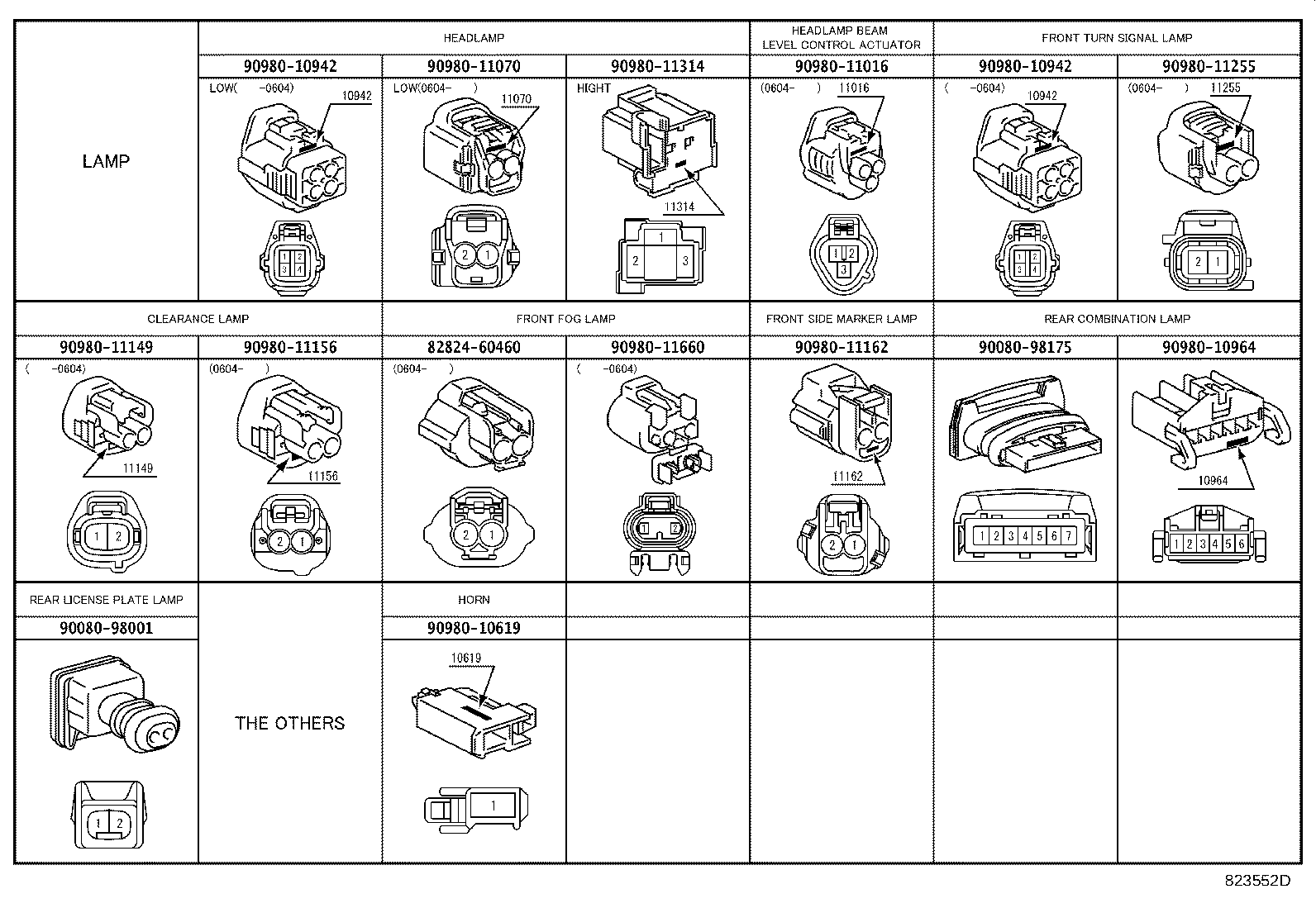

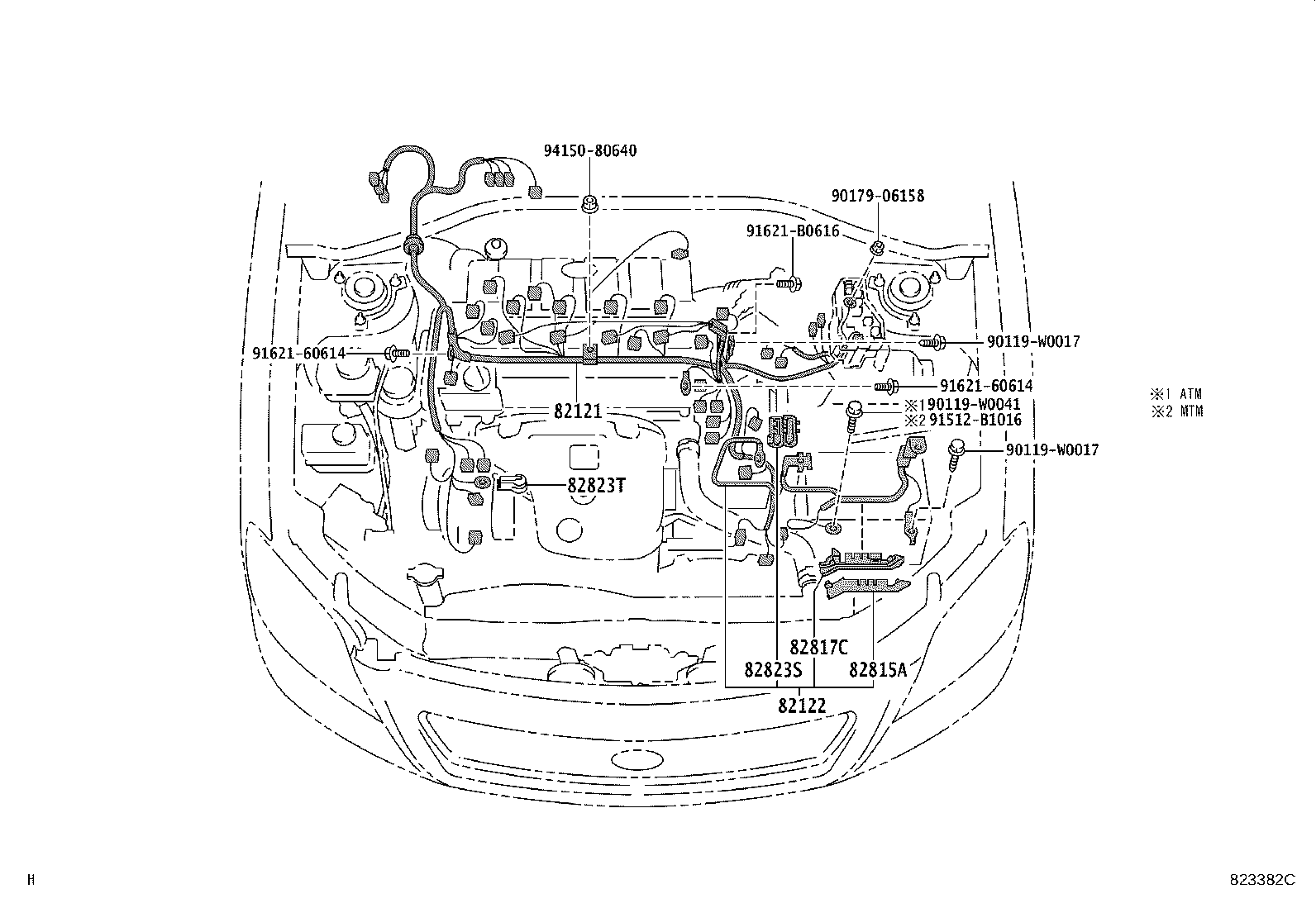

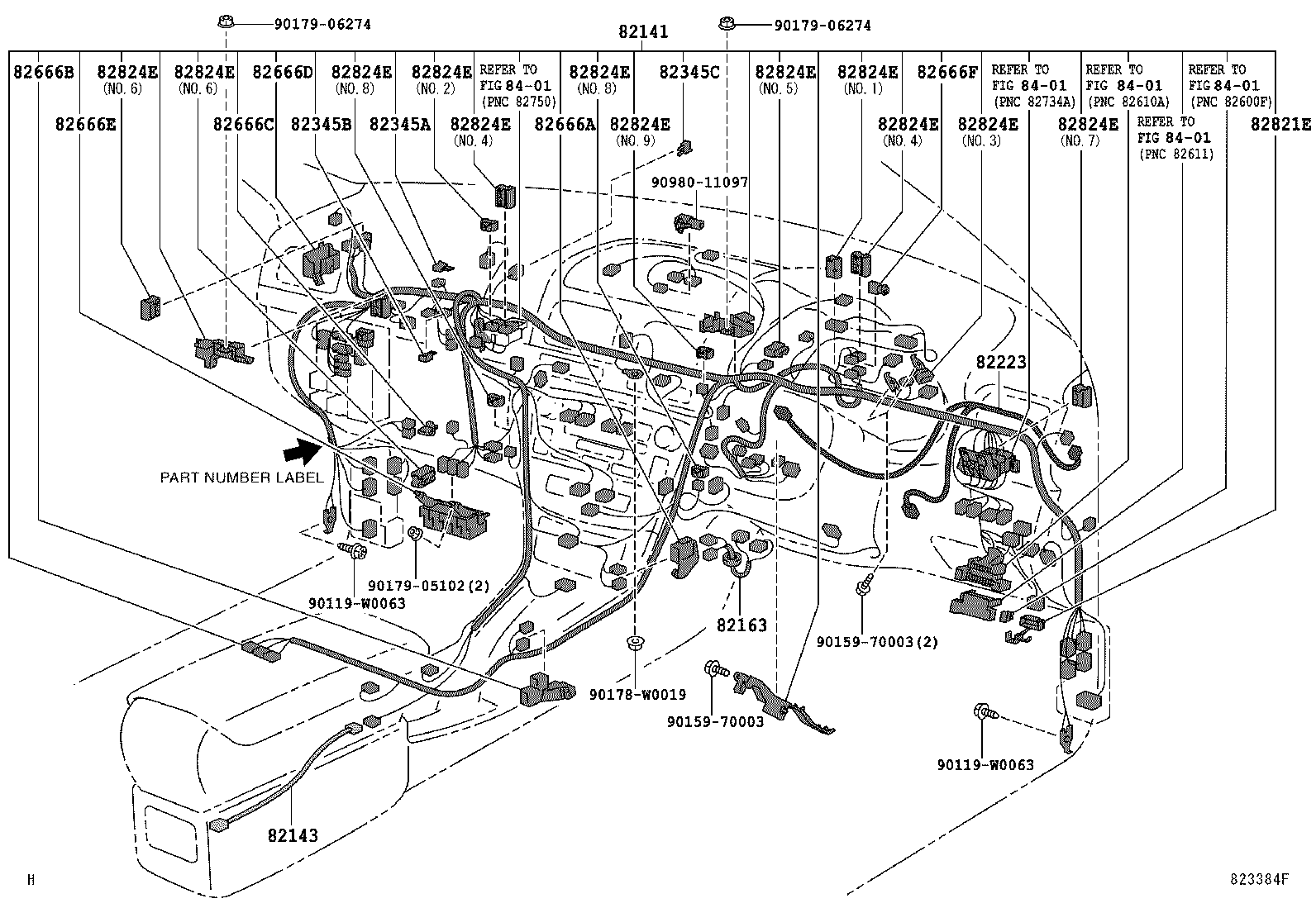

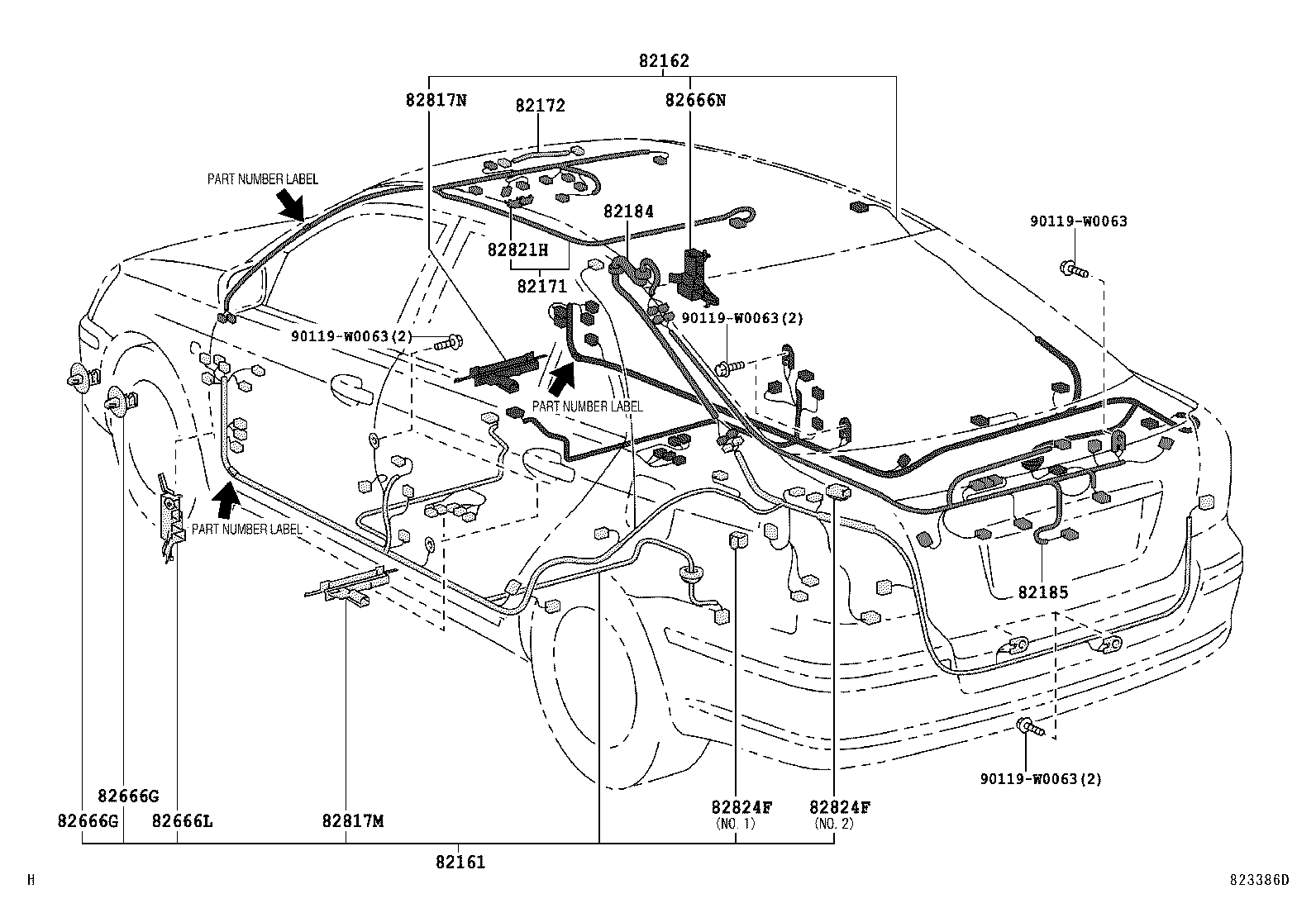

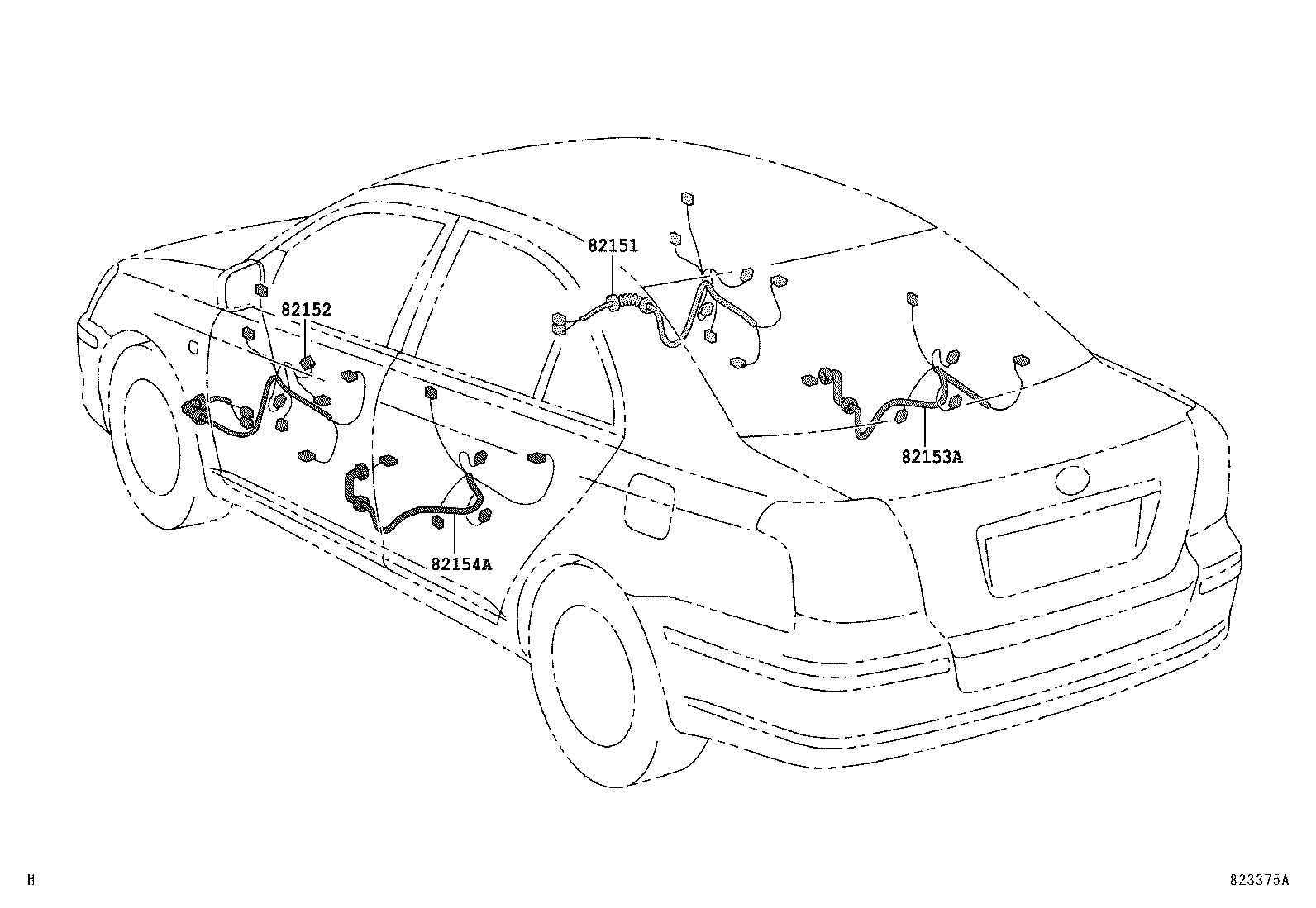

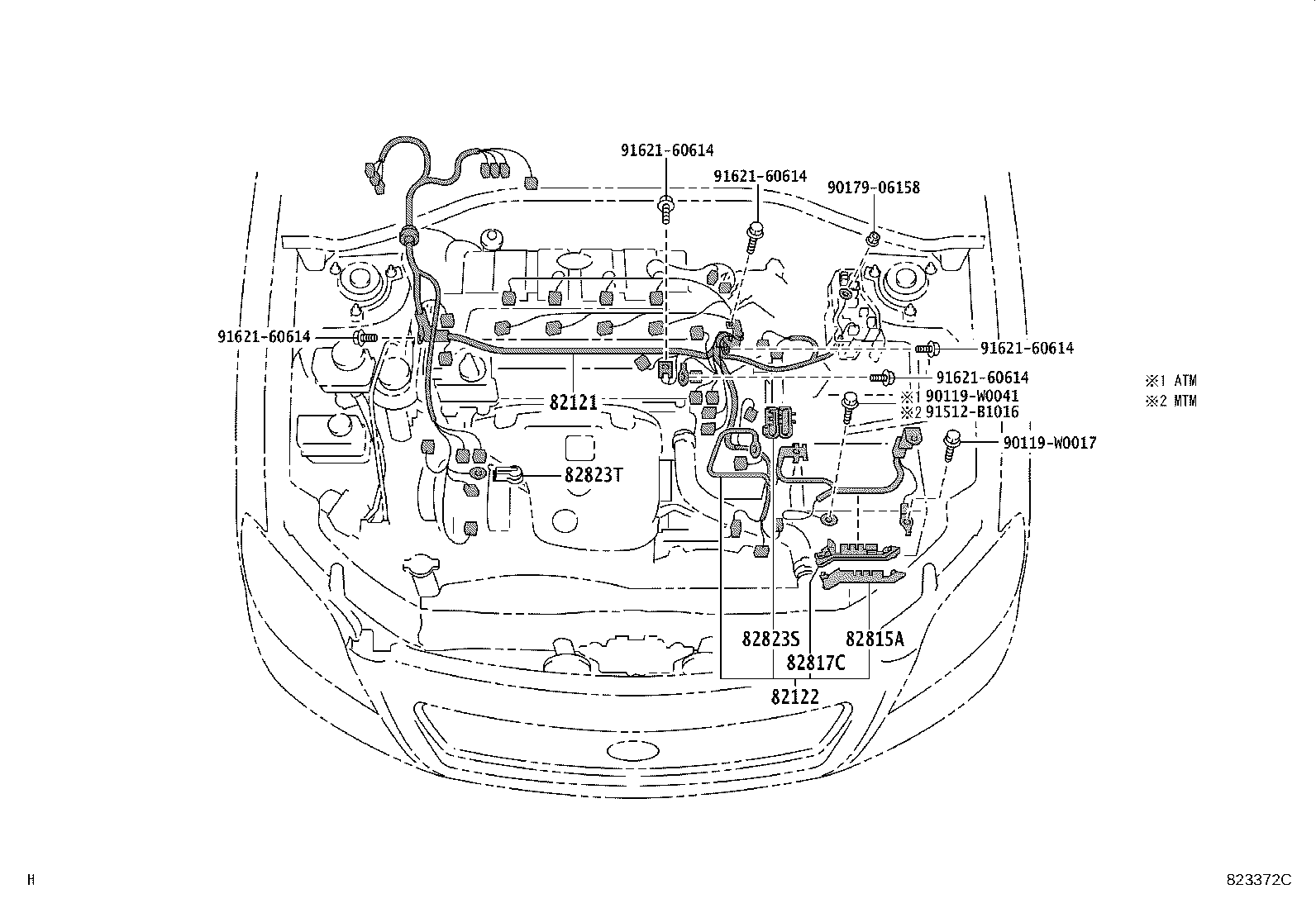

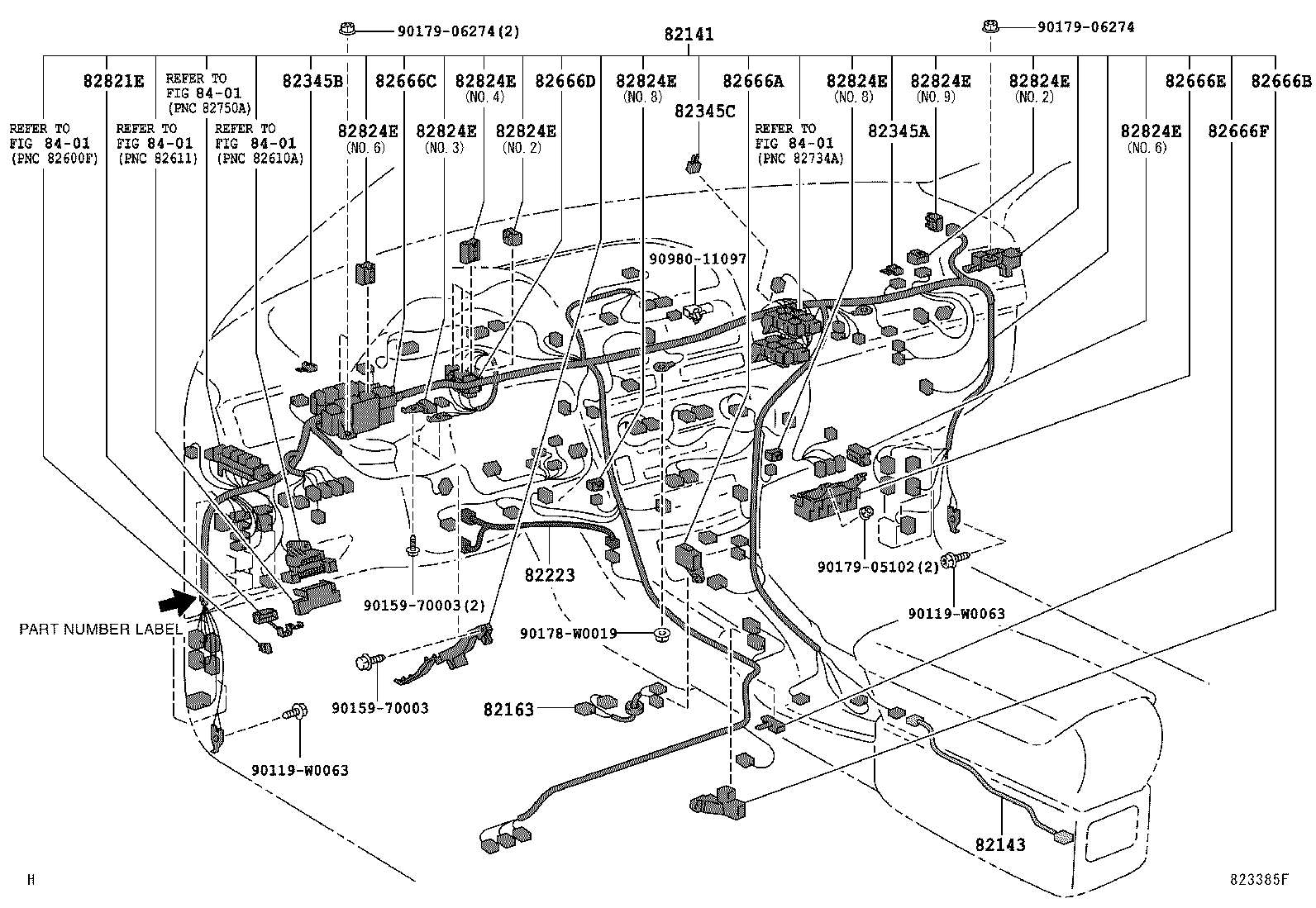

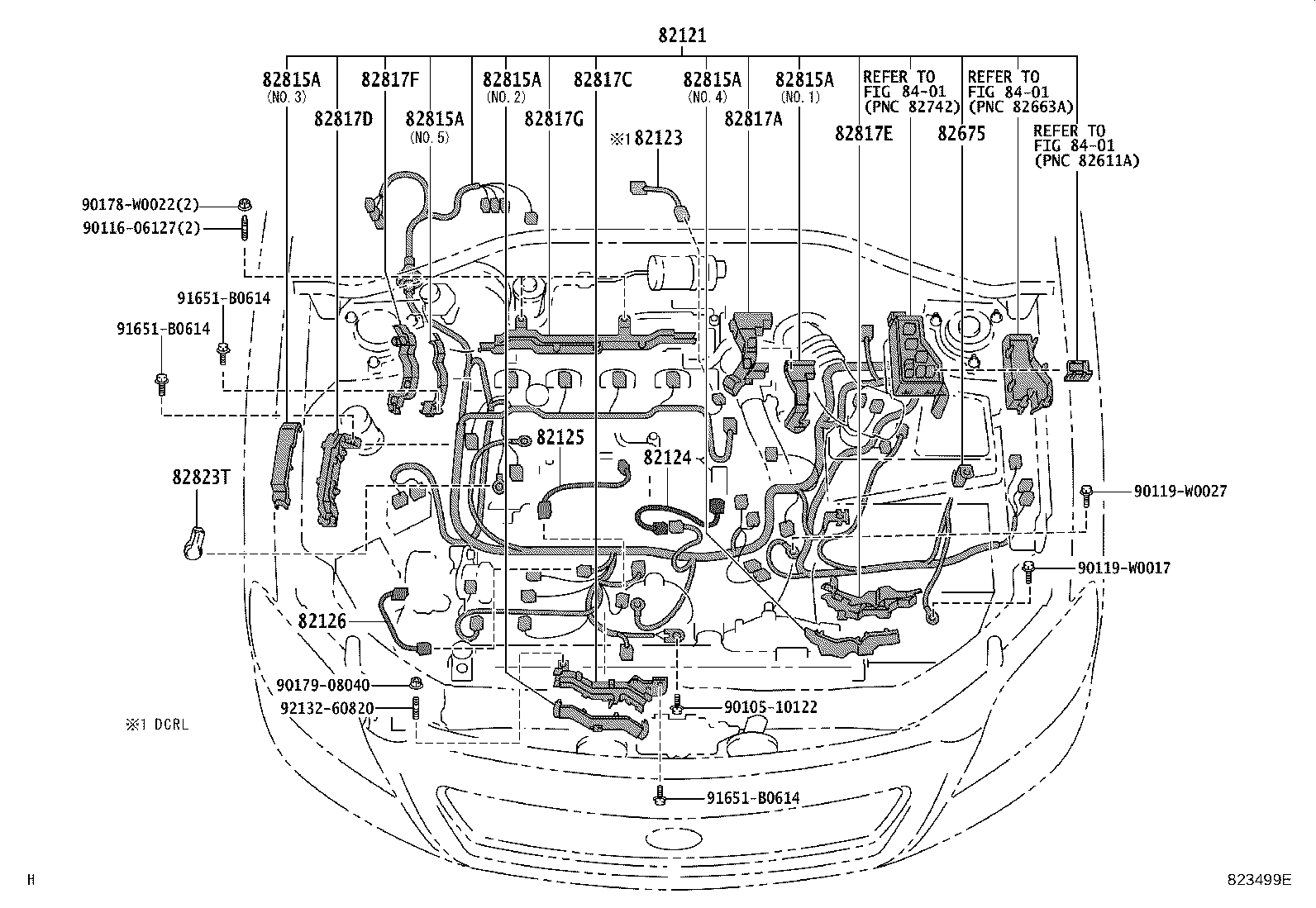

Figure 823550C 823550C 2003-01 → — Figure 823379D 823379D 2003-01 → — Figure 823380F 823380F 2003-01 → — Figure 823381F 823381F 2003-01 → — Figure 823496F 823496F 2003-03 → 2006-04 Figure 823497F 823497F 2003-03 → 2006-04 Figure 824346C 824346C 2005-04 → — Figure 824347C 824347C 2005-04 → — Figure 823372C 823372C 2003-01 → — Figure 823382C 823382C 2003-01 → — Figure 823383D 823383D 2003-01 → — Figure 823498E 823498E 2003-03 → 2006-04 Figure 823499E 823499E 2003-03 → 2006-04 Figure 824348E 824348E 2005-04 → — Figure 823384F 823384F 2003-01 → — Figure 823385F 823385F 2003-01 → — Figure 823375A 823375A 2003-01 → — Figure 823391D 823391D 2003-01 → — Figure 823386D 823386D 2003-01 → — Figure 823387D 823387D 2003-01 → — Figure 823388B 823388B 2003-01 → — Figure 823500F 823500F 2003-01 → — Figure 823389D 823389D 2003-01 → — Figure 823390E 823390E 2003-01 → — Figure 823552D 823552D 2003-01 → —

Part groups

PNCDescription

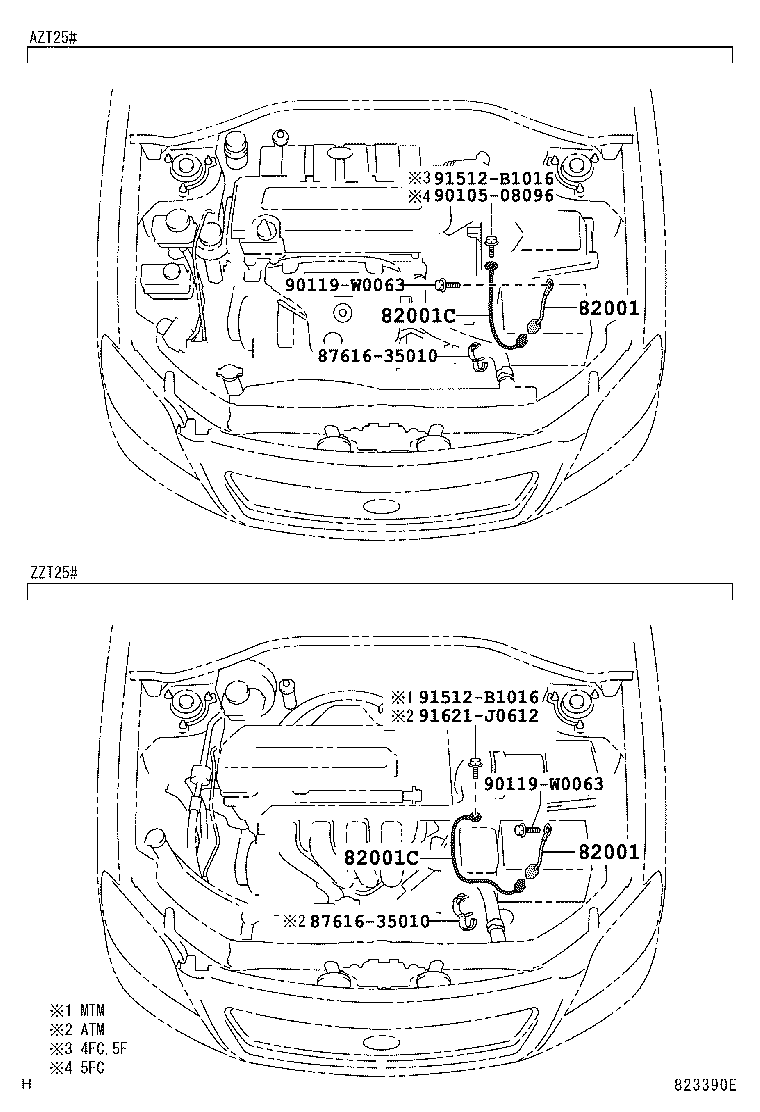

82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2

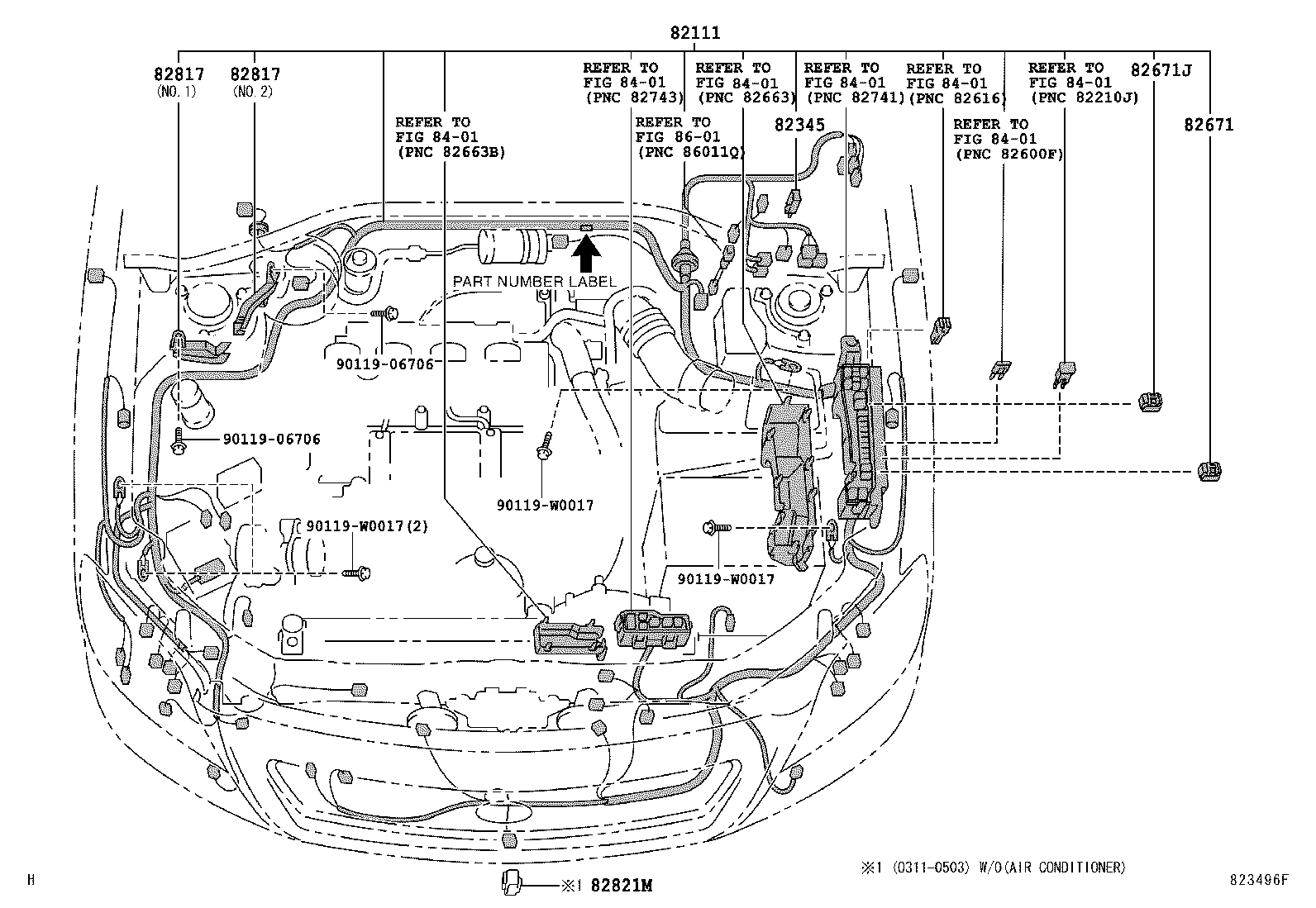

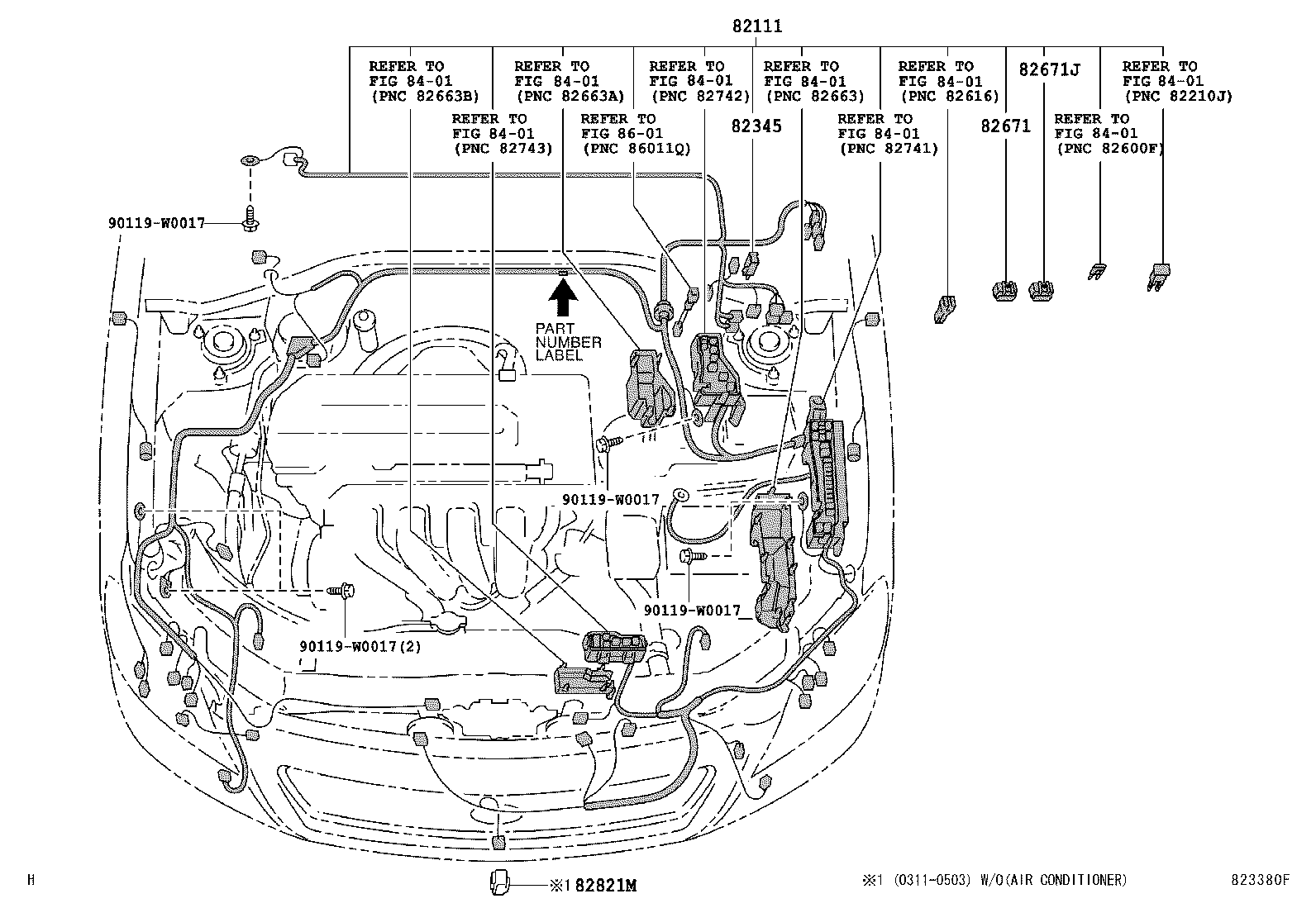

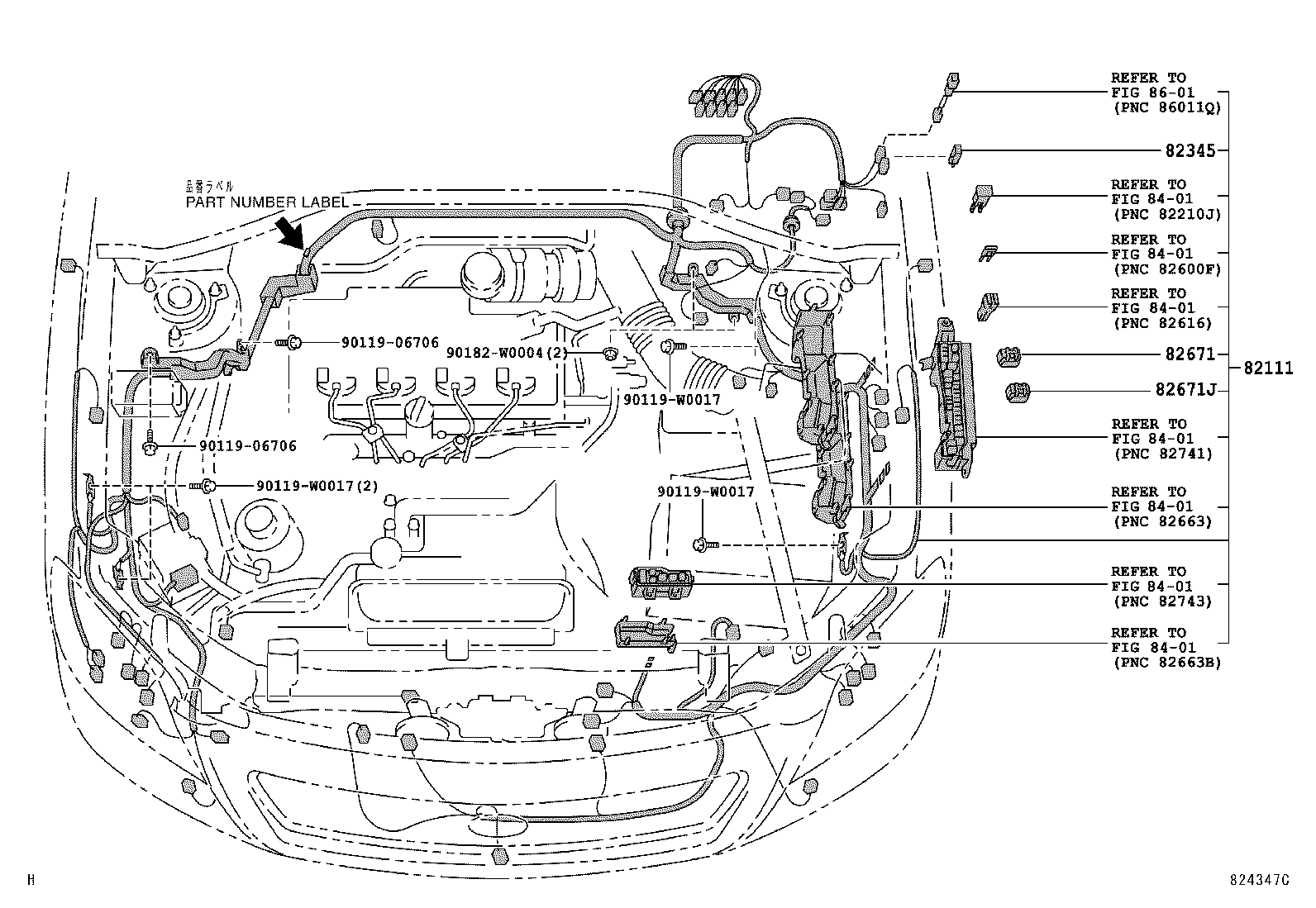

82111 Wire, Engine Room Main

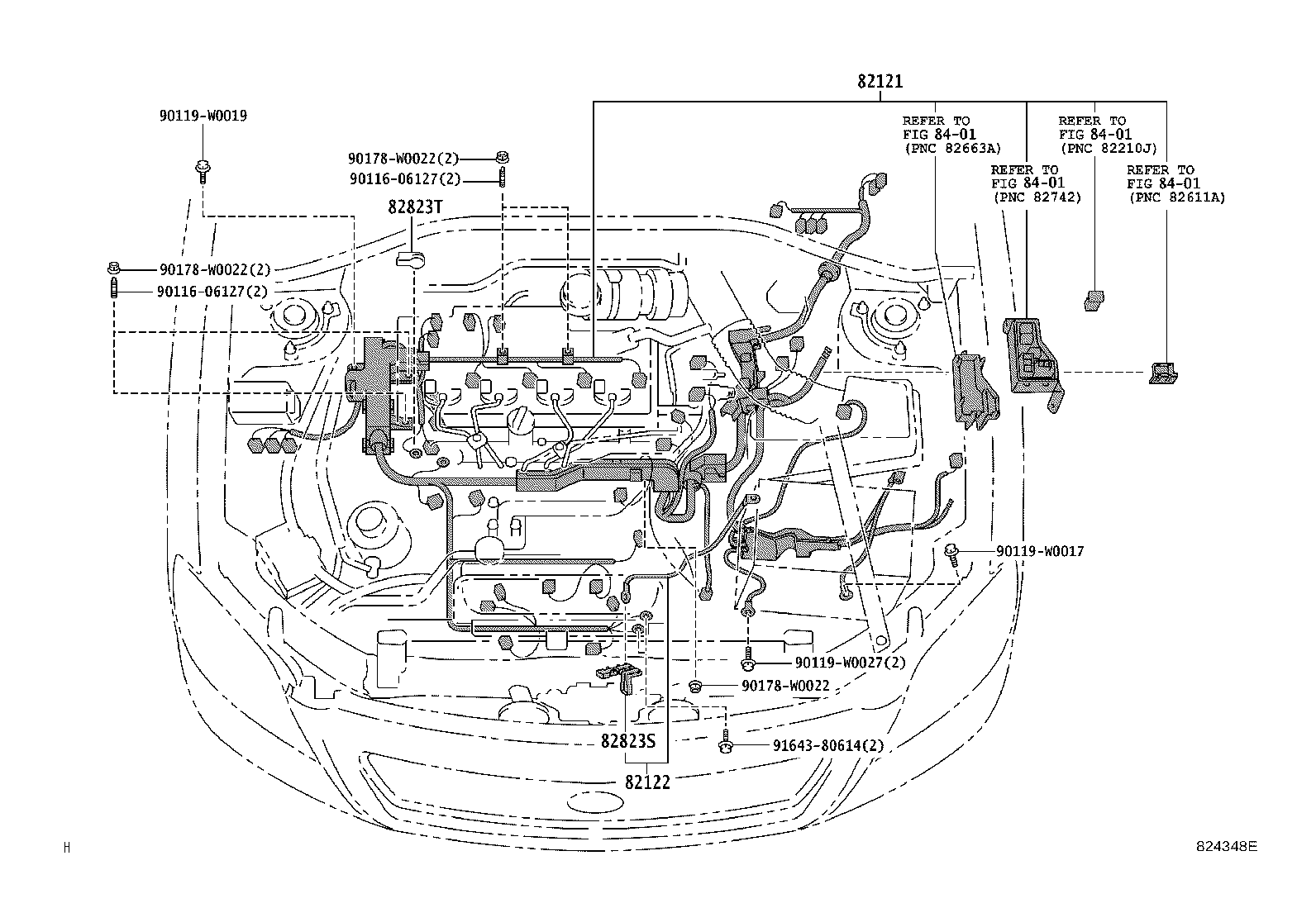

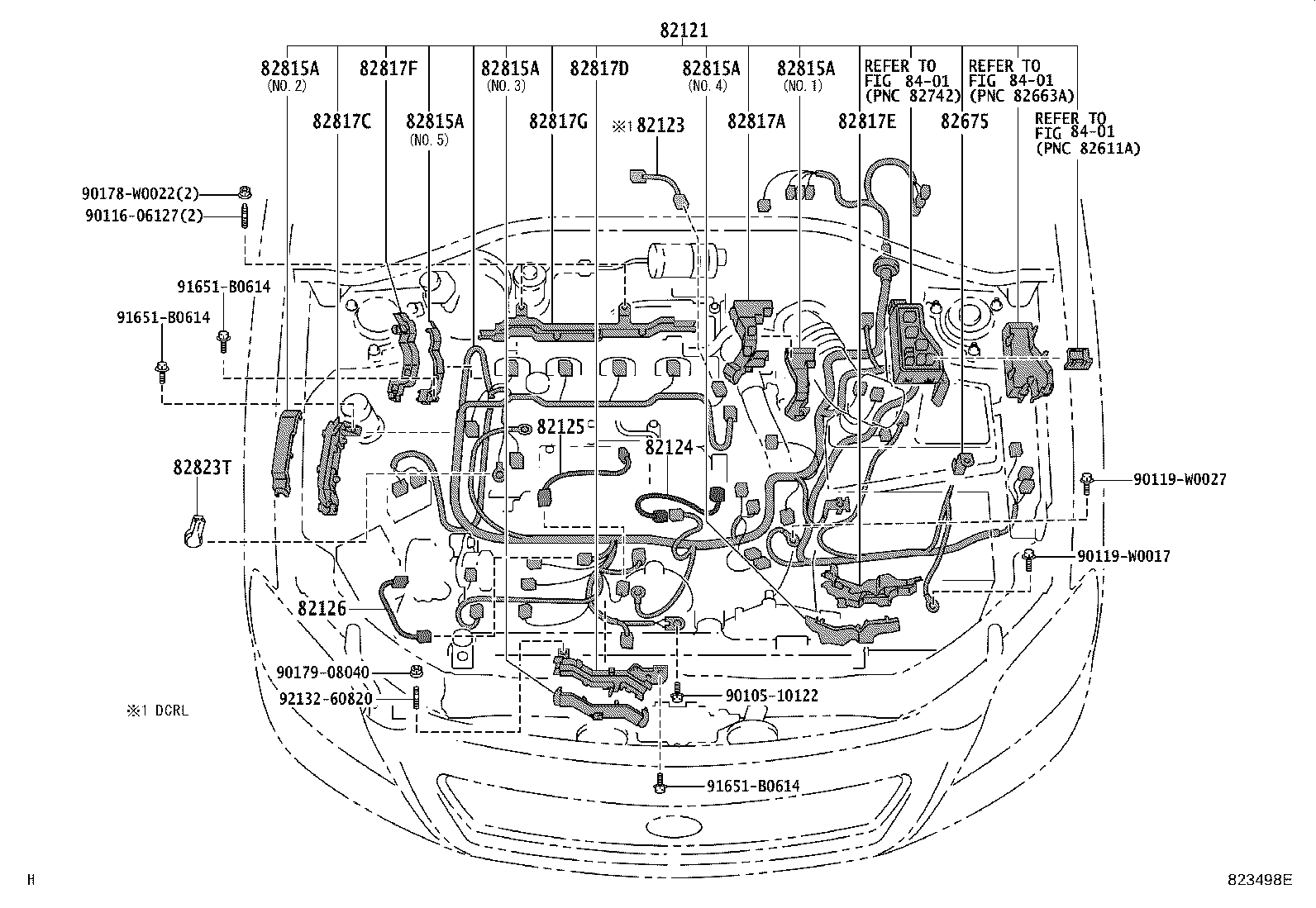

82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82126 Wire, Engine
82141 Wire, Instrument Panel
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82167 Wire, Seat, NO.1

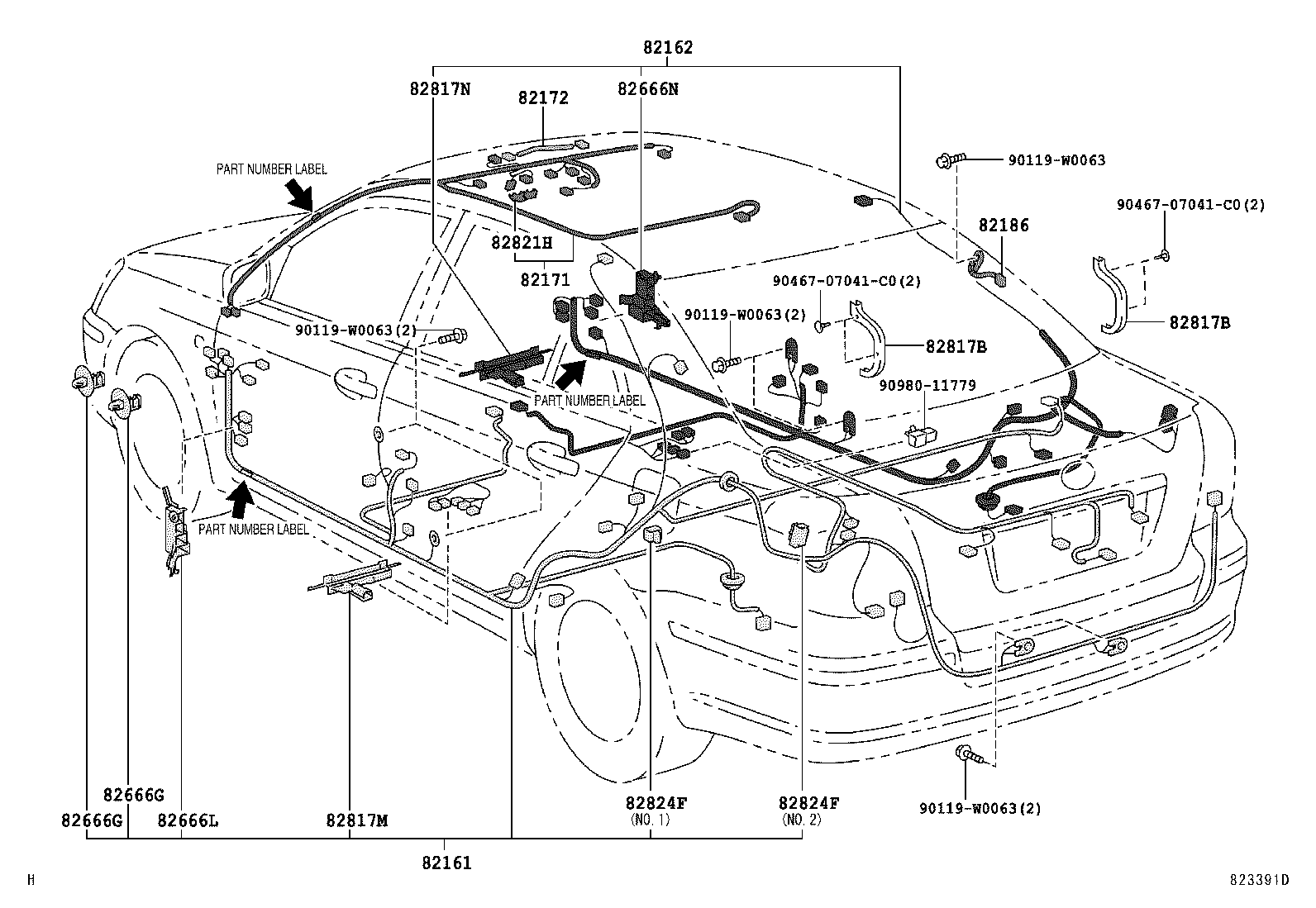

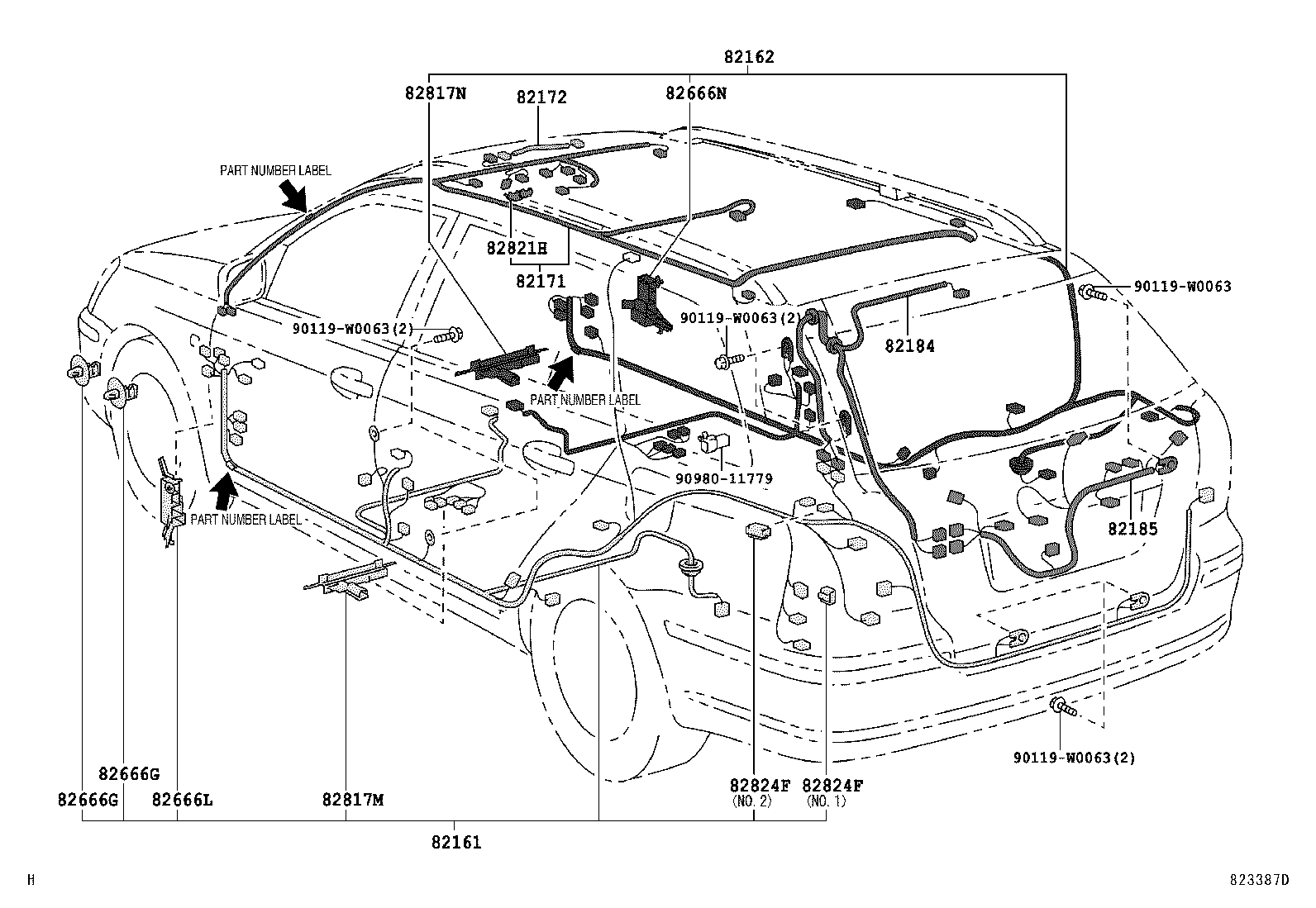

82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1

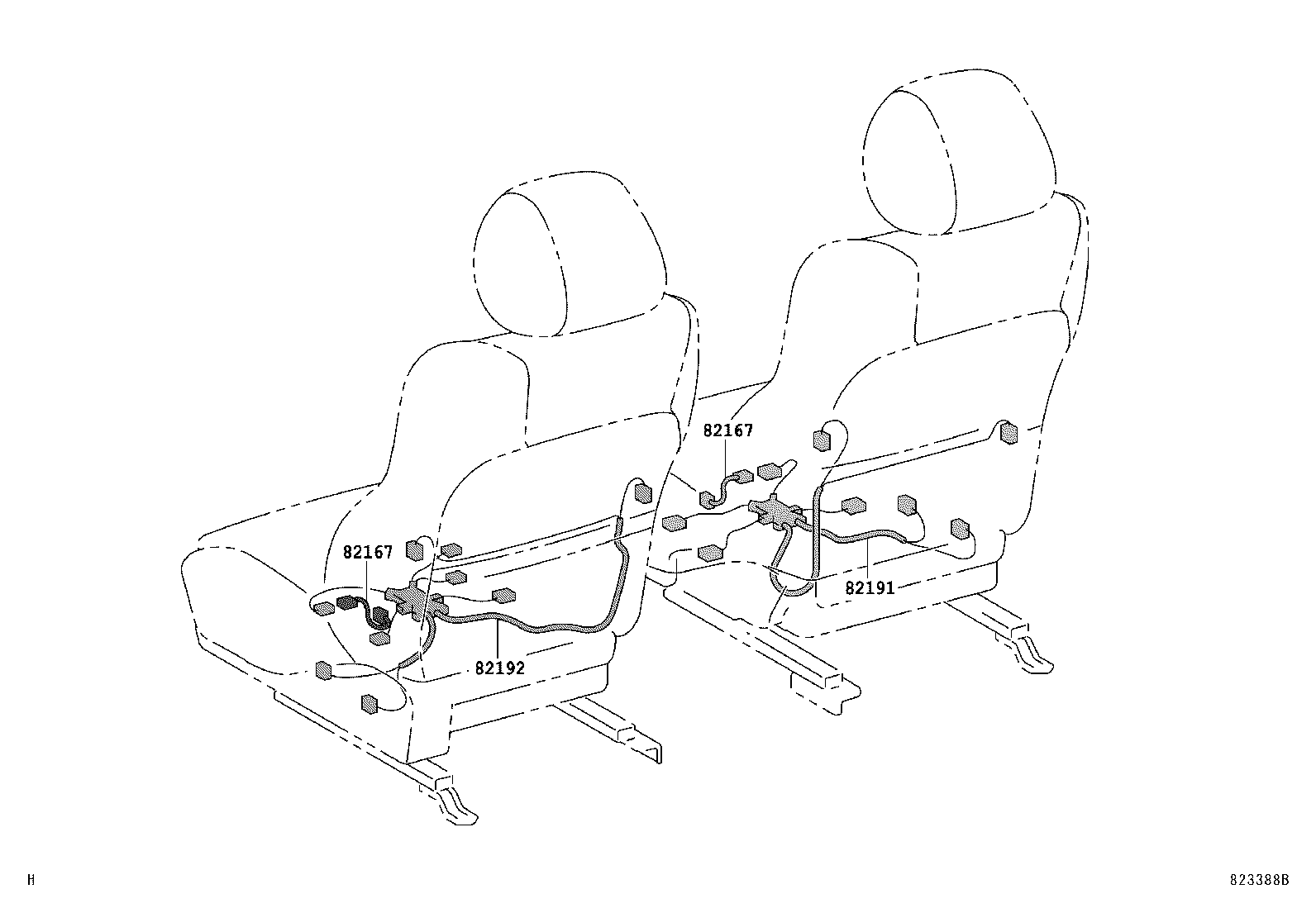

82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82223 Wire, Switch
82345 Diode
82345A Diode
82345B Diode
82345C Diode
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82671 Block, Junction
82671J Block, Junction, NO.2
82675 Terminal, Junction

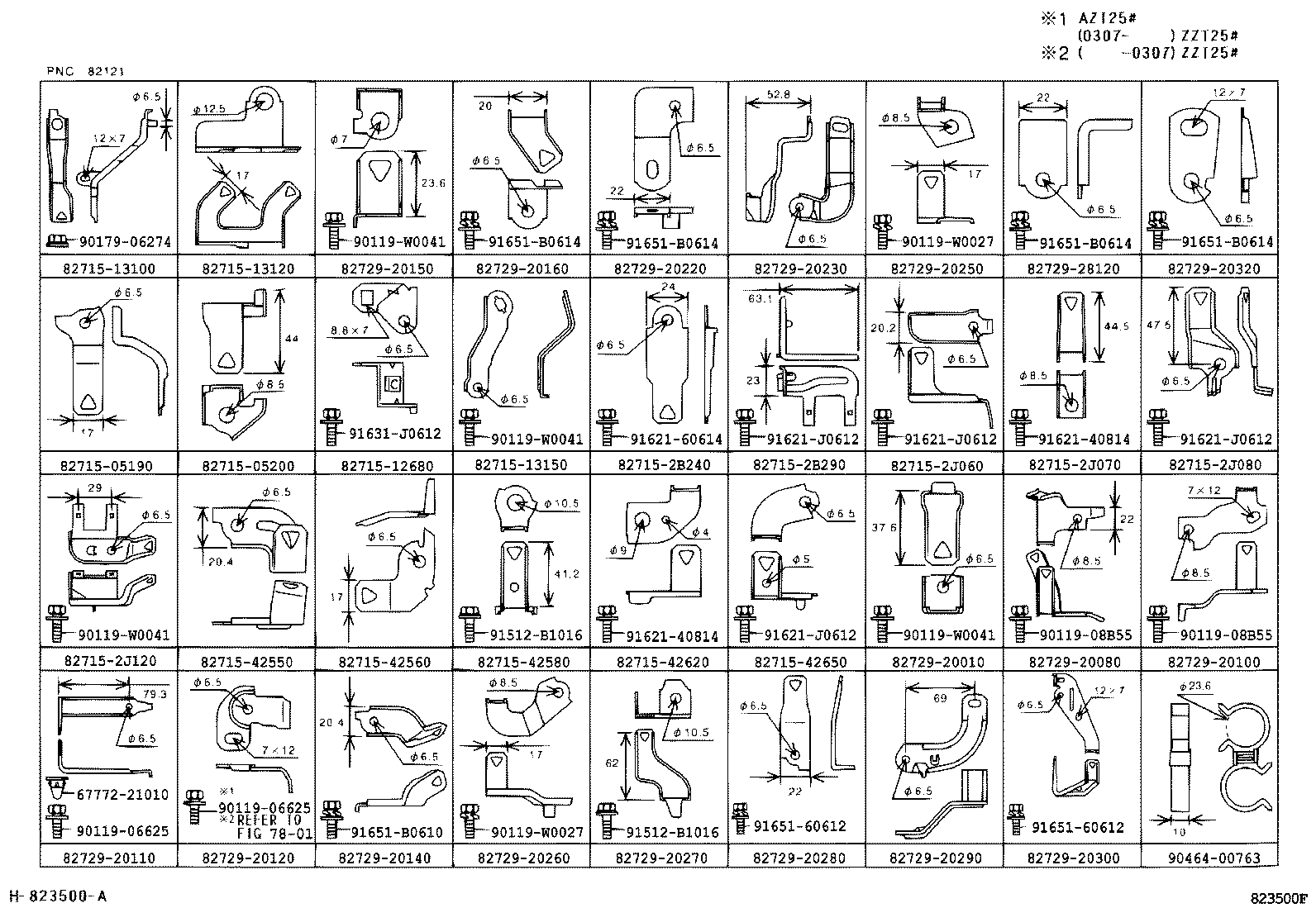

82815A Cover, Wiring Harness Protector
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82821M Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
