Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

124 part groups · 19 illustrations

Illustrations

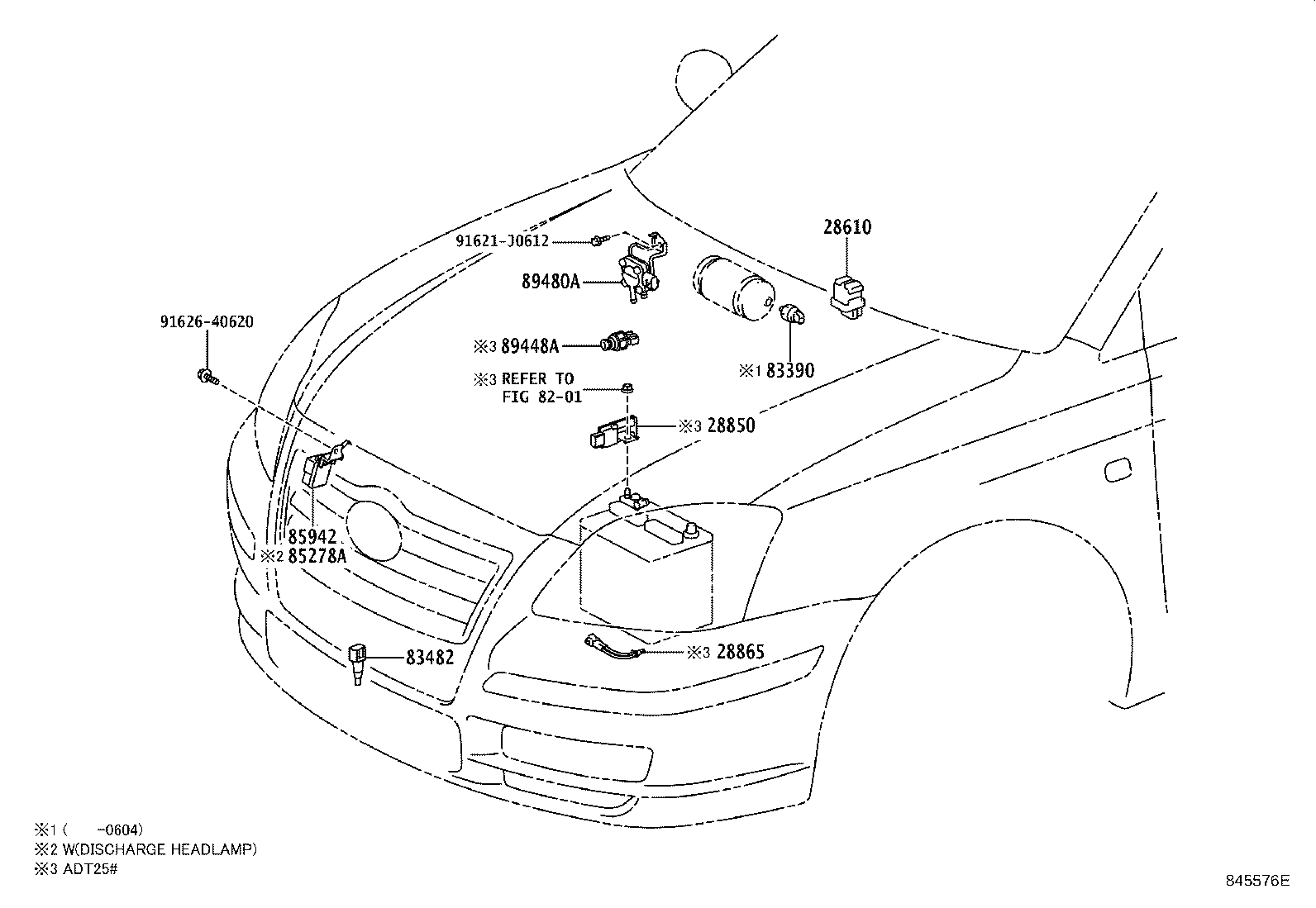

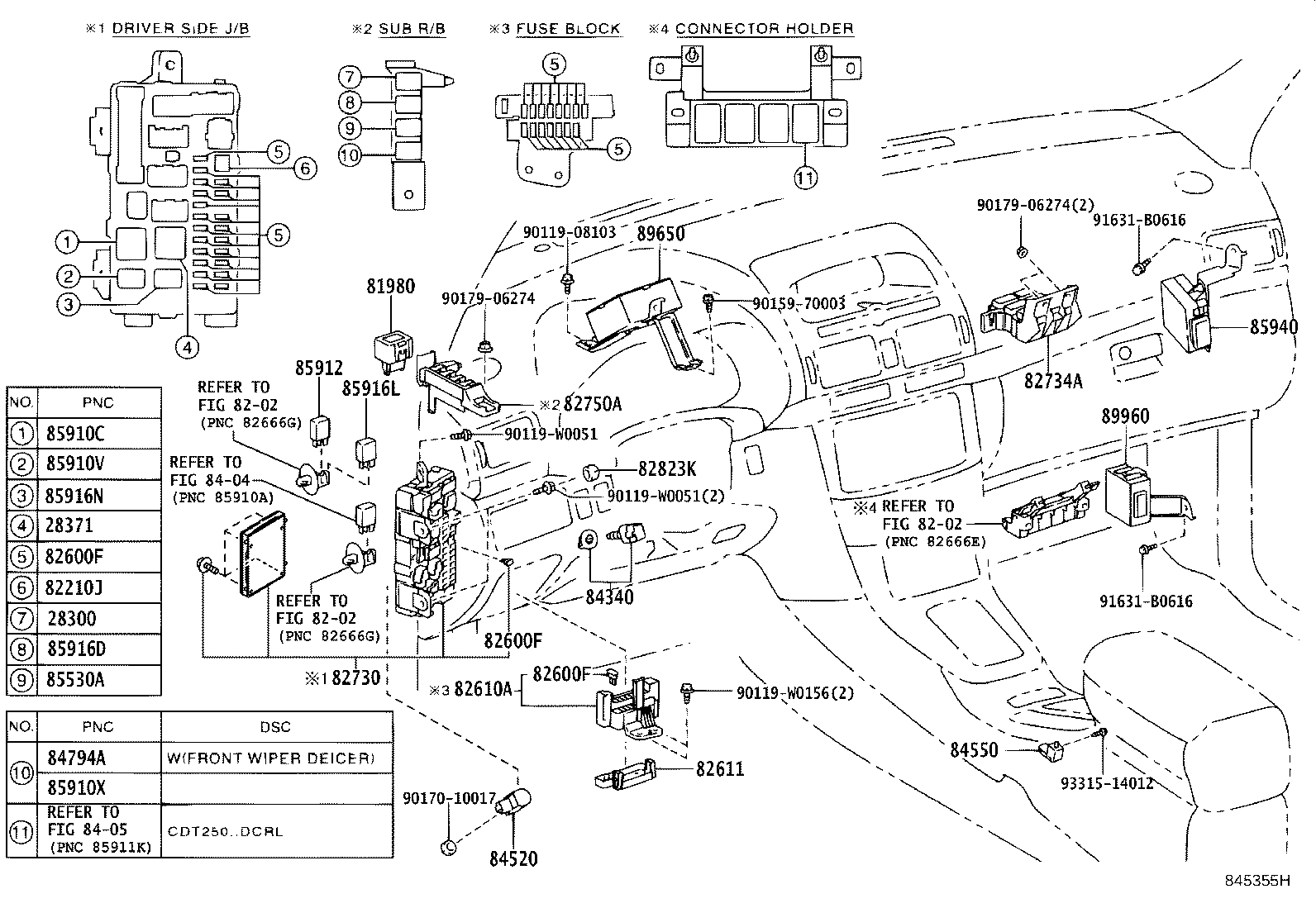

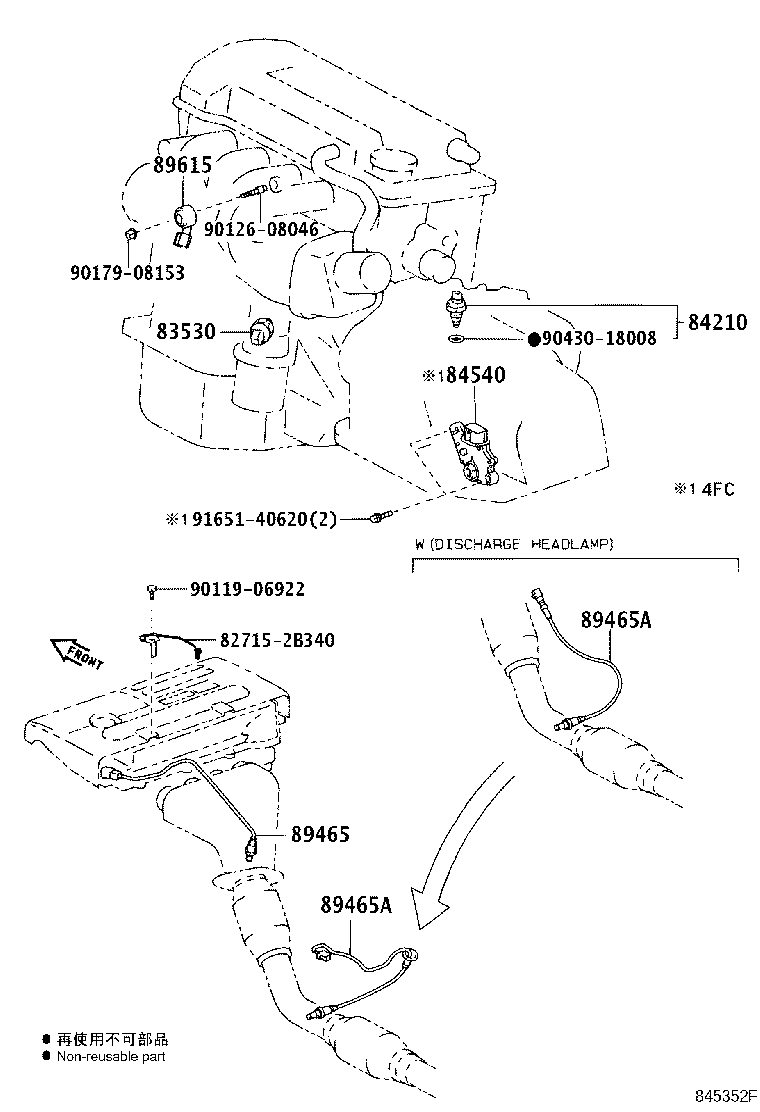

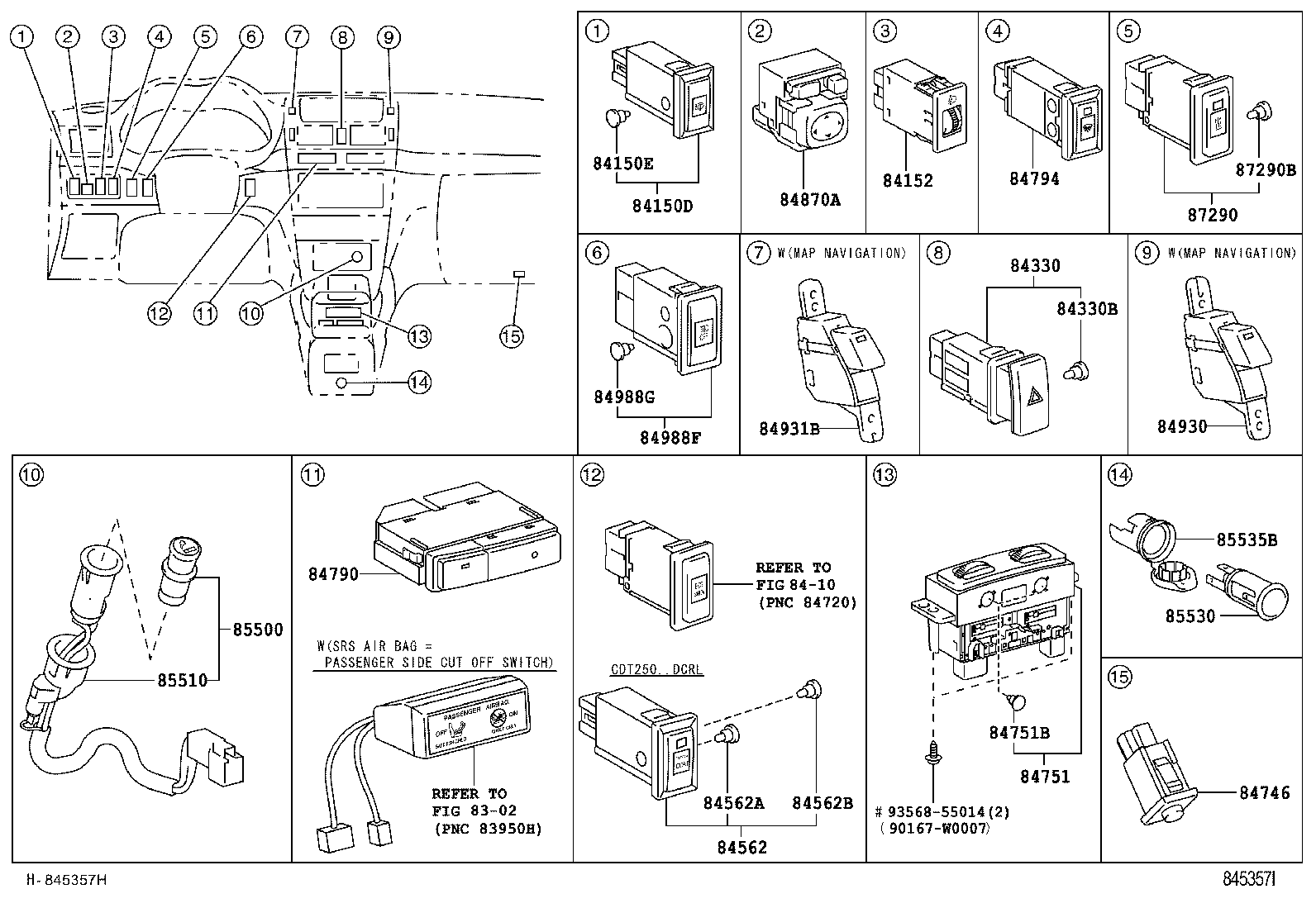

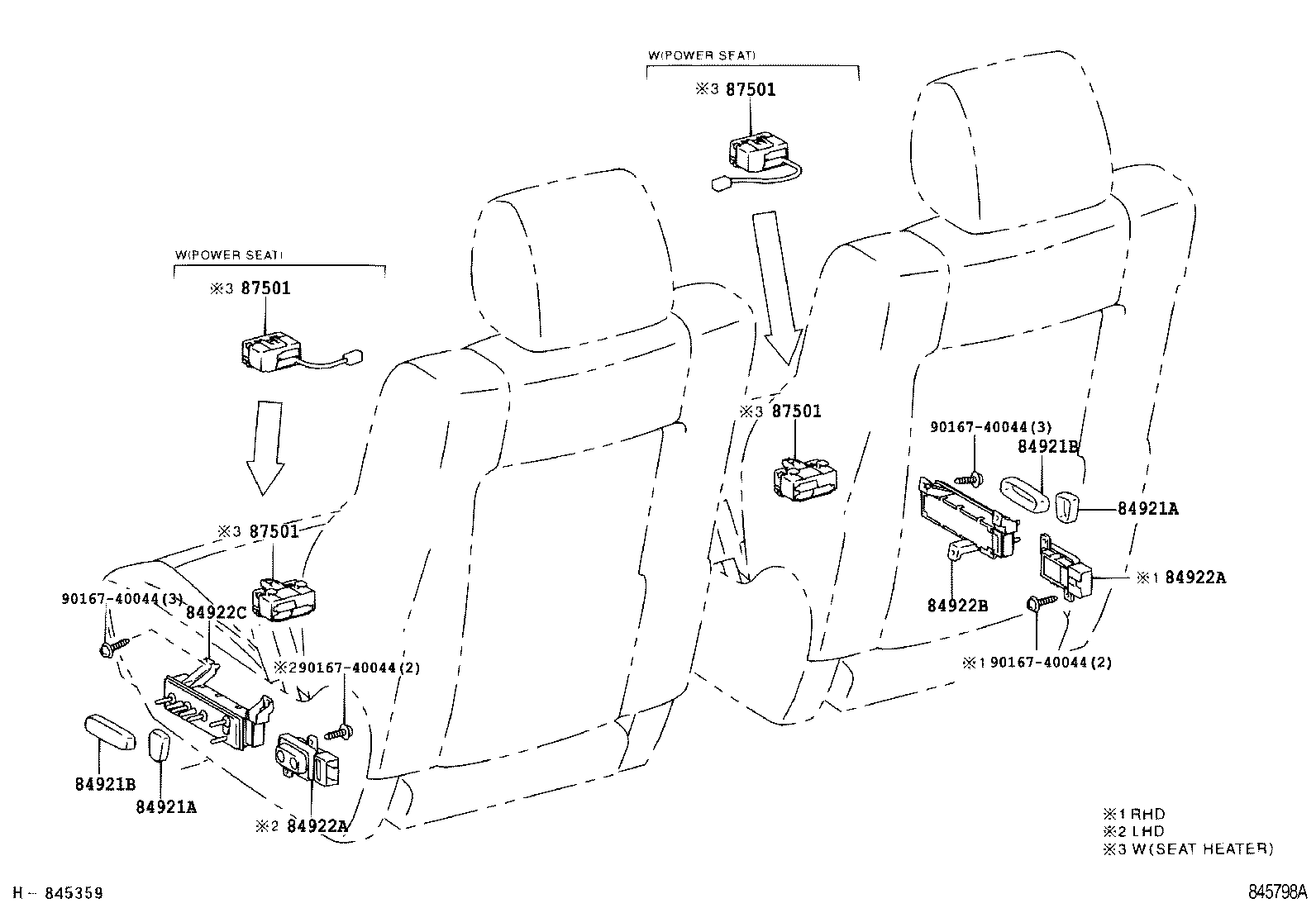

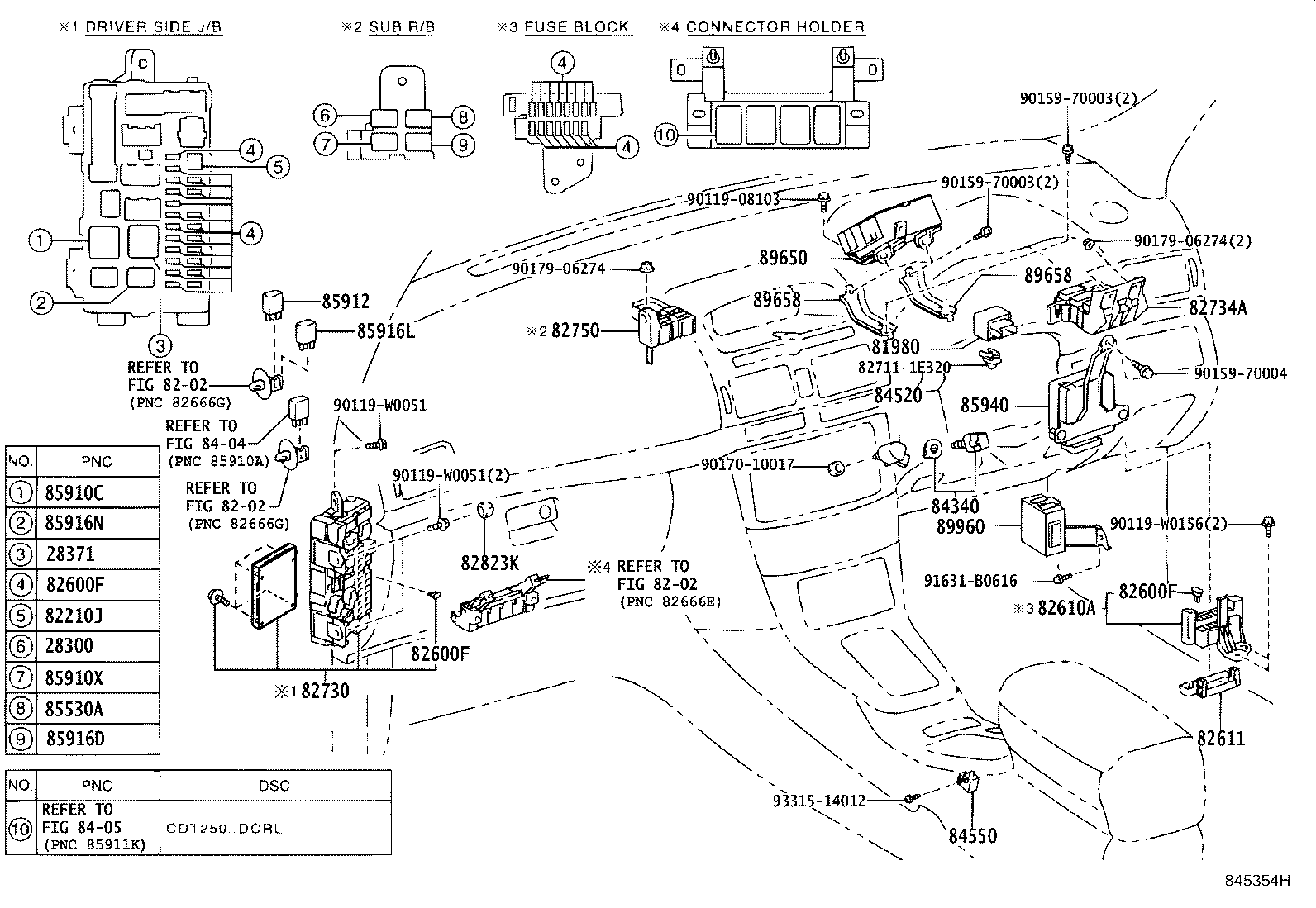

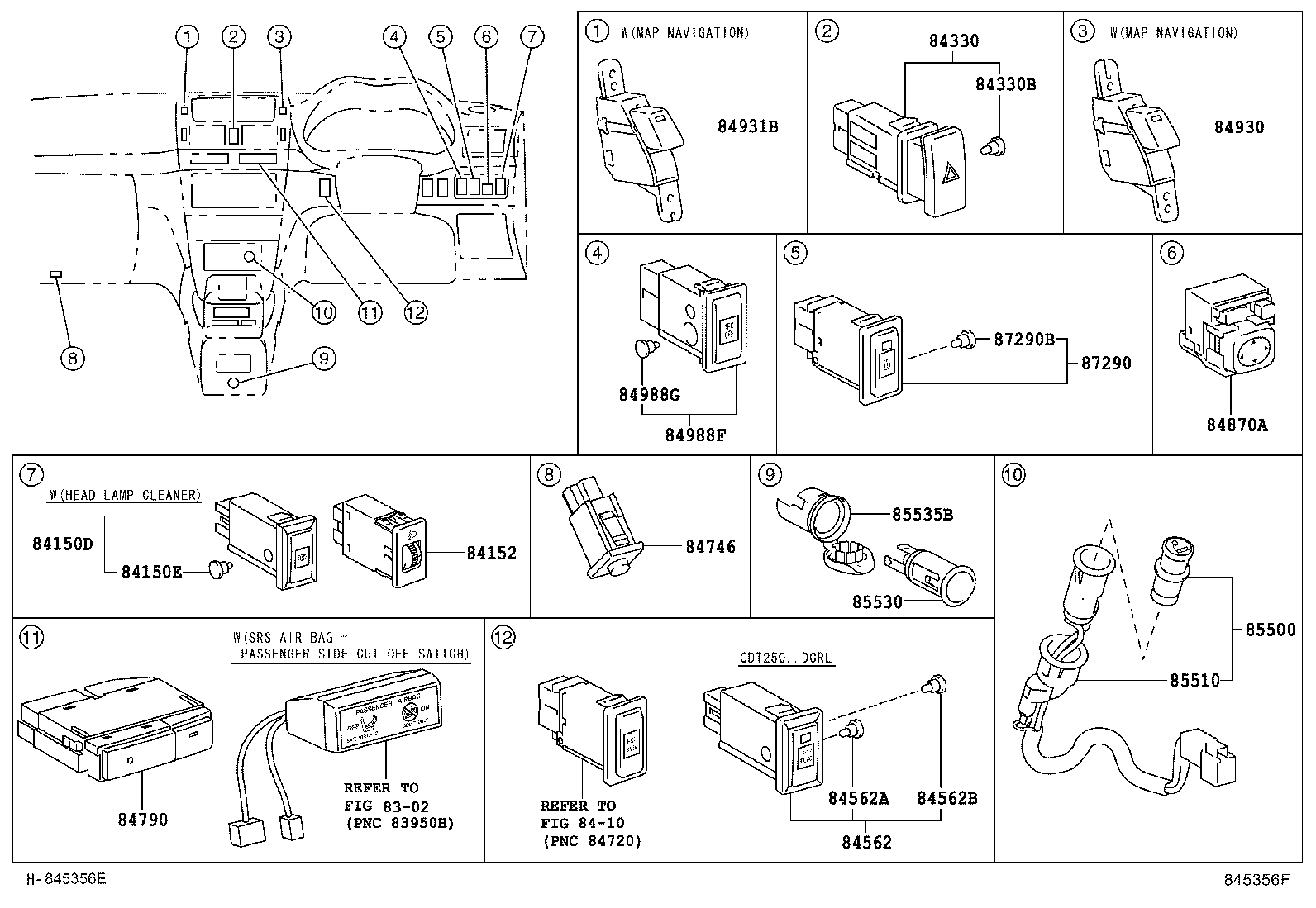

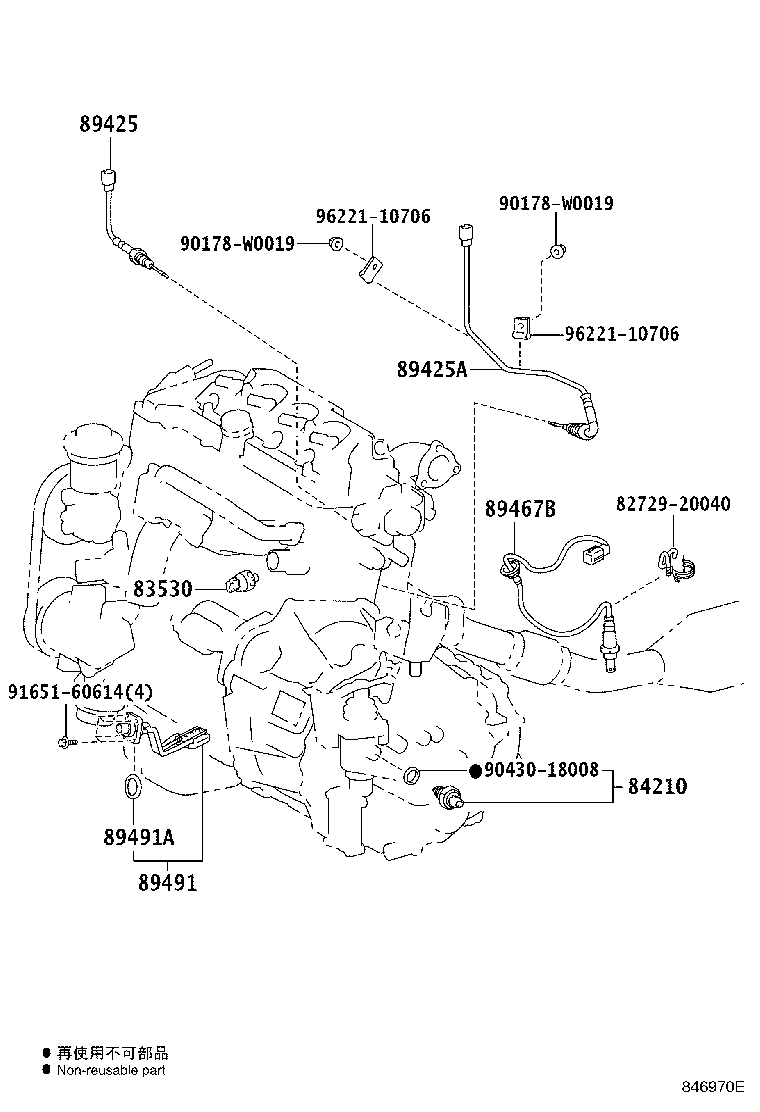

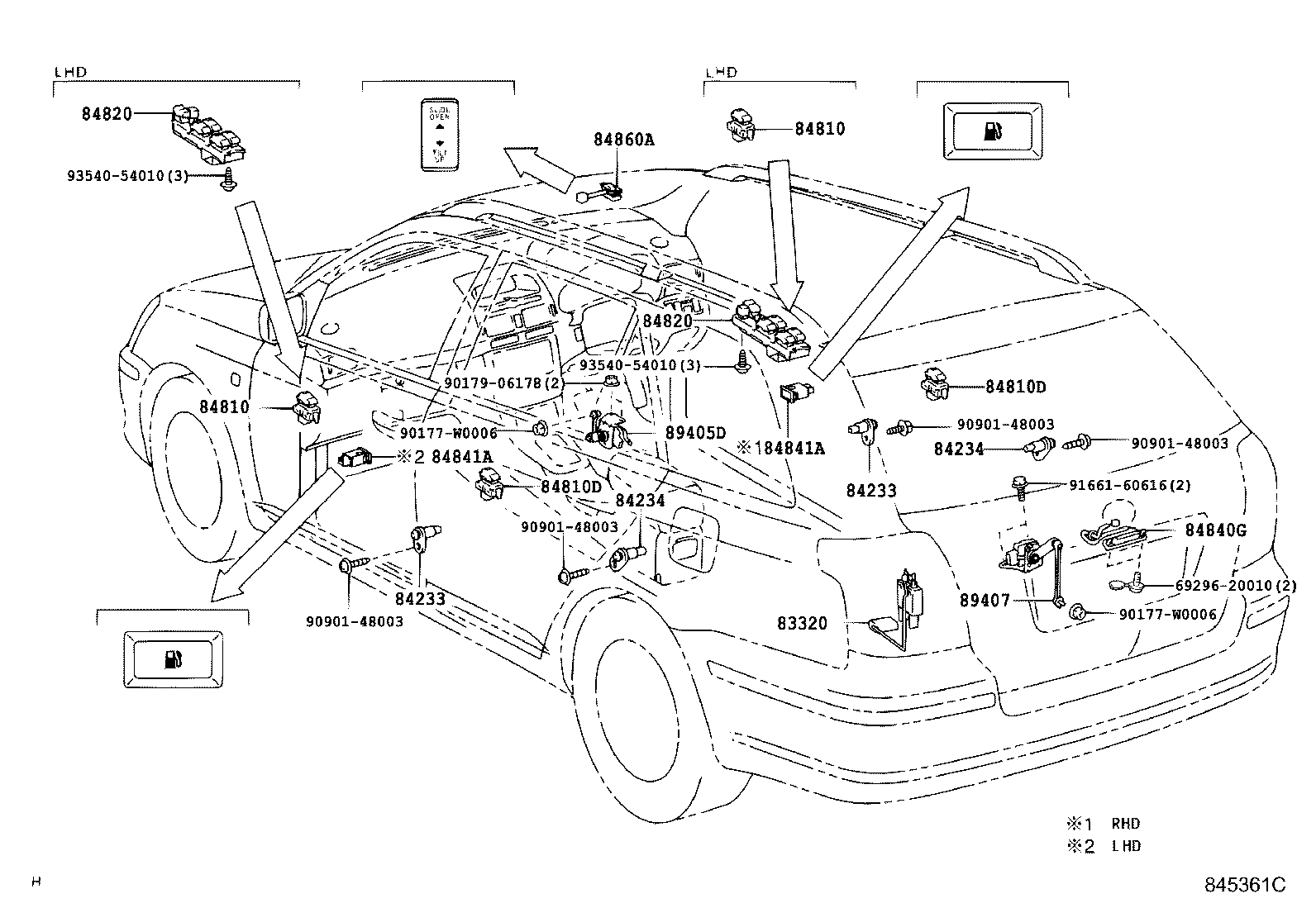

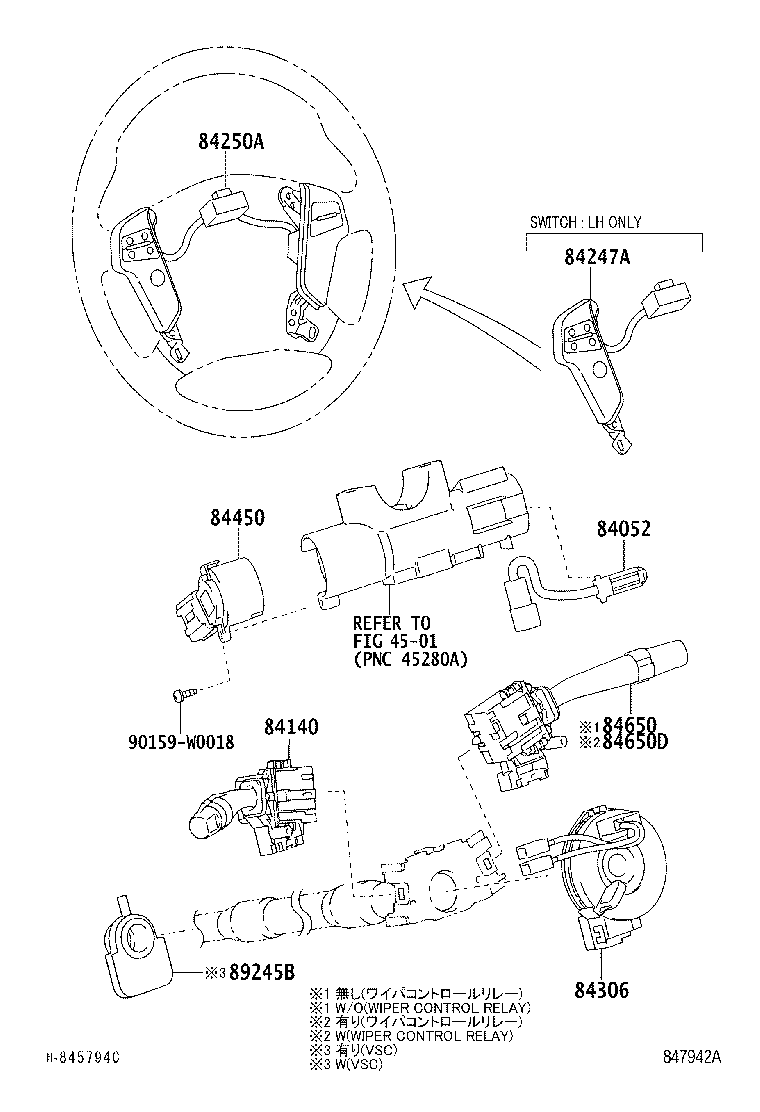

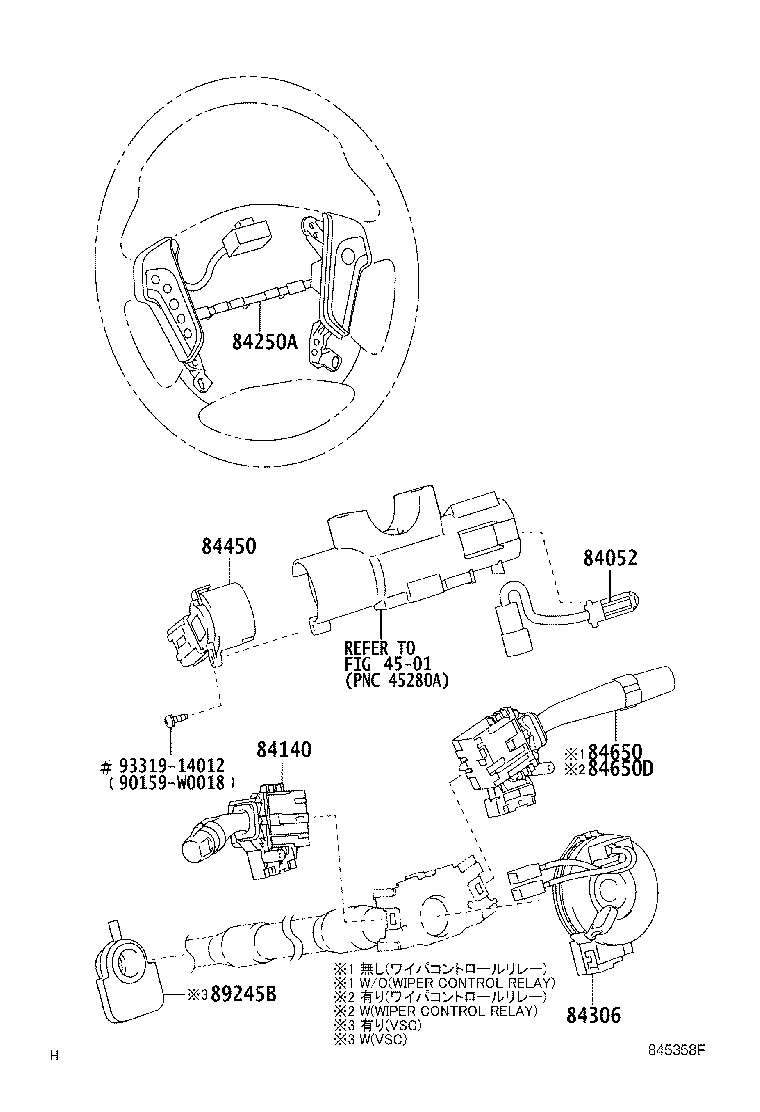

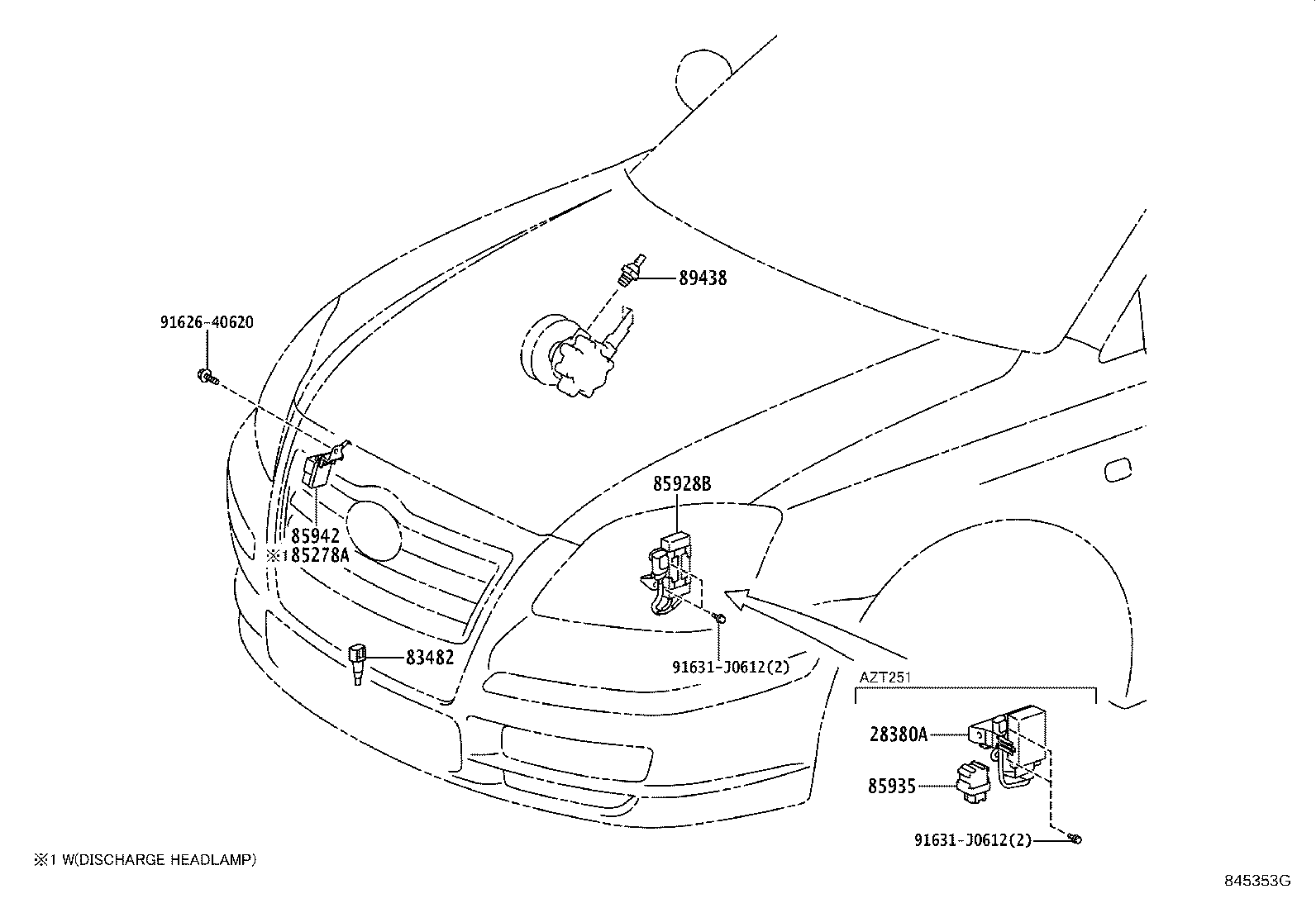

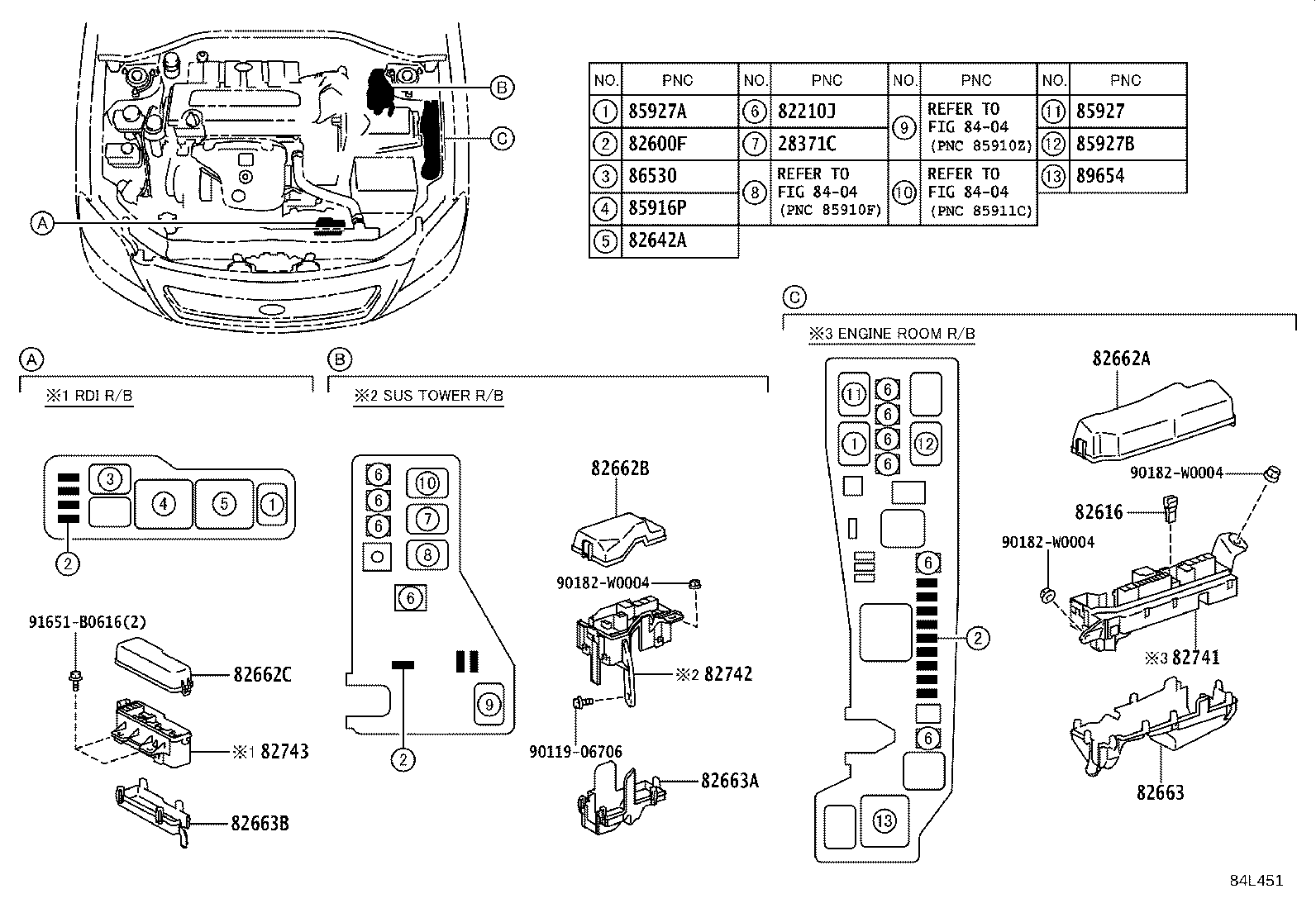

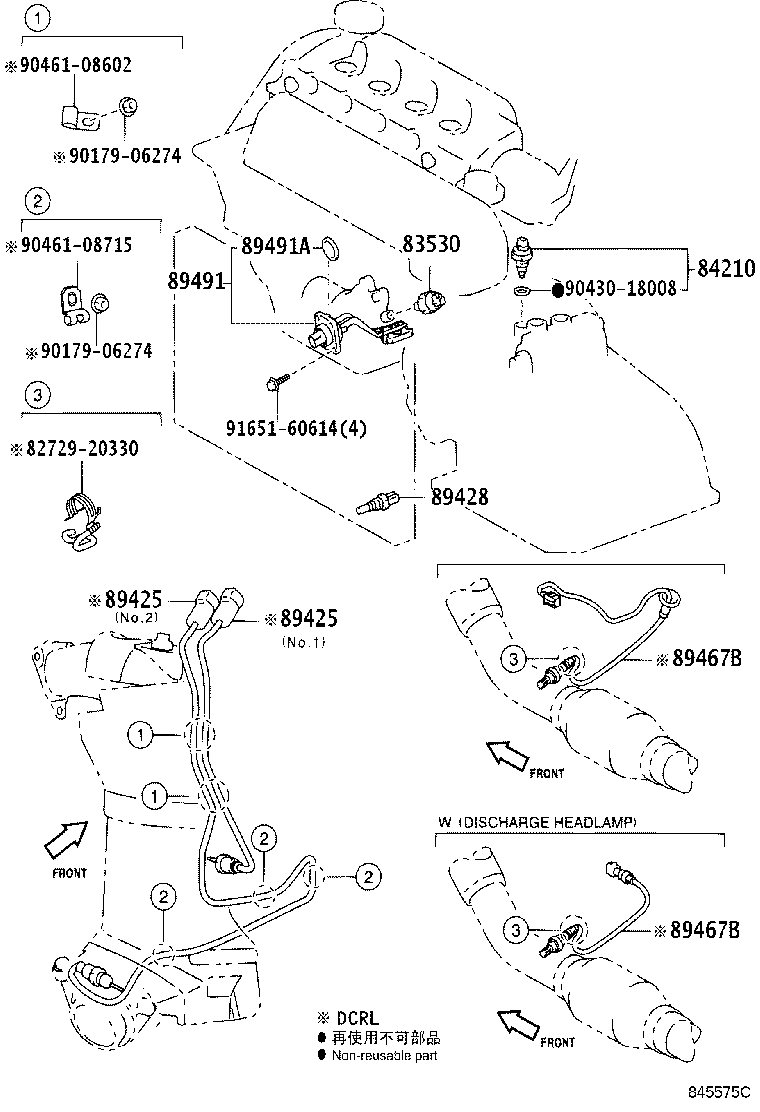

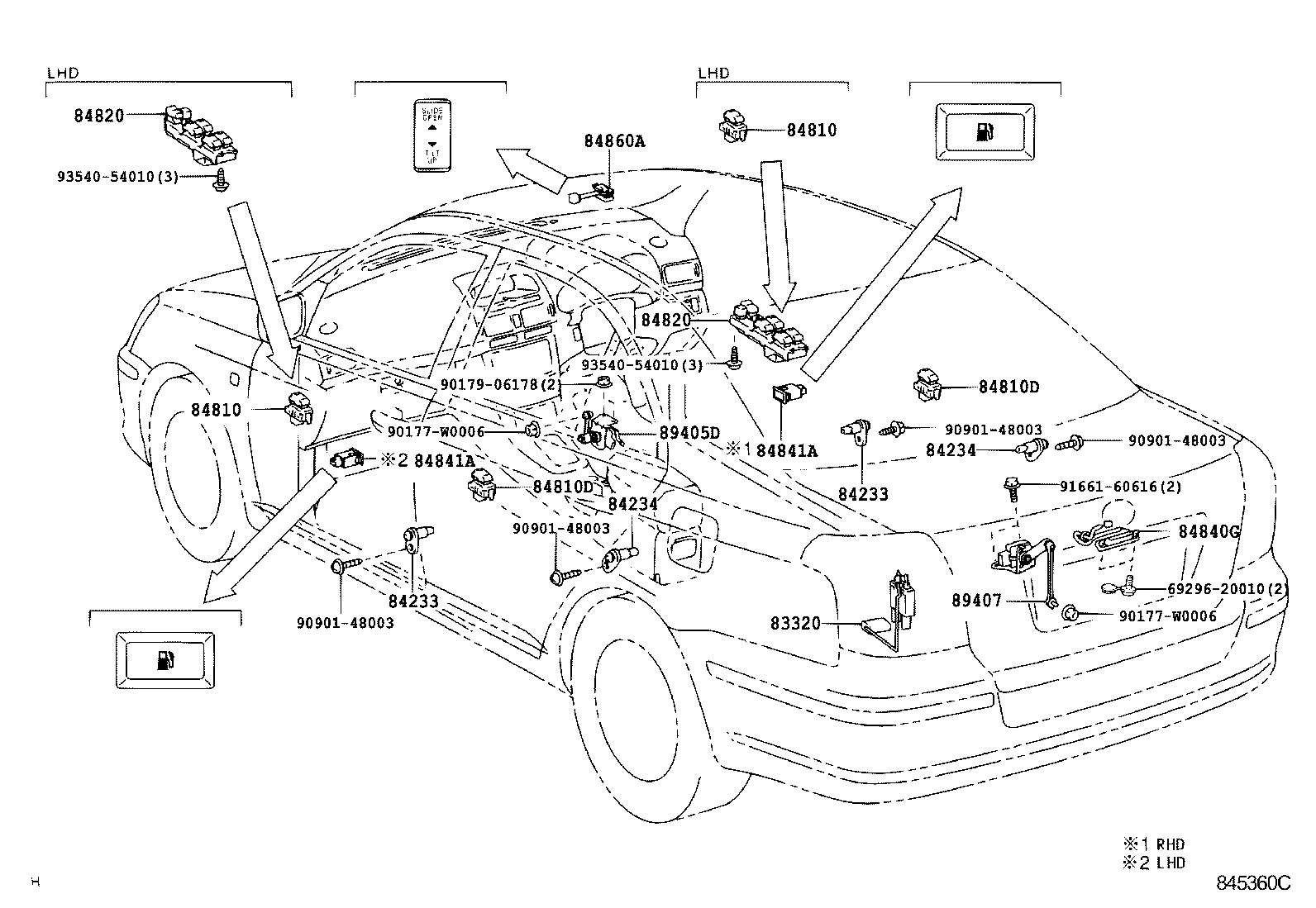

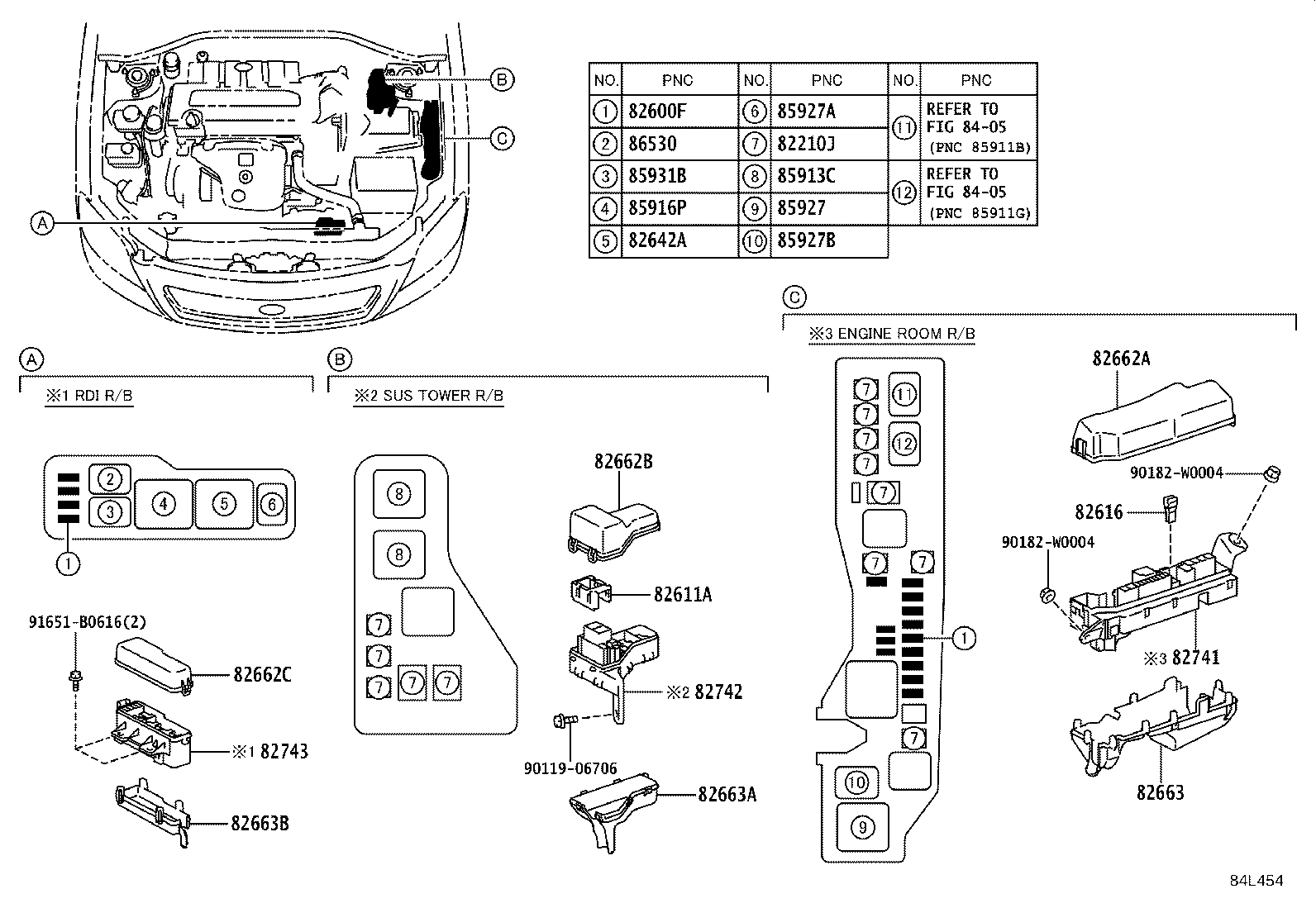

Figure 845351F 845351F 2003-01 → — Figure 845352F 845352F 2003-01 → — Figure 845575C 845575C 2003-03 → 2006-04 Figure 846970E 846970E 2005-04 → — Figure 845353G 845353G 2003-01 → — Figure 845576E 845576E 2003-03 → 2006-04 Figure 845576E 845576E 2006-04 → — Figure 84L451 84L451 2003-01 → — Figure 84L454 84L454 2003-03 → 2006-04 Figure 84L454 84L454 2006-04 → — Figure 845354H 845354H 2003-01 → — Figure 845355H 845355H 2003-01 → — Figure 845356F 845356F 2003-01 → — Figure 845357I 845357I 2003-01 → — Figure 845358F 845358F 2003-01 → 2006-04 Figure 847942A 847942A 2006-04 → — Figure 845798A 845798A 2003-01 → — Figure 845360C 845360C 2003-01 → — Figure 845361C 845361C 2003-01 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
28371C Relay, Ignition, NO.2
28380A Resister, Fuel Pump
28610 Relay Assy, Intake Heater OR Glow Plug
28850 Sensor Assy, Battery Current
28865 Sensor, Battery Thermometer
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82600F Fuse, Fuse Block
82610A Block Assy, Fuse
82611 Cover, Fuse Block
82611A Cover, Fuse Block, NO.2
82616 Puller, Fuse
82642A Relay, Running Light
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82662C Cover, Relay Block, Upper, NO.3
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82730 Block Assy, Instrument Panel Junction
82734A Block, Center Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82743 Block, Engine Room Relay, NO.3
82750 Block Assy, Passenger Side Relay
82750A Block Assy, Driver Side Relay
82823K Cap, Terminal
83320 Gage Assy, Fuel Sender
83390 Switch Assy, Vacuum Warning
83482 Sensor, Outer Ambient Temperature
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84150D Switch Assy, Headlamp Cleaner
84150E Bulb, Headlamp Cleaner Switch
84152 Switch, Headlamp Leveling
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84247A Switch, Steering Pad, LH
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84520 Switch Assy, Clutch Start
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84562 Switch, Fuel Control
84562A Bulb (FOR FUEL CONTROL SWITCH)
84562B Cap Bulb (FOR FUEL CONTROL SWITCH)
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84746 Switch, Tire Pressure Warning
84751 Switch, Seat Heater
84751B Bulb, Seat Heater Switch
84790 Switch Assy, Rear Window Defogger
84794 Switch, FR Wiper Deicer
84794A Relay, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84840G Switch Assy, Back Door Opener
84841A Switch, Fuel Lid Opener
84860A Switch Assy, Sliding Roof
84870A Switch Assy, Outer Mirror
84921A Knob, Power Seat Switch (FOR RECLINING)
84921B Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922A Switch, Front Power Seat(FOR LUMBAR)
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84930 Switch Assy, Door Control
84931B Switch, Door Control
84988F Switch, Traction Control
84988G Bulb, Traction Control Switch
85278A Relay Assy, Headlamp Cleaner Control
85500 Lighter Assy, Cigarette
85510 Socket & Retainer Assy, Cigarlighter
85530 Socket Assy, Power Outlet, NO.1
85530A Relay, Power Outlet Socket
85535B Cover, Power Outlet Socket, NO.1
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85910V Relay, Seat Heater
85910X Relay, Heater Mirror
85912 Relay, Defogger
85913C Relay, Heater, NO.1
85916D Relay, Fog Lamp
85916L Relay, Rear Fog Lamp
85916N Relay, Taillamp
85916P Relay, Headlamp
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85928B Resistor, Cooling Fan
85931B Relay, Fuel Heater
85935 Relay, Fuel Pump
85940 Relay Assy, Windshield Wiper
85942 Relay, Headlamp Cleaner Control
86530 Relay Assy, Horn
87290 Switch Assy, Heater
87290B Bulb (FOR HEATER SWITCH)
87501 Control Sub-assy, Seat Heater
89245B Sensor, Steering
89405D Sensor Sub-assy, Height Control, FR RH
89407 Sensor Sub-assy, Height Control, Rear RH
89425 Sensor, Exhaust Gas Temperature
89425A Sensor, Exhaust Gas Temperature, NO.2
89428 Switch, Temperature Detect, NO.2
89438 Switch, Power Steering Oil Pressure
89448A Sensor, Power Steering Oil Pressure
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89480A Sensor Assy, Differential Pressure
89491 Sensor, Engine Oil Level
89491A Gasket, Engine Oil Level Sensor
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89654 Relay, Power Steering
89658 Bracket, Power Steering Computer
89960 Computer Assy, Headlamp Leveling
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
