Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

6 part groups · 6 illustrations

Illustrations

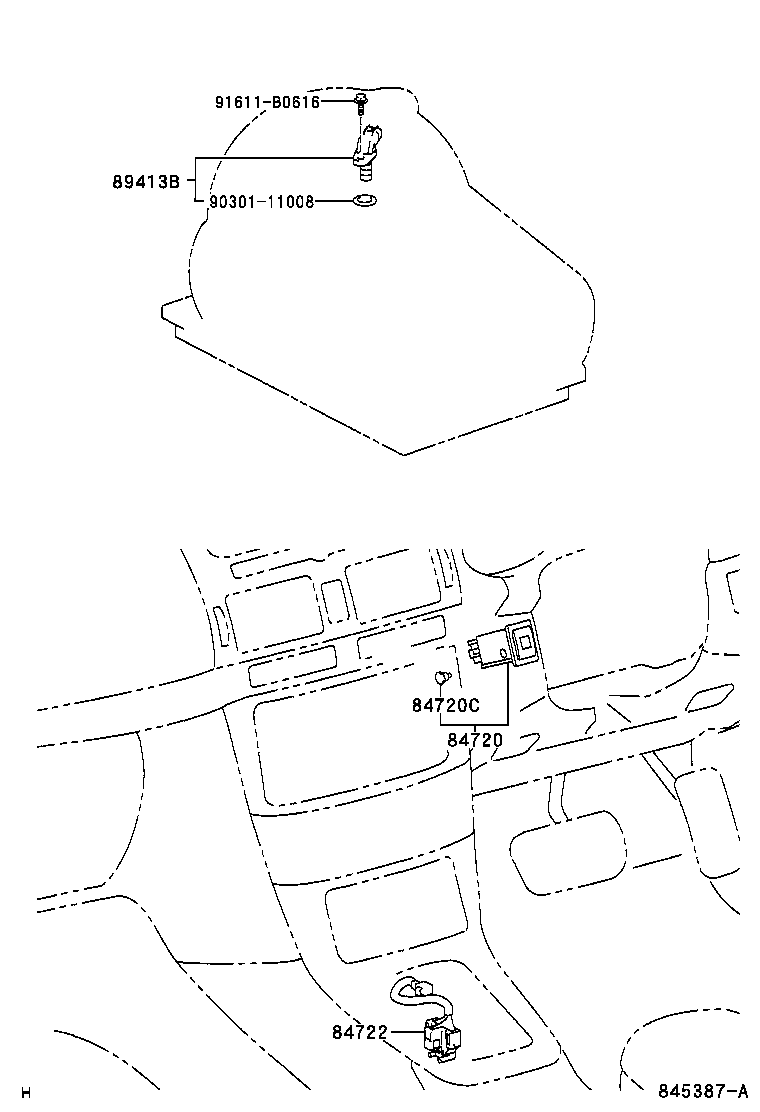

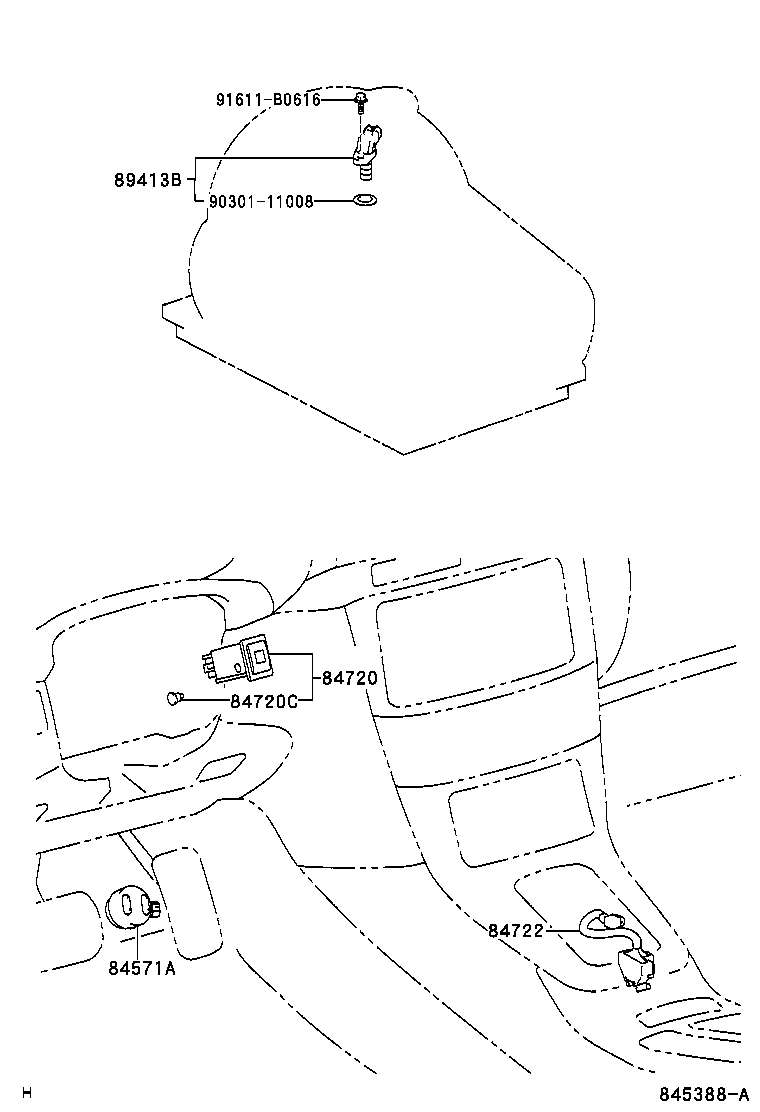

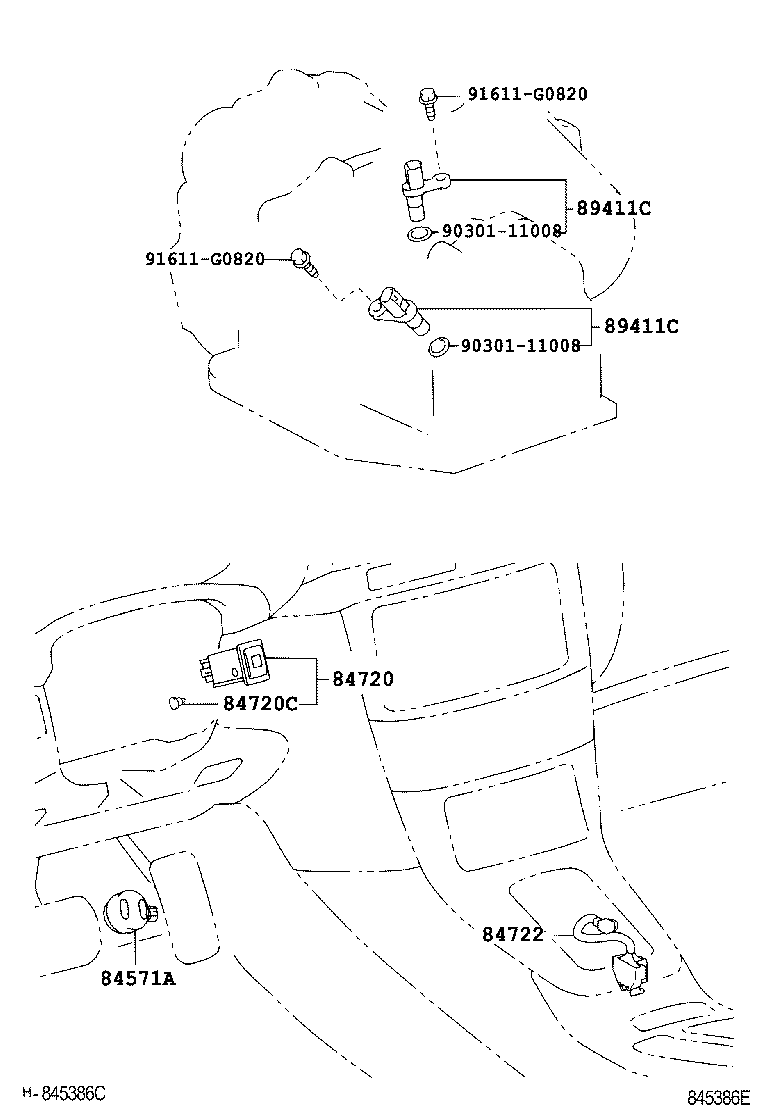

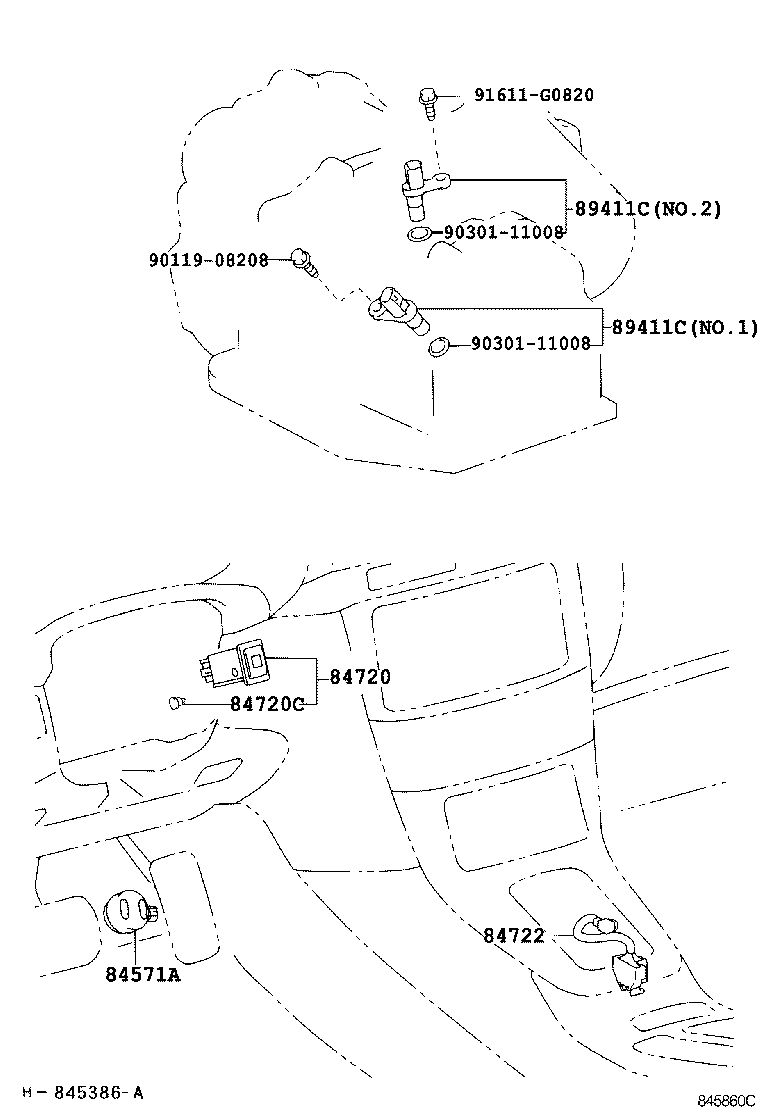

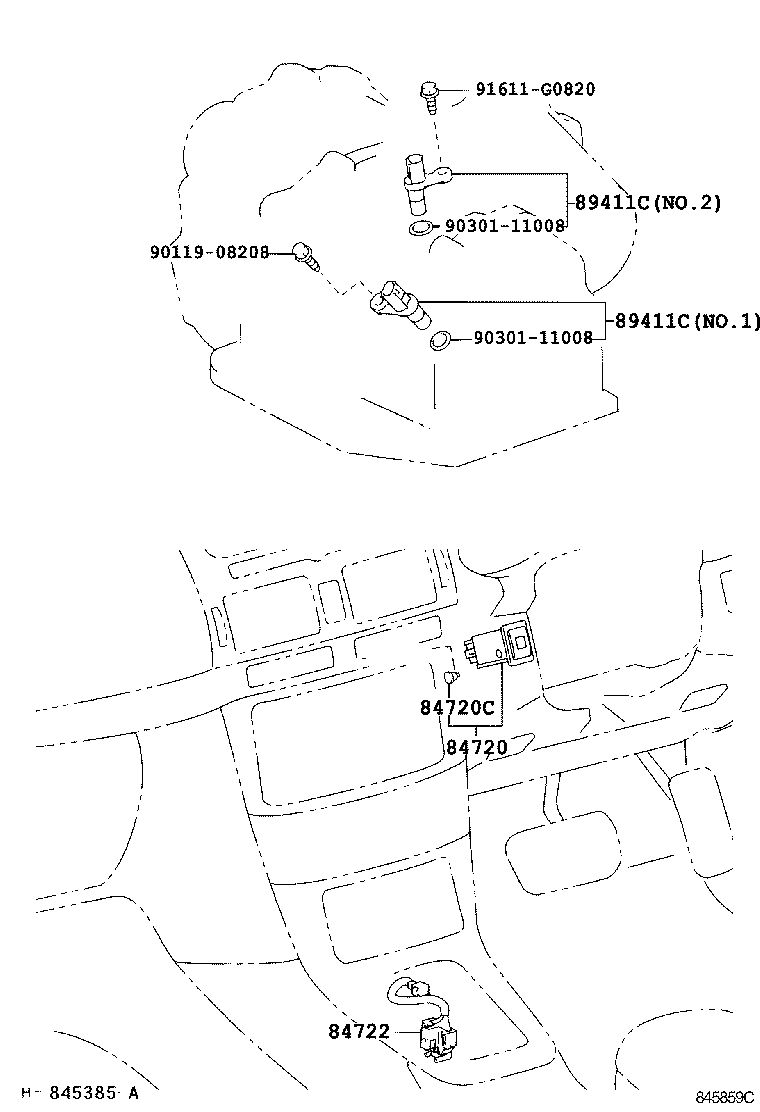

Figure 845385E 845385E 2003-01 → — Figure 845386E 845386E 2003-01 → — Figure 845387A 845387A 2003-01 → — Figure 845388A 845388A 2003-01 → — Figure 845859C 845859C 2003-09 → — Figure 845860C 845860C 2003-09 → —

Part groups

PNCDescription
84571A Switch, Kick Down
84720 Switch Assy, Pattern Select
84720C Bulb(FOR PATTERN SELECT SWITCH)
84722 Switch, Transmission Control
89411C Sensor, Speed
89413B Sensor, Transmission Revolution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
