Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

9 part groups · 2 illustrations

Illustrations

Figure 845321H

845321H 2003-01 → —

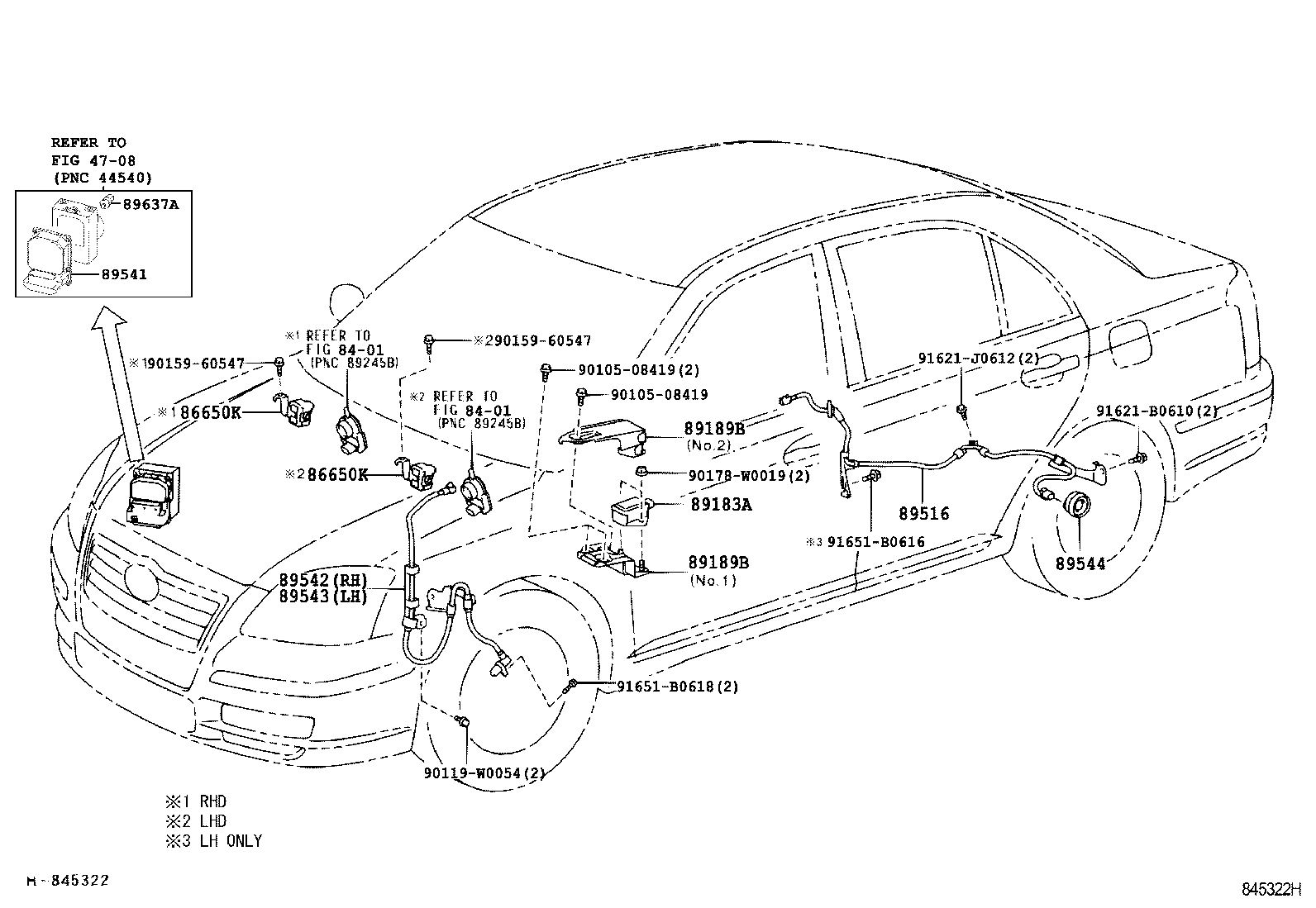

Figure 845322I

845322I 2003-01 → —

Part groups

PNC	Description
86650K	Buzzer Assy, Skid Control
89183A	Sensor, Yawrate
89189B	Bracket, Yawrate Sensor
89516	Wire, Skid Control Sensor
89541	Computer, Skid Control
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH
89544	Sensor, Skid Control
89637A	Sensor, Oil Pressure

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
