Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

15 part groups · 2 illustrations

Illustrations

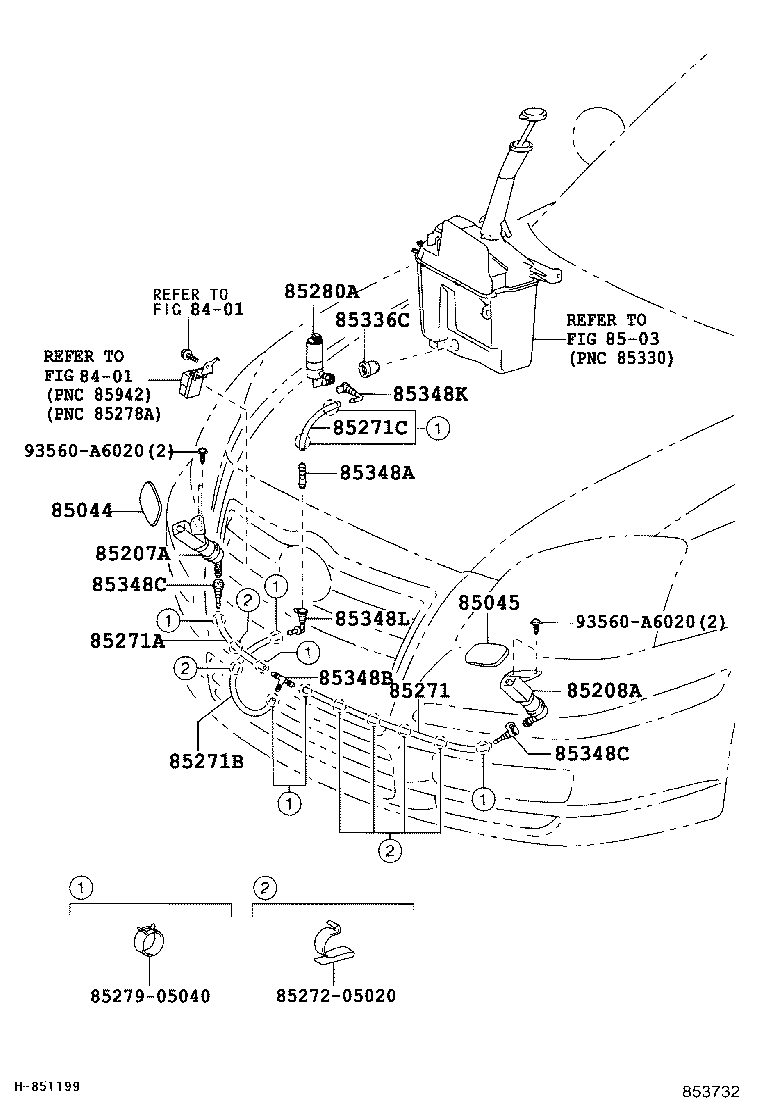

Figure 851199G 851199G 2003-01 → 2006-04 Figure 853732 853732 2006-04 → —

Part groups

PNCDescription
85044 Nozzle Sub-assy, TYPE1 H/Lamp Washer, RH
85045 Nozzle Sub-assy, TYPE1 H/Lamp Washer, LH
85207A Actuator Sub-assy, Headlamp Washer, RH
85208A Actuator Sub-assy, Headlamp Washer, LH
85271 Hose, Headlamp Cleaner, NO.1
85271A Hose, Headlamp Cleaner, NO.2
85271B Hose, Headlamp Cleaner, NO.3
85271C Hose, Headlamp Cleaner, NO.4
85280A Motor And Pump Assy, Headlamp Cleaner
85336C Packing, Headlamp Cleaner Motor
85348A Joint, Headlamp Cleaner Hose, NO.1
85348B Joint, Headlamp Cleaner Hose, NO.2
85348C Joint, Headlamp Cleaner Hose, NO.3
85348K Joint, Headlamp Cleaner Elbow, NO.1
85348L Joint, Headlamp Cleaner Elbow, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
