Radio Receiver & Amplifier & Condenser

9 part groups · 3 illustrations

Illustrations

Figure 861858A

861858A 2003-01 → —

Figure 861860D

861860D 2003-01 → —

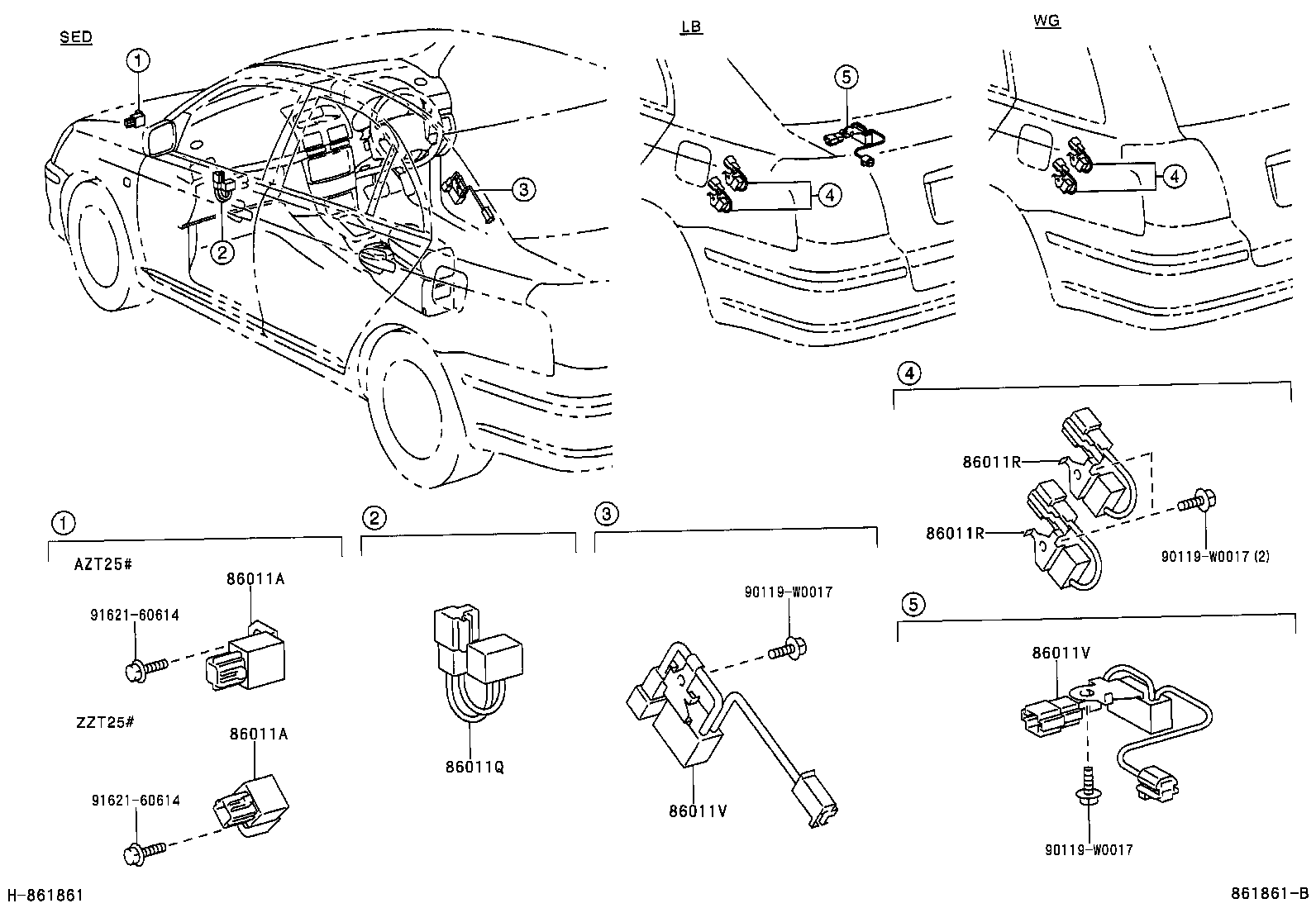

Figure 861861B

861861B 2003-01 → —

Part groups

PNC	Description
86011A	Condenser, Radio Setting
86011Q	Condenser, Radio Setting
86011R	Condenser, Radio Setting
86011V	Condenser, Radio Setting
86120	Receiver Assy, Radio
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2
86221A	Panel, Radio Receiver
86221D	Panel, Radio Receiver

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
