Toyota Avensis
2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe
Supported model
Data version 2009-04
Navigation & Front Monitor Display
14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55313B | Circuit, Door Control Unit |
| 82141B | Wire, Instrument Panel |
| 86011X | Clip, Navigation |

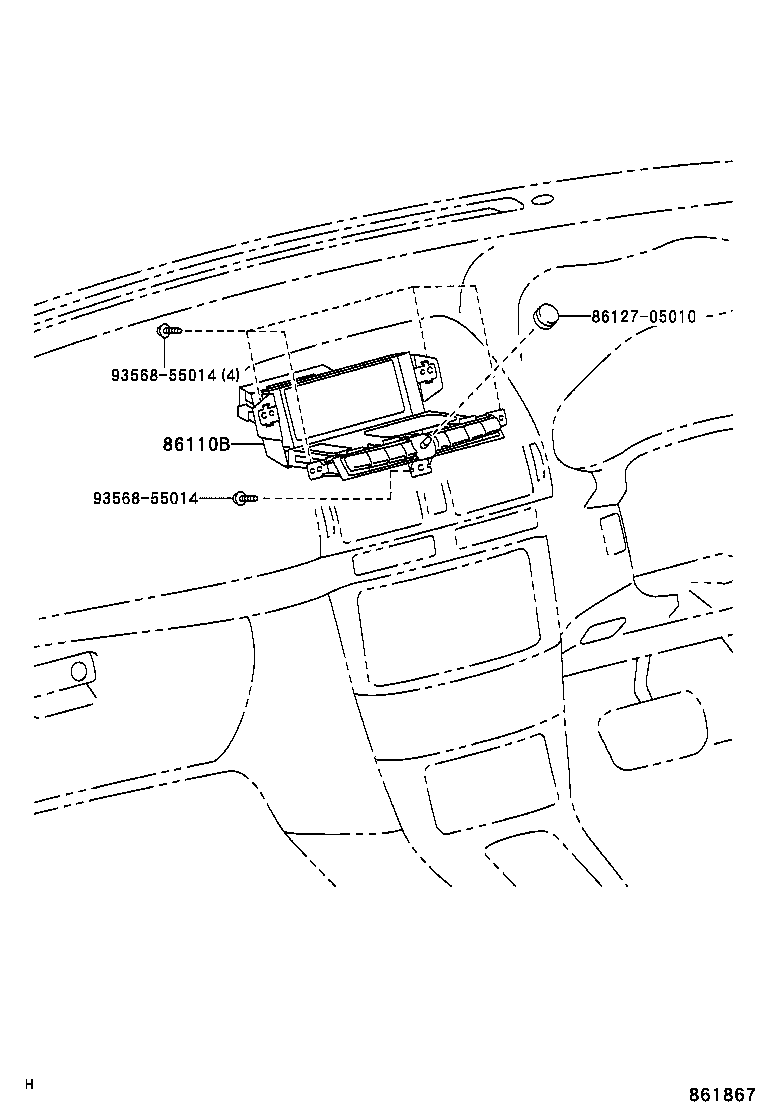

| 86110B | Multi-display Assy |
| 86111 | Multi-display |

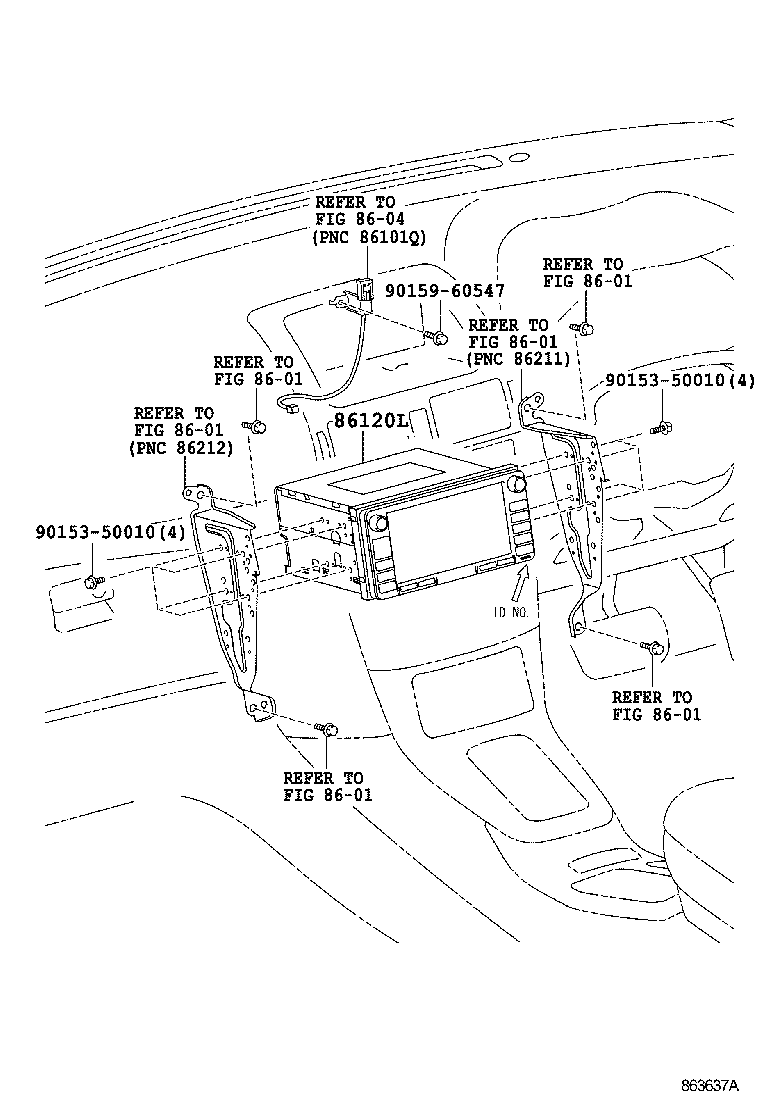

| 86120L | Receiver Assy, Navigation |
| 86271 | Disc, Disc Player |
| 86274F | Bracket, Disc Player, NO.2 |
| 86274G | Bracket, Disc Player, NO.3 |
| 86820 | Controller Assy, Navigation |
| 86825 | Holder, Navigation Controller |
| 86841 | Computer, Navigation |
| 86843 | Cover, Navigation Computer |
| 86843A | Cover, Navigation Computer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
