Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

5 part groups · 3 illustrations

Illustrations

Figure 861864D

861864D 2003-01 → —

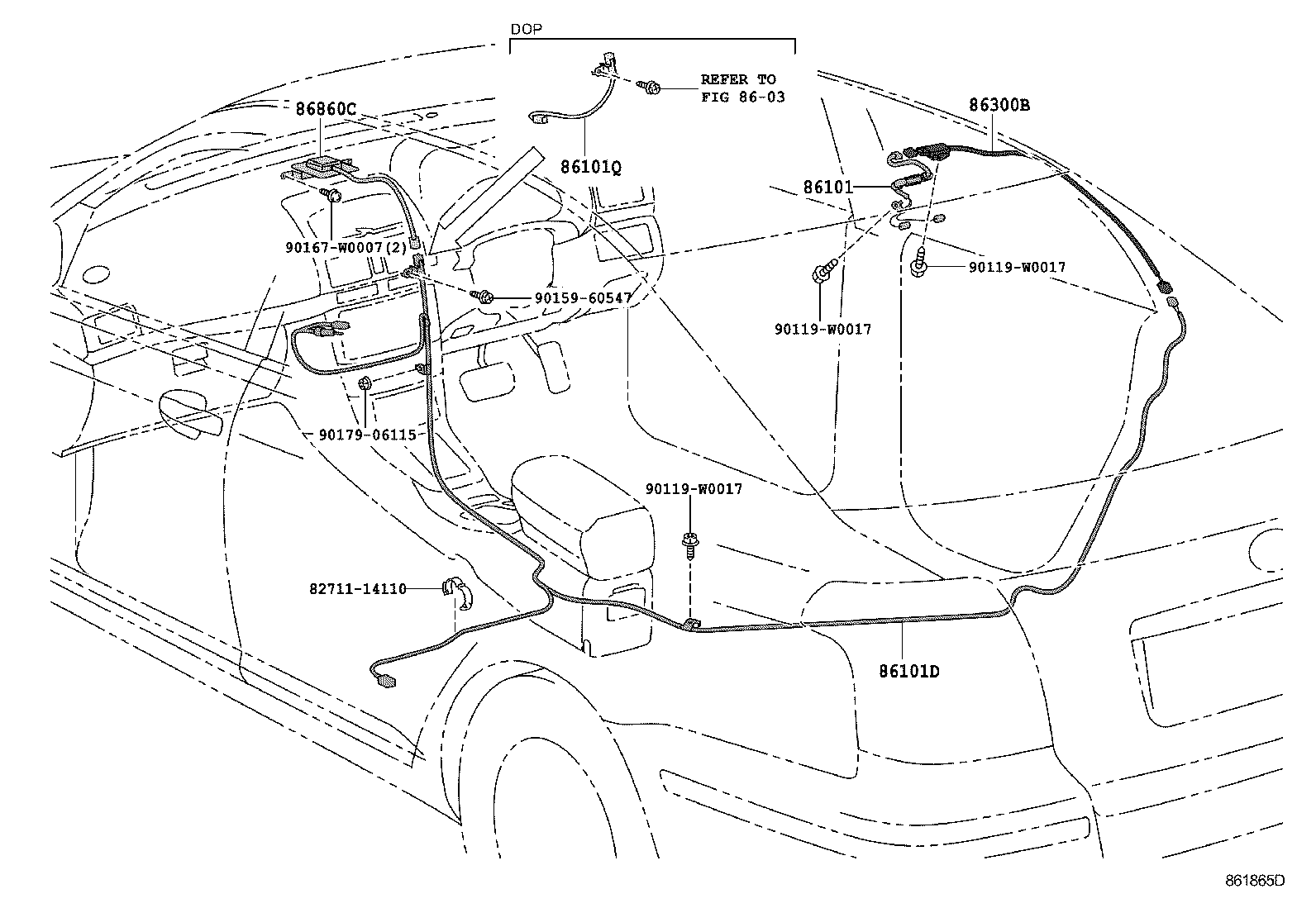

Figure 861865D

861865D 2003-01 → —

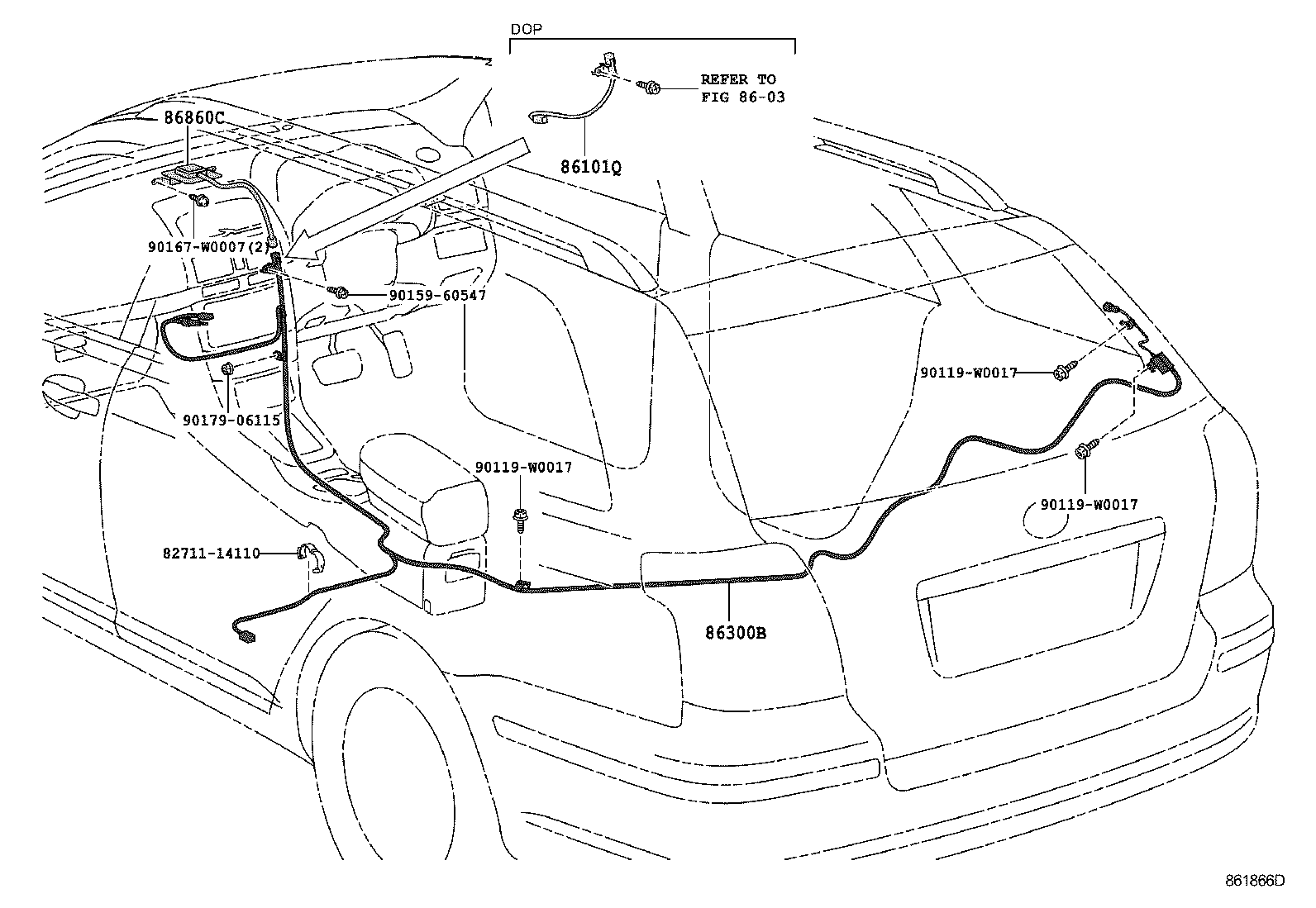

Figure 861866D

861866D 2003-01 → —

Part groups

PNC	Description
86101	Cord Sub-assy, Antenna
86101D	Cord Sub-assy, Antenna, NO.3
86101Q	Cord Sub-assy, Antenna, NO.4
86300B	Antenna Assy, Amplifier, NO.1
86860C	Antenna Assy, Navigation

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
