Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

25 part groups · 8 illustrations

Illustrations

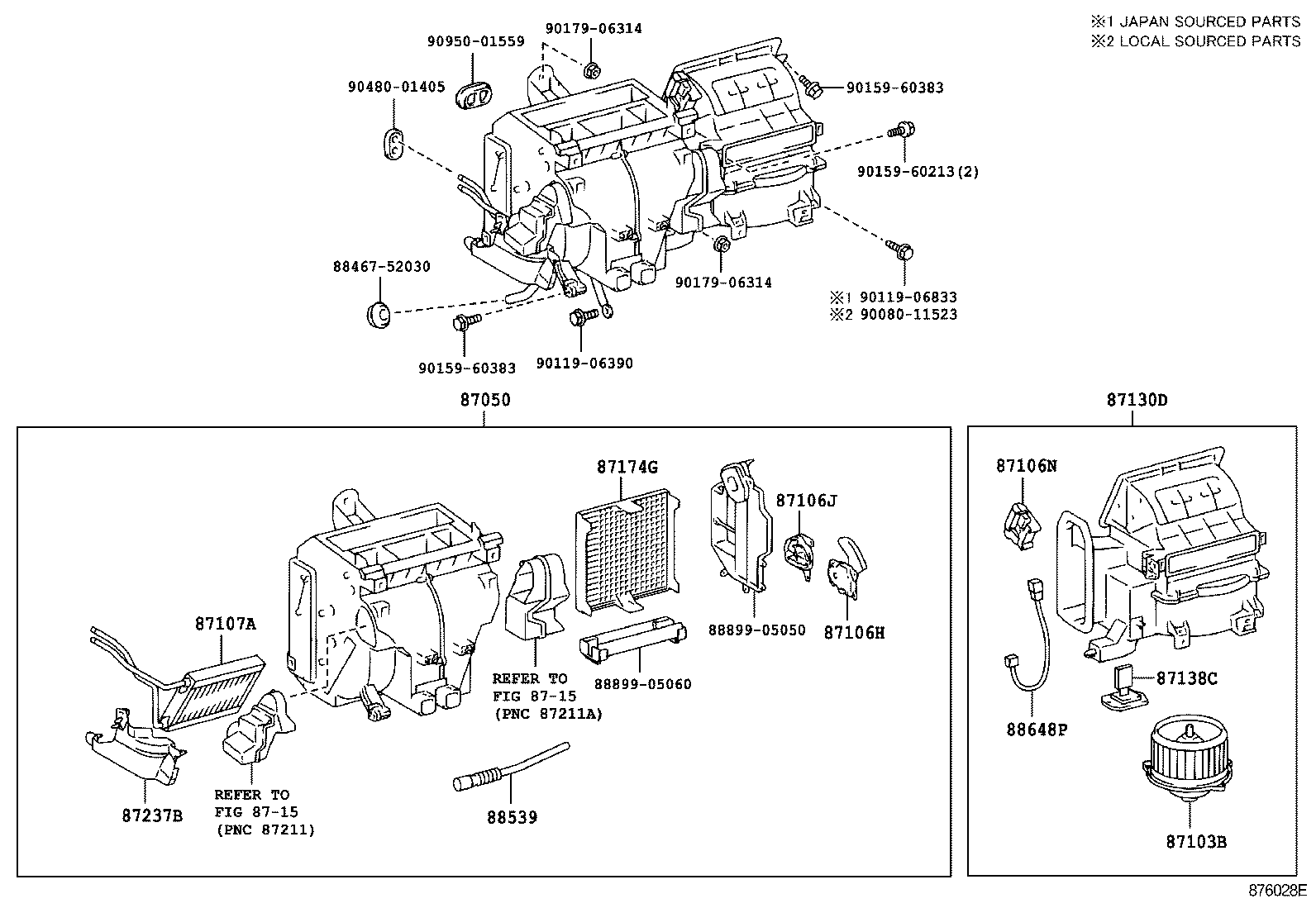

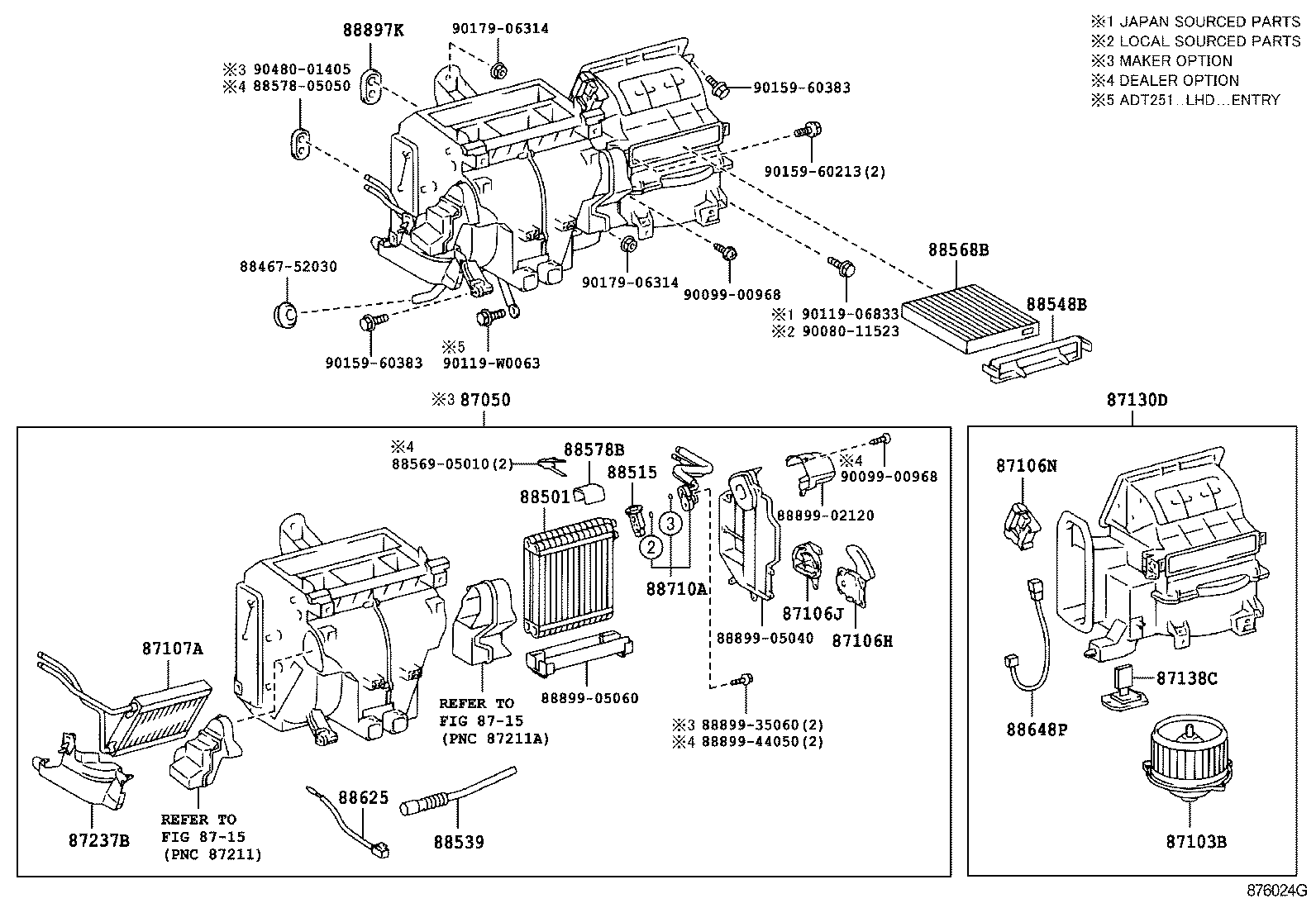

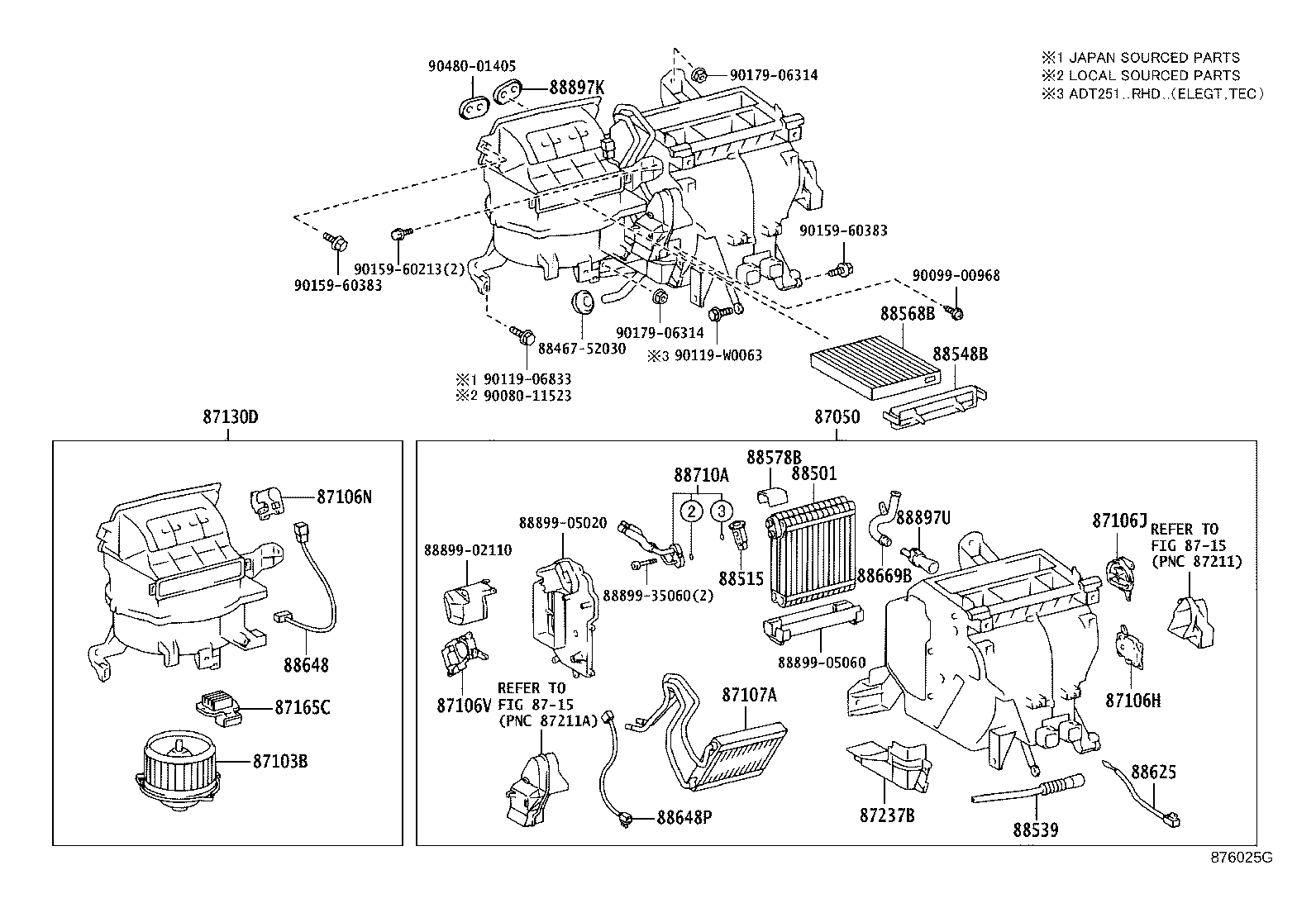

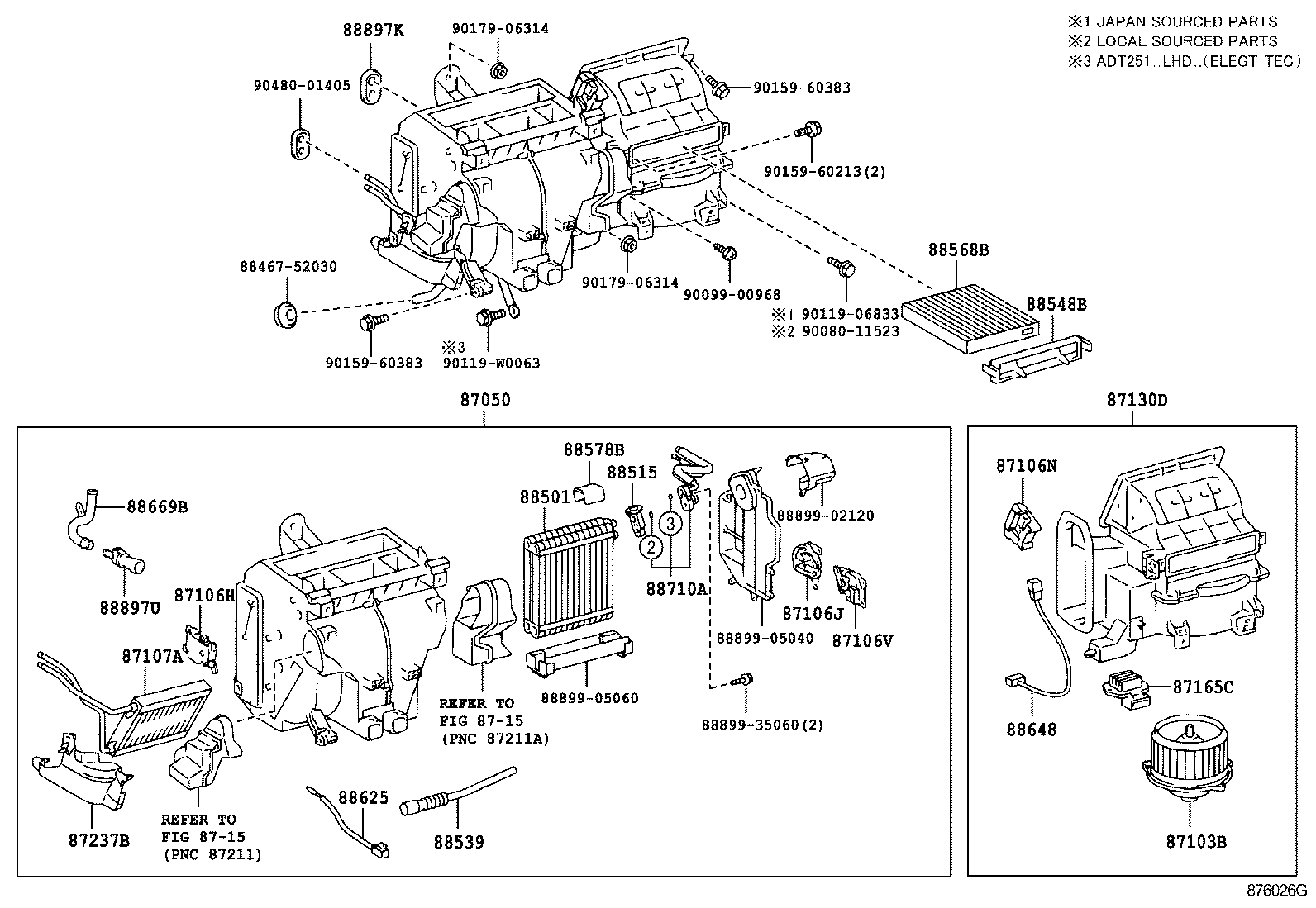

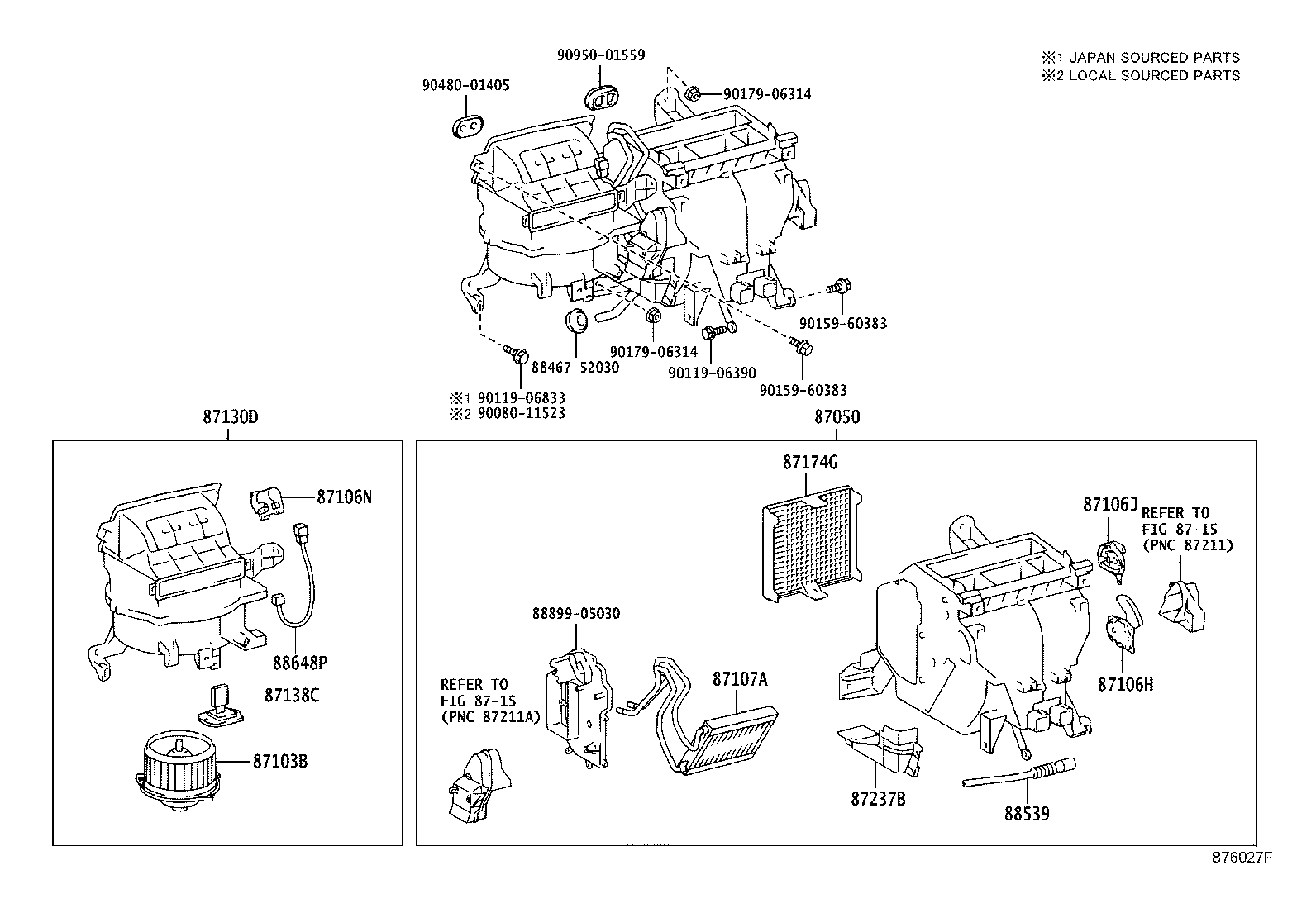

Figure 876023H 876023H 2003-01 → — Figure 876024G 876024G 2003-01 → — Figure 876025G 876025G 2003-01 → — Figure 876026G 876026G 2003-01 → — Figure 876026G 876026G 2005-04 → — Figure 876027F 876027F 2003-01 → 2006-04 Figure 876028E 876028E 2003-01 → 2006-04 Figure 876022B 876022B 2003-01 → —

Part groups

PNCDescription
87050 Radiator Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87106N Servo Sub-assy, Damper(FOR RECIRCULATION)
87106V Servo Sub-assy, Damper(FOR AIRMIX NO.2)
87107A Unit Sub-assy, Heater Radiator
87130D Blower Assy
87138C Resistor, Blower
87165C Control, Blower Motor
87174G Guide, Air Heater
87237B Cover, Heater Piping
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88548B Case, Air Filter
88568B Filter, Air
88578B Packing, Cooling Unit, NO.1
88625 Thermistor, Cooler, NO.1
88648 Wiring, Cooler, NO.1
88648P Wire,Air Conditioner,NO.1
88669B Hose, Cooler Air
88710A Tube Assy, Air Conditioner
88897K Grommet, (FOR COOLER PIPE)
88897U Pipe, Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
