Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

27 part groups · 6 illustrations

Illustrations

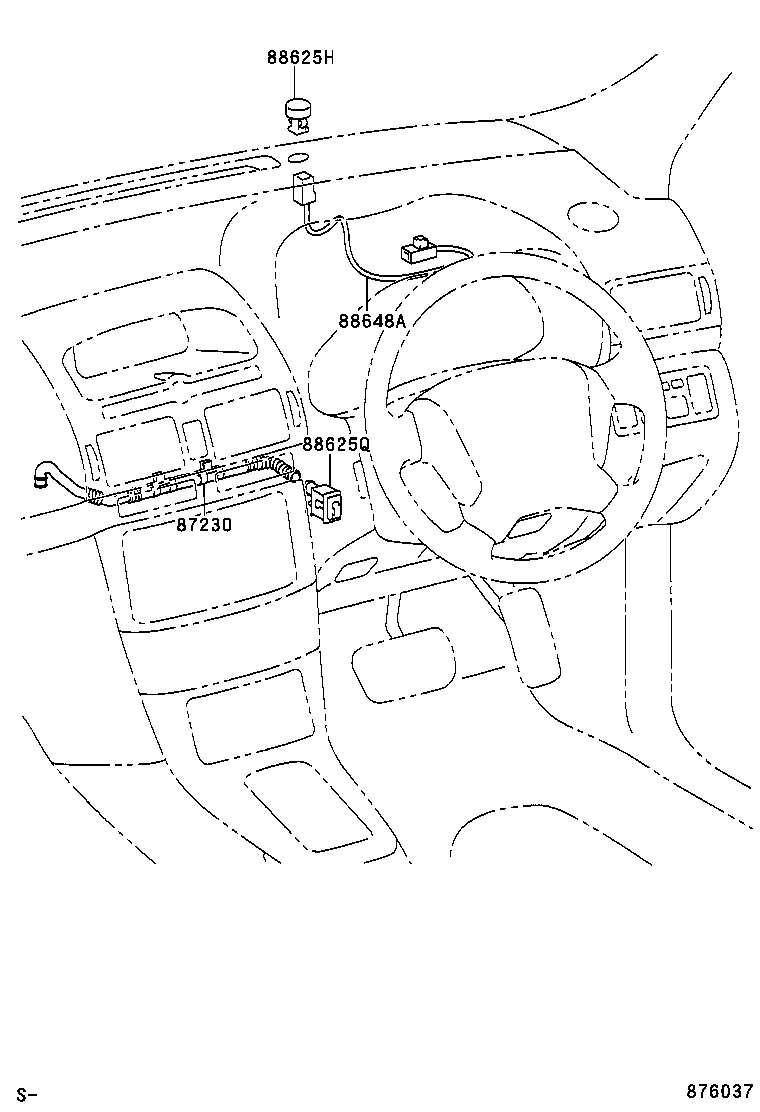

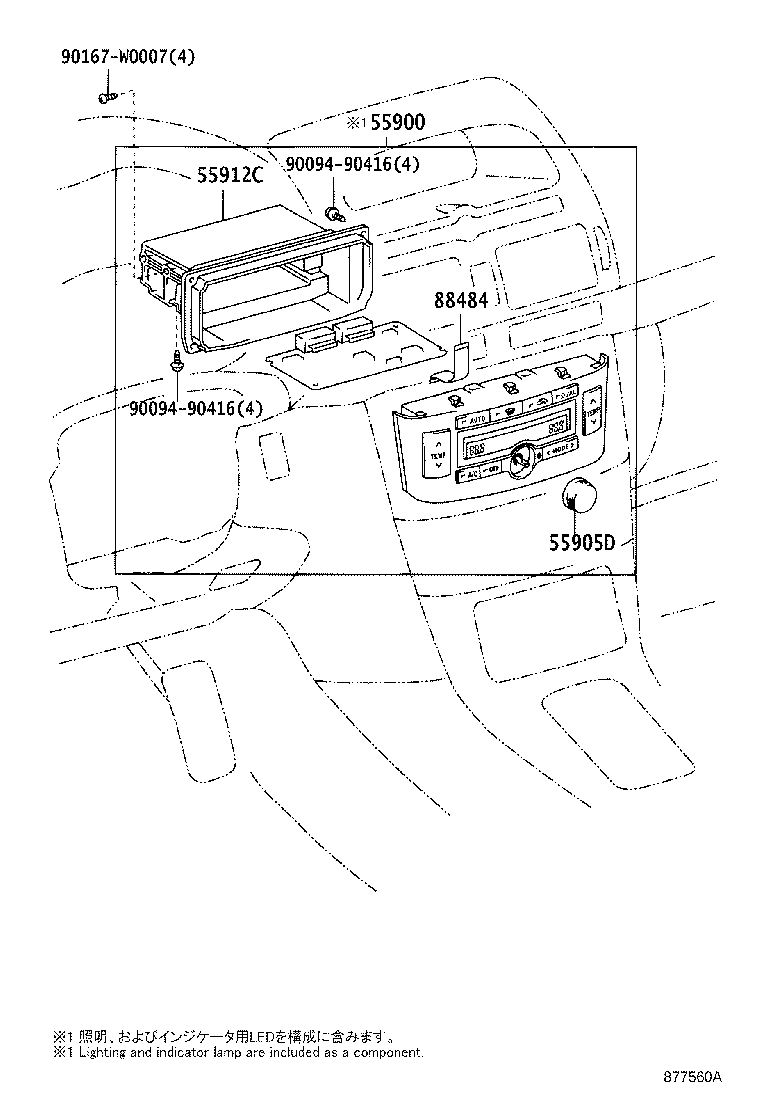

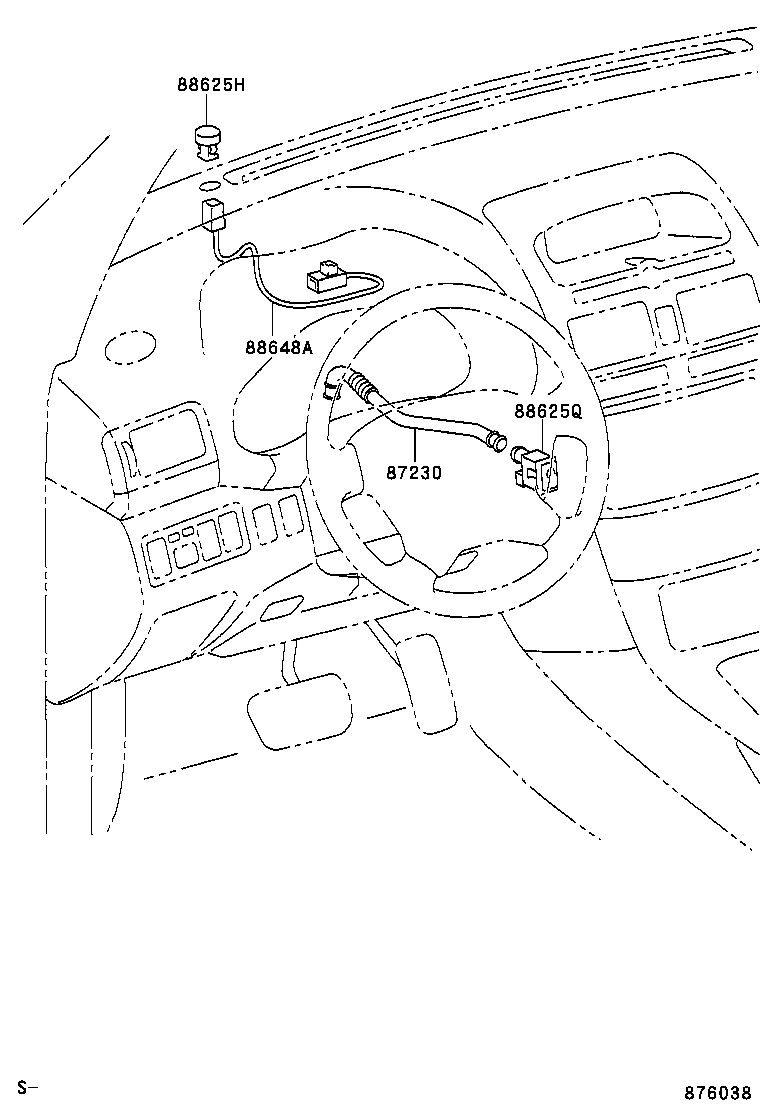

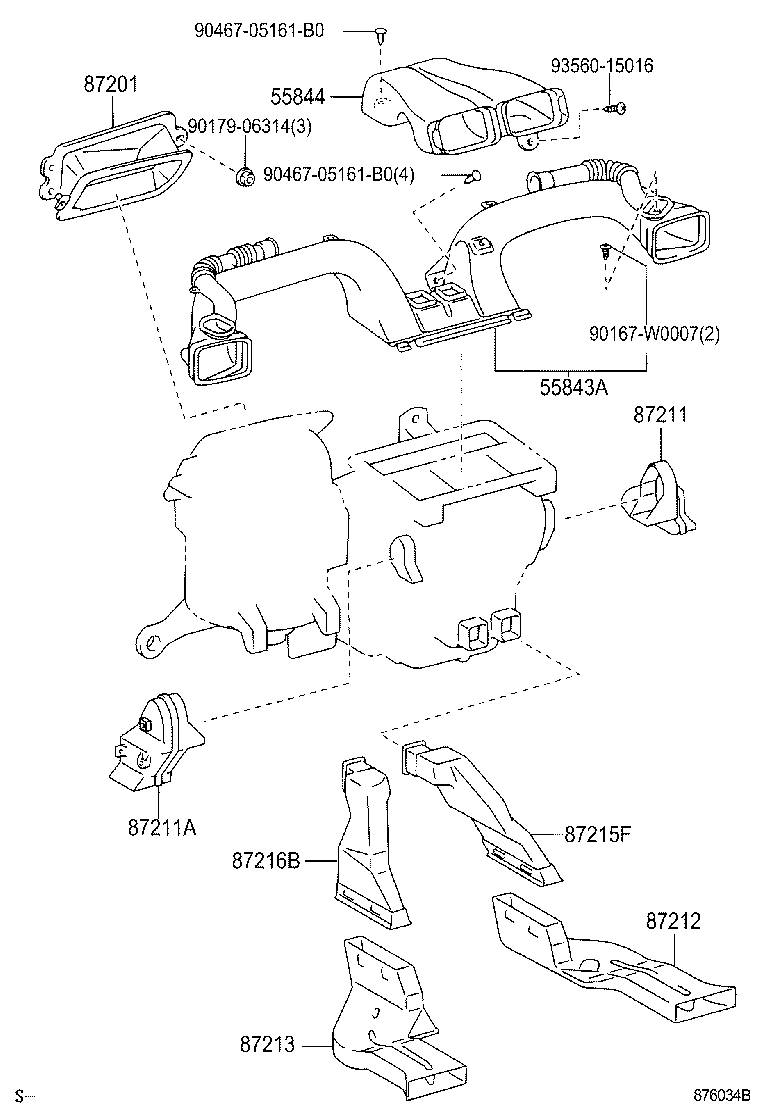

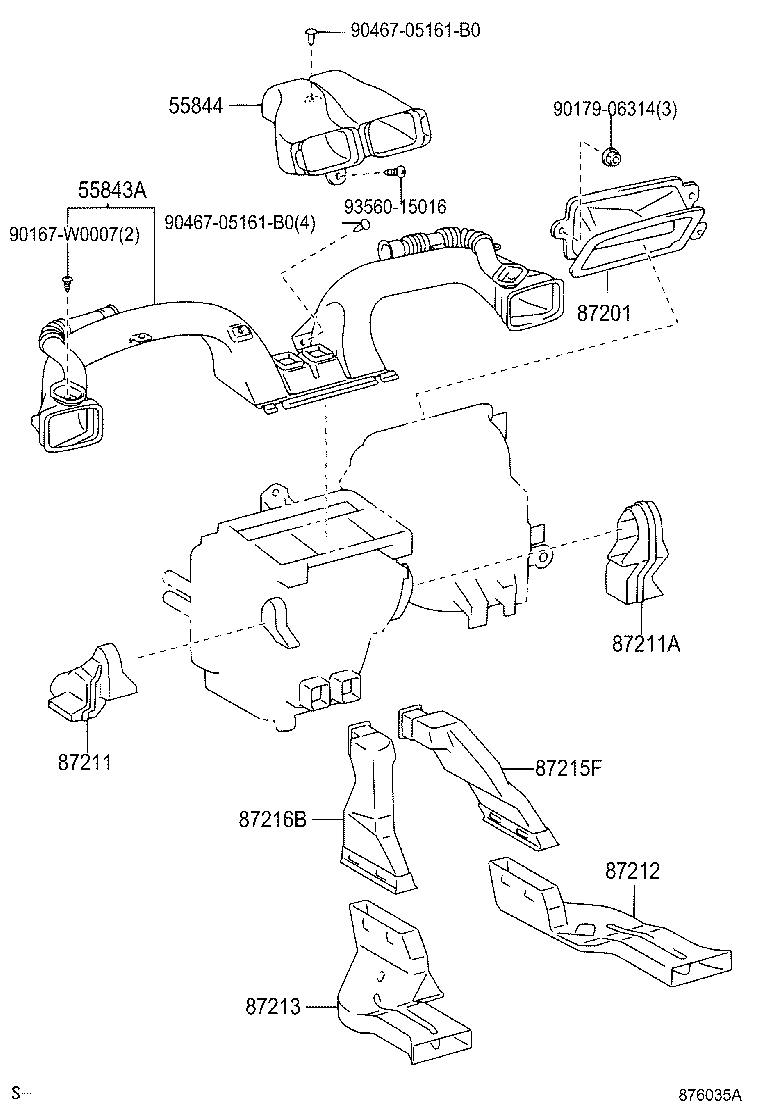

Figure 877559A 877559A 2003-01 → — Figure 877560A 877560A 2003-01 → — Figure 876034B 876034B 2003-01 → — Figure 876035A 876035A 2003-01 → — Figure 876037 876037 2003-01 → — Figure 876038 876038 2003-01 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55902C Panel Sub-assy, Air Conditioner
55904A Housing Sub-assy, Heater Control
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905C Knob, Heater Control, NO.3
55905D Knob Sub-assy, Control
55912A Housing, Heater Control
55912C Housing, Heater Control
81940D Lens Assy, Heater Control
81940E Lens Assy, Heater Control
81940F Lens Assy, Heater Control
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215F Duct, Air, Rear NO.3
87216B Duct, Air, Rear NO.4
87230 Duct Assy, Air, Heater
88484 Wire, Cooler, NO.1
88625H Thermistor, Cooler (SOLAR SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88648A Wiring, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
