Toyota Avensis

2003-01 → 2008-11 · chassis ADT25#,AZT25#,CDT250,ZZT25# · catalogue 273550 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

16 part groups · 7 illustrations

Illustrations

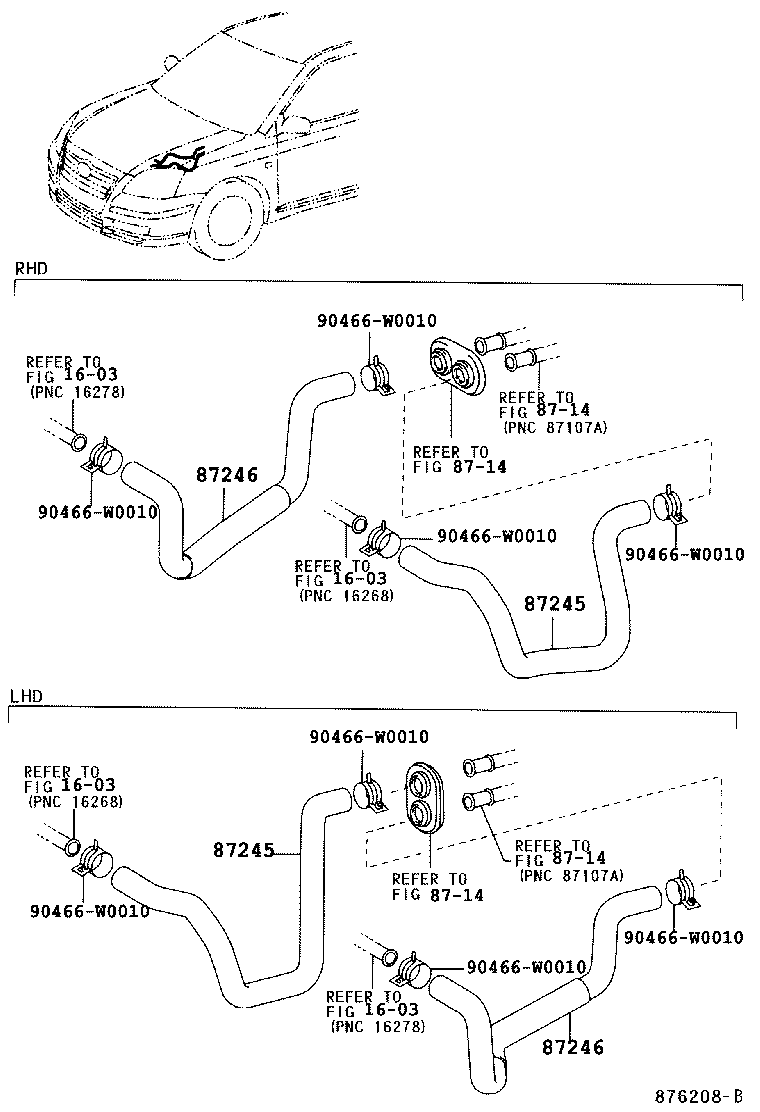

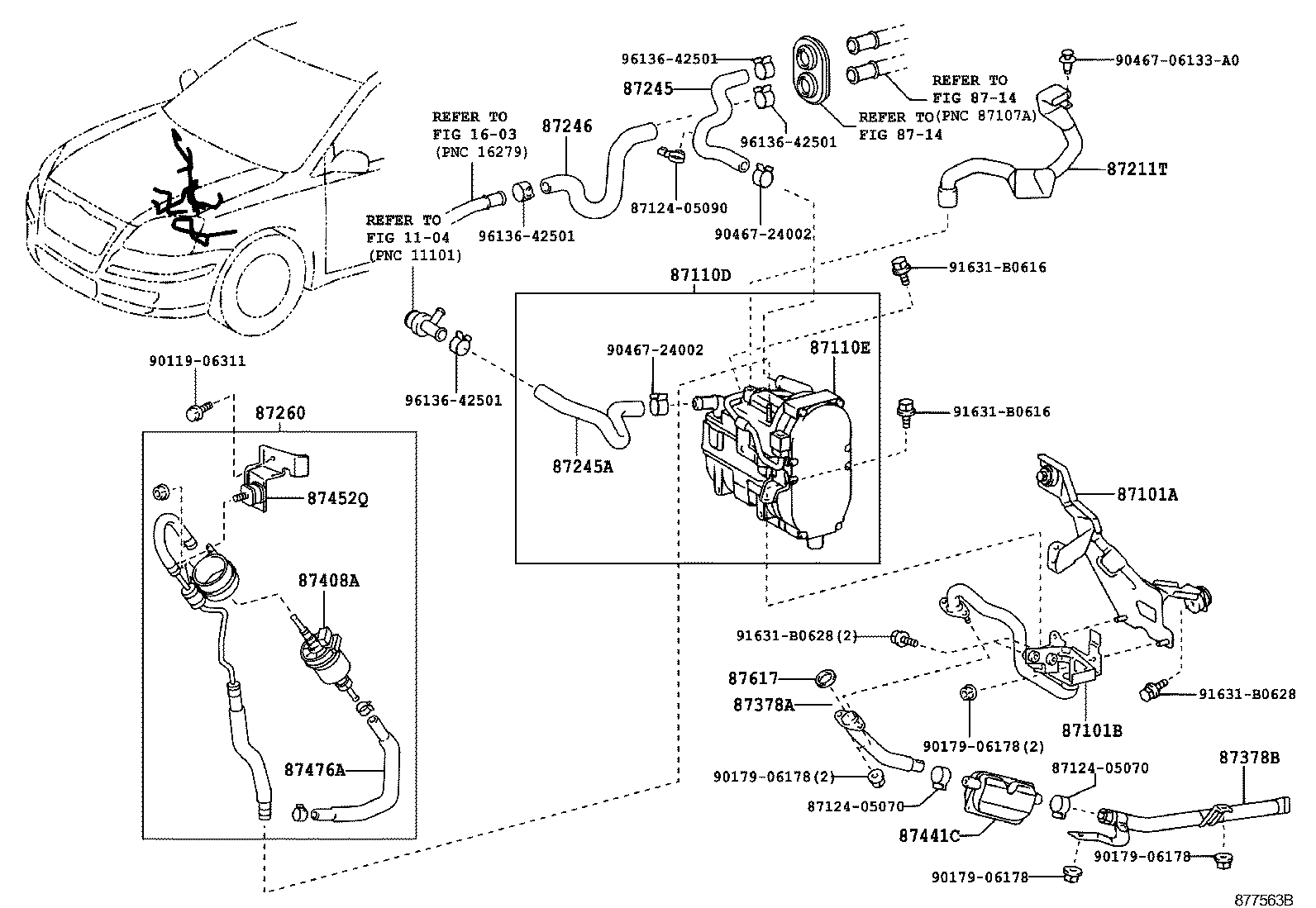

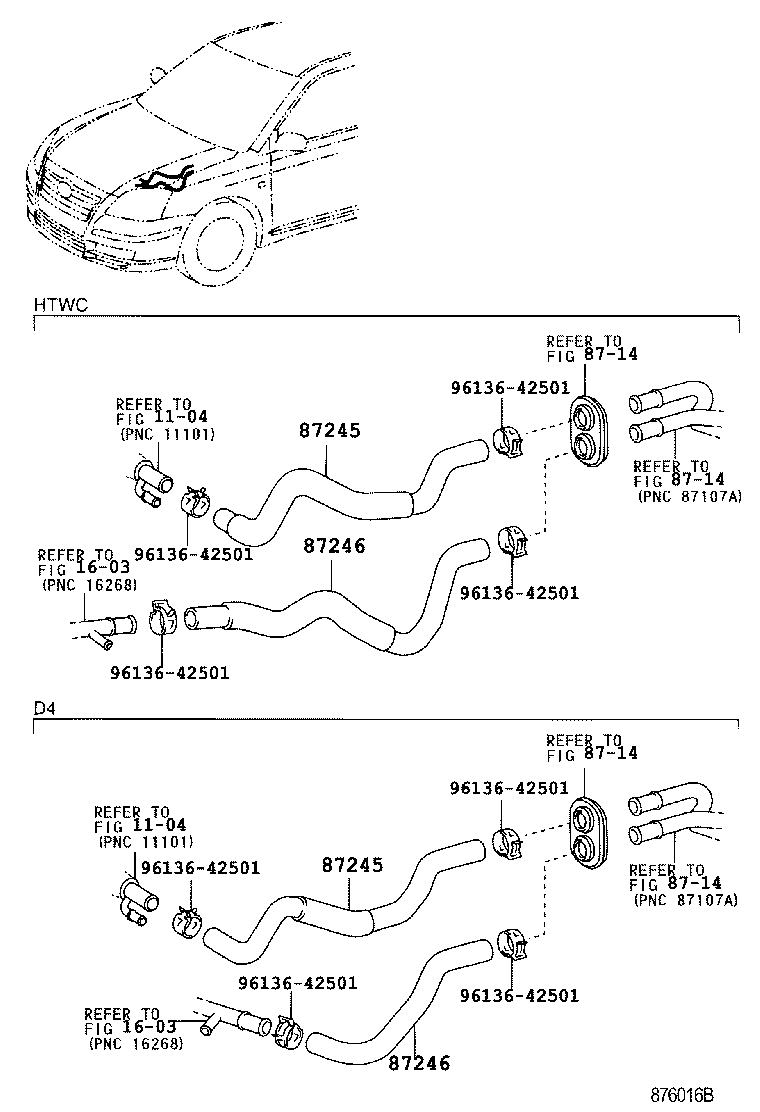

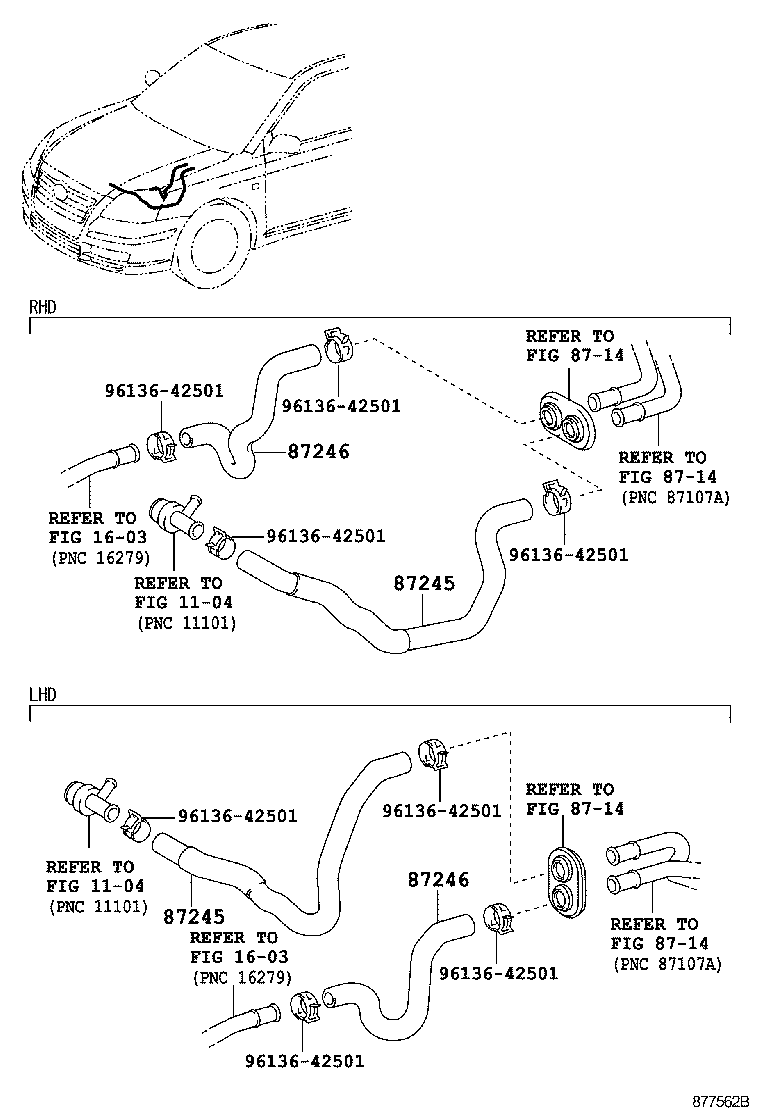

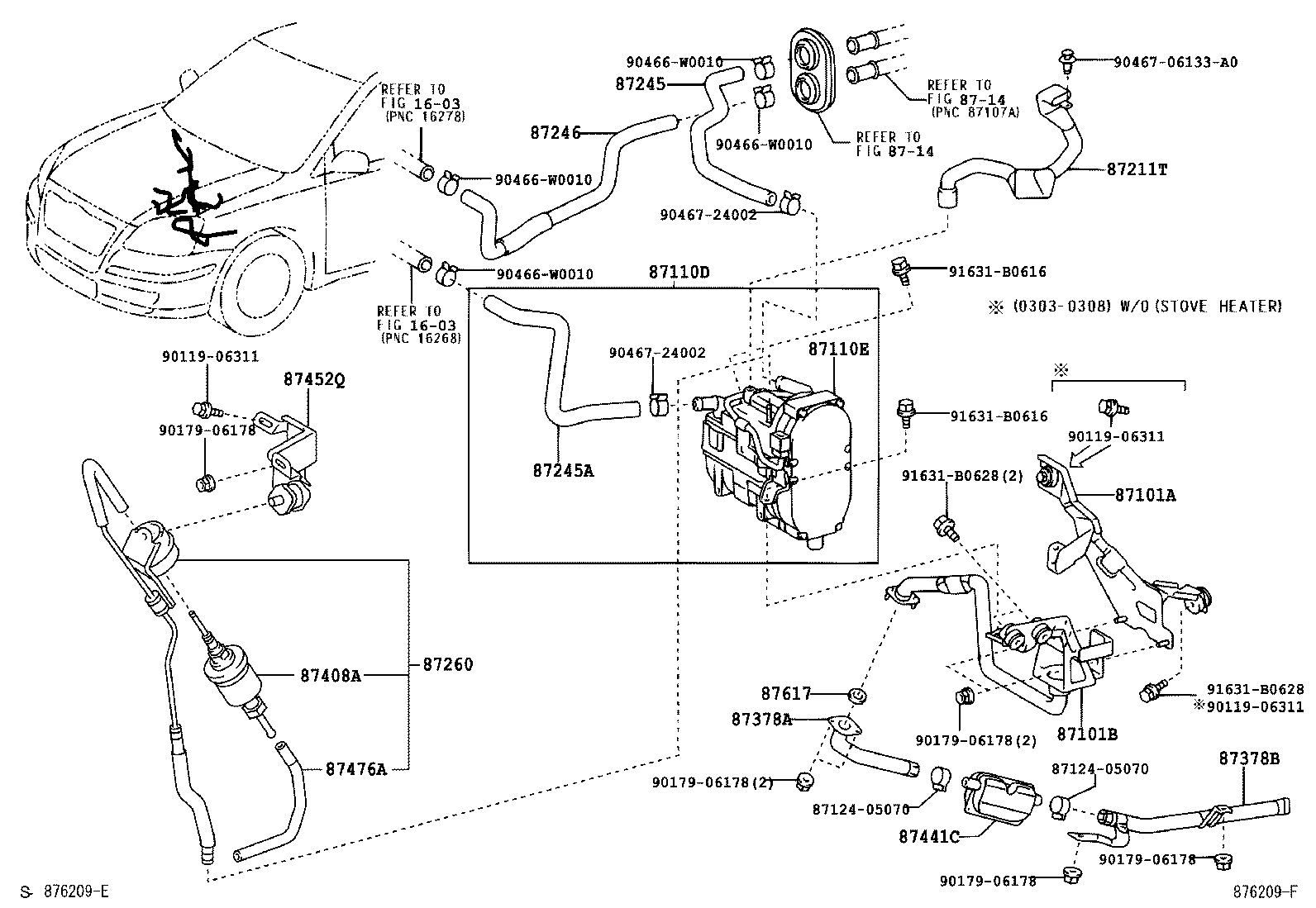

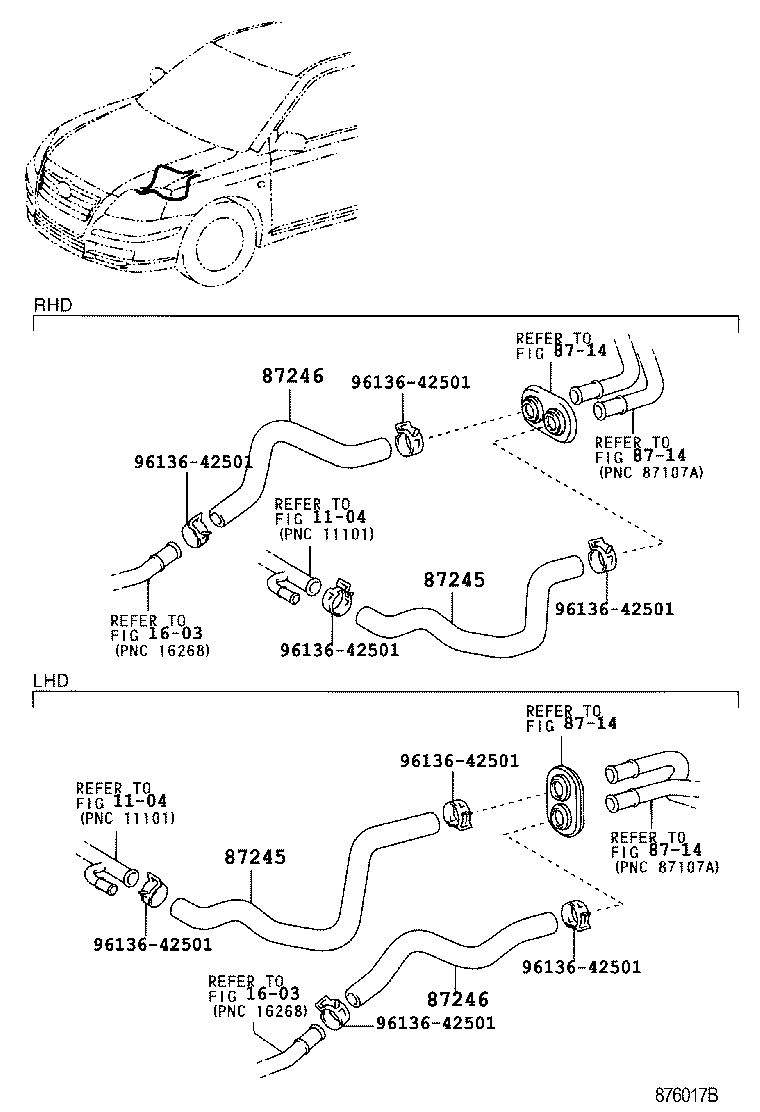

Figure 876015B 876015B 2003-01 → — Figure 876016B 876016B 2003-01 → — Figure 876017B 876017B 2003-01 → — Figure 876208B 876208B 2003-03 → 2006-04 Figure 877562B 877562B 2005-04 → — Figure 876209F 876209F 2003-03 → 2006-04 Figure 877563B 877563B 2005-04 → —

Part groups

PNCDescription
87101A Bracket Sub-assy, Heater NO.1
87101B Bracket Sub-assy, Heater NO.2
87110D Heater Assy
87110E Heater Assy
87211T Duct, Air
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87246 Hose, Heater Water, Outlet
87260 Pump Assy, Heater
87378A Pipe, Exhaust
87378B Pipe, Exhaust, NO.2
87408A Pump Sub-assy, Fuel
87441C Muffler
87452Q Bracket, Heater, NO.1
87476A Hose, Heater Fuel, NO.1
87617 Gasket, Heat Exchanger Unit NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
