Heating & Air Conditioning - Cooler Piping

30 part groups · 15 illustrations

Illustrations

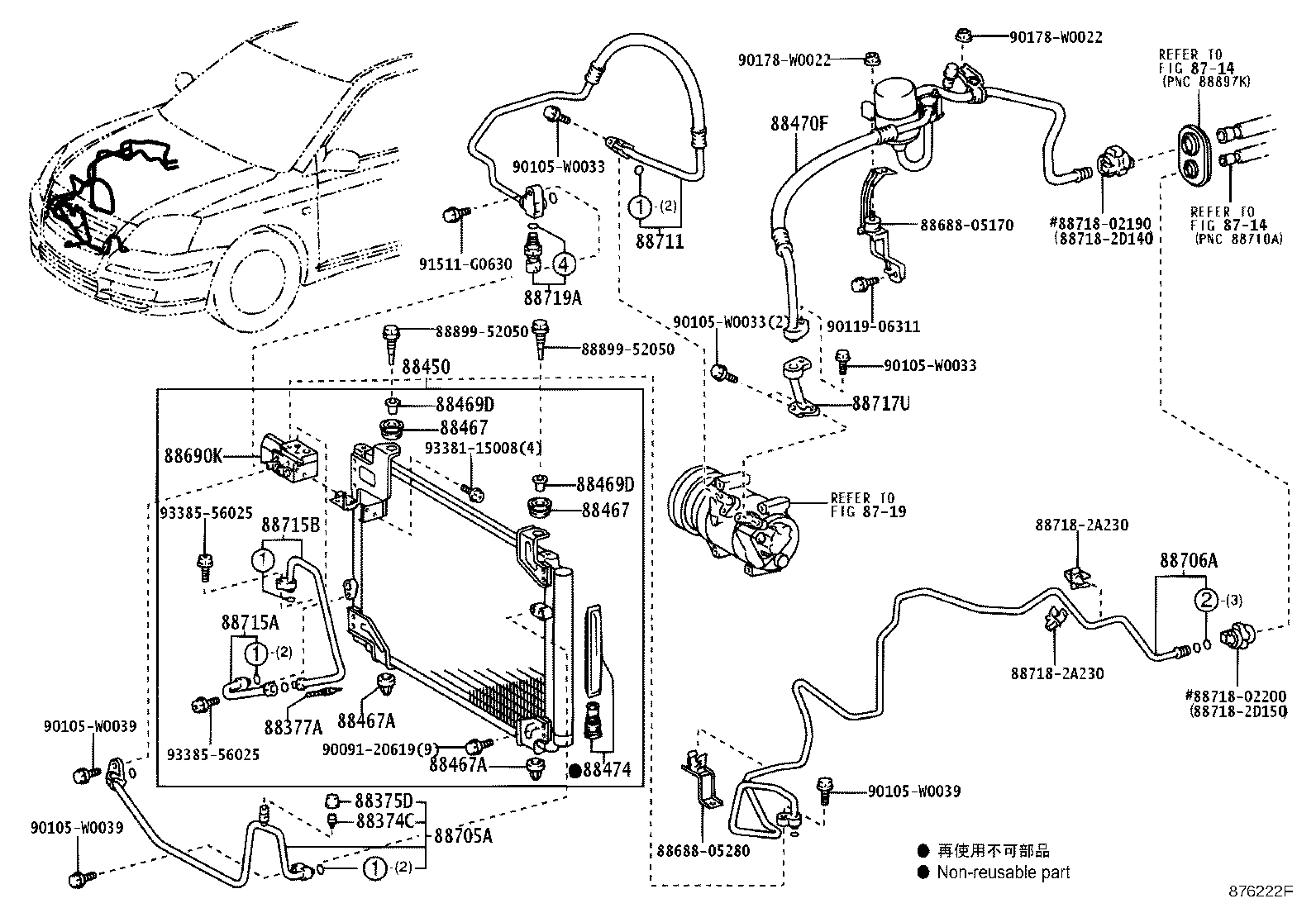

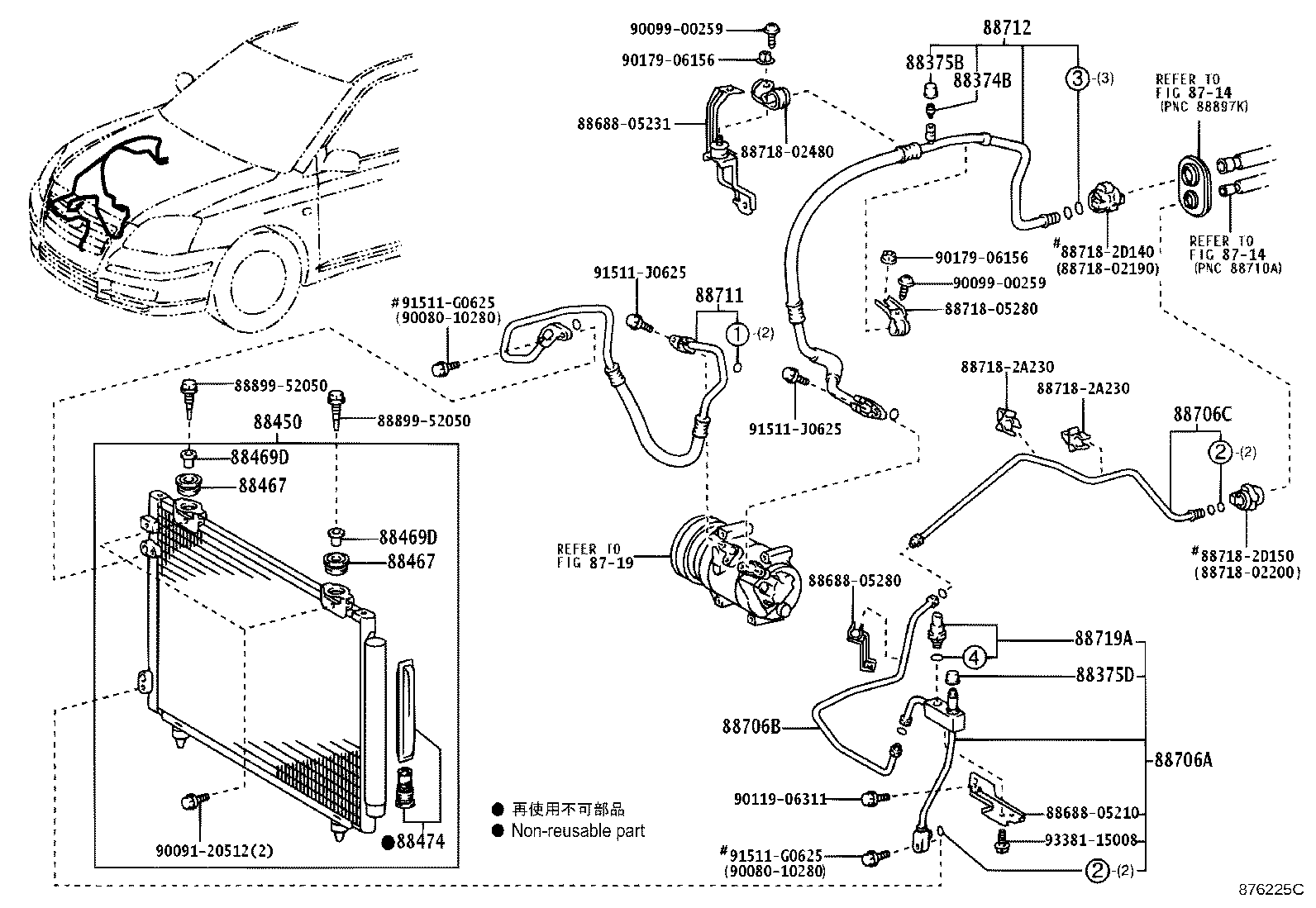

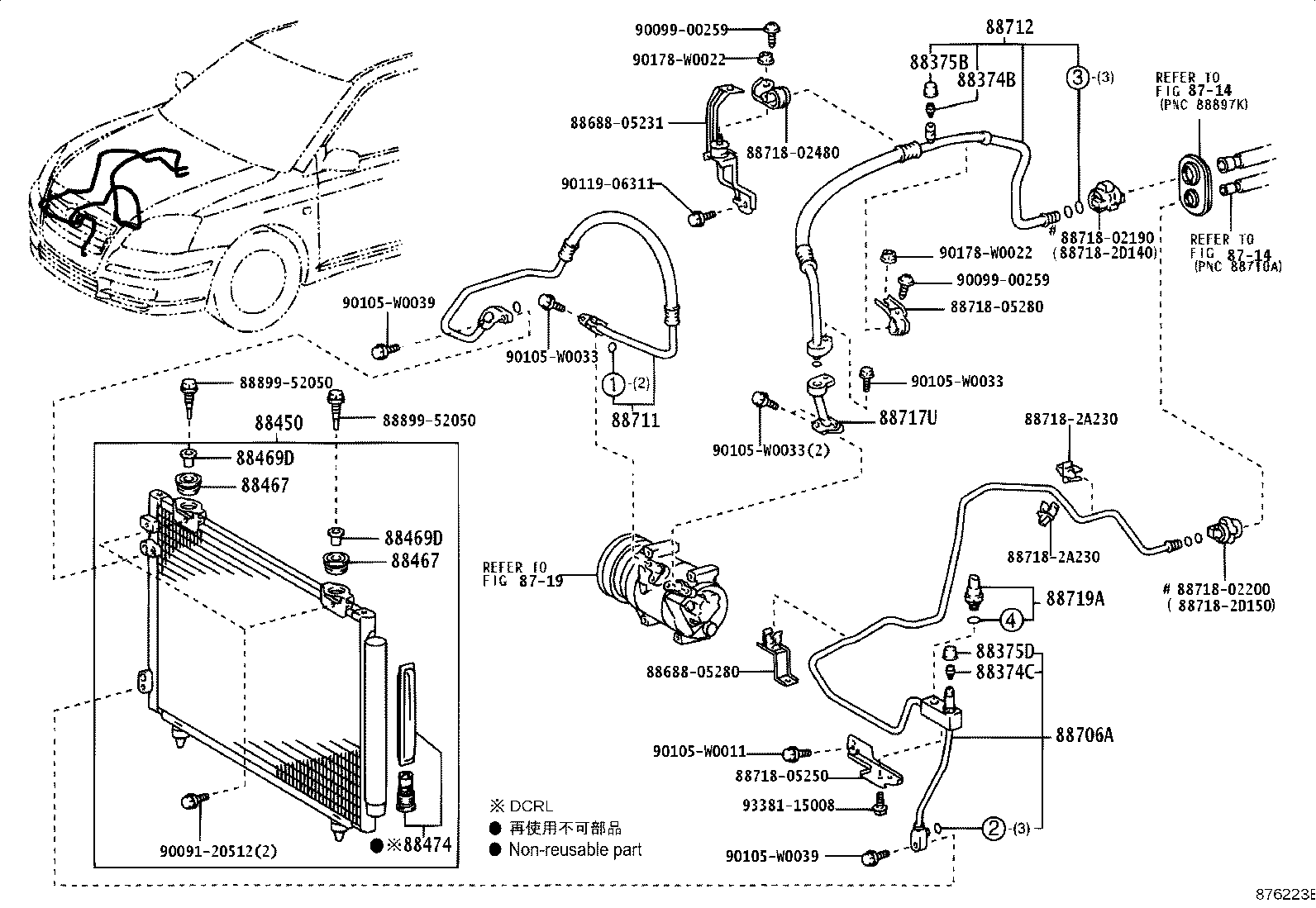

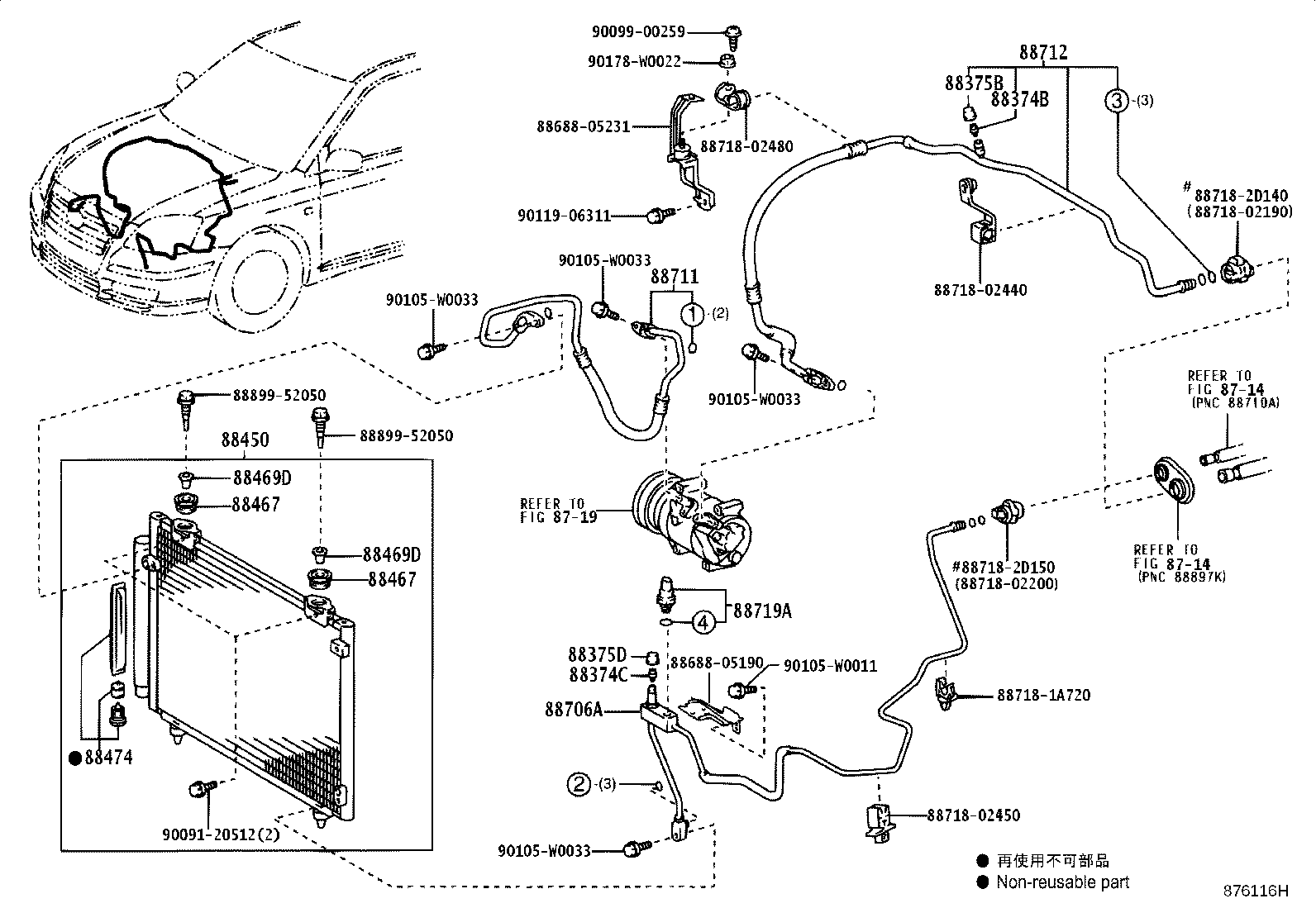

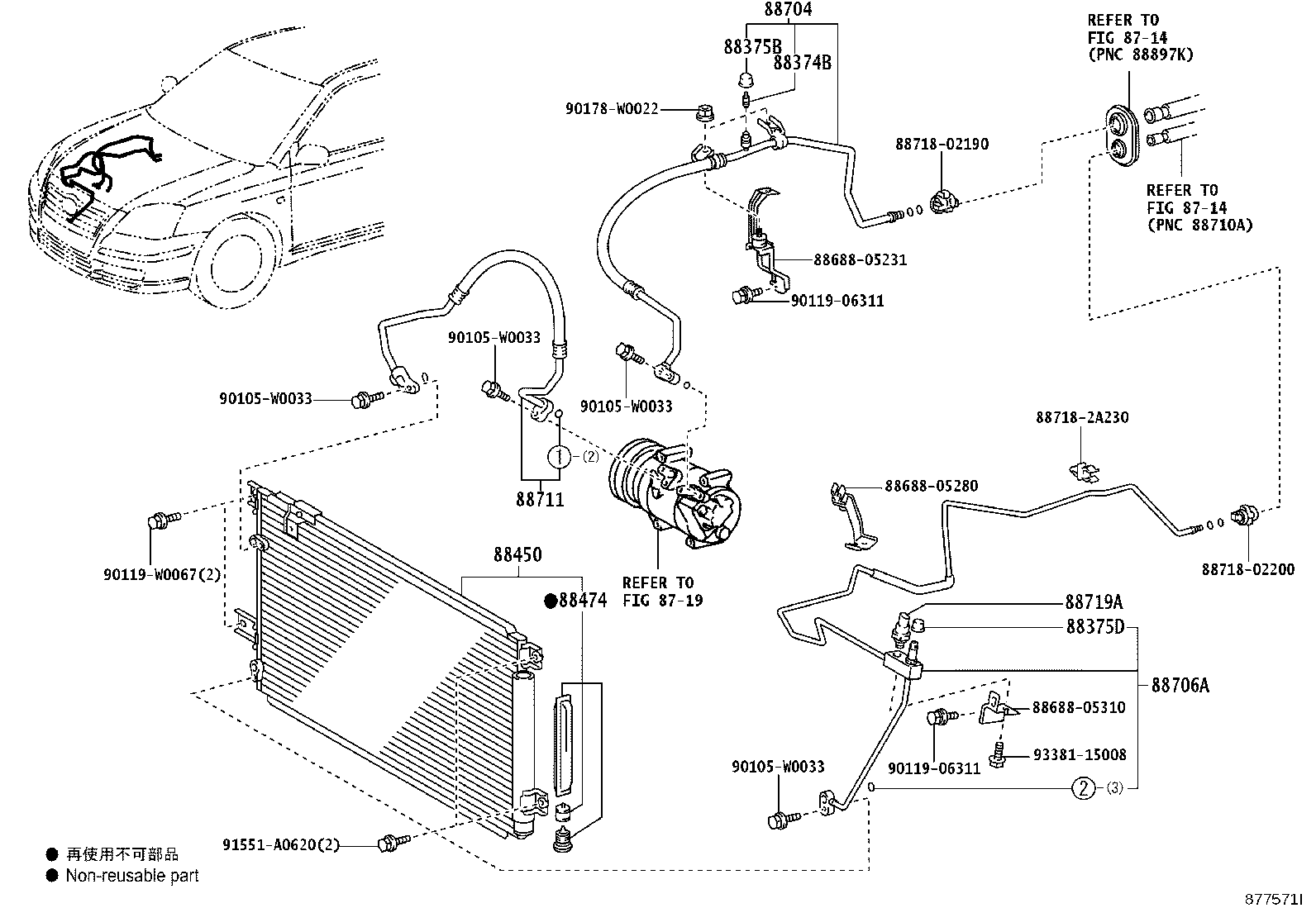

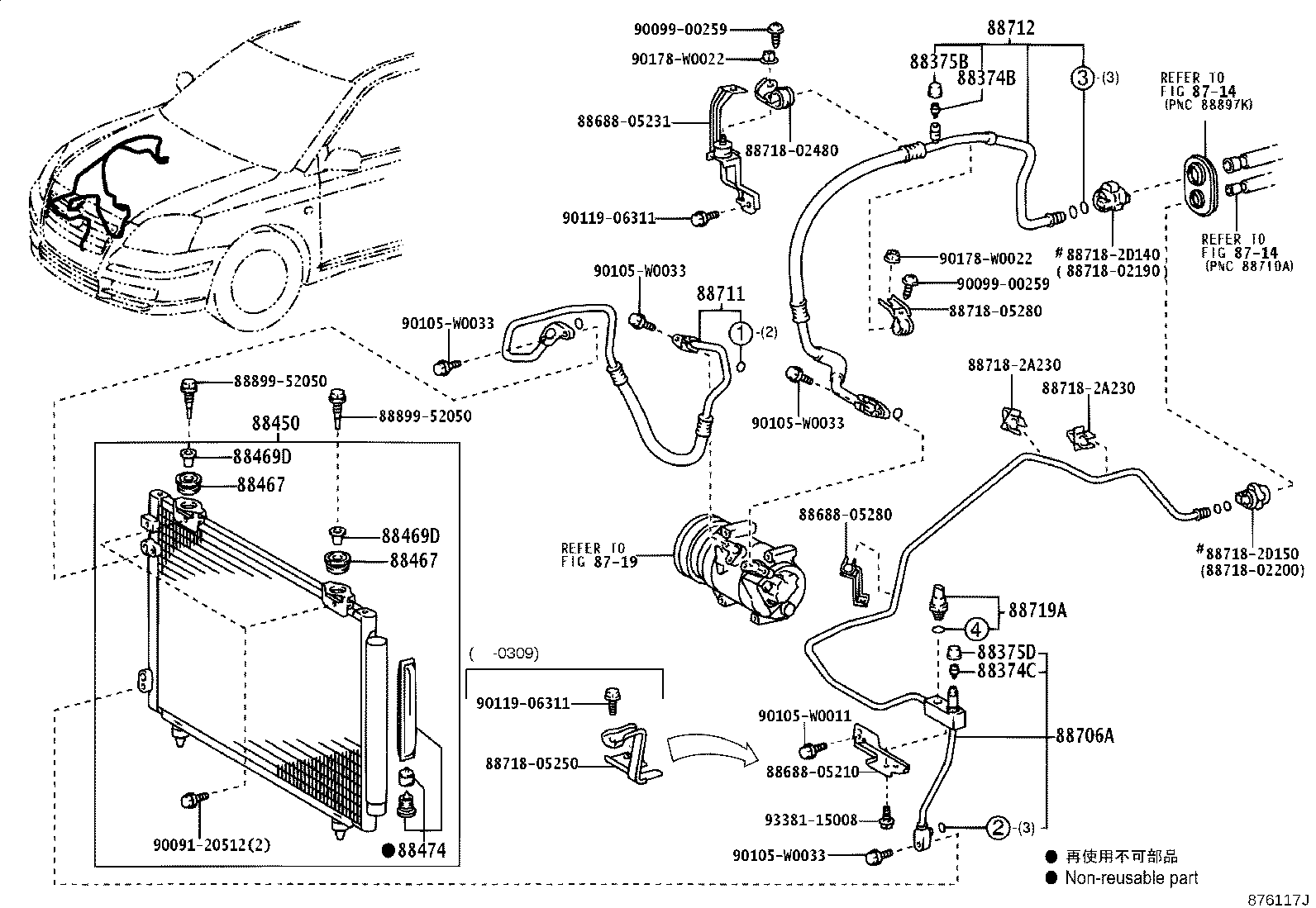

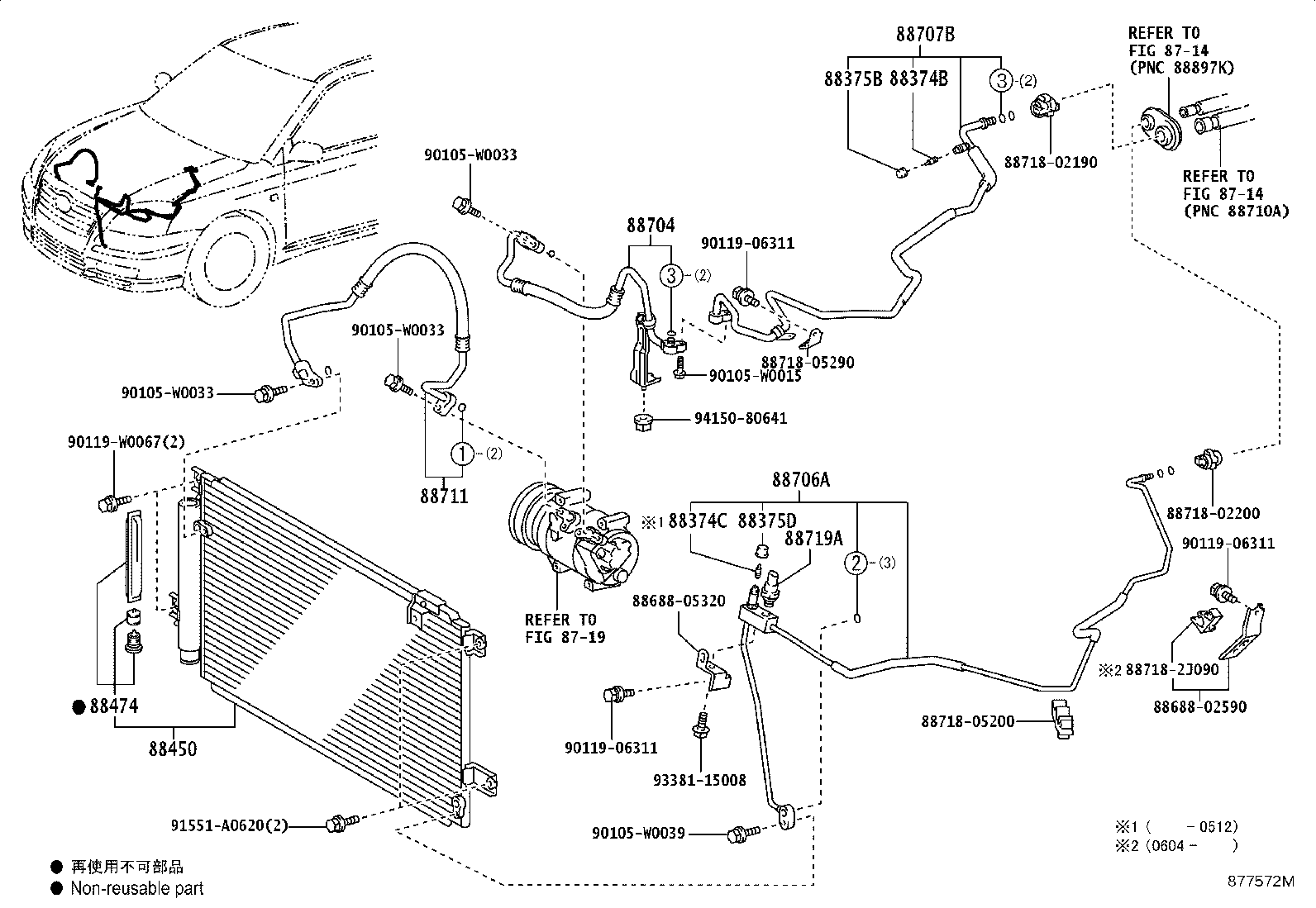

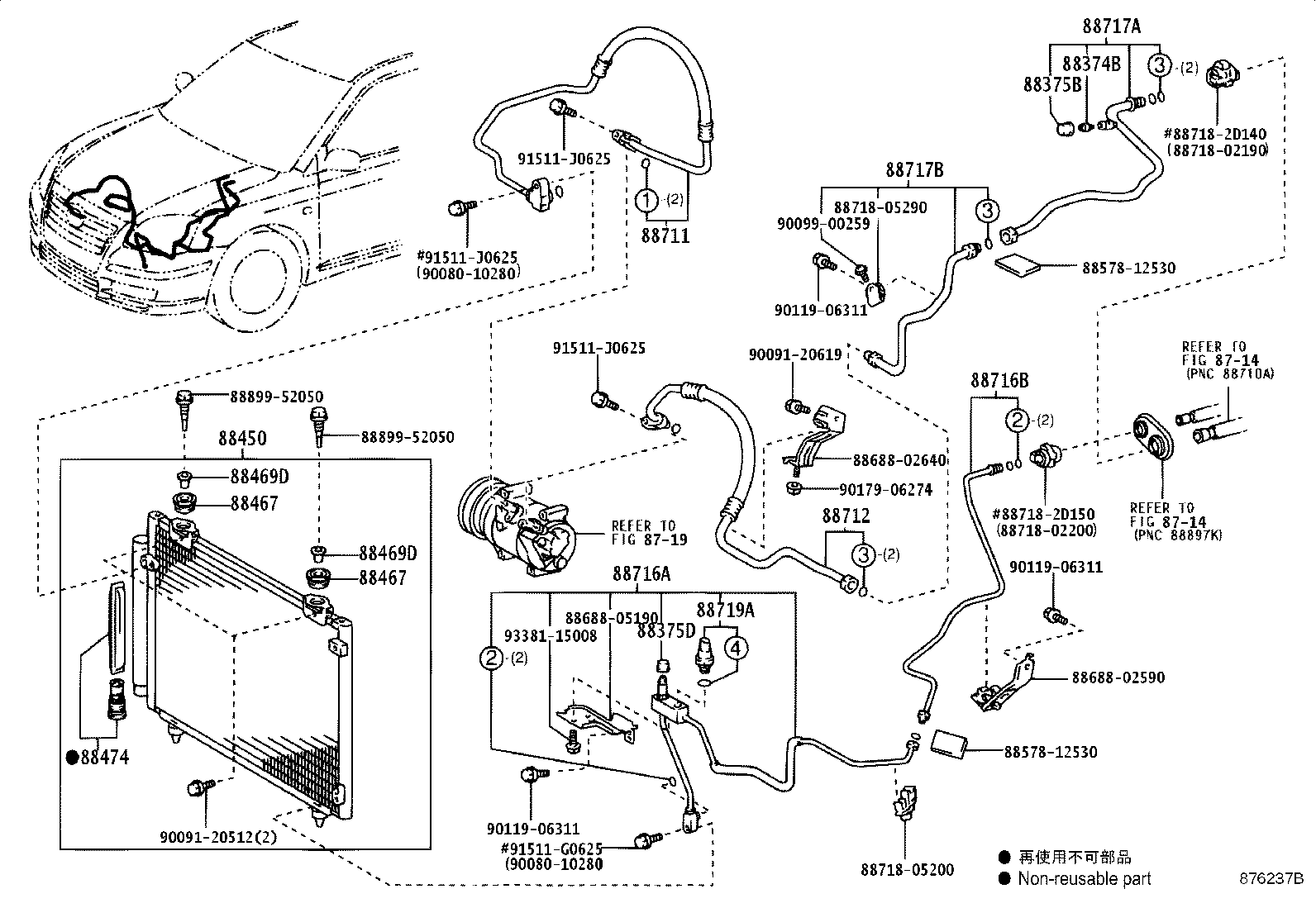

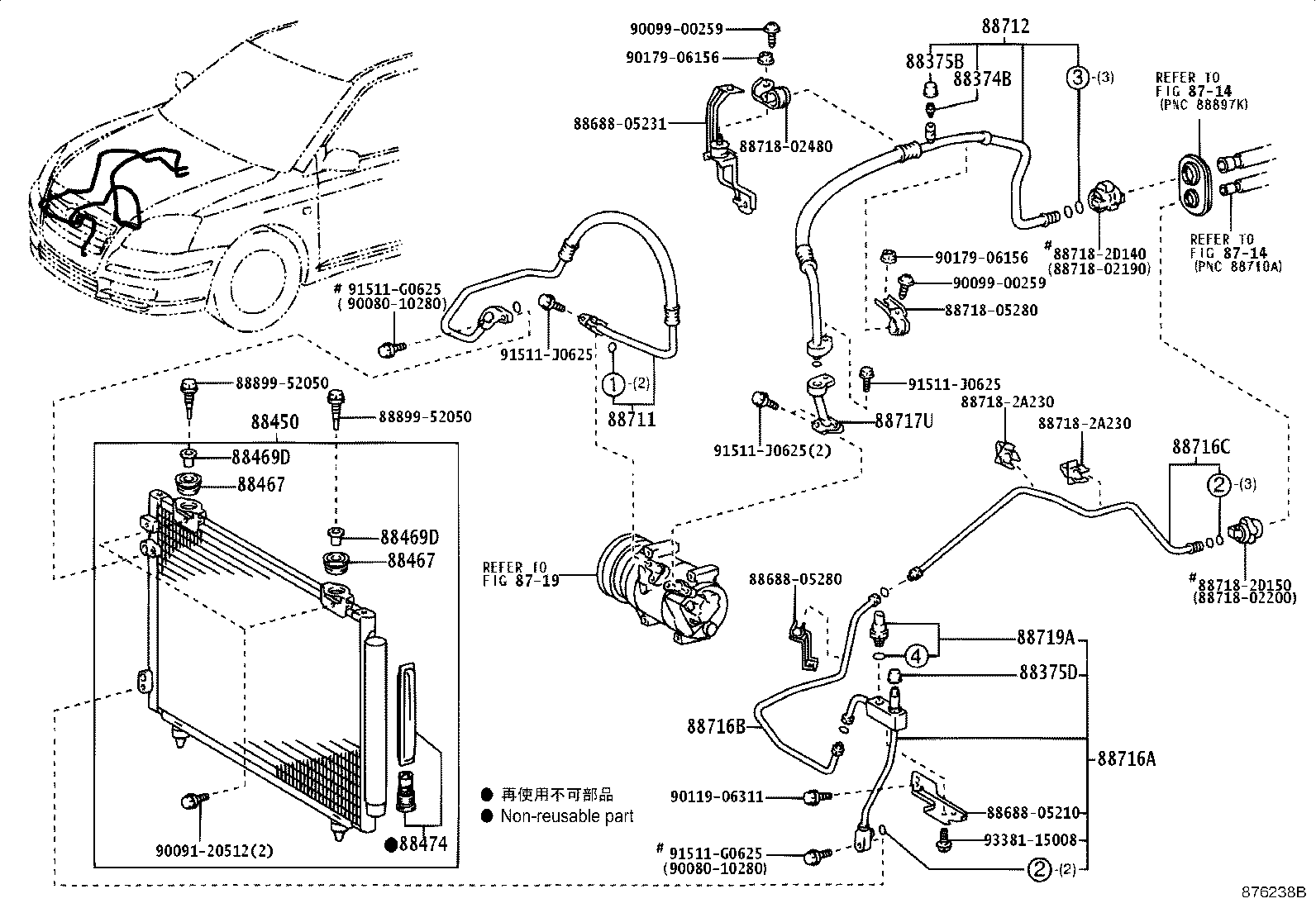

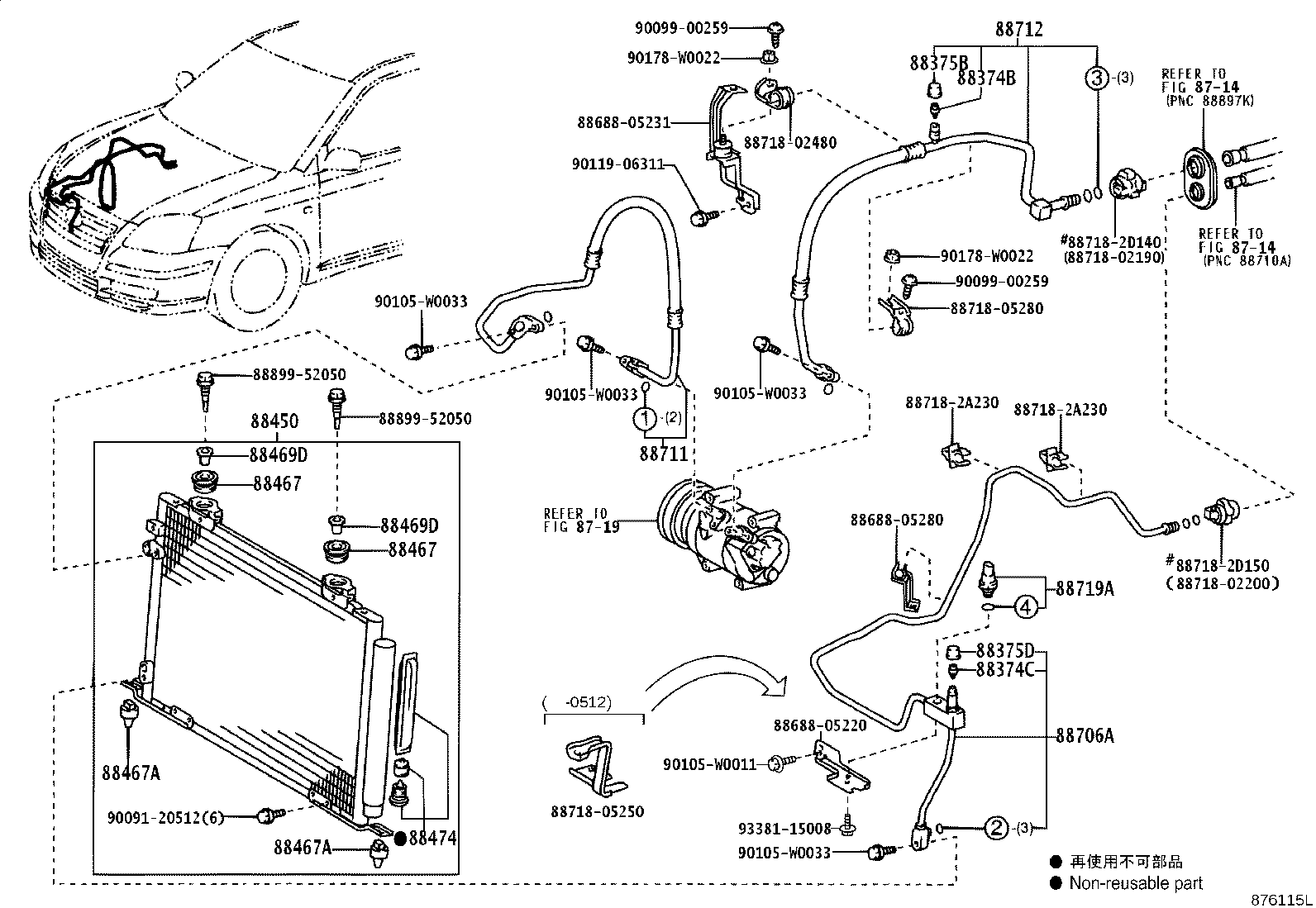

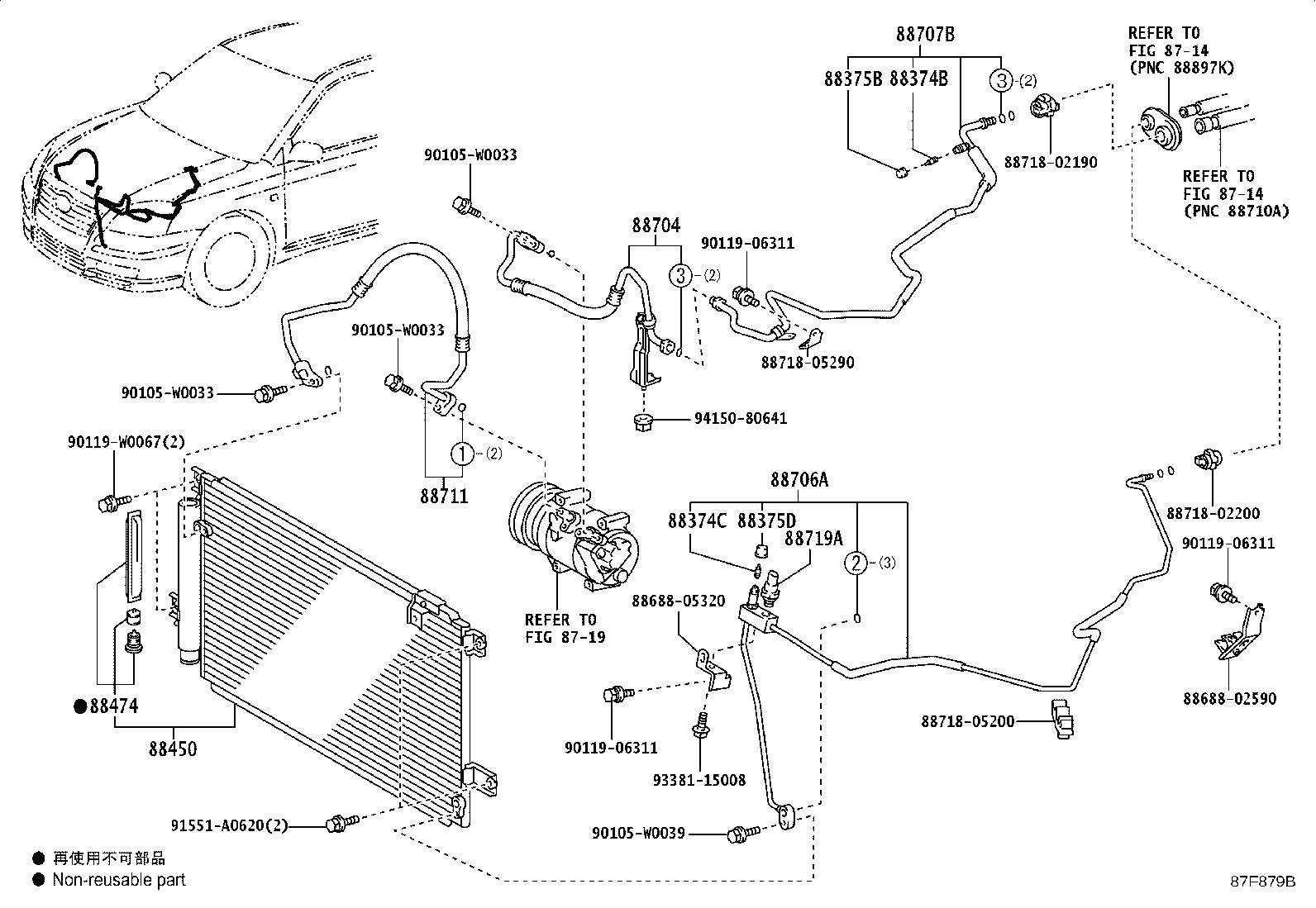

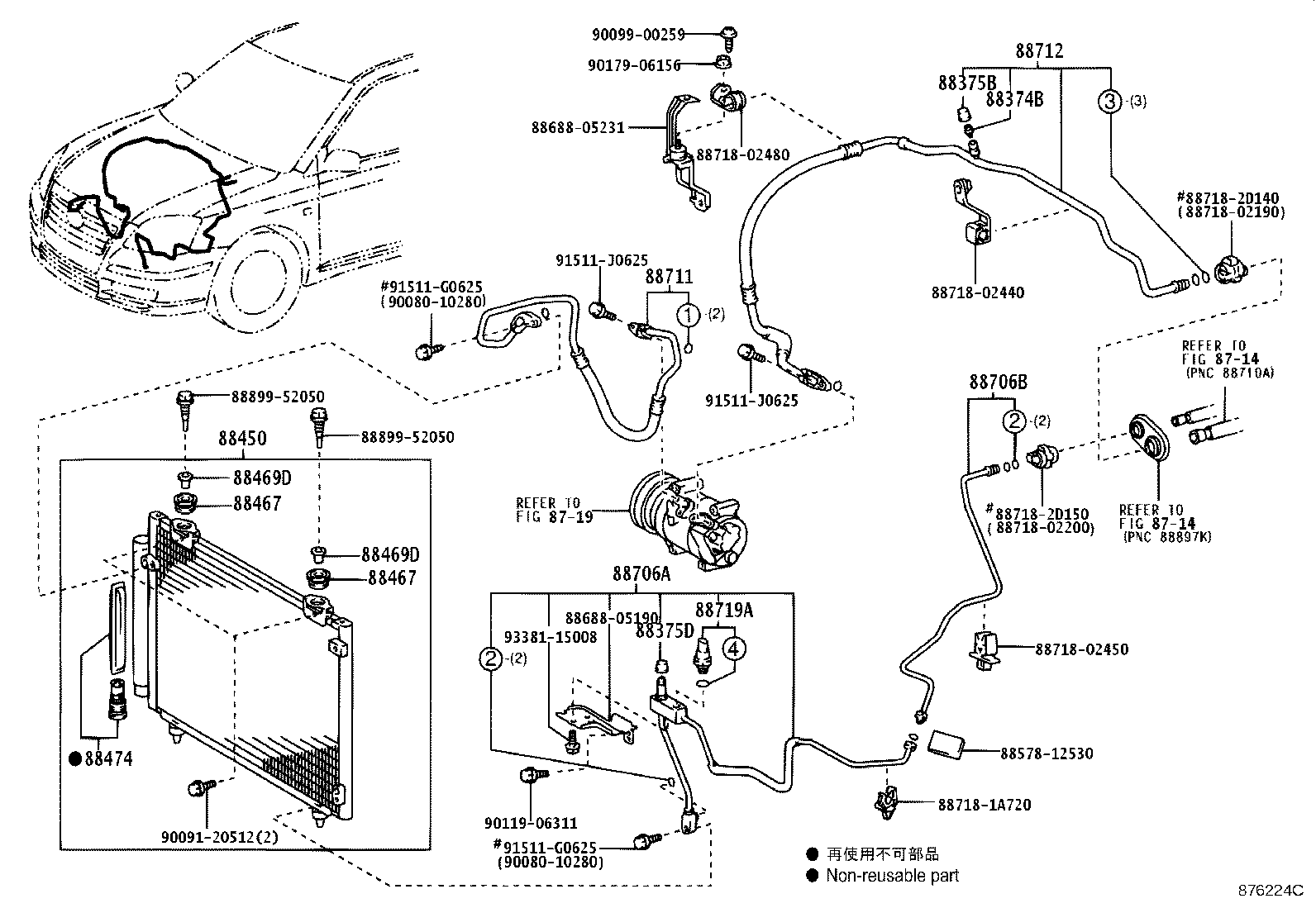

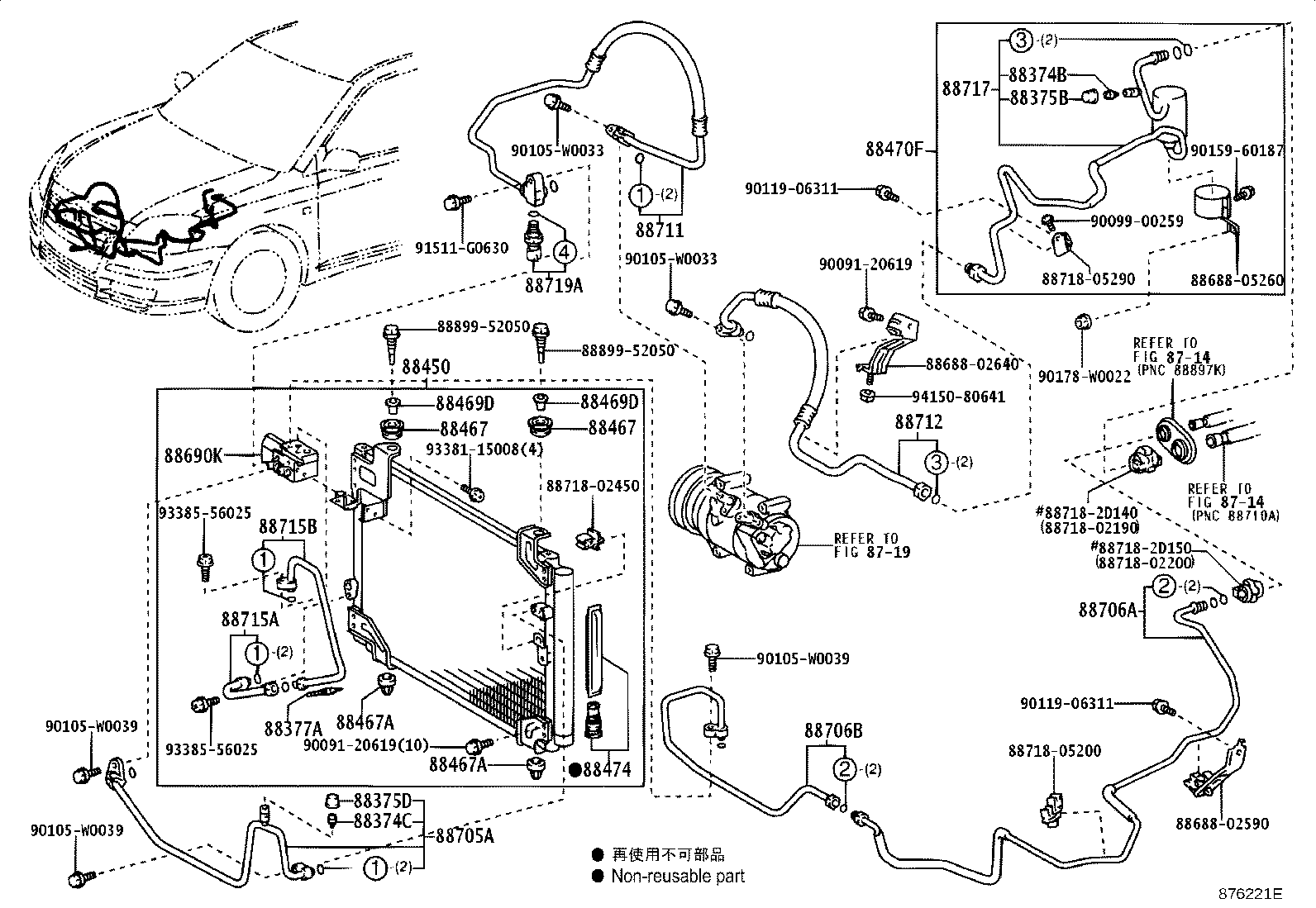

Figure 876114K 876114K 2003-01 → — Figure 876115L 876115L 2003-01 → — Figure 87F879B 87F879B 2005-04 → 2005-07 Figure 877572M 877572M 2005-07 → — Figure 877571I 877571I 2005-04 → — Figure 876116H 876116H 2003-01 → — Figure 876117J 876117J 2003-01 → — Figure 876224C 876224C 2003-01 → 2005-03 Figure 876225C 876225C 2003-01 → 2005-03 Figure 876221E 876221E 2003-03 → 2006-04 Figure 876222F 876222F 2003-03 → 2006-04 Figure 876223E 876223E 2003-03 → 2006-04 Figure 876237B 876237B 2003-03 → 2006-04 Figure 876238B 876238B 2003-03 → 2006-04 Figure 876022B 876022B 2003-01 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88377A Filter, Refrigerant
88450 Condenser Assy, W/Receiver
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88469D Collar, Condenser Bracket, NO.1
88470F Accumulator & Accessory Assy
88474 Dryer, Cooler
88690K Valve Assy, Magnet
88704 Hose Sub-assy, Suction
88705A Tube Sub-assy, Discharge
88706A Tube Sub-assy, Liquid, A
88706B Tube Sub-assy, Liquid, B
88706C Tube Sub-assy, Liquid, C
88707B Tube Sub-assy, Suction, B
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717 Pipe, Cooler Refrigerant Suction, NO.1
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717U Tube, Suction, NO.1
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
