Toyota Avensis
2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe
Supported model
Data version 2019-01

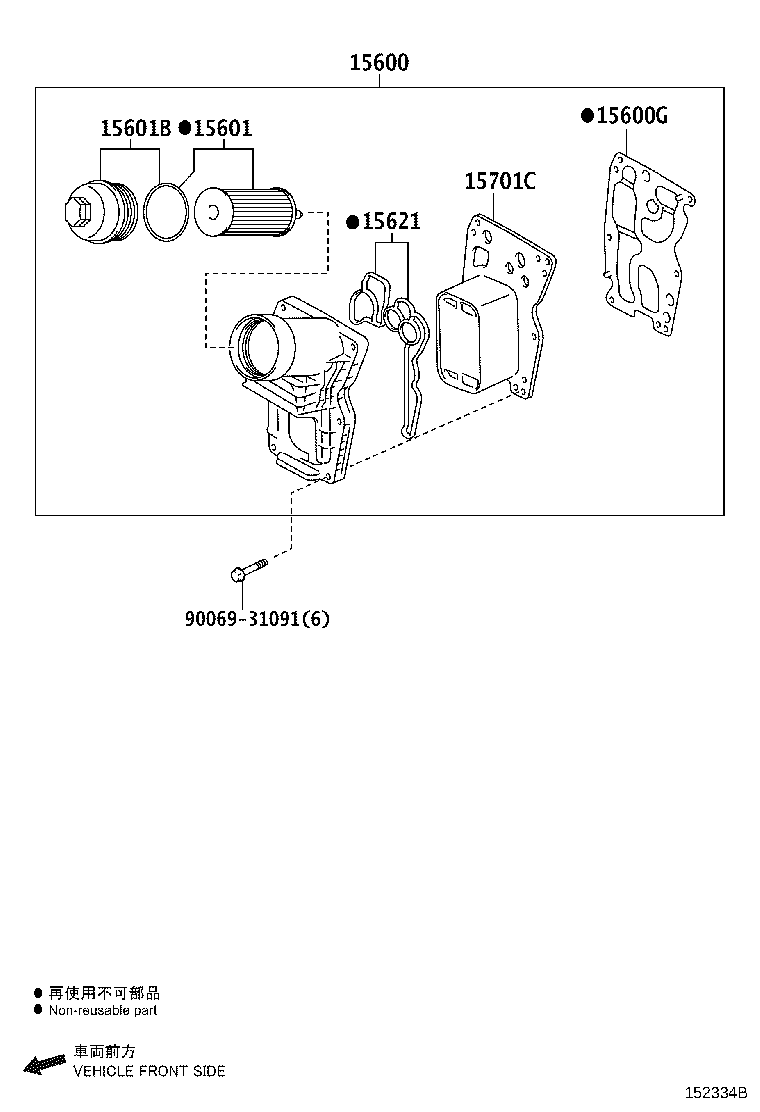

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15600 — Filter Assy, Oil | ||||
| 15670-WA010 |
Filter Assy, Oil
2015-05 → 2018-04
ended
|
1WW,2WW WWT27# | — | |
| 15600G — Gasket(FOR OIL FILTER COVER) | ||||
| 90069-43009 |
Gasket(FOR OIL FILTER COVER)
2015-05 → —
|
1WW,2WW WWT27# | — | |
| 15601 — Filter Sub-assy, Oil | ||||
| 04152-WA010 |
Filter Sub-assy, Oil
2015-05 → 2018-04
ended
|
1WW,2WW WWT27# | — | |
| 90915-10003 note |
Filter Sub-assy, Oil
2016-09 → —
|
3ZR# ZRT272 | — | |
| 15601B — Cover, Oil Filter | ||||
| 15620-WA010 |
Cover, Oil Filter
2015-05 → 2018-04
ended
|
1WW,2WW WWT27# | — | |
| 15621 — Gasket, Oil Filter Body | ||||
| 90069-43012 |
Gasket, Oil Filter Body
2015-05 → —
|
1WW,2WW WWT27# | — | |
| 15701C — Cover Sub-assy, Oil Cooler | ||||
| 15710-WA010 |
Cover Sub-assy, Oil Cooler
2015-05 → 2018-04
ended
|
1WW,2WW WWT27# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
