Toyota Avensis
2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe
Supported model
Data version 2019-01

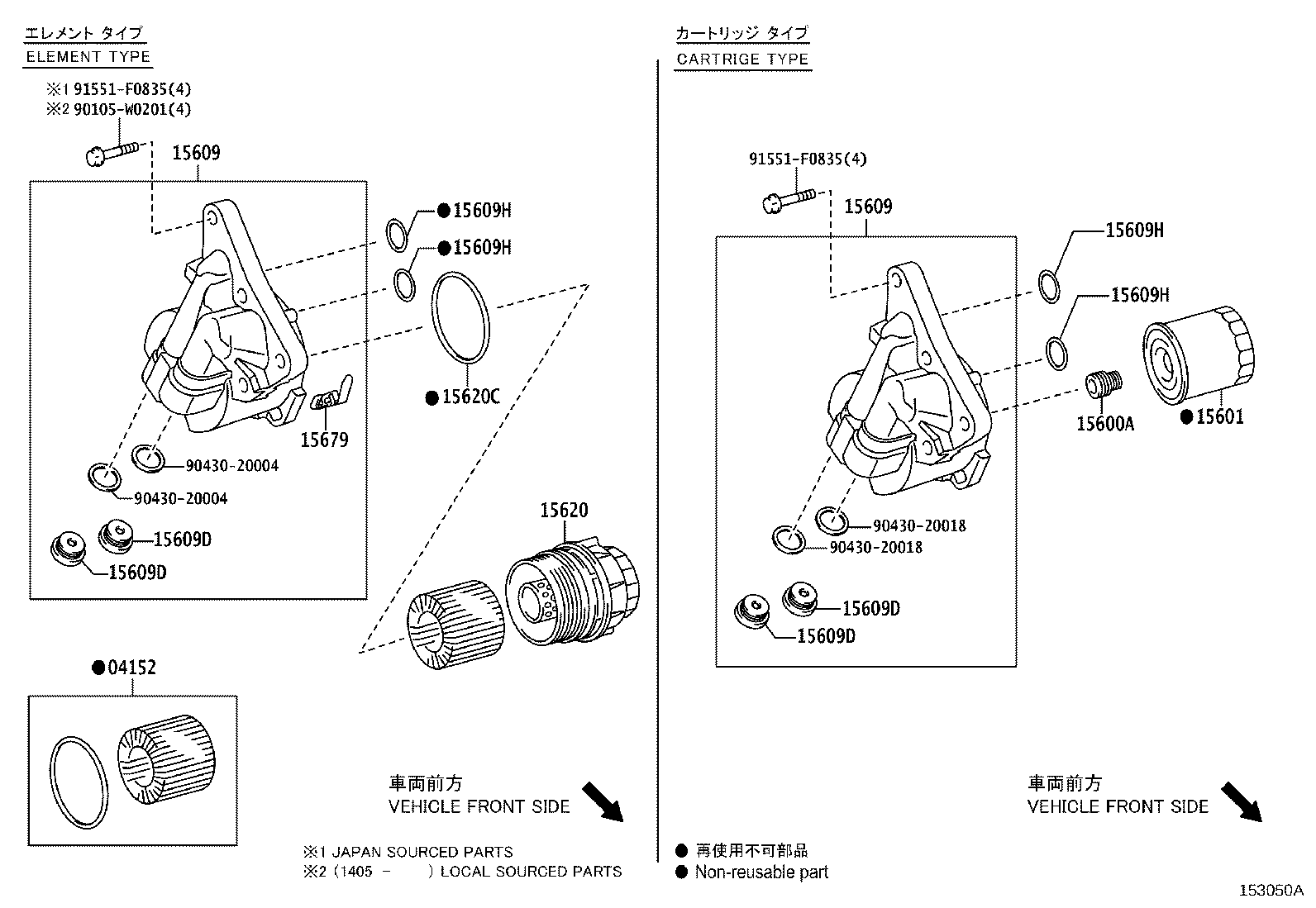

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04152 — Element Kit, Oil Filter | ||||
| 04152-0R010 note |
Element Kit, Oil Filter
2008-11 → 2011-10
ended
|
1ADFTV,2AD# ADT27# | — | |
| 04152-37010 |
Element Kit, Oil Filter
2008-11 → 2011-04
ended
|
3ZRFE ZRT272 RHD | — | |
| 04152-37010 |
Element Kit, Oil Filter
2008-11 → 2011-11
ended
|
3ZRFE ZRT272 LHD;1ZRFAE,2ZRFAE,3ZRFAE ZRT27# | — | |
| 04152-38010 note |
Element Kit, Oil Filter
2008-11 → 2011-10
ended
|
2AD# ADT271;1ADFTV ADT270 RHD;1ADFTV +3 | — | |
| 04152-38010 note |
Element Kit, Oil Filter
2008-11 → —
|
1ADFTV ADT270 LHD F | — | |
| 04152-0R010 note |
Element Kit, Oil Filter
2011-11 → —
|
1ADFTV ADT270 | — | |
| 04152-37010 |
Element Kit, Oil Filter
2011-11 → 2015-05
ended
|
1ZRFAE,2ZRFAE,3ZR# ZRT27# | — | |
| 04152-38010 |
Element Kit, Oil Filter
2011-11 → —
|
2AD# ADT271 | — | |
| 04152-38010 note |
Element Kit, Oil Filter
2011-11 → —
|
1ADFTV ADT270 | — | |
| 04152-38010 note |
Element Kit, Oil Filter
2011-11 → —
|
1ADFTV ADT270 SED | — | |
| 04152-38010 note |
Element Kit, Oil Filter
2011-11 → —
|
1ADFTV ADT270 SED | — | |
| 04152-37010 note |
Element Kit, Oil Filter
2015-05 → 2016-12
ended
|
3ZR# ZRT272 | — | |
| 04152-37010 note |
Element Kit, Oil Filter
2015-05 → 2018-07
ended
|
1ZRFAE,2ZRFAE ZRT270,271 | — | |
| 15600A — Union(FOR OIL FILTER) | ||||
| 90904-04006 note |
Union(FOR OIL FILTER)
2016-09 → —
|
3ZR# ZRT272 | — | |
| 15601 — Filter Sub-assy, Oil | ||||
| 04152-WA010 |
Filter Sub-assy, Oil
2015-05 → 2018-04
ended
|
1WW,2WW WWT27# | — | |
| 90915-10003 note |
Filter Sub-assy, Oil
2016-09 → —
|
3ZR# ZRT272 | — | |
| 15609 — Bracket Sub-assy, Oil Filter | ||||
| 15609-0T030 note |
Bracket Sub-assy, Oil Filter
2008-11 → 2011-11
ended
|
1ZRFAE,2ZRFAE ZRT270,271 | — | |
| 15609-37040 note |
Bracket Sub-assy, Oil Filter
2008-11 → 2011-11
ended
|
1ZRFAE,2ZRFAE ZRT270,271 | — | |
| 15609-37040 |
Bracket Sub-assy, Oil Filter
2008-11 → 2011-11
ended
|
3ZRFAE ZRT272;3ZRFE ZRT272 LHD | — | |
| 15609-37040 |
Bracket Sub-assy, Oil Filter
2008-11 → 2011-04
ended
|
3ZRFE ZRT272 RHD | — | |
| 15609-0T030 note |
Bracket Sub-assy, Oil Filter
2011-11 → 2015-05
ended
|
1ZRFAE,2ZRFAE ZRT270,271 | — | |
| 15609-37040 |
Bracket Sub-assy, Oil Filter
2011-11 → 2013-10
ended
|
3ZR# ZRT272 | — | |
| 15609-37040 note |
Bracket Sub-assy, Oil Filter
2011-11 → 2013-10
ended
|
1ZRFAE,2ZRFAE ZRT270,271 | — | |
| 15609-37041 |
Bracket Sub-assy, Oil Filter
2013-10 → 2015-05
ended
|
3ZR# ZRT272 | — | |
| 15609-37041 note |
Bracket Sub-assy, Oil Filter
2013-10 → 2015-05
ended
|
1ZRFAE,2ZRFAE ZRT270,271 | — | |
| 15609-0T030 note |
Bracket Sub-assy, Oil Filter
2015-05 → 2018-07
ended
|
1ZRFAE,2ZRFAE ZRT270,271 | — | |
| 15609-37010 note |
Bracket Sub-assy, Oil Filter
2016-09 → 2017-08
ended
|
3ZR# ZRT272 | — | |
| 15609-37041 note |
Bracket Sub-assy, Oil Filter
2015-05 → 2018-07
ended
|
1ZRFAE,2ZRFAE ZRT270,271 | — | |
| 15609-37041 note |
Bracket Sub-assy, Oil Filter
2015-05 → 2016-12
ended
|
3ZR# ZRT272 | — | |
| 15609-37060 note |
Bracket Sub-assy, Oil Filter
2017-09 → —
|
3ZR# ZRT272 | — | |
| 15609D — Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET) | ||||
| 90341-20002 |
Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
2008-11 → 2011-04
ended
|
3ZRFE ZRT272 RHD | — | |
| 90341-20002 |
Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
2008-11 → 2011-11
ended
|
3ZRFE ZRT272 LHD;1ZRFAE,2ZRFAE,3ZRFAE ZRT27# | — | |
| 90341-20002 |
Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
2011-11 → 2015-05
ended
|
1ZRFAE,2ZRFAE,3ZR# ZRT27# | — | |
| 90341-20002 note |
Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
2015-05 → 2016-12
ended
|
3ZR# ZRT272 | — | |
| 90341-20002 note |
Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
2016-09 → —
|
3ZR# ZRT272 | — | |
| 90341-20002 note |
Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
2015-05 → 2018-07
ended
|
1ZRFAE,2ZRFAE ZRT270,271 | — | |
| 15609H — Ring, O(FOR OIL FILTER BRACKET) | ||||
| 96723-24020 |
Ring, O(FOR OIL FILTER BRACKET)
2008-11 → 2011-04
ended
|
3ZRFE ZRT272 RHD | — | |
| 96723-24020 |
Ring, O(FOR OIL FILTER BRACKET)
2008-11 → 2011-11
ended
|
3ZRFE ZRT272 LHD;1ZRFAE,2ZRFAE,3ZRFAE ZRT27# | — | |
| 96723-24020 |
Ring, O(FOR OIL FILTER BRACKET)
2011-11 → 2015-05
ended
|
1ZRFAE,2ZRFAE,3ZR# ZRT27# | — | |
| 96723-24020 note |
Ring, O(FOR OIL FILTER BRACKET)
2015-05 → 2016-12
ended
|
3ZR# ZRT272 | — | |
| 96723-24020 note |
Ring, O(FOR OIL FILTER BRACKET)
2015-05 → 2018-07
ended
|
1ZRFAE,2ZRFAE ZRT270,271 | — | |
| 96723-24020 note |
Ring, O(FOR OIL FILTER BRACKET)
2016-09 → —
|
3ZR# ZRT272 | — | |
| 15620 — Cap Assy, Oil Filter | ||||
| 15620-0R011 note |
Cap Assy, Oil Filter
2008-11 → 2011-04
ended
|
1ADFTV ADT270 LHD F | — | |
| 15620-0R011 note |
Cap Assy, Oil Filter
2008-11 → 2011-11
ended
|
2AD# ADT271;1ADFTV ADT270 RHD;1ADFTV +3 | — | |
| 15620-26010 note |
Cap Assy, Oil Filter
2008-11 → 2011-04
ended
|
1ADFTV ADT270 LHD F | — | |
| 15620-26010 note |
Cap Assy, Oil Filter
2008-11 → 2011-11
ended
|
2AD# ADT271;1ADFTV ADT270 RHD;1ADFTV +3 | — | |
| 15620-37010 |
Cap Assy, Oil Filter
2008-11 → 2011-04
ended
|
3ZRFE ZRT272 RHD | — | |
| 15620-37010 |
Cap Assy, Oil Filter
2008-11 → 2011-11
ended
|
3ZRFE ZRT272 LHD;1ZRFAE,2ZRFAE,3ZRFAE ZRT27# | — | |
| 15620-0R011 |
Cap Assy, Oil Filter
2011-11 → —
|
1ADFTV ADT270 | — | |
| 15620-37010 |
Cap Assy, Oil Filter
2011-11 → 2015-05
ended
|
1ZRFAE,2ZRFAE,3ZR# ZRT27# | — | |
| 15620-37010 note |
Cap Assy, Oil Filter
2015-05 → 2018-07
ended
|
1ZRFAE,2ZRFAE ZRT270,271 | — | |
| 15620-37010 note |
Cap Assy, Oil Filter
2015-05 → 2016-12
ended
|
3ZR# ZRT272 | — | |
| 15620C — Gasket(FOR OIL FILTER CAP) | ||||
| 90301-69011 |
Gasket(FOR OIL FILTER CAP)
2008-11 → 2011-04
ended
|
3ZRFE ZRT272 RHD | — | |
| 90301-69011 |
Gasket(FOR OIL FILTER CAP)
2008-11 → 2011-11
ended
|
3ZRFE ZRT272 LHD;1ZRFAE,2ZRFAE,3ZRFAE ZRT27# | — | |
| 90301-79006 note |
Gasket(FOR OIL FILTER CAP)
2008-11 → 2011-04
ended
|
1ADFTV ADT270 LHD F | — | |
| 90301-79006 note |
Gasket(FOR OIL FILTER CAP)
2008-11 → 2011-11
ended
|
2ADFHV ADT271 6FC G;2ADFHV +6 | — | |
| 90301-79006 note |
Gasket(FOR OIL FILTER CAP)
2008-11 → —
|
2ADFHV ADT271 V;1ADFTV ADT270 +6 | — | |
| 90301-69011 |
Gasket(FOR OIL FILTER CAP)
2011-11 → 2015-05
ended
|
1ZRFAE,2ZRFAE,3ZR# ZRT27# | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2011-11 → —
|
1ADFTV,2AD# ADT27# | — | |
| 90301-69011 note |
Gasket(FOR OIL FILTER CAP)
2015-05 → 2016-12
ended
|
3ZR# ZRT272 | — | |
| 90301-69011 note |
Gasket(FOR OIL FILTER CAP)
2015-05 → 2018-07
ended
|
1ZRFAE,2ZRFAE ZRT270,271 | — | |
| 15679 — Clip, Oil Filter Bracket | ||||
| 15679-37010 |
Clip, Oil Filter Bracket
2008-11 → 2011-04
ended
|
3ZRFE ZRT272 RHD | — | |
| 15679-37010 |
Clip, Oil Filter Bracket
2008-11 → 2011-11
ended
|
3ZRFE ZRT272 LHD;1ZRFAE,2ZRFAE,3ZRFAE ZRT27# | — | |
| 15679-37010 |
Clip, Oil Filter Bracket
2011-11 → 2014-08
ended
|
3ZR# ZRT272 | — | |
| 15679-37011 |
Clip, Oil Filter Bracket
2014-09 → 2015-05
ended
|
1ZRFAE,2ZRFAE,3ZR# ZRT27# | — | |
| 15679-37011 note |
Clip, Oil Filter Bracket
2015-05 → 2016-12
ended
|
3ZR# ZRT272 | — | |
| 15679-37011 note |
Clip, Oil Filter Bracket
2015-05 → 2018-07
ended
|
1ZRFAE,2ZRFAE ZRT270,271 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
