Toyota Avensis
2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe
Supported model
Data version 2019-01

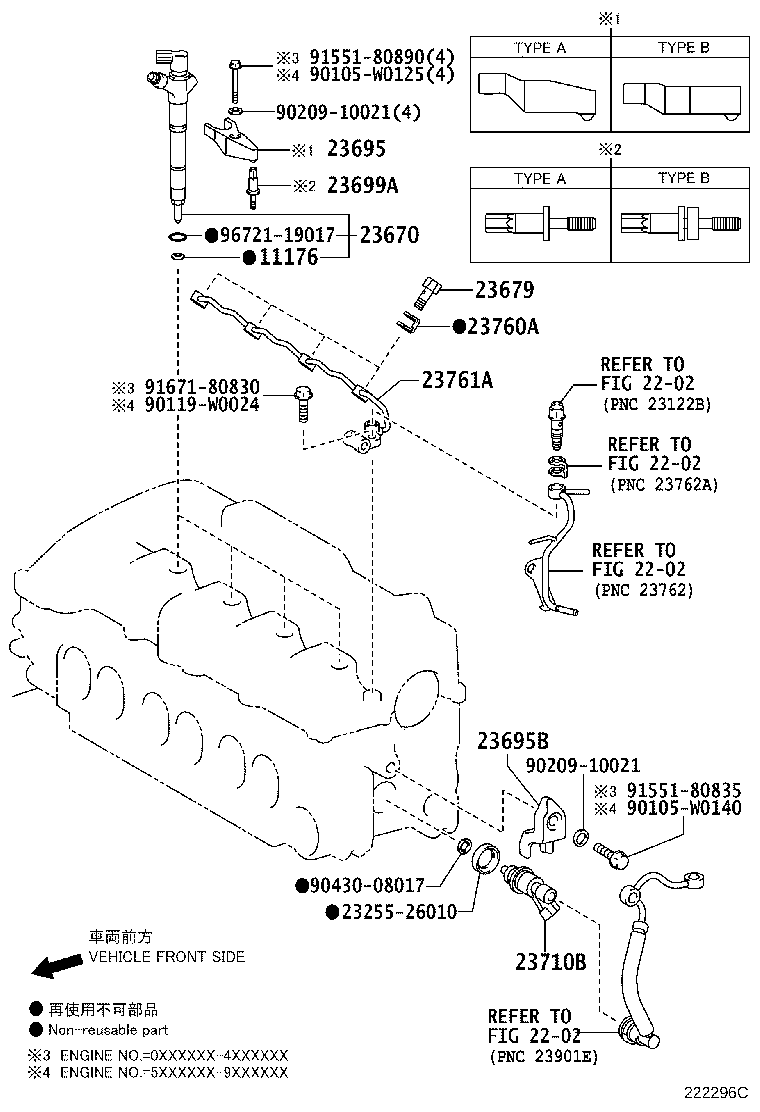

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11176 — Seat, Injection Nozzle | ||||
| 11176-26020 note |
Seat, Injection Nozzle
2008-11 → 2011-11
ended
|
2ADFHV ADT271 6FC G;2ADFHV +6 | — | |
| 11176-26020 note |
Seat, Injection Nozzle
2008-11 → 2011-04
ended
|
1ADFTV ADT270 LHD F | — | |
| 11176-26020 note |
Seat, Injection Nozzle
2008-11 → —
|
2ADFHV ADT271 V;1ADFTV ADT270 +6 | — | |
| 11176-26020 |
Seat, Injection Nozzle
2011-11 → —
|
1ADFTV,2AD# ADT27# | — | |
| 23670 — Injector Assy | ||||
| 23670-29115 note |
Injector Assy
2008-11 → 2011-04
ended
|
1ADFTV ADT270 LHD F | — | |
| 23670-29115 note |
Injector Assy
2008-11 → 2011-11
ended
|
1ADFTV ADT270 E,N | — | |
| 23670-29115 note |
Injector Assy
2008-11 → —
|
1ADFTV ADT270 RHD F | — | |
| 23670-29125 note |
Injector Assy
2008-11 → 2011-11
ended
|
2ADFTV ADT271;2ADFHV ADT271 6FC +1 | — | |
| 23670-29125 note |
Injector Assy
2008-11 → —
|
2ADFHV ADT271 6FC V | — | |
| 23670-29135 note |
Injector Assy
2008-11 → 2011-11
ended
|
2ADFHV ADT271 LHD 6F +1 | — | |
| 23670-29135 note |
Injector Assy
2008-11 → —
|
2ADFHV ADT271 RHD 6F;2ADFHV +4 | — | |
| 23670-29115 |
Injector Assy
2011-11 → 2014-03
ended
|
1ADFTV ADT270 | — | |
| 23670-29116 |
Injector Assy
2014-03 → —
|
1ADFTV ADT270 | — | |
| 23670-29125 |
Injector Assy
2011-11 → 2014-03
ended
|
2ADFTV ADT271;2ADFHV ADT271 6FC | — | |
| 23670-29126 |
Injector Assy
2014-03 → —
|
2ADFTV ADT271;2ADFHV ADT271 6FC | — | |
| 23670-29135 |
Injector Assy
2011-11 → 2014-03
ended
|
2ADFHV ADT271 6F | — | |
| 23670-29136 |
Injector Assy
2014-03 → —
|
2ADFHV ADT271 6F | — | |
| 23670-WA020 |
Injector Assy
2015-05 → 2018-04
ended
|
1WW WWT270 | — | |
| 23670-WA030 |
Injector Assy
2015-05 → 2018-04
ended
|
2WW WWT271 | — | |
| 23679 — Screw, Injector Follow | ||||
| 23679-26020 note |
Screw, Injector Follow
2008-11 → 2011-04
ended
|
1ADFTV ADT270 LHD F | — | |
| 23679-26020 note |
Screw, Injector Follow
2008-11 → 2011-11
ended
|
2ADFHV ADT271 6FC G;2ADFHV +6 | — | |
| 23679-26020 note |
Screw, Injector Follow
2008-11 → —
|
2ADFHV ADT271 V;1ADFTV ADT270 +6 | — | |
| 23679-26020 |
Screw, Injector Follow
2011-11 → —
|
1ADFTV,2AD# ADT27# | — | |
| 23695 — Clamp, Nozzle Holder, NO.1 | ||||
| 23695-0R021 note |
Clamp, Nozzle Holder, NO.1
2008-11 → 2011-04
ended
|
1ADFTV ADT270 LHD F | — | |
| 23695-0R021 note |
Clamp, Nozzle Holder, NO.1
2008-11 → 2011-11
ended
|
2ADFHV ADT271 6FC G;2ADFHV +6 | — | |
| 23695-0R021 note |
Clamp, Nozzle Holder, NO.1
2008-11 → —
|
2ADFHV ADT271 V;1ADFTV ADT270 +6 | — | |
| 23695-26020 note |
Clamp, Nozzle Holder, NO.1
2008-11 → 2011-04
ended
|
1ADFTV ADT270 LHD F | — | |
| 23695-26020 note |
Clamp, Nozzle Holder, NO.1
2008-11 → 2011-11
ended
|
2ADFHV ADT271 6FC G;2ADFHV +6 | — | |
| 23695-26020 note |
Clamp, Nozzle Holder, NO.1
2008-11 → —
|
2ADFHV ADT271 V;1ADFTV ADT270 +6 | — | |
| 23695-0R021 |
Clamp, Nozzle Holder, NO.1
2011-11 → —
|
1ADFTV,2AD# ADT27# | — | |
| 23695-WA010 |
Clamp, Nozzle Holder, NO.1
2015-05 → 2018-04
ended
|
1WW,2WW WWT27# | — | |
| 23695B — Clamp, Nozzle Holder, NO.2 | ||||
| 23695-26011 note |
Clamp, Nozzle Holder, NO.2
2008-11 → 2011-11
ended
|
2ADFTV ADT271;2ADFHV ADT271 6FC +5 | — | |
| 23695-26011 note |
Clamp, Nozzle Holder, NO.2
2008-11 → —
|
2ADFHV ADT271 V;2ADFHV ADT271 +3 | — | |
| 23695-26011 note |
Clamp, Nozzle Holder, NO.2
2008-11 → 2011-11
ended
|
1ADFTV ADT270 E,N | — | |
| 23695-26011 |
Clamp, Nozzle Holder, NO.2
2011-11 → —
|
1ADFTV,2AD# ADT27# | — | |
| 23699A — Seat, Nozzle Holder Clamp | ||||
| 23699-0R021 note |
Seat, Nozzle Holder Clamp
2008-11 → 2011-04
ended
|
1ADFTV ADT270 LHD F | — | |
| 23699-0R021 note |
Seat, Nozzle Holder Clamp
2008-11 → 2011-11
ended
|
2ADFHV ADT271 6FC G;2ADFHV +6 | — | |
| 23699-0R021 note |
Seat, Nozzle Holder Clamp
2008-11 → —
|
2ADFHV ADT271 V;1ADFTV ADT270 +6 | — | |
| 23699-26021 note |
Seat, Nozzle Holder Clamp
2008-11 → 2011-04
ended
|
1ADFTV ADT270 LHD F | — | |
| 23699-26021 note |
Seat, Nozzle Holder Clamp
2008-11 → 2011-11
ended
|
2ADFHV ADT271 6FC G;2ADFHV +6 | — | |
| 23699-26021 note |
Seat, Nozzle Holder Clamp
2008-11 → —
|
2ADFHV ADT271 V;1ADFTV ADT270 +6 | — | |
| 23699-26030 note |
Seat, Nozzle Holder Clamp
2008-11 → 2011-04
ended
|
1ADFTV ADT270 LHD F | — | |
| 23699-26030 note |
Seat, Nozzle Holder Clamp
2008-11 → 2011-11
ended
|
2ADFHV ADT271 6FC G;2ADFHV +6 | — | |
| 23699-26030 note |
Seat, Nozzle Holder Clamp
2008-11 → —
|
2ADFHV ADT271 V;1ADFTV ADT270 +6 | — | |
| 23699-0R021 |
Seat, Nozzle Holder Clamp
2011-11 → —
|
1ADFTV,2AD# ADT27# | — | |
| 23710B — Injector Assy, Exhaust Fuel Addition | ||||
| 23710-26011 note |
Injector Assy, Exhaust Fuel Addition
2008-11 → 2010-02
ended
|
2AD# ADT271 | — | |
| 23710-26011 note |
Injector Assy, Exhaust Fuel Addition
2008-11 → 2010-02
ended
|
1ADFTV ADT270 E,N | — | |
| 23710-26012 note |
Injector Assy, Exhaust Fuel Addition
2010-02 → 2011-11
ended
|
1ADFTV ADT270 E,N | — | |
| 23710-26012 note |
Injector Assy, Exhaust Fuel Addition
2010-02 → —
|
2ADFHV ADT271 V;2ADFHV ADT271 +3 | — | |
| 23710-26012 note |
Injector Assy, Exhaust Fuel Addition
2010-02 → 2011-11
ended
|
2ADFTV ADT271;2ADFHV ADT271 6FC +5 | — | |
| 23710-26012 |
Injector Assy, Exhaust Fuel Addition
2011-11 → —
|
1ADFTV,2AD# ADT27# | — | |
| 23760A — Gasket | ||||
| 90904-30008 note |
Gasket
2008-11 → 2011-04
ended
|
1ADFTV ADT270 LHD F | — | |
| 90904-30008 note |
Gasket
2008-11 → 2011-11
ended
|
2ADFHV ADT271 6FC G;2ADFHV +6 | — | |
| 90904-30008 note |
Gasket
2008-11 → —
|
2ADFHV ADT271 V;1ADFTV ADT270 +6 | — | |
| 90904-30008 |
Gasket
2011-11 → —
|
1ADFTV,2AD# ADT27# | — | |
| 23761A — Pipe, Nozzle Leakage, NO.1 | ||||
| 23761-0R040 note |
Pipe, Nozzle Leakage, NO.1
2008-11 → 2011-04
ended
|
1ADFTV ADT270 LHD F | — | |
| 23761-0R040 note |
Pipe, Nozzle Leakage, NO.1
2008-11 → 2011-11
ended
|
2ADFHV ADT271 6FC G;2ADFHV +6 | — | |
| 23761-0R040 note |
Pipe, Nozzle Leakage, NO.1
2008-11 → —
|
2ADFHV ADT271 V;1ADFTV ADT270 +6 | — | |
| 23761-26030 note |
Pipe, Nozzle Leakage, NO.1
2008-11 → 2011-04
ended
|
1ADFTV ADT270 LHD F | — | |
| 23761-26030 note |
Pipe, Nozzle Leakage, NO.1
2008-11 → 2011-11
ended
|
2ADFHV ADT271 6FC G;2ADFHV +6 | — | |
| 23761-26030 note |
Pipe, Nozzle Leakage, NO.1
2008-11 → —
|
2ADFHV ADT271 V;1ADFTV ADT270 +6 | — | |
| 23761-0R040 note |
Pipe, Nozzle Leakage, NO.1
2011-11 → —
|
1ADFTV,2AD# ADT27# | — | |
| 23761-26030 note |
Pipe, Nozzle Leakage, NO.1
2011-11 → —
|
1ADFTV,2AD# ADT27# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
