Toyota Avensis

2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe

Supported model Data version 2019-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

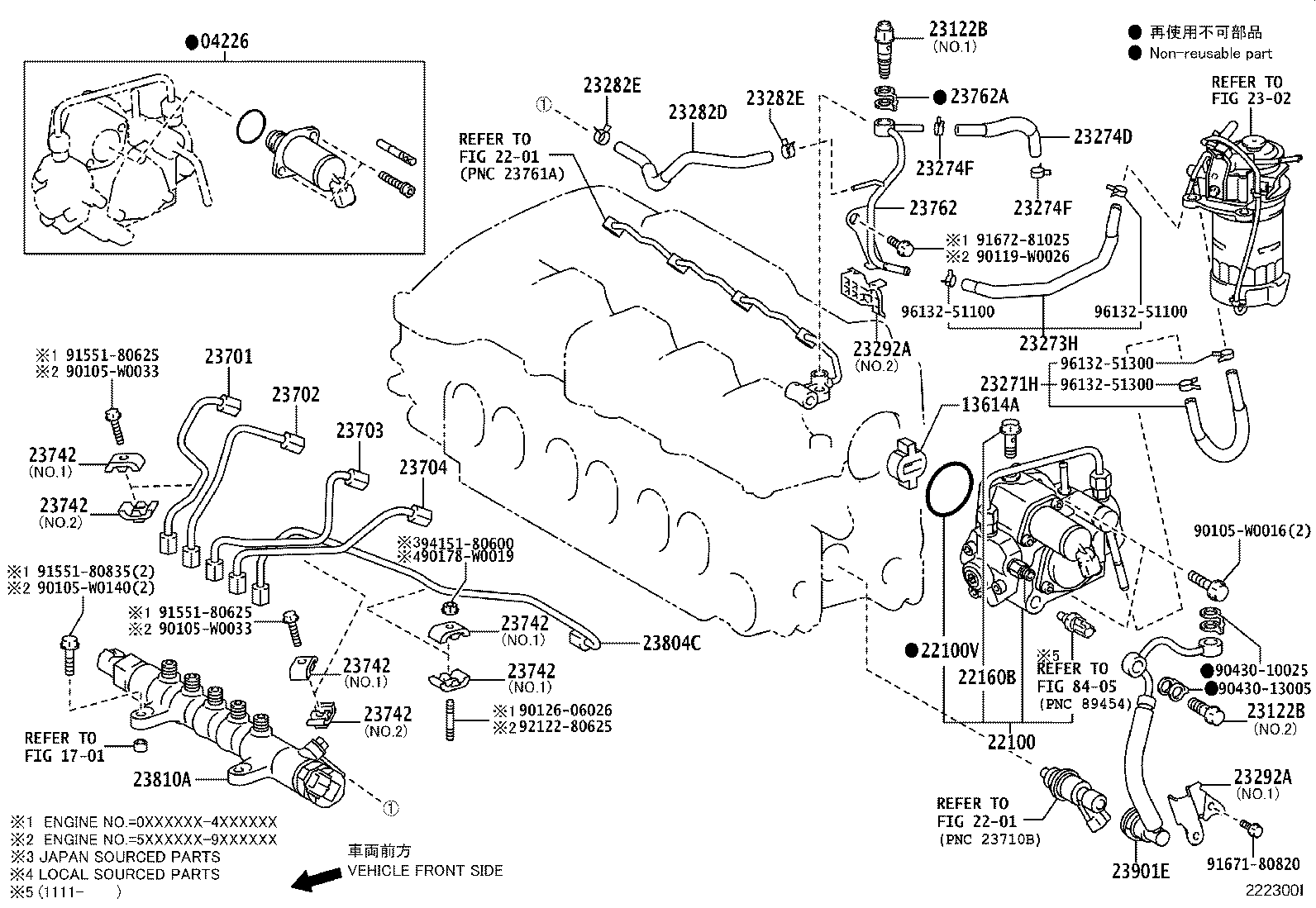

Exploded illustration 222300I 23282D — HOSE, FUEL, NO.4 (4 parts) 23282E — CLIP(FOR FUEL HOSE NO.4) (4 parts) 23282E — CLIP(FOR FUEL HOSE NO.4) (4 parts) 23271H — HOSE, FUEL, NO.1 (9 parts) 9613251300 — not listed in this catalogue 9613251300 — not listed in this catalogue 23273H — HOSE, FUEL, NO.2 (7 parts) 9613251100 — not listed in this catalogue 9613251100 — not listed in this catalogue 1701 — not listed in this catalogue 13614A — COUPLING, SUPPLY PUMP DRIVE, NO.1 (4 parts) 23274D — HOSE, FUEL, NO.3 (4 parts) 23274F — CLIP(FOR FUEL HOSE NO.3) (4 parts) 23274F — CLIP(FOR FUEL HOSE NO.3) (4 parts) 23701 — PIPE SUB-ASSY, INJECTION, NO.1 (8 parts) 23702 — PIPE SUB-ASSY, INJECTION, NO.2 (8 parts) 23703 — PIPE SUB-ASSY, INJECTION, NO.3 (8 parts) 23704 — PIPE SUB-ASSY, INJECTION, NO.4 (7 parts) 23742 — CLAMP, INJECTION PIPE, NO.2 (8 parts) 23742 — CLAMP, INJECTION PIPE, NO.2 (8 parts) 23742 — CLAMP, INJECTION PIPE, NO.2 (8 parts) 23742 — CLAMP, INJECTION PIPE, NO.2 (8 parts) 23742 — CLAMP, INJECTION PIPE, NO.2 (8 parts) 23742 — CLAMP, INJECTION PIPE, NO.2 (8 parts) 23762 — PIPE, NOZZLE LEAKAGE, NO.2 (4 parts) 23762A — GASKET, NOZZLE LEAKAGE PIPE NO.2 (4 parts) 23804C — PIPE SUB-ASSY, FUEL INLET (7 parts) 23810A — RAIL ASSY, COMMON (6 parts) 9415180600 — not listed in this catalogue 9167281025 — not listed in this catalogue 90119W0026 — not listed in this catalogue 9155180625 — not listed in this catalogue 90105W0033 — not listed in this catalogue 9155180835 — not listed in this catalogue 90105W0140 — not listed in this catalogue 9155180625 — not listed in this catalogue 90105W0033 — not listed in this catalogue 23292A — PROTECTOR, FUEL HOSE (8 parts) 2201 — not listed in this catalogue 90178W0019 — not listed in this catalogue 9212280625 — not listed in this catalogue 9012606026 — not listed in this catalogue 04226 — VALVE KIT, SUCTION CONTROL (4 parts) 23122B — VALVE, CHECK (6 parts) 9167180820 — not listed in this catalogue 23292A — PROTECTOR, FUEL HOSE (8 parts) 22100 — PUMP ASSY, INJECTION OR SUPPLY (6 parts) 23901E — TUBE SUB-ASSY, FUEL (4 parts) 9043013005 — not listed in this catalogue 9043010025 — not listed in this catalogue 90105W0016 — not listed in this catalogue 2201 — not listed in this catalogue 8405 — not listed in this catalogue 22160B — SCREW (4 parts) 22100V — RING, O(FOR INJECTION PUMP) (5 parts) 23122B — VALVE, CHECK (6 parts)
222300I · 32 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
133 parts on this figure
Part number Description Fitment Price
04226 — Valve Kit, Suction Control
04226-26010 note Valve Kit, Suction Control
2008-11 → 2011-11 ended
2ADFHV ADT271 6FC G;2ADFHV +6 —
04226-26010 note Valve Kit, Suction Control
2008-11 → —
2ADFHV ADT271 V;1ADFTV ADT270 +6 —
04226-26010 note Valve Kit, Suction Control
2008-11 → 2011-04 ended
1ADFTV ADT270 LHD F —
04226-26010 Valve Kit, Suction Control
2011-11 → —
1ADFTV,2AD# ADT27# —
13614A — Coupling, Supply Pump Drive, NO.1
13614-26010 note Coupling, Supply Pump Drive, NO.1
2008-11 → 2011-04 ended
1ADFTV ADT270 LHD F —
13614-26010 note Coupling, Supply Pump Drive, NO.1
2008-11 → 2011-11 ended
2ADFHV ADT271 6FC G;2ADFHV +6 —
13614-26010 note Coupling, Supply Pump Drive, NO.1
2008-11 → —
2ADFHV ADT271 V;1ADFTV ADT270 +6 —
13614-26010 Coupling, Supply Pump Drive, NO.1
2011-11 → —
1ADFTV,2AD# ADT27# —
22100 — Pump Assy, Injection OR Supply
22100-0R040 note Pump Assy, Injection OR Supply
2008-11 → 2011-04 ended
1ADFTV ADT270 LHD F —
22100-0R040 note Pump Assy, Injection OR Supply
2008-11 → 2011-11 ended
2ADFHV ADT271 6FC G;2ADFHV +6 —
22100-0R040 note Pump Assy, Injection OR Supply
2008-11 → —
2ADFHV ADT271 V;1ADFTV ADT270 +6 —
22100-0R040 Pump Assy, Injection OR Supply
2011-11 → —
1ADFTV,2AD# ADT27# —
22100-WA020 Pump Assy, Injection OR Supply
2015-05 → 2015-10 ended
1WW,2WW WWT27# —
22100-WA030 Pump Assy, Injection OR Supply
2015-10 → 2018-04 ended
1WW,2WW WWT27# —
22100V — Ring, O(FOR INJECTION PUMP)
22193-0R020 note Ring, O(FOR INJECTION PUMP)
2008-11 → 2011-11 ended
2ADFHV ADT271 6FC G;2ADFHV +6 —
22193-0R020 note Ring, O(FOR INJECTION PUMP)
2008-11 → —
2ADFHV ADT271 V;1ADFTV ADT270 +6 —
22193-0R020 note Ring, O(FOR INJECTION PUMP)
2008-11 → 2011-04 ended
1ADFTV ADT270 LHD F —
22193-0R020 Ring, O(FOR INJECTION PUMP)
2011-11 → —
1ADFTV,2AD# ADT27# —
90069-38033 Ring, O(FOR INJECTION PUMP)
2015-05 → —
1WW,2WW WWT27# —
22160B — Screw
22569-0R020 note Screw
2008-11 → 2011-04 ended
1ADFTV ADT270 LHD F —
22569-0R020 note Screw
2008-11 → 2011-11 ended
2ADFHV ADT271 6FC G;2ADFHV +6 —
22569-0R020 note Screw
2008-11 → —
2ADFHV ADT271 V;1ADFTV ADT270 +6 —
22569-0R020 Screw
2011-11 → —
1ADFTV,2AD# ADT27# —
23122B — Valve, Check
23769-26030 note Valve, Check
2008-11 → 2011-11 ended
1ADFTV,2AD# ADT27# —
2376A-26010 note Valve, Check
2008-11 → 2010-12 ended
1ADFTV,2AD# ADT27# —
2376A-26020 note Valve, Check
2010-12 → 2011-10 ended
1ADFTV,2AD# ADT27# —
2376A-26030 note Valve, Check
2011-10 → 2011-11 ended
1ADFTV,2AD# ADT27# —
23769-26030 note Valve, Check
2011-11 → —
1ADFTV,2AD# ADT27# —
2376A-26030 note Valve, Check
2011-11 → —
1ADFTV,2AD# ADT27# —
23271H — Hose, Fuel, NO.1
23271-0R020 Hose, Fuel, NO.1
2009-02 → 2011-11 ended
2ADFHV ADT271 6FC G —
23271-0R020 Hose, Fuel, NO.1
2009-02 → —
2ADFHV ADT271 6FC V —
23271-0R030 Hose, Fuel, NO.1
2009-02 → 2011-04 ended
1ADFTV ADT270 LHD F —
23271-0R030 note Hose, Fuel, NO.1
2008-11 → 2009-02 ended
1ADFTV,2AD# ADT27# —
23271-0R030 Hose, Fuel, NO.1
2009-02 → —
1ADFTV ADT270 RHD F;2ADFHV +7 —
23271-0R030 Hose, Fuel, NO.1
2009-02 → 2011-11 ended
2ADFHV ADT271 LHD 6F +3 —
23271-26190 note Hose, Fuel, NO.1
2008-11 → 2009-02 ended
1ADFTV,2AD# ADT27# —
23271-0R020 Hose, Fuel, NO.1
2011-11 → —
2ADFHV ADT271 6FC —
23271-0R030 Hose, Fuel, NO.1
2011-11 → —
1ADFTV,2AD# ADT27# 6F —
23273H — Hose, Fuel, NO.2
23273-0R010 note Hose, Fuel, NO.2
2008-11 → 2009-02 ended
1ADFTV,2AD# ADT27# —
23273-0R010 Hose, Fuel, NO.2
2009-02 → 2011-04 ended
1ADFTV ADT270 LHD F —
23273-0R010 Hose, Fuel, NO.2
2009-02 → 2011-11 ended
2ADFHV ADT271 6FC G;2ADFHV +6 —
23273-0R010 Hose, Fuel, NO.2
2009-02 → —
2ADFHV ADT271 V;1ADFTV ADT270 +6 —
23273-26070 note Hose, Fuel, NO.2
2008-11 → 2009-02 ended
1ADFTV,2AD# ADT27# —
23273-0R010 Hose, Fuel, NO.2
2011-11 → —
1ADFTV,2AD# ADT27# —
23273-53020 Hose, Fuel, NO.2
2015-05 → —
1WW,2WW WWT27# —
23274D — Hose, Fuel, NO.3
23274-26080 note Hose, Fuel, NO.3
2008-11 → 2011-04 ended
1ADFTV ADT270 LHD F —
23274-26080 note Hose, Fuel, NO.3
2008-11 → 2011-11 ended
2ADFHV ADT271 6FC G;2ADFHV +6 —
23274-26080 note Hose, Fuel, NO.3
2008-11 → —
2ADFHV ADT271 V;1ADFTV ADT270 +6 —
23274-26080 Hose, Fuel, NO.3
2011-11 → —
1ADFTV,2AD# ADT27# —
23274F — Clip(FOR FUEL HOSE NO.3)
96135-51100 note Clip(FOR FUEL HOSE NO.3)
2008-11 → 2011-04 ended
1ADFTV ADT270 LHD F —
96135-51100 note Clip(FOR FUEL HOSE NO.3)
2008-11 → 2011-11 ended
2ADFHV ADT271 6FC G;2ADFHV +6 —
96135-51100 note Clip(FOR FUEL HOSE NO.3)
2008-11 → —
2ADFHV ADT271 V;1ADFTV ADT270 +6 —
96135-51100 Clip(FOR FUEL HOSE NO.3)
2011-11 → —
1ADFTV,2AD# ADT27# —
23282D — Hose, Fuel, NO.4
23282-26070 note Hose, Fuel, NO.4
2008-11 → 2011-04 ended
1ADFTV ADT270 LHD F —
23282-26070 note Hose, Fuel, NO.4
2008-11 → 2011-11 ended
2ADFHV ADT271 6FC G;2ADFHV +6 —
23282-26070 note Hose, Fuel, NO.4
2008-11 → —
2ADFHV ADT271 V;1ADFTV ADT270 +6 —
23282-26070 Hose, Fuel, NO.4
2011-11 → —
1ADFTV,2AD# ADT27# —
23282E — Clip(FOR FUEL HOSE NO.4)
90467-11076 note Clip(FOR FUEL HOSE NO.4)
2008-11 → 2011-04 ended
1ADFTV ADT270 LHD F —
90467-11076 note Clip(FOR FUEL HOSE NO.4)
2008-11 → 2011-11 ended
2ADFHV ADT271 6FC G;2ADFHV +6 —
90467-11076 note Clip(FOR FUEL HOSE NO.4)
2008-11 → —
2ADFHV ADT271 V;1ADFTV ADT270 +6 —
90467-11076 Clip(FOR FUEL HOSE NO.4)
2011-11 → —
1ADFTV,2AD# ADT27# —
23292A — Protector, Fuel Hose
23292-0R010 note Protector, Fuel Hose
2008-11 → —
2ADFHV ADT271 V;1ADFTV ADT270 +6 —
23292-0R010 note Protector, Fuel Hose
2008-11 → 2011-11 ended
2ADFHV ADT271 6FC G;2ADFHV +6 —
23292-0R010 note Protector, Fuel Hose
2008-11 → 2011-04 ended
1ADFTV ADT270 LHD F —
23292-26030 note Protector, Fuel Hose
2008-11 → —
2ADFHV ADT271 V;2ADFHV ADT271 +3 —
23292-26030 note Protector, Fuel Hose
2008-11 → 2011-11 ended
2ADFTV ADT271;2ADFHV ADT271 6FC +5 —
23292-26030 note Protector, Fuel Hose
2008-11 → 2011-11 ended
1ADFTV ADT270 E,N —
23292-0R010 Protector, Fuel Hose
2011-11 → —
1ADFTV,2AD# ADT27# —
23292-26030 note Protector, Fuel Hose
2011-11 → —
1ADFTV,2AD# ADT27# —
23701 — Pipe Sub-assy, Injection, NO.1
23701-0R030 note Pipe Sub-assy, Injection, NO.1
2008-11 → 2011-04 ended
1ADFTV ADT270 LHD F —
23701-0R030 note Pipe Sub-assy, Injection, NO.1
2008-11 → 2011-11 ended
2ADFHV ADT271 6FC G;2ADFHV +6 —
23701-0R030 note Pipe Sub-assy, Injection, NO.1
2008-11 → —
2ADFHV ADT271 V;1ADFTV ADT270 +6 —
23701-26050 note Pipe Sub-assy, Injection, NO.1
2008-11 → 2011-04 ended
1ADFTV ADT270 LHD F —
23701-26050 note Pipe Sub-assy, Injection, NO.1
2008-11 → 2011-11 ended
2ADFHV ADT271 6FC G;2ADFHV +6 —
23701-26050 note Pipe Sub-assy, Injection, NO.1
2008-11 → —
2ADFHV ADT271 V;1ADFTV ADT270 +6 —
23701-0R030 Pipe Sub-assy, Injection, NO.1
2011-11 → —
1ADFTV,2AD# ADT27# —
23701-WA020 Pipe Sub-assy, Injection, NO.1
2015-05 → 2018-04 ended
1WW,2WW WWT27# —
23702 — Pipe Sub-assy, Injection, NO.2
23702-0R030 note Pipe Sub-assy, Injection, NO.2
2008-11 → 2011-04 ended
1ADFTV ADT270 LHD F —
23702-0R030 note Pipe Sub-assy, Injection, NO.2
2008-11 → 2011-11 ended
2ADFHV ADT271 6FC G;2ADFHV +6 —
23702-0R030 note Pipe Sub-assy, Injection, NO.2
2008-11 → —
2ADFHV ADT271 V;1ADFTV ADT270 +6 —
23702-26050 note Pipe Sub-assy, Injection, NO.2
2008-11 → 2011-04 ended
1ADFTV ADT270 LHD F —
23702-26050 note Pipe Sub-assy, Injection, NO.2
2008-11 → 2011-11 ended
2ADFHV ADT271 6FC G;2ADFHV +6 —
23702-26050 note Pipe Sub-assy, Injection, NO.2
2008-11 → —
2ADFHV ADT271 V;1ADFTV ADT270 +6 —
23702-0R030 Pipe Sub-assy, Injection, NO.2
2011-11 → —
1ADFTV,2AD# ADT27# —
23702-WA020 Pipe Sub-assy, Injection, NO.2
2015-05 → 2018-04 ended
1WW,2WW WWT27# —
23703 — Pipe Sub-assy, Injection, NO.3
23703-0R030 note Pipe Sub-assy, Injection, NO.3
2008-11 → 2011-04 ended
1ADFTV ADT270 LHD F —
23703-0R030 note Pipe Sub-assy, Injection, NO.3
2008-11 → 2011-11 ended
2ADFHV ADT271 6FC G;2ADFHV +6 —
23703-0R030 note Pipe Sub-assy, Injection, NO.3
2008-11 → —
2ADFHV ADT271 V;1ADFTV ADT270 +6 —
23703-26050 note Pipe Sub-assy, Injection, NO.3
2008-11 → 2011-04 ended
1ADFTV ADT270 LHD F —
23703-26050 note Pipe Sub-assy, Injection, NO.3
2008-11 → 2011-11 ended
2ADFHV ADT271 6FC G;2ADFHV +6 —
23703-26050 note Pipe Sub-assy, Injection, NO.3
2008-11 → —
2ADFHV ADT271 V;1ADFTV ADT270 +6 —
23703-0R030 Pipe Sub-assy, Injection, NO.3
2011-11 → —
1ADFTV,2AD# ADT27# —
23804-WA020 Pipe Sub-assy, Injection, NO.3
2015-05 → 2018-04 ended
1WW,2WW WWT27# —
23704 — Pipe Sub-assy, Injection, NO.4
23704-0R030 note Pipe Sub-assy, Injection, NO.4
2008-11 → 2011-04 ended
1ADFTV ADT270 LHD F —
23704-0R030 note Pipe Sub-assy, Injection, NO.4
2008-11 → 2011-11 ended
2ADFHV ADT271 6FC G;2ADFHV +6 —
23704-0R030 note Pipe Sub-assy, Injection, NO.4
2008-11 → —
2ADFHV ADT271 V;1ADFTV ADT270 +6 —
23704-26060 note Pipe Sub-assy, Injection, NO.4
2008-11 → 2011-04 ended
1ADFTV ADT270 LHD F —
23704-26060 note Pipe Sub-assy, Injection, NO.4
2008-11 → 2011-11 ended
2ADFHV ADT271 6FC G;2ADFHV +6 —
23704-26060 note Pipe Sub-assy, Injection, NO.4
2008-11 → —
2ADFHV ADT271 V;1ADFTV ADT270 +6 —
23704-0R030 Pipe Sub-assy, Injection, NO.4
2011-11 → —
1ADFTV,2AD# ADT27# —
23742 — Clamp, Injection Pipe, NO.2
23742-27010 note Clamp, Injection Pipe, NO.2
2008-11 → 2011-11 ended
2ADFHV ADT271 6FC G;2ADFHV +6 —
23742-27010 note Clamp, Injection Pipe, NO.2
2008-11 → —
2ADFHV ADT271 V;1ADFTV ADT270 +6 —
23742-27010 note Clamp, Injection Pipe, NO.2
2008-11 → 2011-04 ended
1ADFTV ADT270 LHD F —
23742-58020 note Clamp, Injection Pipe, NO.2
2008-11 → 2011-04 ended
1ADFTV ADT270 LHD F —
23742-58020 note Clamp, Injection Pipe, NO.2
2008-11 → 2011-11 ended
2ADFHV ADT271 6FC G;2ADFHV +6 —
23742-58020 note Clamp, Injection Pipe, NO.2
2008-11 → —
2ADFHV ADT271 V;1ADFTV ADT270 +6 —
23742-27010 note Clamp, Injection Pipe, NO.2
2011-11 → —
1ADFTV,2AD# ADT27# —
23742-58020 note Clamp, Injection Pipe, NO.2
2011-11 → —
1ADFTV,2AD# ADT27# —
23762 — Pipe, Nozzle Leakage, NO.2
23762-26021 note Pipe, Nozzle Leakage, NO.2
2008-11 → 2011-11 ended
2ADFHV ADT271 6FC G;2ADFHV +6 —
23762-26021 note Pipe, Nozzle Leakage, NO.2
2008-11 → —
2ADFHV ADT271 V;1ADFTV ADT270 +6 —
23762-26021 note Pipe, Nozzle Leakage, NO.2
2008-11 → 2011-04 ended
1ADFTV ADT270 LHD F —
23762-26021 Pipe, Nozzle Leakage, NO.2
2011-11 → —
1ADFTV,2AD# ADT27# —
23762A — Gasket, Nozzle Leakage Pipe NO.2
90904-30012 note Gasket, Nozzle Leakage Pipe NO.2
2008-11 → 2011-04 ended
1ADFTV ADT270 LHD F —
90904-30012 note Gasket, Nozzle Leakage Pipe NO.2
2008-11 → 2011-11 ended
2ADFHV ADT271 6FC G;2ADFHV +6 —
90904-30012 note Gasket, Nozzle Leakage Pipe NO.2
2008-11 → —
2ADFHV ADT271 V;1ADFTV ADT270 +6 —
90904-30012 Gasket, Nozzle Leakage Pipe NO.2
2011-11 → —
1ADFTV,2AD# ADT27# —
23804C — Pipe Sub-assy, Fuel Inlet
23804-0R020 note Pipe Sub-assy, Fuel Inlet
2008-11 → 2011-04 ended
1ADFTV ADT270 LHD F —
23804-0R020 note Pipe Sub-assy, Fuel Inlet
2008-11 → —
2ADFHV ADT271 V;1ADFTV ADT270 +6 —
23804-0R020 note Pipe Sub-assy, Fuel Inlet
2008-11 → 2011-11 ended
2ADFHV ADT271 6FC G;2ADFHV +6 —
23804-26050 note Pipe Sub-assy, Fuel Inlet
2008-11 → 2011-11 ended
2ADFHV ADT271 6FC G;2ADFHV +6 —
23804-26050 note Pipe Sub-assy, Fuel Inlet
2008-11 → 2011-04 ended
1ADFTV ADT270 LHD F —
23804-26050 note Pipe Sub-assy, Fuel Inlet
2008-11 → —
2ADFHV ADT271 V;1ADFTV ADT270 +6 —
23804-0R020 Pipe Sub-assy, Fuel Inlet
2011-11 → —
1ADFTV,2AD# ADT27# —
23810A — Rail Assy, Common
23810-0R040 note Rail Assy, Common
2008-11 → 2011-04 ended
1ADFTV ADT270 LHD F —
23810-0R040 note Rail Assy, Common
2008-11 → 2011-11 ended
2ADFHV ADT271 6FC G;2ADFHV +6 —
23810-0R040 note Rail Assy, Common
2008-11 → —
2ADFHV ADT271 V;1ADFTV ADT270 +6 —
23810-0R040 Rail Assy, Common
2011-11 → 2012-04 ended
1ADFTV,2AD# ADT27# —
23810-0R041 Rail Assy, Common
2012-04 → —
1ADFTV,2AD# ADT27# —
23810-WA020 Rail Assy, Common
2015-05 → 2018-04 ended
1WW,2WW WWT27# —
23901E — Tube Sub-assy, Fuel
23901-26040 note Tube Sub-assy, Fuel
2008-11 → 2011-11 ended
2ADFTV ADT271;2ADFHV ADT271 6FC +5 —
23901-26040 note Tube Sub-assy, Fuel
2008-11 → 2011-11 ended
1ADFTV ADT270 E,N —
23901-26040 note Tube Sub-assy, Fuel
2008-11 → —
2ADFHV ADT271 V;2ADFHV ADT271 +3 —
23901-26040 Tube Sub-assy, Fuel
2011-11 → —
1ADFTV,2AD# ADT27# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
