Toyota Avensis

2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe

Supported model Data version 2019-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

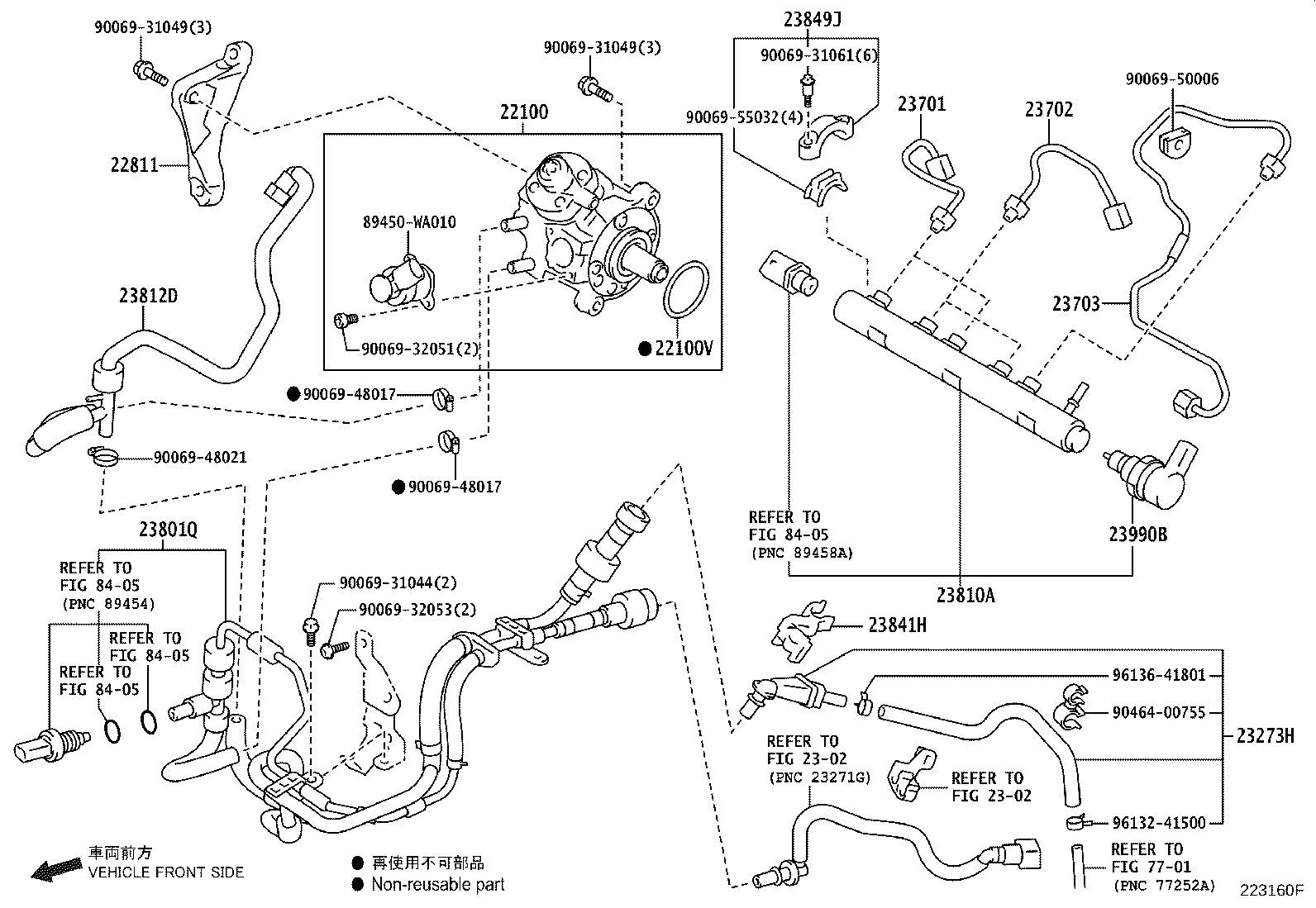

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

61 parts on this figure

Part number	Description	Fitment	Price
22100 — Pump Assy, Injection OR Supply
22100-0R040 note	Pump Assy, Injection OR Supply 2008-11 → 2011-11 ended	2ADFHV ADT271 6FC G;2ADFHV +6	—
22100-0R040 note	Pump Assy, Injection OR Supply 2008-11 → 2011-04 ended	1ADFTV ADT270 LHD F	—
22100-0R040 note	Pump Assy, Injection OR Supply 2008-11 → —	2ADFHV ADT271 V;1ADFTV ADT270 +6	—
22100-0R040	Pump Assy, Injection OR Supply 2011-11 → —	1ADFTV,2AD# ADT27#	—
22100-WA020	Pump Assy, Injection OR Supply 2015-05 → 2015-10 ended	1WW,2WW WWT27#	—
22100-WA030	Pump Assy, Injection OR Supply 2015-10 → 2018-04 ended	1WW,2WW WWT27#	—
22100V — Ring, O(FOR INJECTION PUMP)
22193-0R020 note	Ring, O(FOR INJECTION PUMP) 2008-11 → 2011-04 ended	1ADFTV ADT270 LHD F	—
22193-0R020 note	Ring, O(FOR INJECTION PUMP) 2008-11 → 2011-11 ended	2ADFHV ADT271 6FC G;2ADFHV +6	—
22193-0R020 note	Ring, O(FOR INJECTION PUMP) 2008-11 → —	2ADFHV ADT271 V;1ADFTV ADT270 +6	—
22193-0R020	Ring, O(FOR INJECTION PUMP) 2011-11 → —	1ADFTV,2AD# ADT27#	—
90069-38033	Ring, O(FOR INJECTION PUMP) 2015-05 → —	1WW,2WW WWT27#	—
22811 — Stay, Injection Pump, NO.1
22811-WA010	Stay, Injection Pump, NO.1 2015-05 → 2017-09 ended	1WW,2WW WWT27#	—
22811-WA011	Stay, Injection Pump, NO.1 2017-09 → 2018-04 ended	1WW,2WW WWT27#	—
23273H — Hose, Fuel, NO.2
23273-0R010	Hose, Fuel, NO.2 2009-02 → 2011-11 ended	2ADFHV ADT271 6FC G;2ADFHV +6	—
23273-0R010	Hose, Fuel, NO.2 2009-02 → —	2ADFHV ADT271 V;1ADFTV ADT270 +6	—
23273-0R010	Hose, Fuel, NO.2 2009-02 → 2011-04 ended	1ADFTV ADT270 LHD F	—
23273-0R010 note	Hose, Fuel, NO.2 2008-11 → 2009-02 ended	1ADFTV,2AD# ADT27#	—
23273-26070 note	Hose, Fuel, NO.2 2008-11 → 2009-02 ended	1ADFTV,2AD# ADT27#	—
23273-0R010	Hose, Fuel, NO.2 2011-11 → —	1ADFTV,2AD# ADT27#	—
23273-53020	Hose, Fuel, NO.2 2015-05 → —	1WW,2WW WWT27#	—
23701 — Pipe Sub-assy, Injection, NO.1
23701-0R030 note	Pipe Sub-assy, Injection, NO.1 2008-11 → 2011-04 ended	1ADFTV ADT270 LHD F	—
23701-0R030 note	Pipe Sub-assy, Injection, NO.1 2008-11 → 2011-11 ended	2ADFHV ADT271 6FC G;2ADFHV +6	—
23701-0R030 note	Pipe Sub-assy, Injection, NO.1 2008-11 → —	2ADFHV ADT271 V;1ADFTV ADT270 +6	—
23701-26050 note	Pipe Sub-assy, Injection, NO.1 2008-11 → 2011-04 ended	1ADFTV ADT270 LHD F	—
23701-26050 note	Pipe Sub-assy, Injection, NO.1 2008-11 → 2011-11 ended	2ADFHV ADT271 6FC G;2ADFHV +6	—
23701-26050 note	Pipe Sub-assy, Injection, NO.1 2008-11 → —	2ADFHV ADT271 V;1ADFTV ADT270 +6	—
23701-0R030	Pipe Sub-assy, Injection, NO.1 2011-11 → —	1ADFTV,2AD# ADT27#	—
23701-WA020	Pipe Sub-assy, Injection, NO.1 2015-05 → 2018-04 ended	1WW,2WW WWT27#	—
23702 — Pipe Sub-assy, Injection, NO.2
23702-0R030 note	Pipe Sub-assy, Injection, NO.2 2008-11 → —	2ADFHV ADT271 V;1ADFTV ADT270 +6	—
23702-0R030 note	Pipe Sub-assy, Injection, NO.2 2008-11 → 2011-11 ended	2ADFHV ADT271 6FC G;2ADFHV +6	—
23702-0R030 note	Pipe Sub-assy, Injection, NO.2 2008-11 → 2011-04 ended	1ADFTV ADT270 LHD F	—
23702-26050 note	Pipe Sub-assy, Injection, NO.2 2008-11 → 2011-11 ended	2ADFHV ADT271 6FC G;2ADFHV +6	—
23702-26050 note	Pipe Sub-assy, Injection, NO.2 2008-11 → —	2ADFHV ADT271 V;1ADFTV ADT270 +6	—
23702-26050 note	Pipe Sub-assy, Injection, NO.2 2008-11 → 2011-04 ended	1ADFTV ADT270 LHD F	—
23702-0R030	Pipe Sub-assy, Injection, NO.2 2011-11 → —	1ADFTV,2AD# ADT27#	—
23702-WA020	Pipe Sub-assy, Injection, NO.2 2015-05 → 2018-04 ended	1WW,2WW WWT27#	—
23703 — Pipe Sub-assy, Injection, NO.3
23703-0R030 note	Pipe Sub-assy, Injection, NO.3 2008-11 → 2011-11 ended	2ADFHV ADT271 6FC G;2ADFHV +6	—
23703-0R030 note	Pipe Sub-assy, Injection, NO.3 2008-11 → —	2ADFHV ADT271 V;1ADFTV ADT270 +6	—
23703-0R030 note	Pipe Sub-assy, Injection, NO.3 2008-11 → 2011-04 ended	1ADFTV ADT270 LHD F	—
23703-26050 note	Pipe Sub-assy, Injection, NO.3 2008-11 → 2011-11 ended	2ADFHV ADT271 6FC G;2ADFHV +6	—
23703-26050 note	Pipe Sub-assy, Injection, NO.3 2008-11 → 2011-04 ended	1ADFTV ADT270 LHD F	—
23703-26050 note	Pipe Sub-assy, Injection, NO.3 2008-11 → —	2ADFHV ADT271 V;1ADFTV ADT270 +6	—
23703-0R030	Pipe Sub-assy, Injection, NO.3 2011-11 → —	1ADFTV,2AD# ADT27#	—
23804-WA020	Pipe Sub-assy, Injection, NO.3 2015-05 → 2018-04 ended	1WW,2WW WWT27#	—
23801Q — Pipe Sub-assy, Fuel Feed
23801-YV020	Pipe Sub-assy, Fuel Feed 2015-05 → —	1WW,2WW WWT27#	—
23810A — Rail Assy, Common
23810-0R040 note	Rail Assy, Common 2008-11 → 2011-04 ended	1ADFTV ADT270 LHD F	—
23810-0R040 note	Rail Assy, Common 2008-11 → —	2ADFHV ADT271 V;1ADFTV ADT270 +6	—
23810-0R040 note	Rail Assy, Common 2008-11 → 2011-11 ended	2ADFHV ADT271 6FC G;2ADFHV +6	—
23810-0R040	Rail Assy, Common 2011-11 → 2012-04 ended	1ADFTV,2AD# ADT27#	—
23810-0R041	Rail Assy, Common 2012-04 → —	1ADFTV,2AD# ADT27#	—
23810-WA020	Rail Assy, Common 2015-05 → 2018-04 ended	1WW,2WW WWT27#	—
23812D — Pipe, Fuel, NO.2
23812-26020 note	Pipe, Fuel, NO.2 2008-11 → 2011-04 ended	1ADFTV ADT270 LHD F	—
23812-26020 note	Pipe, Fuel, NO.2 2008-11 → 2011-11 ended	1ADFTV ADT270 E,N	—
23812-26020 note	Pipe, Fuel, NO.2 2008-11 → —	1ADFTV ADT270 RHD F	—
23812-26020 note	Pipe, Fuel, NO.2 2011-11 → —	1ADFTV ADT270 SED	—
23812-26020 note	Pipe, Fuel, NO.2 2011-11 → —	1ADFTV ADT270 SED	—
23812-WA010	Pipe, Fuel, NO.2 2015-05 → 2015-10 ended	1WW,2WW WWT27#	—
23812-WA020	Pipe, Fuel, NO.2 2015-10 → 2018-04 ended	1WW,2WW WWT27#	—
23841H — Clamp, Fuel Hose
23841-26060	Clamp, Fuel Hose 2015-05 → —	1WW,2WW WWT27#	—
23849J — Support, Fuel Pipe(FOR RAIL ASSY, COMMON)
90069-39019	Support, Fuel Pipe(FOR RAIL ASSY, COMMON) 2015-05 → —	1WW,2WW WWT27#	—
23990B — Valve Assy, Pressure Discharge
23990-WA010	Valve Assy, Pressure Discharge 2015-05 → 2018-04 ended	1WW,2WW WWT27#	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
