Toyota Avensis
2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe
Supported model
Data version 2019-01

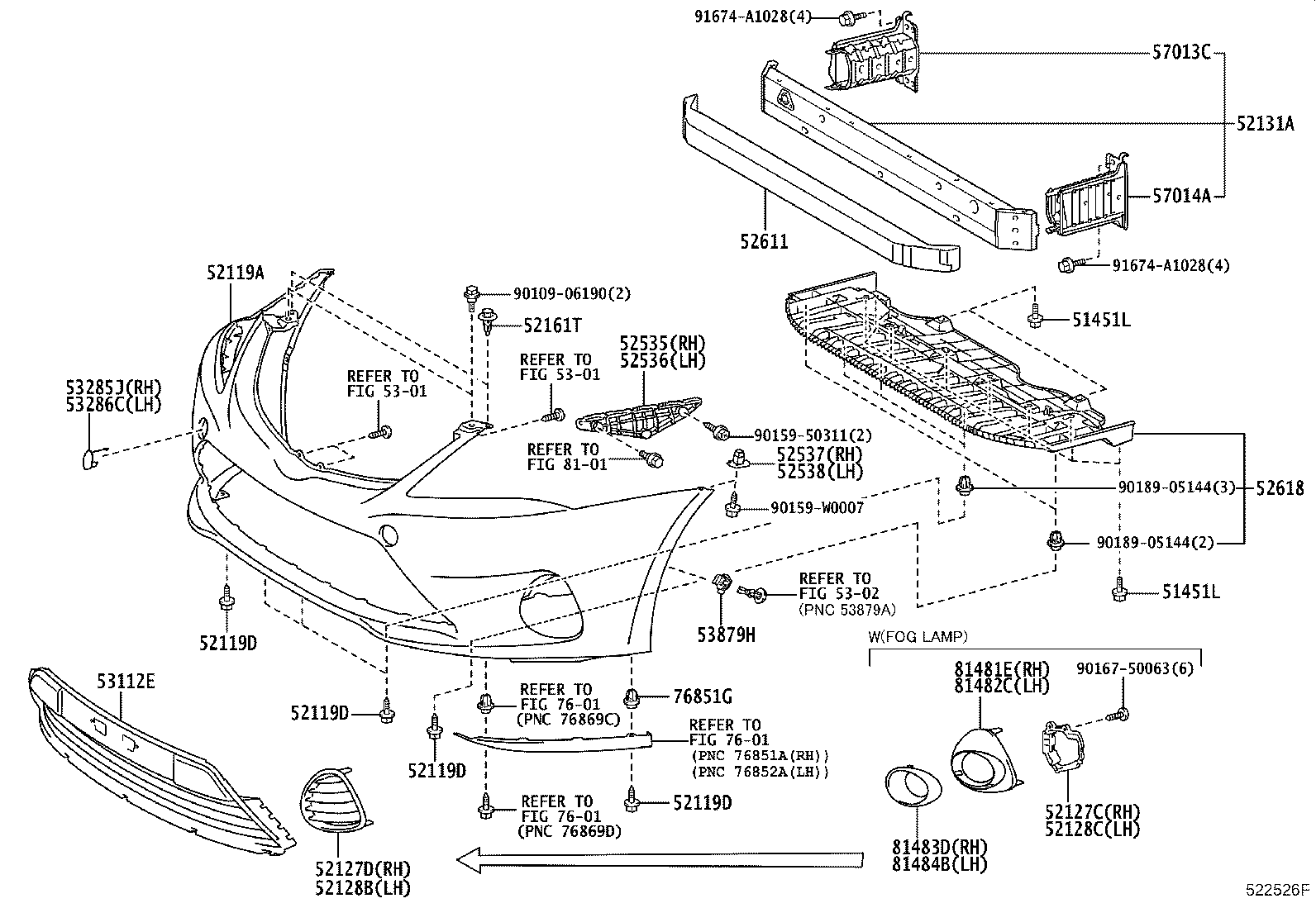

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 51451L — Bolt, NO.1 | ||||
| 90119-W0089 |
Bolt, NO.1
2008-11 → 2011-11
ended
|
ADT27#,ZRT27# | — | |
| 90119-W0089 |
Bolt, NO.1
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# | — | |
| 90119-W0089 |
Bolt, NO.1
2015-05 → —
|
WWT27#,ZRT27# | — | |
| 52119A — Cover, Front Bumper | ||||
| 52119-05915 note |
Cover, Front Bumper
2008-11 → 2010-01
ended
|
ADT27#,ZRT27# | — | |
| 52119-05916 note |
Cover, Front Bumper
2009-05 → 2010-01
ended
|
ZRT270 SED N;ZRT270 LHD +4 | — | |
| 52119-05916 note |
Cover, Front Bumper
2009-05 → 2010-01
ended
|
ADT271 6FC G | — | |
| 52119-05916 note |
Cover, Front Bumper
2009-05 → 2010-01
ended
|
ZRT272 HTWC | — | |
| 52119-05916 note |
Cover, Front Bumper
2009-05 → 2010-01
ended
|
ZRT270 LHD SED E;ZRT271,272 +3 | — | |
| 52119-05916 note |
Cover, Front Bumper
2009-05 → 2010-01
ended
|
ZRT270,271 LHD 6F N | — | |
| 52119-05916 note |
Cover, Front Bumper
2009-05 → 2010-01
ended
|
ADT270 DT270 CR,HTWVM) RHD;ZRT271 +21 | — | |
| 52119-05916 note |
Cover, Front Bumper
2009-02 → 2010-01
ended
|
ADT271 6FC | — | |
| 52119-05916 note |
Cover, Front Bumper
2008-11 → 2010-01
ended
|
ZRT270,271 LHD N;ZRT270 LHD +2 | — | |
| 52119-05916 note |
Cover, Front Bumper
2008-11 → 2010-01
ended
|
ZRT271 LHD CVT;ZRT272 LHD +4 | — | |
| 52119-05916 note |
Cover, Front Bumper
2008-11 → 2010-01
ended
|
ZRT270 1 WG;ZRT271 LHD +11 | — | |
| 52119-05916 note |
Cover, Front Bumper
2008-11 → 2010-01
ended
|
ZRT271 RL,HTWVM) CVT;ZRT271 6F +6 | — | |
| 52119-05916 note |
Cover, Front Bumper
2008-11 → 2010-01
ended
|
ZRT272 HTWC | — | |
| 52119-05917 note |
Cover, Front Bumper
2010-01 → 2011-11
ended
|
ZRT27# LHD (E,N) HTWVM | — | |
| 52119-05917 note |
Cover, Front Bumper
2010-01 → 2011-11
ended
|
ADT271 6FC G | — | |
| 52119-05917 note |
Cover, Front Bumper
2010-01 → 2011-11
ended
|
ZRT27# LHD (E,N) HTWVM | — | |
| 52119-05917 note |
Cover, Front Bumper
2010-01 → 2011-11
ended
|
ADT27#,ZRT27# E,F,N | — | |
| 52119-05917 |
Cover, Front Bumper
2010-01 → 2011-11
ended
|
ADT27#,ZRT27# E,F,N | — | |
| 52119-05917 note |
Cover, Front Bumper
2010-01 → 2011-11
ended
|
ADT271,ZRT272 G,V | — | |
| 52119-05918 note |
Cover, Front Bumper
2010-01 → 2011-11
ended
|
ZRT272 HTWC | — | |
| 52119-05918 note |
Cover, Front Bumper
2010-01 → 2011-11
ended
|
ADT27#,ZRT27# DCR,DCRL,HTWVM | — | |
| 52119-05918 note |
Cover, Front Bumper
2010-01 → 2011-11
ended
|
ADT27#,ZRT27# (E,F,N) (DCR,HTWVM) | — | |
| 52119-05918 note |
Cover, Front Bumper
2010-01 → 2011-11
ended
|
ZRT27# LHD HTWVM | — | |
| 52119-05918 note |
Cover, Front Bumper
2010-01 → 2011-11
ended
|
ZRT27# LHD (E,N) HTWVM | — | |
| 52119-05918 note |
Cover, Front Bumper
2010-01 → 2011-11
ended
|
ADT271 6FC | — | |
| 52119-05918 note |
Cover, Front Bumper
2010-01 → 2011-11
ended
|
ZRT272 HTWC | — | |
| 52119-05918 note |
Cover, Front Bumper
2010-01 → 2011-11
ended
|
ADT271 6FC G | — | |
| 52119-05919 note |
Cover, Front Bumper
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# | — | |
| 52119-05920 note |
Cover, Front Bumper
2011-11 → 2015-05
ended
|
ZRT27# LHD HTWVM | — | |
| 52119-05920 note |
Cover, Front Bumper
2011-11 → 2015-05
ended
|
ADT270,ZRT270,271 N | — | |
| 52119-05920 note |
Cover, Front Bumper
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# DCR,DCRL,HTWVM | — | |
| 52119-05920 note |
Cover, Front Bumper
2011-11 → 2015-05
ended
|
ZRT272 HTWC | — | |
| 52119-05920 note |
Cover, Front Bumper
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# 6F E | — | |
| 52119-05920 note |
Cover, Front Bumper
2011-11 → 2015-05
ended
|
ZRT270,271 LHD N | — | |
| 52119-05920 note |
Cover, Front Bumper
2011-11 → 2015-05
ended
|
ADT271 6FC | — | |
| 52119-05921 note |
Cover, Front Bumper
2015-05 → —
|
WWT27#,ZRT27# | — | |
| 52119-05922 note |
Cover, Front Bumper
2015-05 → —
|
WWT27#,ZRT271 RHD G | — | |
| 52119-05922 note |
Cover, Front Bumper
2015-05 → —
|
ZRT272 G;WWT27#,ZRT271 RHD G | — | |
| 52119-05922 note |
Cover, Front Bumper
2015-05 → —
|
WWT27#,ZRT27# | — | |
| 52119-05922 note |
Cover, Front Bumper
2015-05 → —
|
WWT27#,ZRT271 LHD G;WWT27#,ZRT27# (E,N) +1 | — | |
| 52119-05922 note |
Cover, Front Bumper
2015-05 → —
|
ZRT272 HTWC | — | |
| 52119-05922 note |
Cover, Front Bumper
2015-05 → —
|
WWT27#,ZRT270,271 LHD (E,G) | — | |
| 52119D — Screw, NO.1 | ||||
| 90159-60488 |
Screw, NO.1
2008-11 → 2011-11
ended
|
ADT27#,ZRT27# | — | |
| 90159-60488 |
Screw, NO.1
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# | — | |
| 90159-60488 |
Screw, NO.1
2015-05 → 2018-07
ended
|
WWT27#,ZRT27# | — | |
| 52127C — Cover, Front Bumper Hole | ||||
| 52127-05070 |
Cover, Front Bumper Hole
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# E,G | — | |
| 52127-05070 note |
Cover, Front Bumper Hole
2011-11 → 2015-05
ended
|
ZRT270,271 LHD N | — | |
| 52127-05070 note |
Cover, Front Bumper Hole
2011-11 → 2015-05
ended
|
ZRT270,271 LHD N | — | |
| 52127-05070 note |
Cover, Front Bumper Hole
2011-11 → 2015-05
ended
|
ADT270,ZRT270,271 N | — | |
| 52127-05070 note |
Cover, Front Bumper Hole
2011-11 → 2015-05
ended
|
ADT270,ZRT270,271 N | — | |
| 52127-05100 note |
Cover, Front Bumper Hole
2015-05 → —
|
WWT27#,ZRT27# | — | |
| 52127D — Cover, Front Bumper Hole, RH | ||||
| 52127-05050 |
Cover, Front Bumper Hole, RH
2009-05 → 2011-04
ended
|
ADT270 LHD F;ZRT272 RHD +1 | — | |
| 52127-05050 |
Cover, Front Bumper Hole, RH
2008-11 → 2011-11
ended
|
ZRT270 WG E;ADT270,ZRT270,271 N;ZRT271 +4 | — | |
| 52127-05050 |
Cover, Front Bumper Hole, RH
2009-05 → 2011-11
ended
|
ZRT271 T271,ZRT272 WG E +14 | — | |
| 52127-05050 note |
Cover, Front Bumper Hole, RH
2009-05 → 2011-11
ended
|
ADT271 6FC G | — | |
| 52127-05050 note |
Cover, Front Bumper Hole, RH
2009-05 → 2011-11
ended
|
ADT271 6FC G | — | |
| 81481-05020 note |
Cover, Front Bumper Hole, RH
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# 6F E | — | |
| 81481-05020 note |
Cover, Front Bumper Hole, RH
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# 6F E | — | |
| 81481-05020 |
Cover, Front Bumper Hole, RH
2011-11 → 2015-05
ended
|
ADT270,ZRT270,271 N | — | |
| 81481-05030 note |
Cover, Front Bumper Hole, RH
2015-05 → —
|
WWT27#,ZRT270,271 LHD (E,G) | — | |
| 81481-05030 note |
Cover, Front Bumper Hole, RH
2015-05 → —
|
WWT27#,ZRT270,271 LHD (E,G) | — | |
| 81481-05030 |
Cover, Front Bumper Hole, RH
2015-05 → —
|
WWT270,ZRT270,271 N | — | |
| 52128B — Cover, Front Bumper Hole, LH | ||||
| 52128-05070 |
Cover, Front Bumper Hole, LH
2009-05 → 2011-04
ended
|
ADT270 LHD F;ZRT272 RHD +1 | — | |
| 52128-05070 |
Cover, Front Bumper Hole, LH
2008-11 → 2011-11
ended
|
ZRT270 WG E;ADT270,ZRT270,271 N;ZRT271 +4 | — | |
| 52128-05070 |
Cover, Front Bumper Hole, LH
2009-05 → 2011-11
ended
|
ZRT271 T271,ZRT272 WG E +14 | — | |
| 52128-05070 note |
Cover, Front Bumper Hole, LH
2009-05 → 2011-11
ended
|
ADT271 6FC G | — | |
| 52128-05070 note |
Cover, Front Bumper Hole, LH
2009-05 → 2011-11
ended
|
ADT271 6FC G | — | |
| 81482-05020 |
Cover, Front Bumper Hole, LH
2011-11 → 2015-05
ended
|
ADT270,ZRT270,271 N | — | |
| 81482-05020 note |
Cover, Front Bumper Hole, LH
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# 6F E | — | |
| 81482-05020 note |
Cover, Front Bumper Hole, LH
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# 6F E | — | |
| 81482-05030 |
Cover, Front Bumper Hole, LH
2015-05 → —
|
WWT270,ZRT270,271 N | — | |
| 81482-05030 note |
Cover, Front Bumper Hole, LH
2015-05 → —
|
WWT27#,ZRT270,271 LHD (E,G) | — | |
| 81482-05030 note |
Cover, Front Bumper Hole, LH
2015-05 → —
|
WWT27#,ZRT270,271 LHD (E,G) | — | |
| 52128C — Cover, Front Bumper Hole, LH | ||||
| 52128-05090 |
Cover, Front Bumper Hole, LH
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# E,G | — | |
| 52128-05090 note |
Cover, Front Bumper Hole, LH
2011-11 → 2015-05
ended
|
ADT270,ZRT270,271 N | — | |
| 52128-05090 note |
Cover, Front Bumper Hole, LH
2011-11 → 2015-05
ended
|
ADT270,ZRT270,271 N | — | |
| 52128-05090 note |
Cover, Front Bumper Hole, LH
2011-11 → 2015-05
ended
|
ZRT270,271 LHD N | — | |
| 52128-05090 note |
Cover, Front Bumper Hole, LH
2011-11 → 2015-05
ended
|
ZRT270,271 LHD N | — | |
| 52131A — Reinforcement, Front Bumper | ||||
| 52021-05050 |
Reinforcement, Front Bumper
2008-11 → 2010-08
ended
|
ADT27#,ZRT27# | — | |
| 52021-05051 |
Reinforcement, Front Bumper
2010-09 → 2011-04
ended
|
ADT270 LHD F;ZRT272 RHD +1 | — | |
| 52021-05051 |
Reinforcement, Front Bumper
2010-09 → 2011-11
ended
|
ADT270 RHD;ADT271,ZRT27# DCR,DCRL,HTWVM;ADT270,ZRT272 LHD +2 | — | |
| 52021-05051 |
Reinforcement, Front Bumper
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# | — | |
| 52021-05051 |
Reinforcement, Front Bumper
2015-05 → —
|
WWT27#,ZRT27# | — | |
| 52161T — Piece, Front Bumper | ||||
| 52161-02030 note |
Piece, Front Bumper
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# | — | |
| 52161-16010 note |
Piece, Front Bumper
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# | — | |
| 52161-02030 note |
Piece, Front Bumper
2015-05 → —
|
WWT27#,ZRT27# | — | |
| 52161-16010 note |
Piece, Front Bumper
2015-05 → —
|
WWT27#,ZRT27# | — | |
| 52535 — Retainer, Front Bumper Side, RH | ||||
| 52535-05040 |
Retainer, Front Bumper Side, RH
2008-11 → 2011-11
ended
|
ADT270 RHD;ADT271,ZRT27# DCR,DCRL,HTWVM;ADT270,ZRT272 LHD +2 | — | |
| 52535-05040 |
Retainer, Front Bumper Side, RH
2008-11 → 2011-04
ended
|
ADT270 LHD F;ZRT272 RHD +1 | — | |
| 52535-05040 |
Retainer, Front Bumper Side, RH
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# | — | |
| 52535-05050 |
Retainer, Front Bumper Side, RH
2015-05 → —
|
WWT27#,ZRT27# | — | |
| 52536 — Retainer, Front Bumper Side, LH | ||||
| 52536-05040 |
Retainer, Front Bumper Side, LH
2008-11 → 2011-04
ended
|
ADT270 LHD F;ZRT272 RHD +1 | — | |
| 52536-05040 |
Retainer, Front Bumper Side, LH
2008-11 → 2011-11
ended
|
ADT270 RHD;ADT271,ZRT27# DCR,DCRL,HTWVM;ADT270,ZRT272 LHD +2 | — | |
| 52536-05040 |
Retainer, Front Bumper Side, LH
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# | — | |
| 52536-05050 |
Retainer, Front Bumper Side, LH
2015-05 → —
|
WWT27#,ZRT27# | — | |
| 52537 — Retainer, Front Bumper End, RH | ||||
| 52535-50060 |
Retainer, Front Bumper End, RH
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# | — | |
| 52538 — Retainer, Front Bumper End, LH | ||||
| 52535-50060 |
Retainer, Front Bumper End, LH
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# | — | |
| 52611 — Absorber, Front Bumper Energy | ||||
| 52611-05010 |
Absorber, Front Bumper Energy
2008-11 → 2010-12
ended
|
ADT27#,ZRT27# | — | |
| 52611-05011 |
Absorber, Front Bumper Energy
2011-01 → 2011-04
ended
|
ADT270 LHD F;ZRT272 RHD +1 | — | |
| 52611-05011 |
Absorber, Front Bumper Energy
2011-01 → 2011-11
ended
|
ADT270 RHD;ADT271,ZRT27# DCR,DCRL,HTWVM;ADT270,ZRT272 LHD +2 | — | |
| 52611-05011 |
Absorber, Front Bumper Energy
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# | — | |
| 52611-05030 |
Absorber, Front Bumper Energy
2015-05 → —
|
WWT27#,ZRT27# | — | |
| 52618 — Absorber, Front Bumper, Lower | ||||
| 52618-05010 |
Absorber, Front Bumper, Lower
2008-11 → 2011-04
ended
|
ADT270 LHD F;ZRT272 RHD +1 | — | |
| 52618-05010 |
Absorber, Front Bumper, Lower
2008-11 → 2011-11
ended
|
ADT270 RHD;ADT271,ZRT27# DCR,DCRL,HTWVM;ADT270,ZRT272 LHD +2 | — | |
| 52618-05010 |
Absorber, Front Bumper, Lower
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# | — | |
| 52618-05030 |
Absorber, Front Bumper, Lower
2015-05 → —
|
WWT27#,ZRT27# | — | |
| 53112E — Grille, Radiator, Lower NO.1 | ||||
| 53112-05080 note |
Grille, Radiator, Lower NO.1
2008-11 → 2011-04
ended
|
ADT270 LHD F;ZRT272 RHD +1 | — | |
| 53112-05080 note |
Grille, Radiator, Lower NO.1
2008-11 → 2011-11
ended
|
ADT270 RHD;ADT271,ZRT27# DCR,DCRL,HTWVM;ADT270,ZRT272 LHD +2 | — | |
| 53112-05090 note |
Grille, Radiator, Lower NO.1
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# | — | |
| 53112-05100 note |
Grille, Radiator, Lower NO.1
2015-05 → —
|
WWT27#,ZRT27# | — | |
| 53285J — Cover, Front Bumper Arm Hole, RH | ||||
| 53285-05901 note |
Cover, Front Bumper Arm Hole, RH
2009-05 → 2011-11
ended
|
ZRT272 HTWC | — | |
| 53285-05901 note |
Cover, Front Bumper Arm Hole, RH
2009-05 → 2011-11
ended
|
ADT27#,ZRT27# (E,F,N) (DCR,HTWVM) | — | |
| 53285-05901 note |
Cover, Front Bumper Arm Hole, RH
2009-05 → 2011-11
ended
|
ADT270 DT270 CR,HTWVM) RHD;ZRT271 +21 | — | |
| 53285-05901 note |
Cover, Front Bumper Arm Hole, RH
2009-05 → 2011-11
ended
|
ZRT271 WG 6F E;ZRT270,271 +7 | — | |
| 53285-05901 note |
Cover, Front Bumper Arm Hole, RH
2009-05 → 2011-11
ended
|
ZRT27# LHD (E,N) HTWVM | — | |
| 53285-05901 note |
Cover, Front Bumper Arm Hole, RH
2009-05 → 2011-11
ended
|
ZRT270 LHD SED E;ZRT271,272 +3 | — | |
| 53285-05901 note |
Cover, Front Bumper Arm Hole, RH
2009-05 → 2011-11
ended
|
ZRT270 LHD SED E;ZRT271,272 +3 | — | |
| 53285-05901 note |
Cover, Front Bumper Arm Hole, RH
2009-05 → 2011-11
ended
|
ADT271 6FC G | — | |
| 53285-05901 note |
Cover, Front Bumper Arm Hole, RH
2009-05 → 2011-11
ended
|
ZRT272 HTWC | — | |
| 53285-05901 |
Cover, Front Bumper Arm Hole, RH
2008-11 → 2009-05
ended
|
ADT27#,ZRT27# E,F | — | |
| 53285-05901 |
Cover, Front Bumper Arm Hole, RH
2009-05 → 2011-11
ended
|
ZRT271 WG 6F E;ZRT270,271 +7 | — | |
| 53285-05901 note |
Cover, Front Bumper Arm Hole, RH
2009-05 → 2011-11
ended
|
ZRT270 LHD SED E;ZRT271,272 +3 | — | |
| 53285-05901 |
Cover, Front Bumper Arm Hole, RH
2008-11 → 2011-11
ended
|
ADT271,ZRT272 G,V | — | |
| 53285-05901 |
Cover, Front Bumper Arm Hole, RH
2008-11 → 2011-11
ended
|
ZRT270 WG E;ADT270,ZRT270,271 N;ZRT271 +4 | — | |
| 53285-05901 note |
Cover, Front Bumper Arm Hole, RH
2008-11 → 2011-11
ended
|
ZRT270,271 LHD N;ZRT270 LHD +2 | — | |
| 53285-05901 note |
Cover, Front Bumper Arm Hole, RH
2008-11 → 2011-11
ended
|
ZRT270 WG E;ADT270,ZRT270,271 N;ZRT271 +4 | — | |
| 53285-05901 note |
Cover, Front Bumper Arm Hole, RH
2008-11 → 2011-11
ended
|
ZRT270,271 LHD N;ZRT270 LHD +2 | — | |
| 53285-05901 note |
Cover, Front Bumper Arm Hole, RH
2008-11 → 2011-11
ended
|
ZRT270,271 LHD N;ZRT270 LHD +2 | — | |
| 53285-05901 note |
Cover, Front Bumper Arm Hole, RH
2008-11 → 2011-11
ended
|
ZRT270 1 WG;ZRT271 LHD +11 | — | |
| 53285-05903 |
Cover, Front Bumper Arm Hole, RH
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# | — | |
| 53286C — Cover, Front Bumper Arm Hole, LH | ||||
| 53286-05901 note |
Cover, Front Bumper Arm Hole, LH
2009-05 → 2011-11
ended
|
ZRT272 HTWC | — | |
| 53286-05901 note |
Cover, Front Bumper Arm Hole, LH
2009-05 → 2011-11
ended
|
ADT271 6FC G | — | |
| 53286-05901 note |
Cover, Front Bumper Arm Hole, LH
2009-05 → 2011-11
ended
|
ZRT270 LHD SED E;ZRT271,272 +3 | — | |
| 53286-05901 note |
Cover, Front Bumper Arm Hole, LH
2009-05 → 2011-11
ended
|
ZRT270 LHD SED E;ZRT271,272 +3 | — | |
| 53286-05901 note |
Cover, Front Bumper Arm Hole, LH
2009-05 → 2011-11
ended
|
ZRT27# LHD (E,N) HTWVM | — | |
| 53286-05901 note |
Cover, Front Bumper Arm Hole, LH
2009-05 → 2011-11
ended
|
ZRT271 WG 6F E;ZRT270,271 +7 | — | |
| 53286-05901 note |
Cover, Front Bumper Arm Hole, LH
2009-05 → 2011-11
ended
|
ADT270 DT270 CR,HTWVM) RHD;ZRT271 +21 | — | |
| 53286-05901 note |
Cover, Front Bumper Arm Hole, LH
2009-05 → 2011-11
ended
|
ADT27#,ZRT27# (E,F,N) (DCR,HTWVM) | — | |
| 53286-05901 note |
Cover, Front Bumper Arm Hole, LH
2009-05 → 2011-11
ended
|
ZRT272 HTWC | — | |
| 53286-05901 |
Cover, Front Bumper Arm Hole, LH
2009-05 → 2011-11
ended
|
ZRT271 WG 6F E;ZRT270,271 +7 | — | |
| 53286-05901 note |
Cover, Front Bumper Arm Hole, LH
2008-11 → 2011-11
ended
|
ZRT270,271 LHD N;ZRT270 LHD +2 | — | |
| 53286-05901 note |
Cover, Front Bumper Arm Hole, LH
2008-11 → 2011-11
ended
|
ZRT270,271 LHD N;ZRT270 LHD +2 | — | |
| 53286-05901 note |
Cover, Front Bumper Arm Hole, LH
2008-11 → 2011-11
ended
|
ZRT270 WG E;ADT270,ZRT270,271 N;ZRT271 +4 | — | |
| 53286-05901 note |
Cover, Front Bumper Arm Hole, LH
2008-11 → 2011-11
ended
|
ZRT270 1 WG;ZRT271 LHD +11 | — | |
| 53286-05901 note |
Cover, Front Bumper Arm Hole, LH
2008-11 → 2011-11
ended
|
ZRT270,271 LHD N;ZRT270 LHD +2 | — | |
| 53286-05901 |
Cover, Front Bumper Arm Hole, LH
2008-11 → 2011-11
ended
|
ZRT270 WG E;ADT270,ZRT270,271 N;ZRT271 +4 | — | |
| 53286-05901 |
Cover, Front Bumper Arm Hole, LH
2008-11 → 2011-11
ended
|
ADT271,ZRT272 G,V | — | |
| 53286-05901 |
Cover, Front Bumper Arm Hole, LH
2008-11 → 2009-05
ended
|
ADT27#,ZRT27# E,F | — | |
| 53286-05901 note |
Cover, Front Bumper Arm Hole, LH
2009-05 → 2011-11
ended
|
ZRT270 LHD SED E;ZRT271,272 +3 | — | |
| 53286-05903 |
Cover, Front Bumper Arm Hole, LH
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# | — | |
| 53879H — Retainer, Front Fender Liner | ||||
| 53879-58010 |
Retainer, Front Fender Liner
2008-11 → 2011-04
ended
|
ADT270 LHD F;ZRT272 RHD +1 | — | |
| 53879-58010 |
Retainer, Front Fender Liner
2008-11 → 2011-11
ended
|
ADT270 RHD;ADT271,ZRT27# DCR,DCRL,HTWVM;ADT270,ZRT272 LHD +2 | — | |
| 53879-58010 |
Retainer, Front Fender Liner
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# | — | |
| 53879-50020 |
Retainer, Front Fender Liner
2015-05 → —
|
WWT27#,ZRT27# | — | |
| 57013C — Bracket Sub-assy, Front Side Member, RH | ||||
| 57013-05030 |
Bracket Sub-assy, Front Side Member, RH
2008-11 → 2011-11
ended
|
ADT270 RHD;ADT271,ZRT27# DCR,DCRL,HTWVM;ADT270,ZRT272 LHD +2 | — | |
| 57013-05030 |
Bracket Sub-assy, Front Side Member, RH
2008-11 → 2011-04
ended
|
ADT270 LHD F;ZRT272 RHD +1 | — | |
| 57013-05030 |
Bracket Sub-assy, Front Side Member, RH
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# | — | |
| 57013-05030 |
Bracket Sub-assy, Front Side Member, RH
2015-05 → —
|
WWT27#,ZRT27# | — | |
| 57014A — Bracket Sub-assy, Front Side Member, LH | ||||
| 57014-05030 |
Bracket Sub-assy, Front Side Member, LH
2008-11 → 2011-04
ended
|
ADT270 LHD F;ZRT272 RHD +1 | — | |
| 57014-05030 |
Bracket Sub-assy, Front Side Member, LH
2008-11 → 2011-11
ended
|
ADT270 RHD;ADT271,ZRT27# DCR,DCRL,HTWVM;ADT270,ZRT272 LHD +2 | — | |
| 57014-05030 |
Bracket Sub-assy, Front Side Member, LH
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# | — | |
| 57014-05030 |
Bracket Sub-assy, Front Side Member, LH
2015-05 → —
|
WWT27#,ZRT27# | — | |
| 76851G — Grommet, Screw, NO.1 | ||||
| 90189-05144 |
Grommet, Screw, NO.1
2008-11 → 2011-11
ended
|
ADT27#,ZRT27# | — | |
| 90189-05144 |
Grommet, Screw, NO.1
2011-11 → 2012-01
ended
|
ADT27#,ZRT27# | — | |
| 90189-06234 |
Grommet, Screw, NO.1
2012-02 → 2015-05
ended
|
ADT27#,ZRT27# | — | |
| 81481E — Cover, Fog Lamp, RH | ||||
| 52127-05060 note |
Cover, Fog Lamp, RH
2009-05 → 2011-11
ended
|
ZRT272 LHD HTWC | — | |
| 52127-05060 note |
Cover, Fog Lamp, RH
2009-05 → 2011-11
ended
|
ZRT270 LHD SED E;ZRT271,272 +3 | — | |
| 52127-05060 note |
Cover, Fog Lamp, RH
2009-05 → 2011-11
ended
|
ZRT270 LHD SED E;ZRT271,272 +3 | — | |
| 52127-05060 note |
Cover, Fog Lamp, RH
2009-05 → 2011-11
ended
|
ZRT271 T271,ZRT272 WG E +14 | — | |
| 52127-05060 note |
Cover, Fog Lamp, RH
2009-05 → 2011-11
ended
|
ADT270 1 TWVM) RHD;ADT270 +21 | — | |
| 52127-05060 note |
Cover, Fog Lamp, RH
2008-11 → 2011-11
ended
|
ZRT270,271 LHD N;ZRT270 LHD +2 | — | |
| 52127-05060 note |
Cover, Fog Lamp, RH
2008-11 → 2011-11
ended
|
ZRT270 WG E;ADT270,ZRT270,271 N;ZRT271 +4 | — | |
| 52127-05060 note |
Cover, Fog Lamp, RH
2008-11 → 2011-11
ended
|
ZRT270 1 WG;ZRT271 LHD +11 | — | |
| 52127-05060 |
Cover, Fog Lamp, RH
2008-11 → 2011-11
ended
|
ADT271,ZRT272 G,V | — | |
| 52127-05060 note |
Cover, Fog Lamp, RH
2009-05 → 2011-04
ended
|
ZRT272 RHD HTWC | — | |
| 52127-05060 note |
Cover, Fog Lamp, RH
2009-05 → 2011-04
ended
|
ADT270 LHD F;ZRT272 RHD +1 | — | |
| 52127-05060 note |
Cover, Fog Lamp, RH
2009-05 → 2011-04
ended
|
ADT270 LHD F | — | |
| 52127-05060 |
Cover, Fog Lamp, RH
2008-11 → 2009-05
ended
|
ADT27#,ZRT27# E,F | — | |
| 52127-05060 note |
Cover, Fog Lamp, RH
2008-11 → 2011-11
ended
|
ZRT270,271 LHD N;ZRT270 LHD +2 | — | |
| 81481-05010 note |
Cover, Fog Lamp, RH
2011-11 → 2015-05
ended
|
ADT270,ZRT270,271 N | — | |
| 81481-05010 note |
Cover, Fog Lamp, RH
2011-11 → 2015-05
ended
|
ADT270,ZRT270,271 N | — | |
| 81481-05010 note |
Cover, Fog Lamp, RH
2011-11 → 2015-05
ended
|
ZRT270,271 LHD N | — | |
| 81481-05010 note |
Cover, Fog Lamp, RH
2011-11 → 2015-05
ended
|
ZRT270,271 LHD N | — | |
| 81481-05010 |
Cover, Fog Lamp, RH
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# E,G | — | |
| 81481-05040 |
Cover, Fog Lamp, RH
2015-05 → —
|
WWT27#,ZRT27# E,G | — | |
| 81481-05040 note |
Cover, Fog Lamp, RH
2015-05 → —
|
WWT270,ZRT270,271 N | — | |
| 81481-05040 note |
Cover, Fog Lamp, RH
2015-05 → —
|
WWT270,ZRT270,271 N | — | |
| 81482C — Cover, Fog Lamp, LH | ||||
| 52128-05080 note |
Cover, Fog Lamp, LH
2009-05 → 2011-11
ended
|
ZRT271 T271,ZRT272 WG E +14 | — | |
| 52128-05080 note |
Cover, Fog Lamp, LH
2009-05 → 2011-11
ended
|
ZRT272 LHD HTWC | — | |
| 52128-05080 note |
Cover, Fog Lamp, LH
2009-05 → 2011-11
ended
|
ZRT270 LHD SED E;ZRT271,272 +3 | — | |
| 52128-05080 note |
Cover, Fog Lamp, LH
2009-05 → 2011-11
ended
|
ZRT270 LHD SED E;ZRT271,272 +3 | — | |
| 52128-05080 note |
Cover, Fog Lamp, LH
2009-05 → 2011-11
ended
|
ADT270 1 TWVM) RHD;ADT270 +21 | — | |
| 52128-05080 note |
Cover, Fog Lamp, LH
2008-11 → 2011-11
ended
|
ZRT270,271 LHD N;ZRT270 LHD +2 | — | |
| 52128-05080 note |
Cover, Fog Lamp, LH
2008-11 → 2011-11
ended
|
ZRT270,271 LHD N;ZRT270 LHD +2 | — | |
| 52128-05080 note |
Cover, Fog Lamp, LH
2008-11 → 2011-11
ended
|
ZRT270 1 WG;ZRT271 LHD +11 | — | |
| 52128-05080 |
Cover, Fog Lamp, LH
2008-11 → 2011-11
ended
|
ADT271,ZRT272 G,V | — | |
| 52128-05080 note |
Cover, Fog Lamp, LH
2009-05 → 2011-04
ended
|
ZRT272 RHD HTWC | — | |
| 52128-05080 note |
Cover, Fog Lamp, LH
2009-05 → 2011-04
ended
|
ADT270 LHD F;ZRT272 RHD +1 | — | |
| 52128-05080 note |
Cover, Fog Lamp, LH
2009-05 → 2011-04
ended
|
ADT270 LHD F | — | |
| 52128-05080 |
Cover, Fog Lamp, LH
2008-11 → 2009-05
ended
|
ADT27#,ZRT27# E,F | — | |
| 52128-05080 note |
Cover, Fog Lamp, LH
2008-11 → 2011-11
ended
|
ZRT270 WG E;ADT270,ZRT270,271 N;ZRT271 +4 | — | |
| 81482-05010 |
Cover, Fog Lamp, LH
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# E,G | — | |
| 81482-05010 note |
Cover, Fog Lamp, LH
2011-11 → 2015-05
ended
|
ZRT270,271 LHD N | — | |
| 81482-05010 note |
Cover, Fog Lamp, LH
2011-11 → 2015-05
ended
|
ZRT270,271 LHD N | — | |
| 81482-05010 note |
Cover, Fog Lamp, LH
2011-11 → 2015-05
ended
|
ADT270,ZRT270,271 N | — | |
| 81482-05010 note |
Cover, Fog Lamp, LH
2011-11 → 2015-05
ended
|
ADT270,ZRT270,271 N | — | |
| 81482-05040 note |
Cover, Fog Lamp, LH
2015-05 → —
|
WWT270,ZRT270,271 N | — | |
| 81482-05040 note |
Cover, Fog Lamp, LH
2015-05 → —
|
WWT270,ZRT270,271 N | — | |
| 81482-05040 |
Cover, Fog Lamp, LH
2015-05 → —
|
WWT27#,ZRT27# E,G | — | |
| 81483D — Protector, Fog Lamp, RH | ||||
| 81483-05010 |
Protector, Fog Lamp, RH
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# E,G | — | |
| 81483-05010 note |
Protector, Fog Lamp, RH
2011-11 → 2015-05
ended
|
ADT270,ZRT270,271 N | — | |
| 81483-05010 note |
Protector, Fog Lamp, RH
2011-11 → 2015-05
ended
|
ADT270,ZRT270,271 N | — | |
| 81483-05020 note |
Protector, Fog Lamp, RH
2011-11 → 2015-05
ended
|
ZRT27# LHD (E,G) HTWVM | — | |
| 81483-05020 note |
Protector, Fog Lamp, RH
2011-11 → 2015-05
ended
|
ZRT27# LHD (E,G) HTWVM | — | |
| 81483-05020 note |
Protector, Fog Lamp, RH
2011-11 → 2015-05
ended
|
ZRT270,271 LHD N | — | |
| 81483-05020 note |
Protector, Fog Lamp, RH
2011-11 → 2015-05
ended
|
ZRT270,271 LHD N | — | |
| 81484B — Protector, Fog Lamp, LH | ||||
| 81484-05010 |
Protector, Fog Lamp, LH
2011-11 → 2015-05
ended
|
ADT27#,ZRT27# E,G | — | |
| 81484-05010 note |
Protector, Fog Lamp, LH
2011-11 → 2015-05
ended
|
ADT270,ZRT270,271 N | — | |
| 81484-05010 note |
Protector, Fog Lamp, LH
2011-11 → 2015-05
ended
|
ADT270,ZRT270,271 N | — | |
| 81484-05020 note |
Protector, Fog Lamp, LH
2011-11 → 2015-05
ended
|
ZRT27# LHD (E,G) HTWVM | — | |
| 81484-05020 note |
Protector, Fog Lamp, LH
2011-11 → 2015-05
ended
|
ZRT27# LHD (E,G) HTWVM | — | |
| 81484-05020 note |
Protector, Fog Lamp, LH
2011-11 → 2015-05
ended
|
ZRT270,271 LHD N | — | |
| 81484-05020 note |
Protector, Fog Lamp, LH
2011-11 → 2015-05
ended
|
ZRT270,271 LHD N | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
