Toyota Avensis

2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe

Supported model Data version 2019-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

9 part groups · 3 illustrations

Illustrations

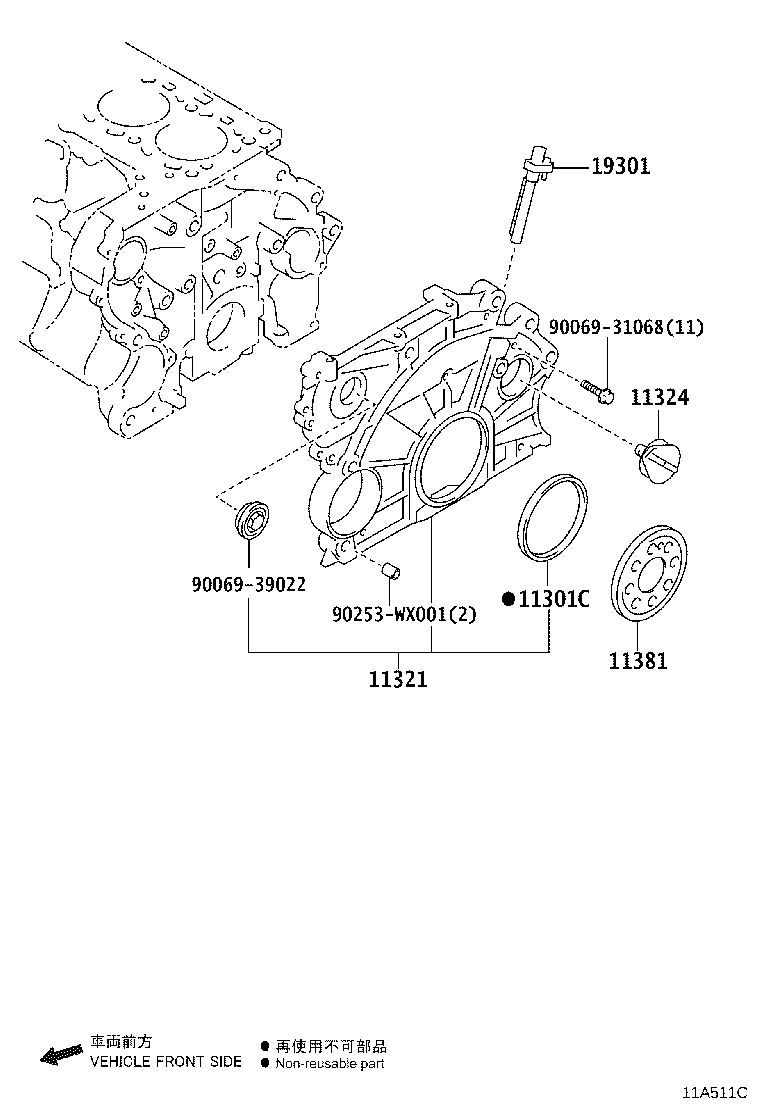

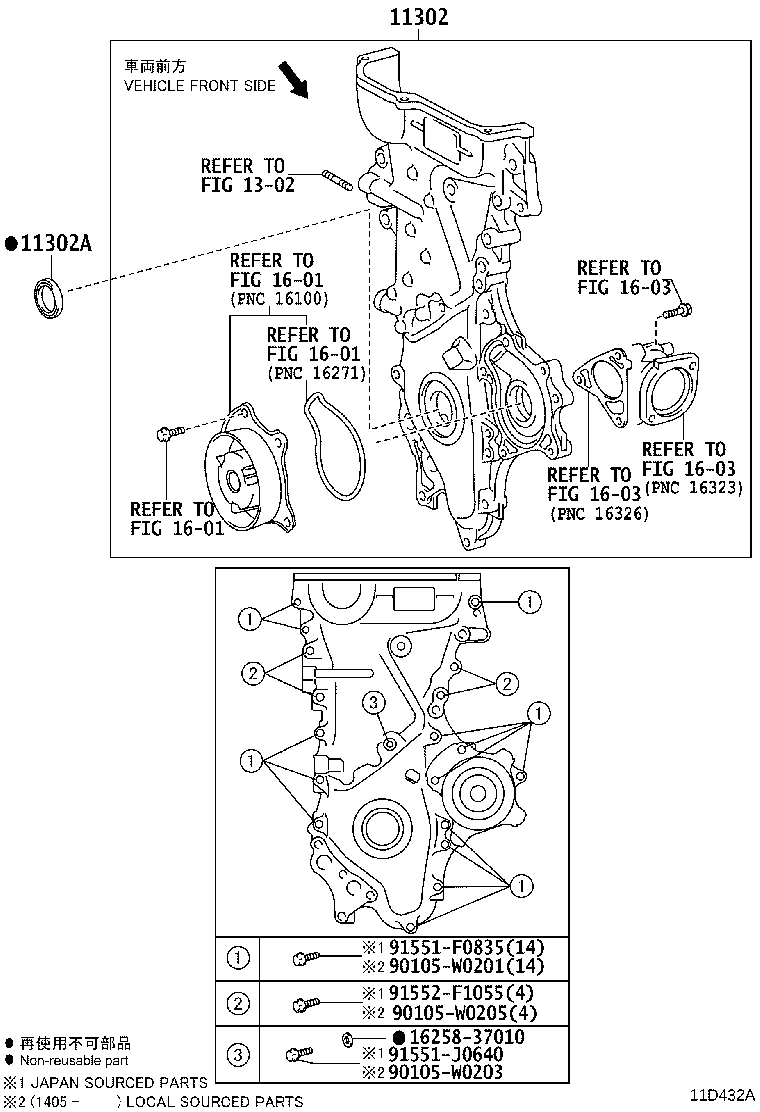

Figure 115586C 115586C 2008-11 → — Figure 11A511C 11A511C 2015-05 → — Figure 11D432A 11D432A 2008-11 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11321 Case, Timing Gear
11324 Plate, Timing Chain Cover
11381 Retainer, Engine Rear Oil Seal
16272A Gasket, Water Pump NO.2
19301 Sensor Assy, Crank Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
