Toyota Avensis

2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe

Supported model Data version 2019-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

19 part groups · 11 illustrations

Illustrations

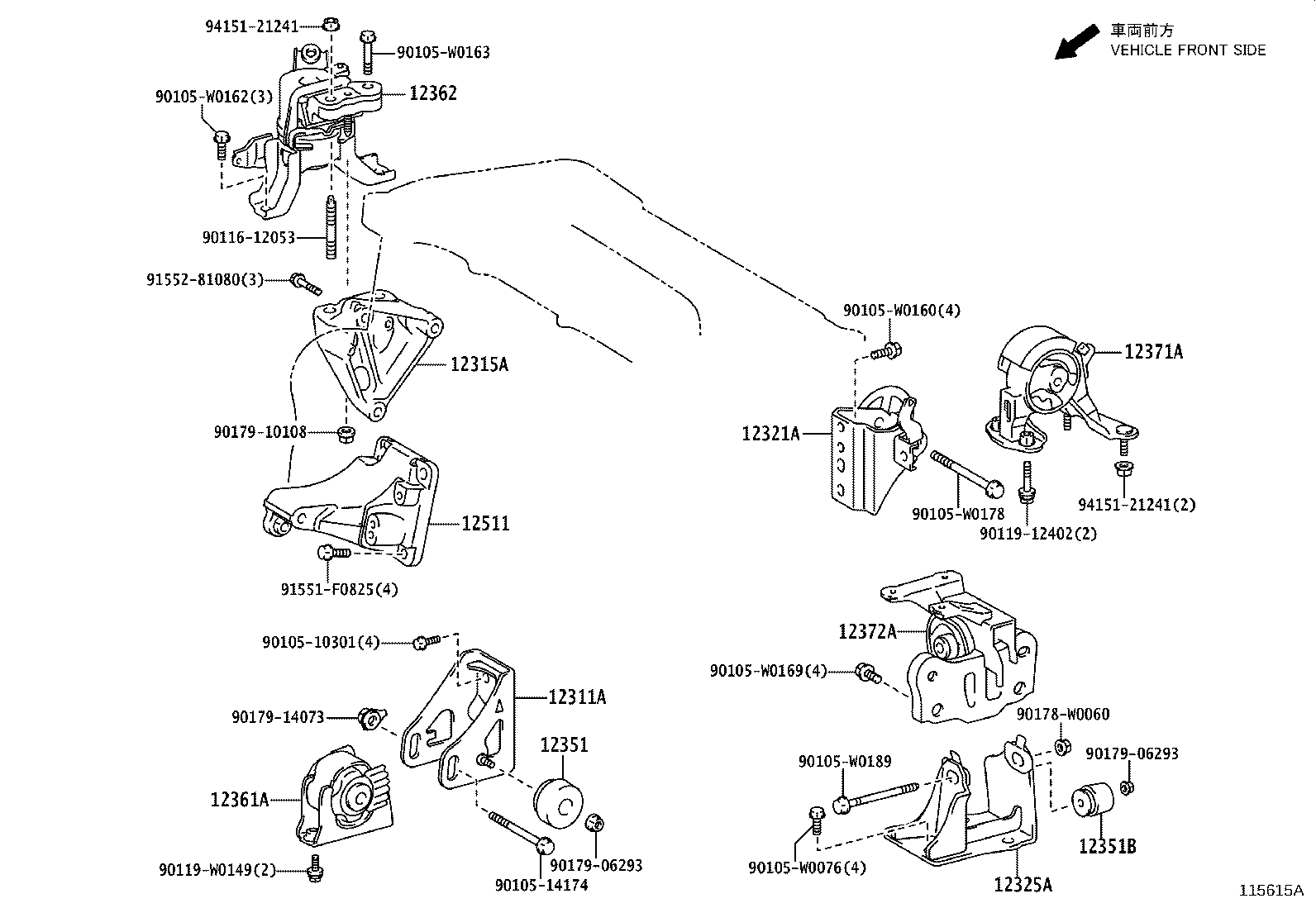

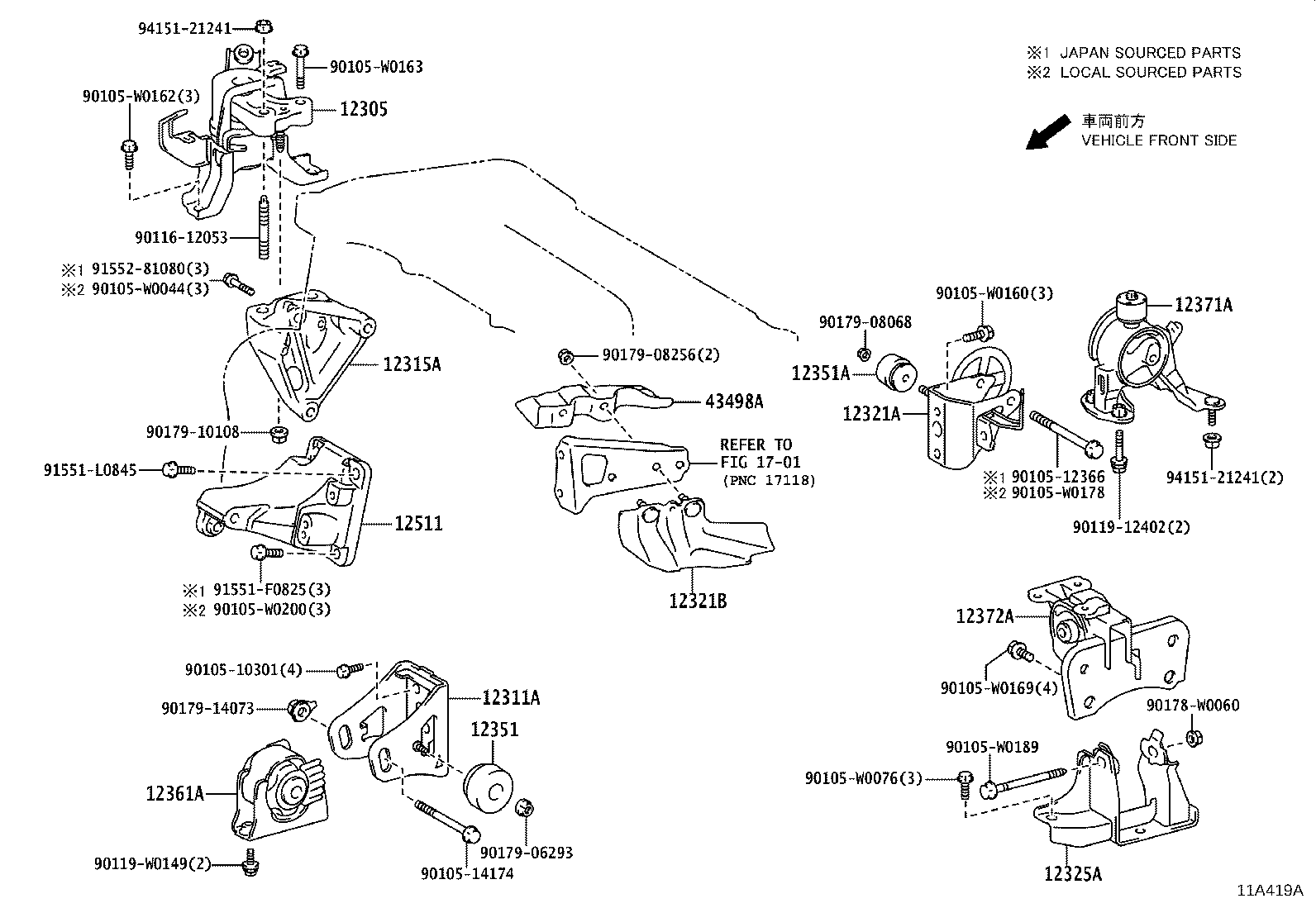

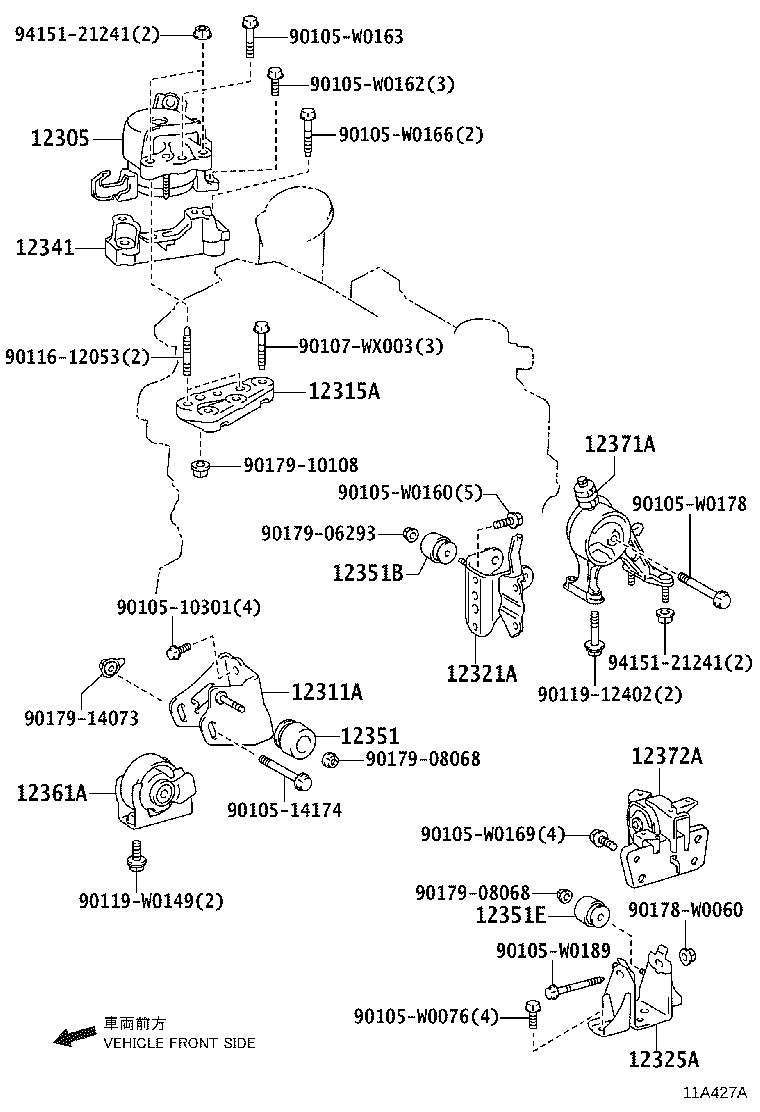

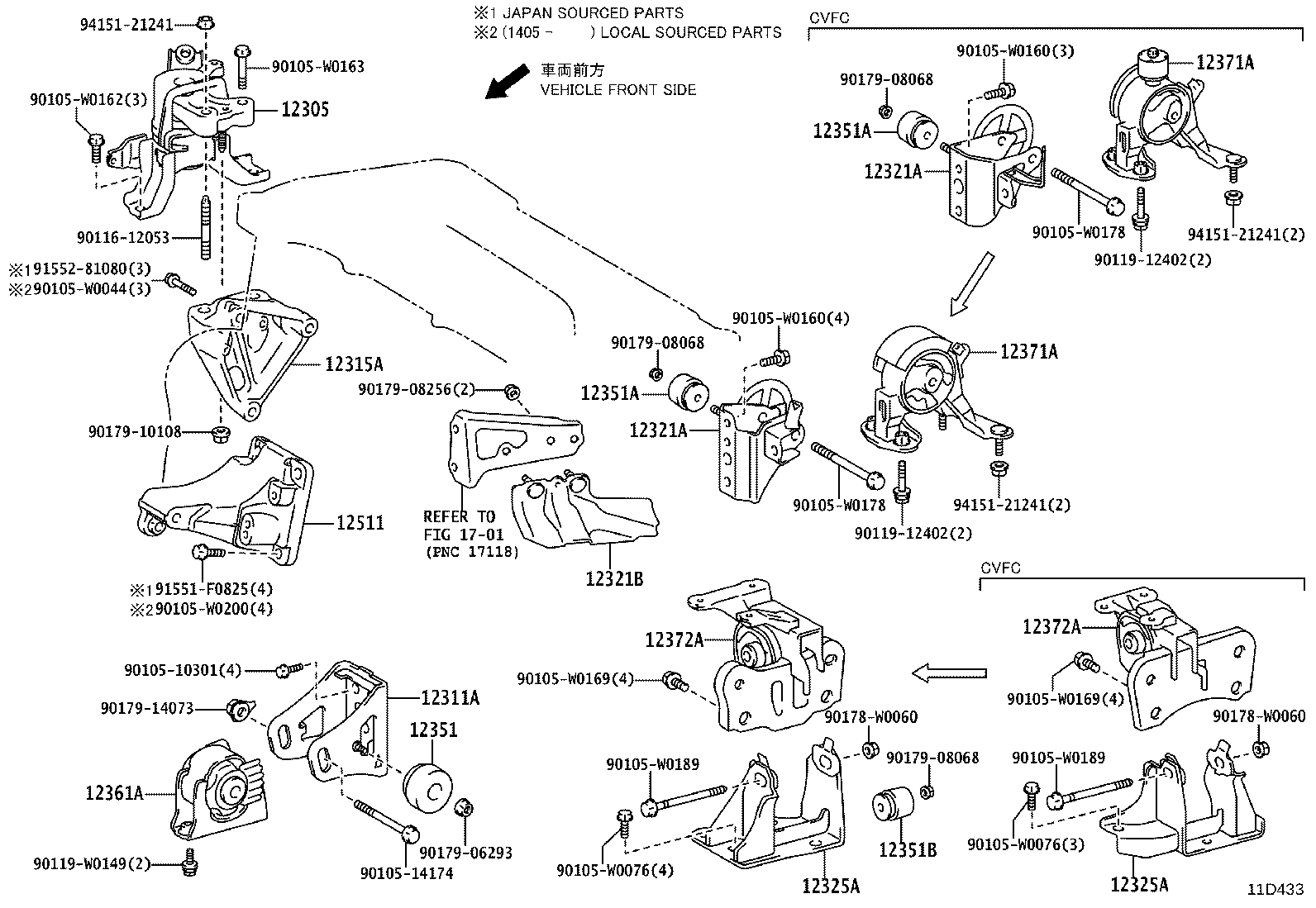

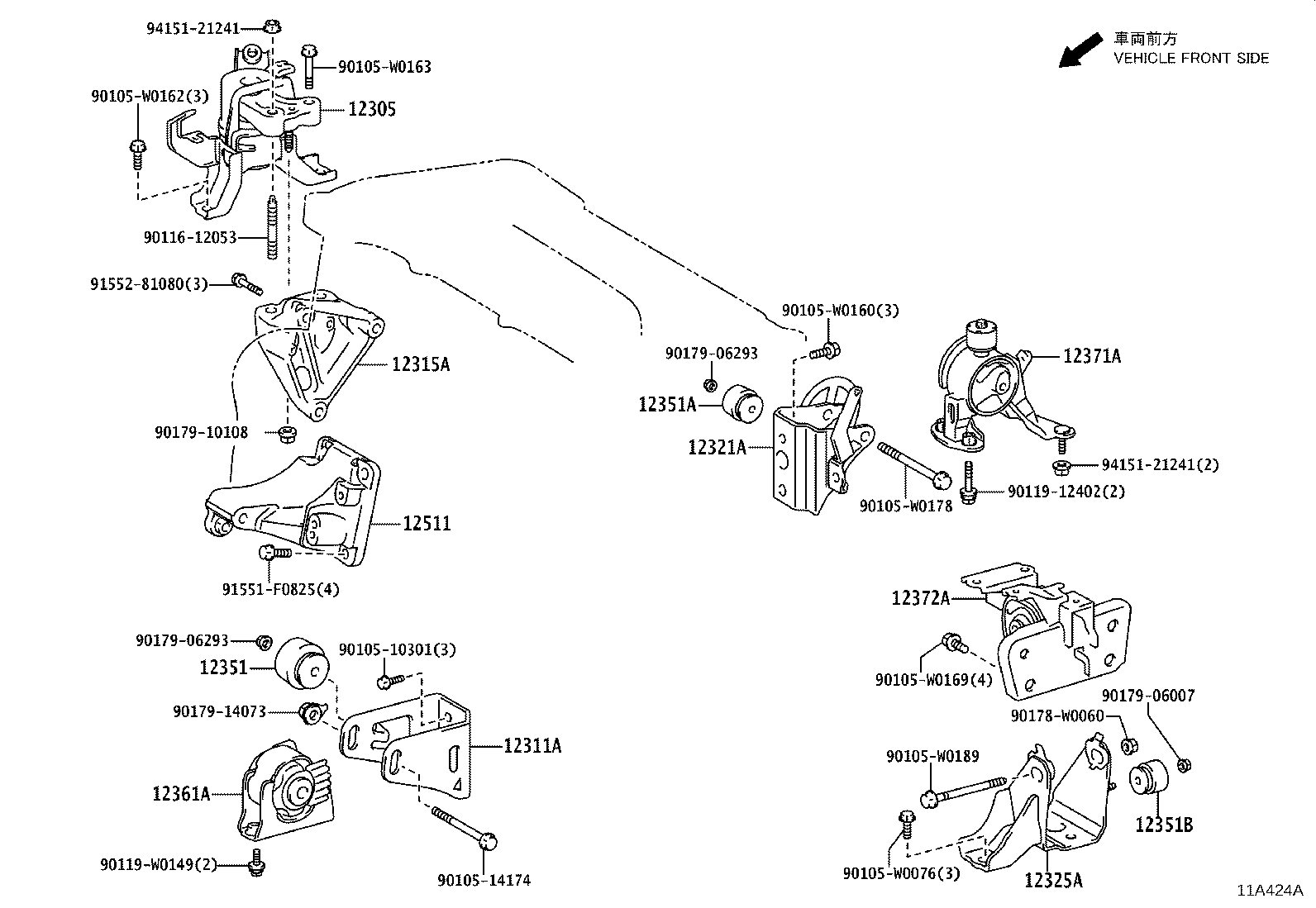

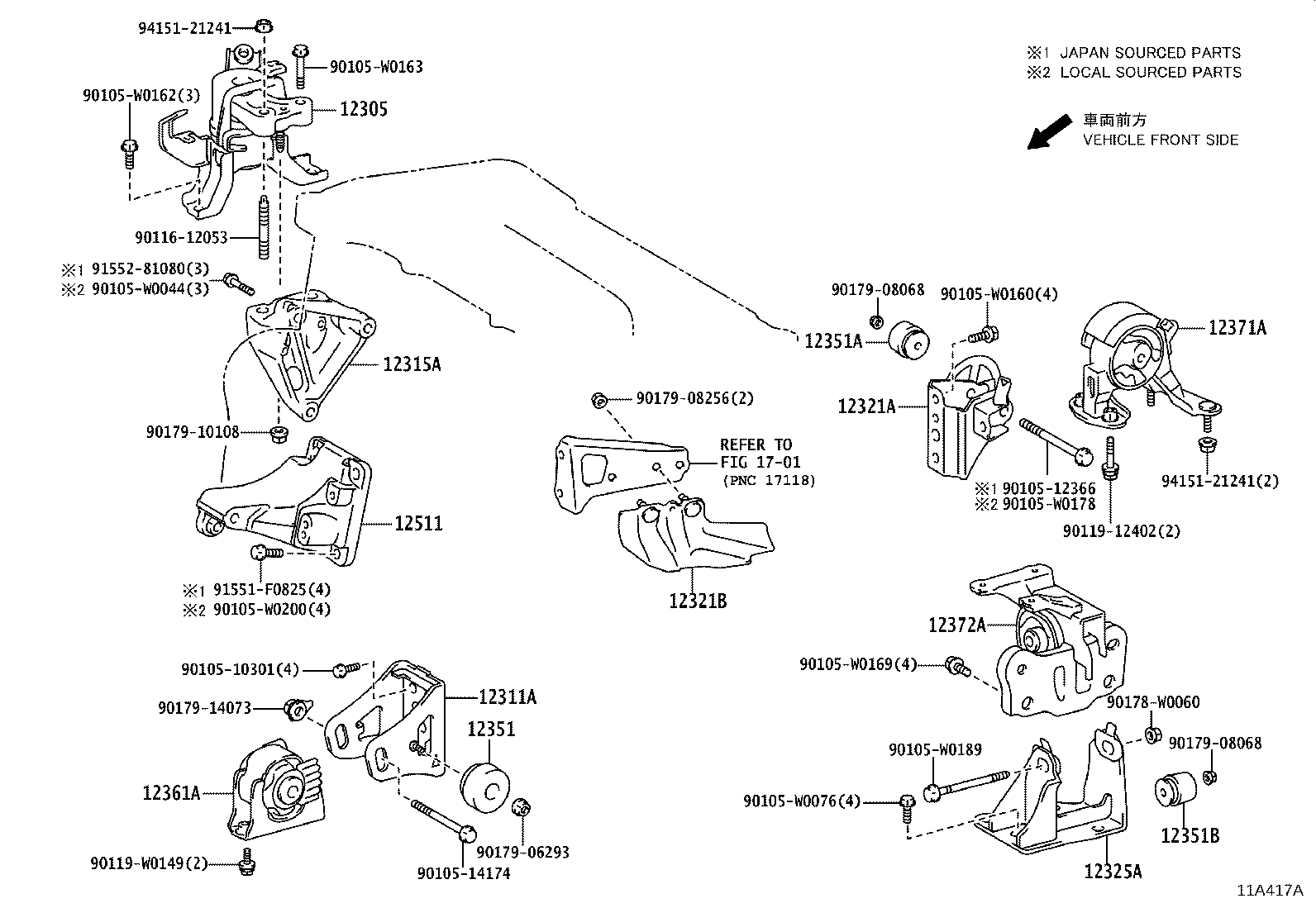

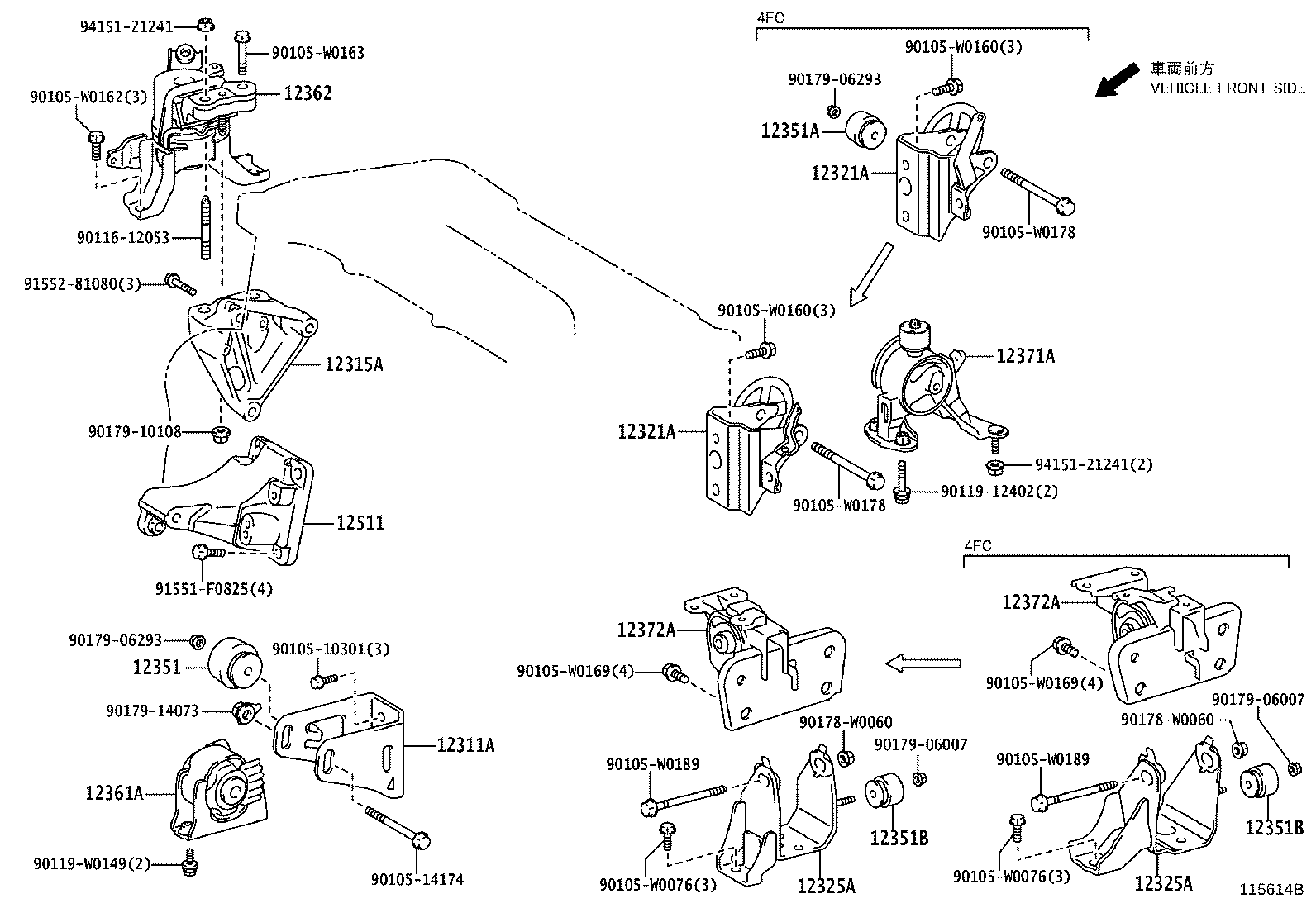

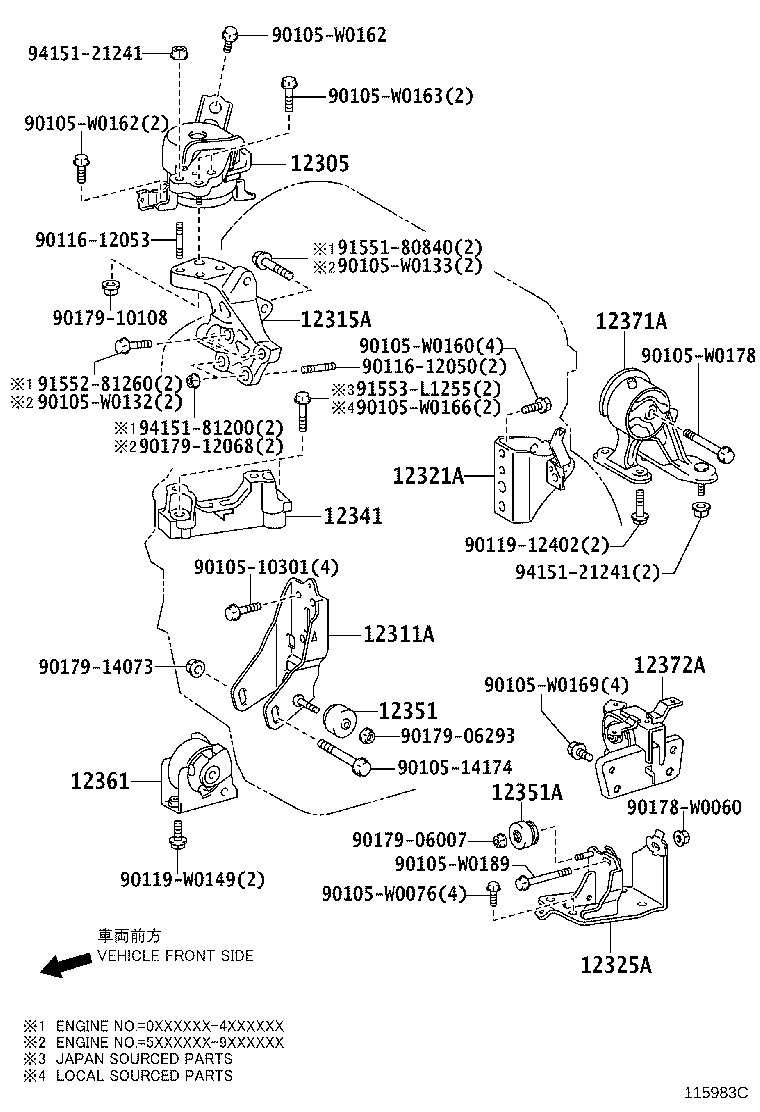

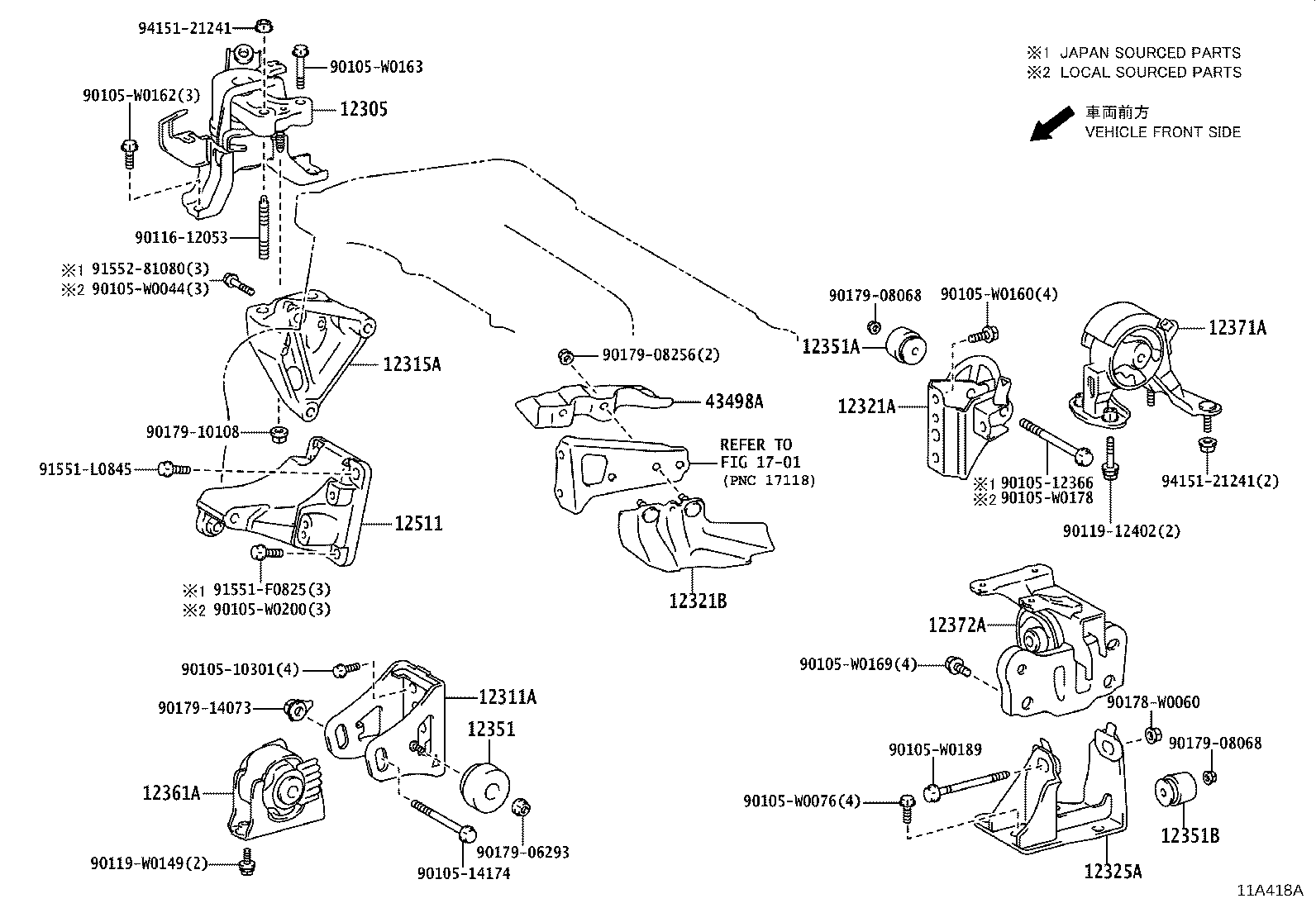

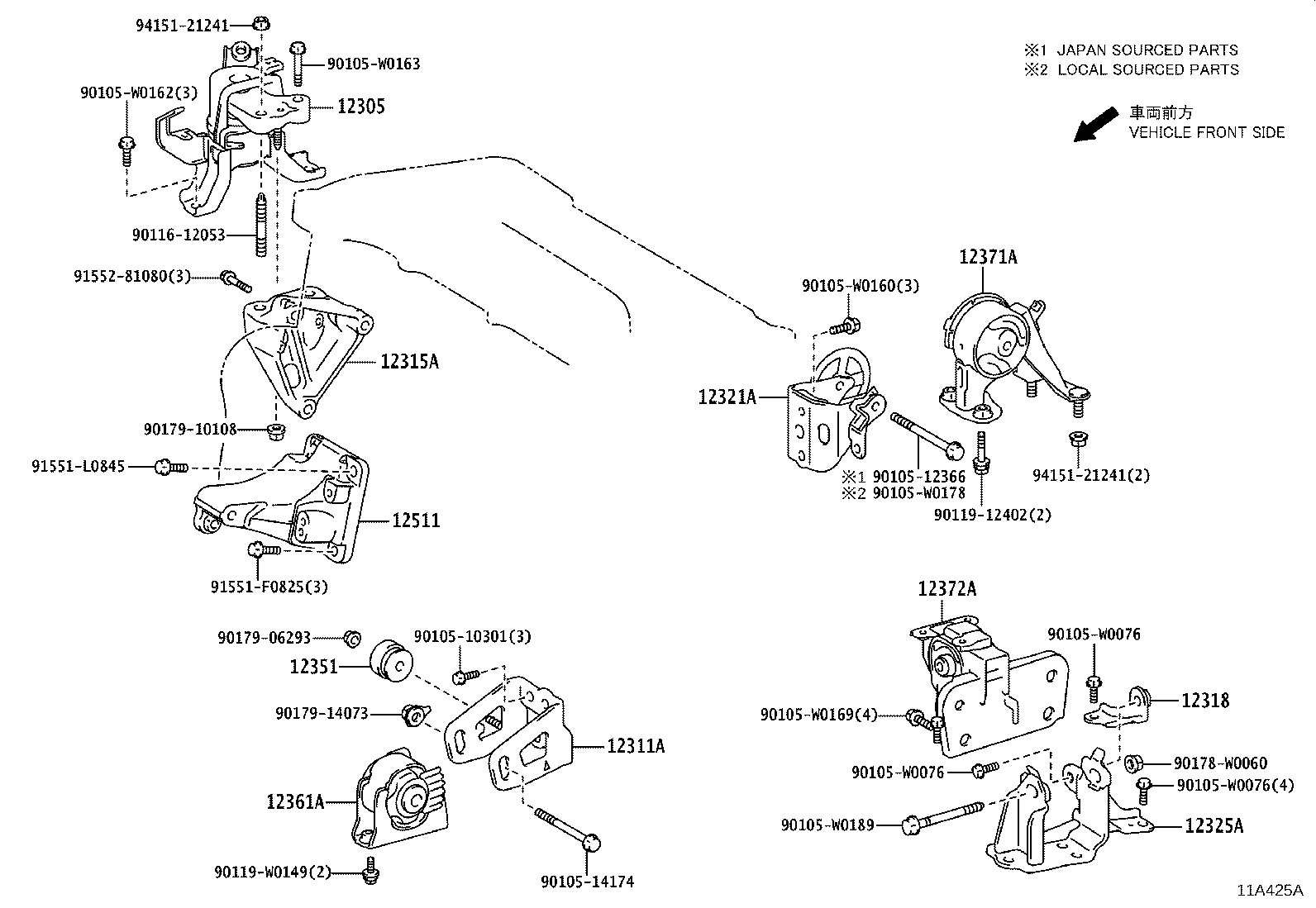

Figure 115588C 115588C 2008-11 → — Figure 115983C 115983C 2009-02 → — Figure 11A427A 11A427A 2015-05 → — Figure 11D433 11D433 2008-11 → 2015-05 Figure 115615A 115615A 2008-11 → 2015-05 Figure 115614B 115614B 2008-11 → 2015-05 Figure 11A417A 11A417A 2015-05 → — Figure 11A418A 11A418A 2015-05 → — Figure 11A419A 11A419A 2015-05 → — Figure 11A424A 11A424A 2015-05 → — Figure 11A425A 11A425A 2015-05 → —

Part groups

PNCDescription
12305 Insulator Sub-assy, Engine Mounting, RH
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12318 Stay, Engine Mounting, LH
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12321B Insulator Sub-assy, Drive Shaft Heat
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12341 Spacer, Engine Mounting
12351 Damper, Engine Mounting
12351A Damper, Engine Mounting(FOR INSULATOR)
12351B Damper, Engine Mounting
12351E Damper, Engine Mounting
12361 Insulator, Engine Mounting, Front
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12362 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12511 Bracket, Alternator, NO.1
43498A Insulator, Drive Shaft Heat, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
