Toyota Avensis

2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe

Supported model Data version 2019-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

10 part groups · 4 illustrations

Illustrations

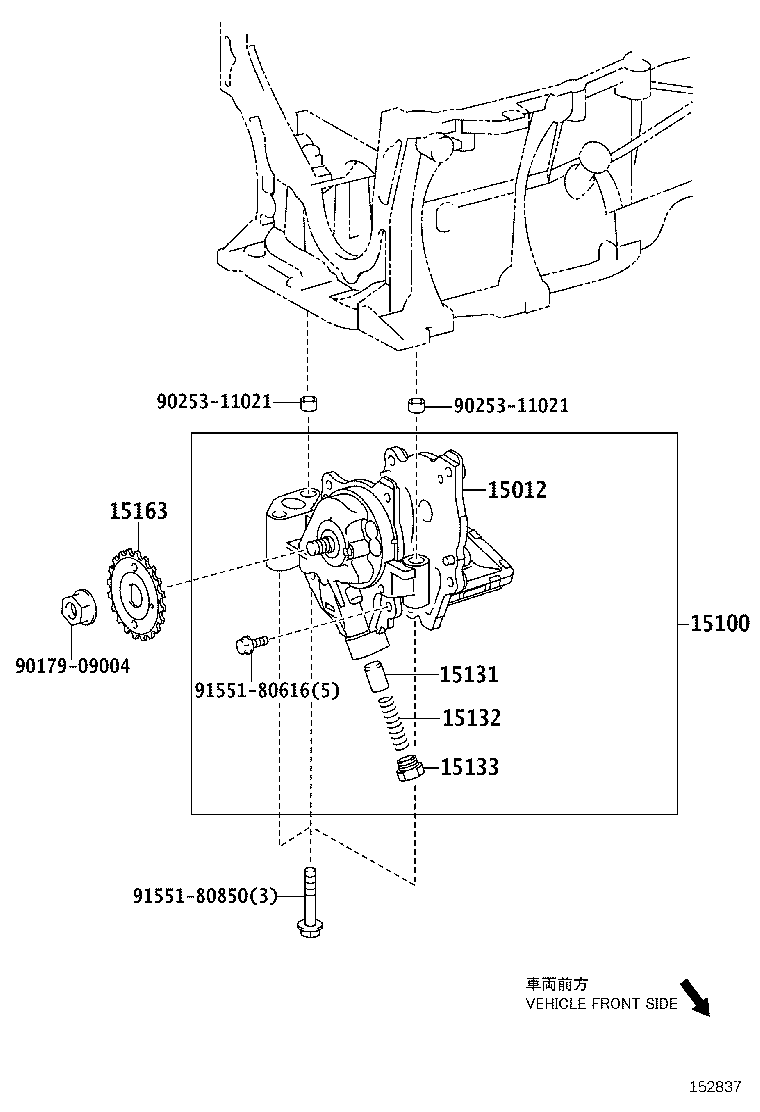

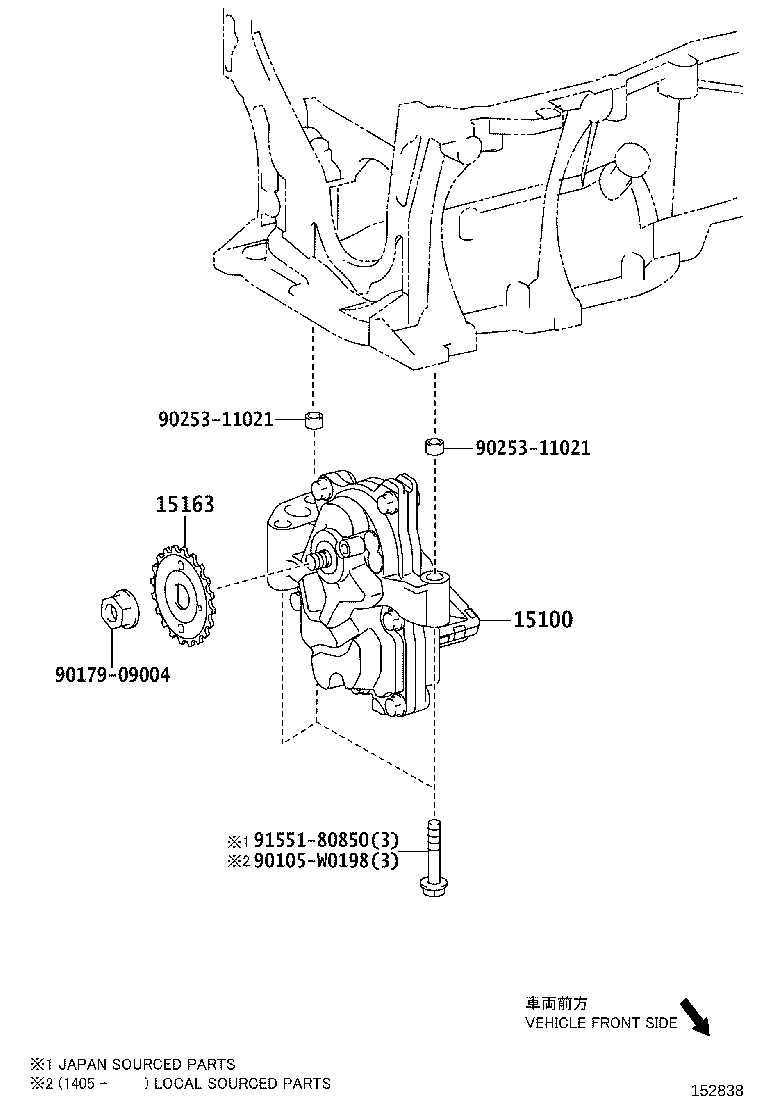

Figure 151512B 151512B 2008-11 → — Figure 152333A 152333A 2015-05 → — Figure 152837 152837 2008-11 → — Figure 152838 152838 2008-11 → —

Part groups

PNCDescription
13507A Chain Sub-assy, Oil Pump Drive
15012 Cover Sub-assy, Oil Pump
15100 Pump Assy, Oil
15104 Strainer Sub-assy, Oil
15104A Ring, O(FOR OIL STRAINER)
15115 Cover, Oil Pump
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15163 Gear, Oil Pump Drive Shaft
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
