Toyota Avensis

2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe

Supported model Data version 2019-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

8 part groups · 6 illustrations

Illustrations

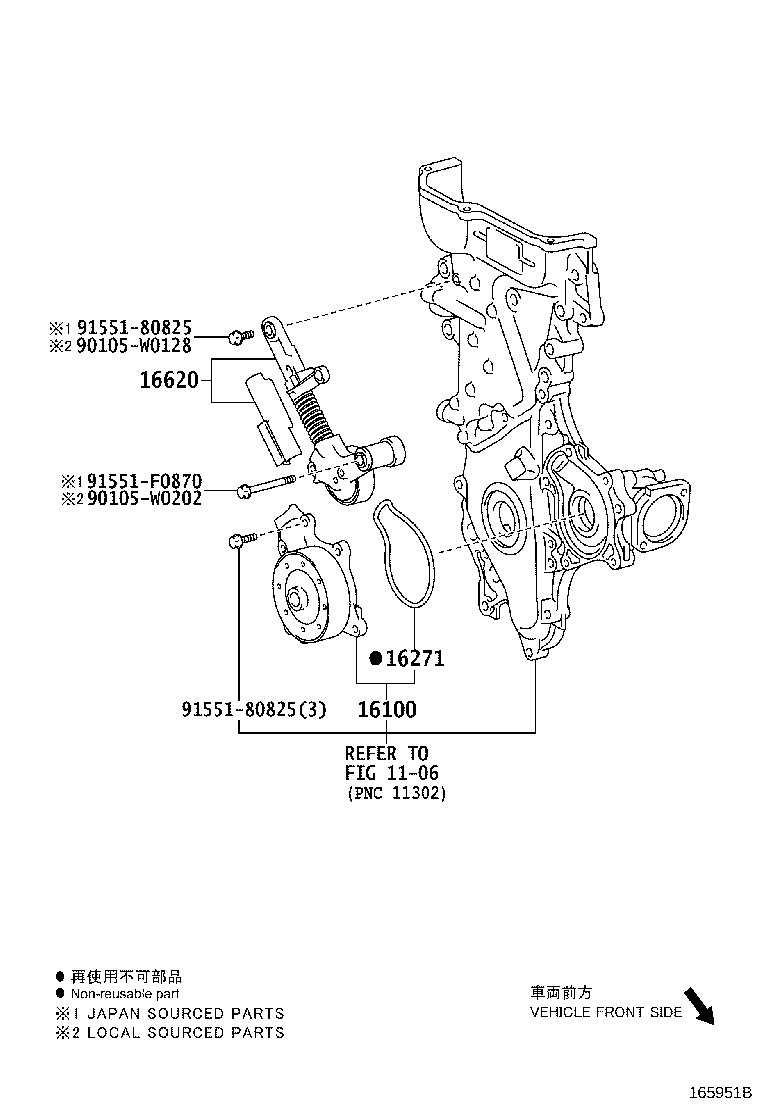

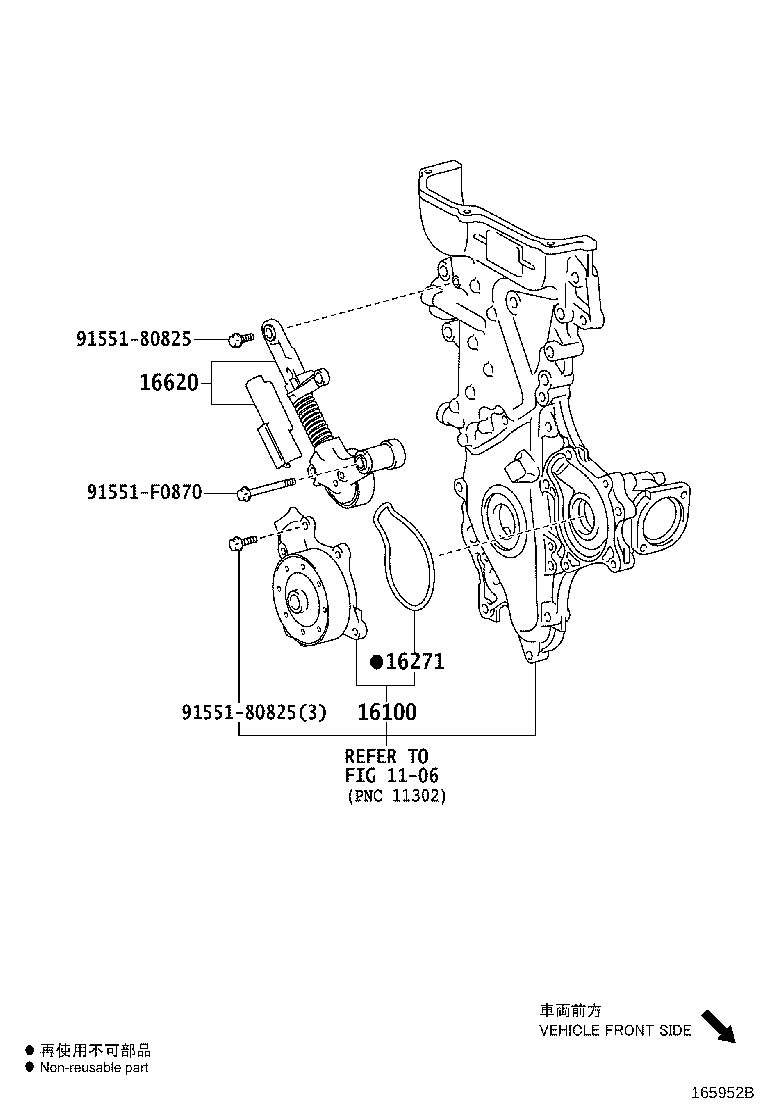

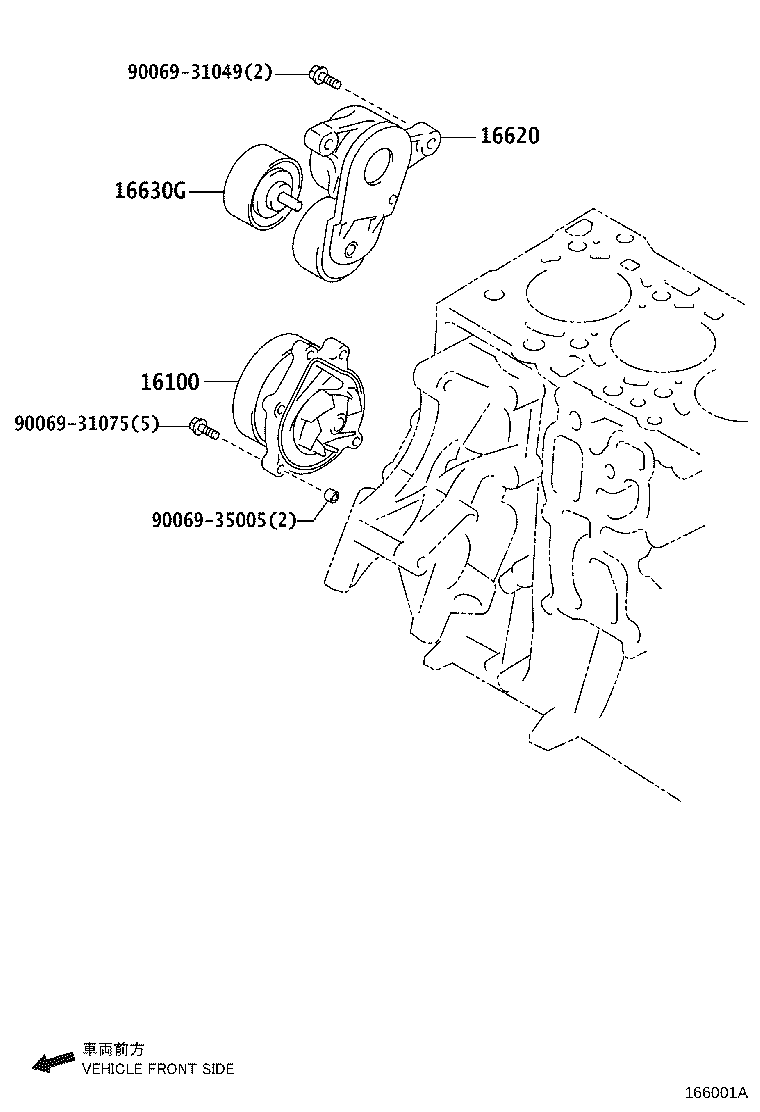

Figure 163633B 163633B 2008-11 → — Figure 166001A 166001A 2015-05 → — Figure 166982A 166982A 2008-11 → 2015-05 Figure 165950B 165950B 2015-05 → — Figure 165951B 165951B 2015-05 → — Figure 165952B 165952B 2015-05 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16271 Gasket, Water Pump
16603 Pulley Sub-assy, Idler, NO.1
16604 Pulley Sub-assy, Idler, NO.2
16620 Tensioner Assy, V-ribbed Belt
16630G Pulley Assy, Idler
16649B Plate, Idler Pulley Cover
16659 Plate, Idler Pulley Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
