Toyota Avensis
2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe
Supported model
Data version 2019-01

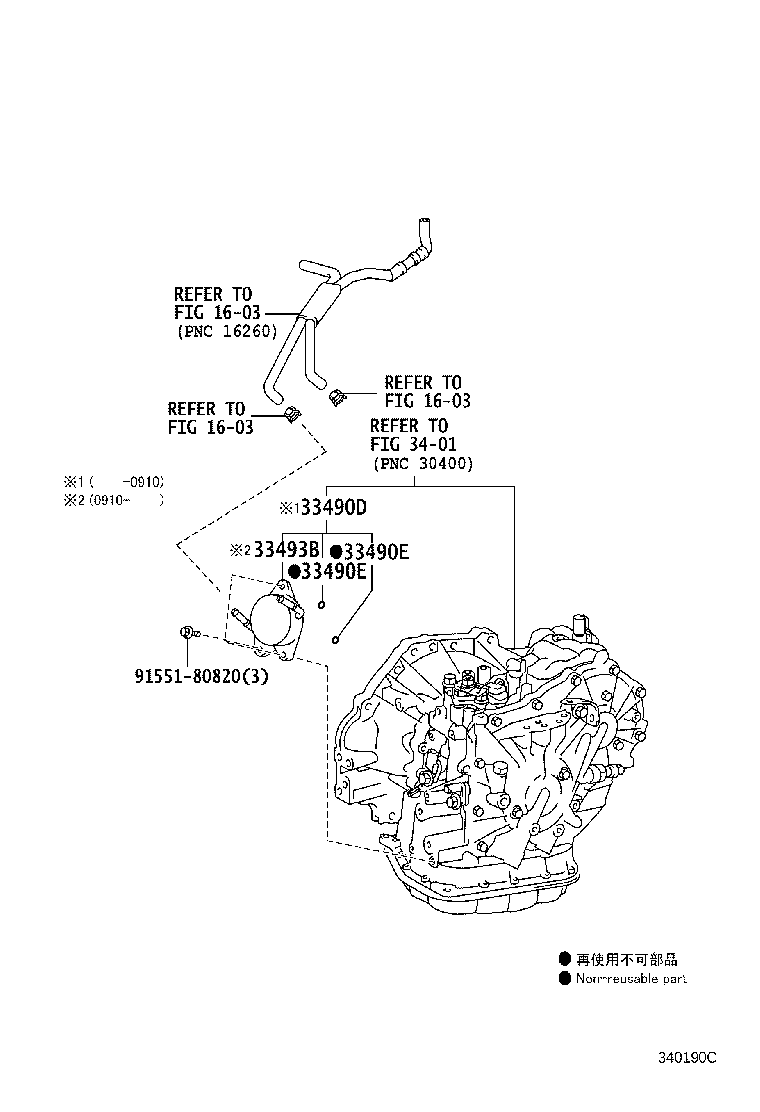

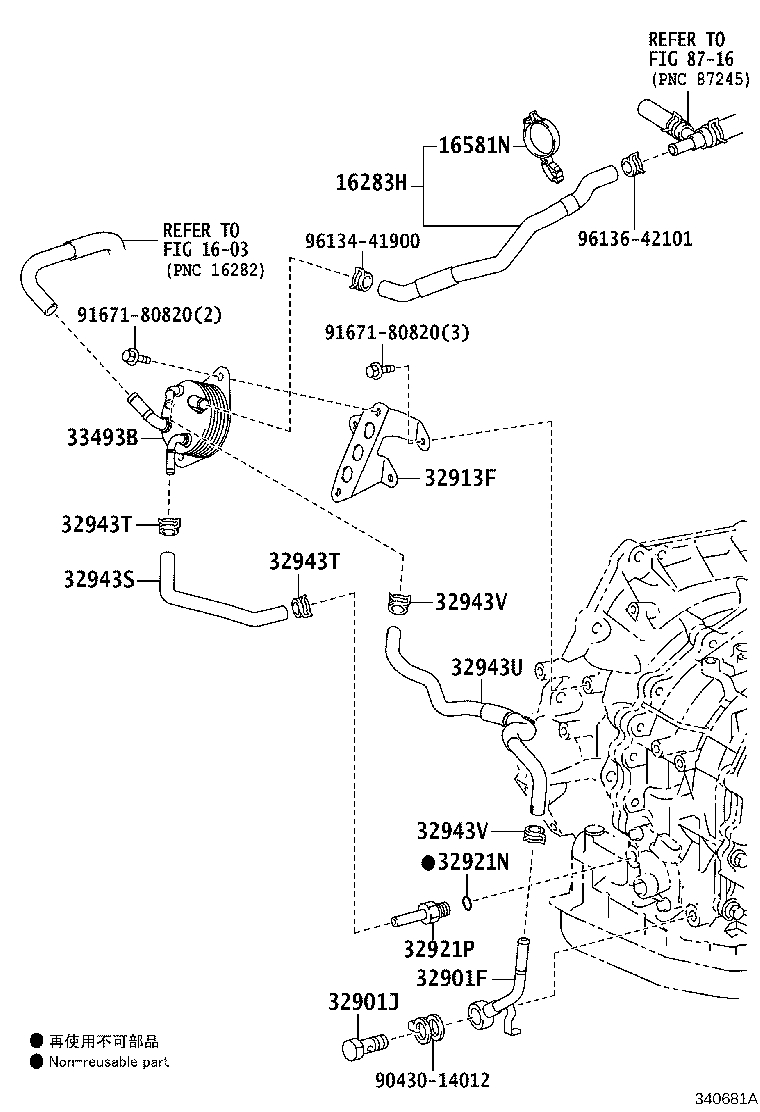

Oil Cooler & Tube(CVT)
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16283H | Hose, Water By-pass, NO.6 |
| 16581N | Clamp, Hose(FOR WATER HOSE) |
| 32901F | Elbow Sub-assy, Oil Cooler |
| 32901J | Bolt, Union(FOR OIL COOLER) |
| 32907F | Tube Sub-assy, Oil Cooler W/O Hose |
| 32913F | Bracket, Transmission Oil Cooler |
| 32921N | Ring, O(FOR OIL COOLER TUBE UNION) |
| 32921P | Union(FOR OIL COOLER TUBE) |
| 32930A | Hose Assy, Transmission Oil Cooler |
| 32931F | Tube, Oil Cooler Inlet |
| 32932C | Tube, Oil Cooler Outlet |
| 32941D | Hose, Oil Cooler Inlet |
| 32941E | Clip(FOR OIL COOLER TUBE) |
| 32941K | Clip, NO.1(FOR OIL COOLER HOSE) |
| 32942C | Hose, Oil Cooler Outlet, NO.1 |
| 32942F | Clip, NO.2(FOR OIL COOLER HOSE) |
| 32943S | Hose, Transmission Oil Cooler, NO.1 |
| 32943T | Clip, NO.1(FOR OIL COOLER HOSE) |
| 32943U | Hose, Transmission Oil Cooler, NO.2 |
| 32943V | Clip, NO.2(FOR OIL COOLER HOSE) |
| 33490D | Cooler Assy, Transmission Oil |
| 33490E | Ring, O (FOR TRANSMISSION OIL COOLER) |
| 33493B | Cooler, Oil |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
