Toyota Avensis
2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe
Supported model
Data version 2019-01

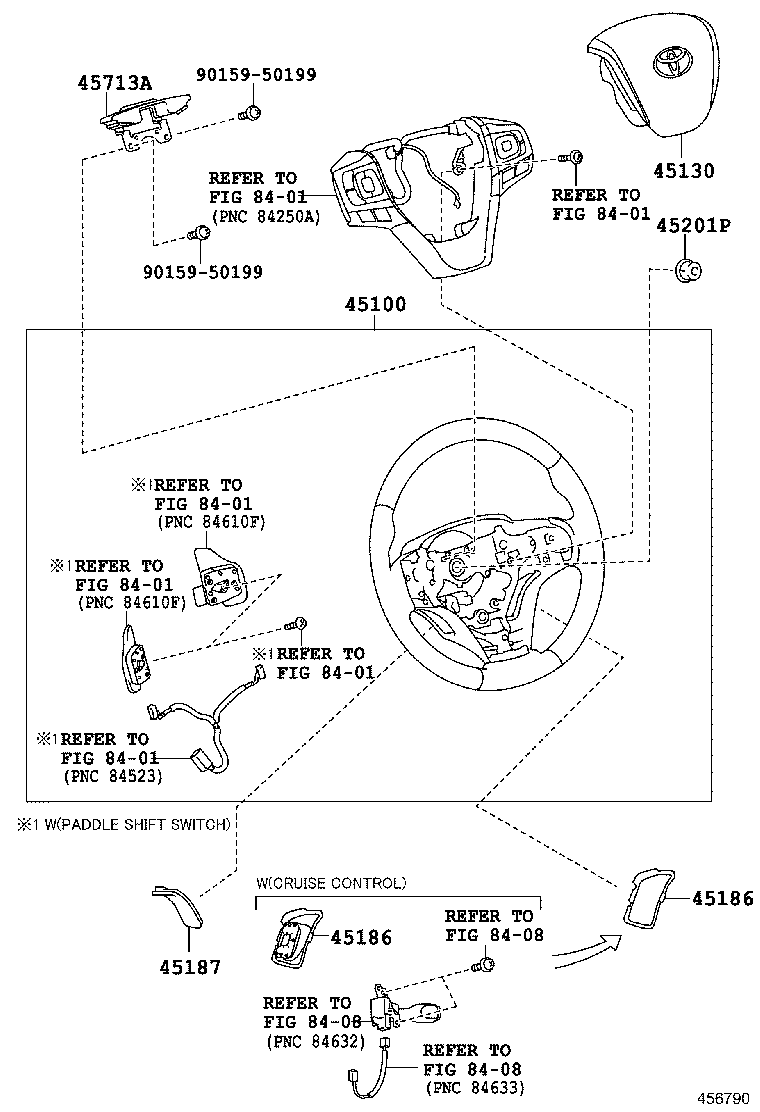

Steering Wheel
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 45100 | Wheel Assy, Steering |
| 45130 | Button Assy, Horn |
| 45186 | Cover, Steering Wheel, Lower NO.2 |
| 45187 | Cover, Steering Wheel, Lower NO.3 |
| 45201P | Nut, Steering Wheel Set |
| 45713A | Damper, Steering Shake |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
