Toyota Avensis

2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe

Supported model Data version 2019-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

14 part groups · 3 illustrations

Illustrations

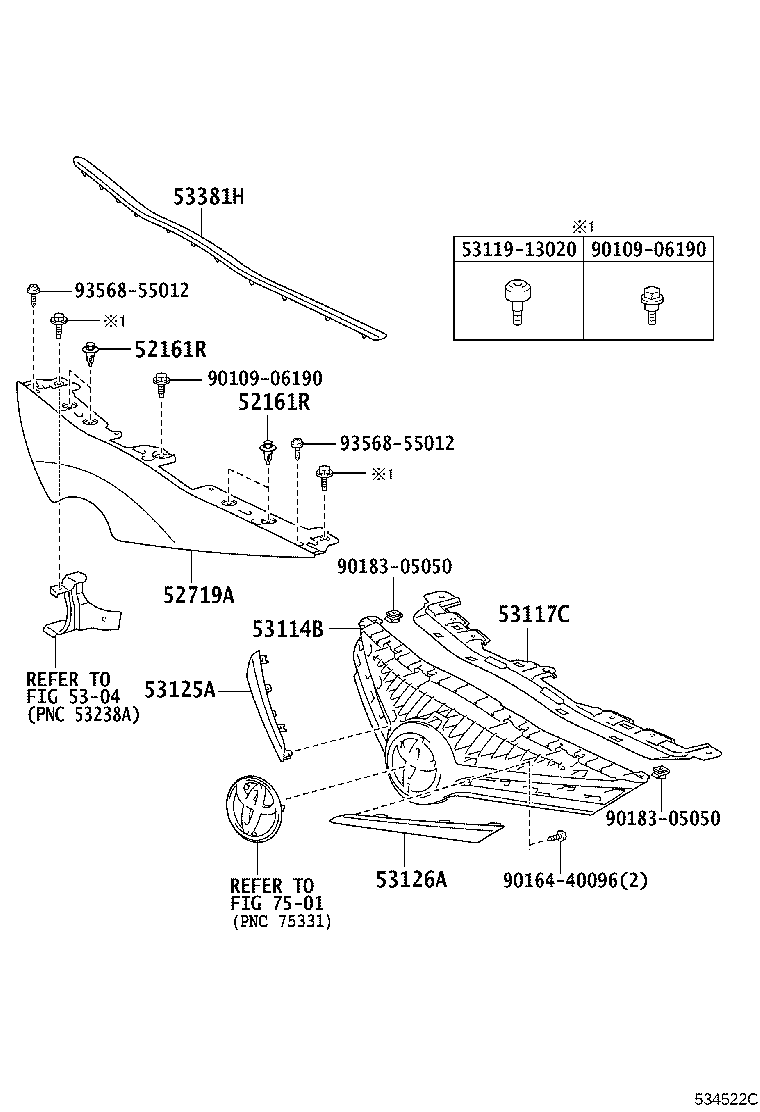

Figure 533045C 533045C 2008-11 → 2011-11 Figure 533560B 533560B 2011-11 → 2015-05 Figure 534522C 534522C 2015-05 → —

Part groups

PNCDescription
52161R Piece, Front Bumper
52719A Cover, Front Bumper Moulding
53101 Grille Sub-assy, Radiator
53111 Grille, Radiator
53111A Grille, Radiator, Outside
53114B Grille, Radiator, Upper
53117C Retainer, Radiator Grille, NO.1
53121A Moulding, Radiator Grille
53122A Moulding, Radiator Grille, Lower
53123E Moulding, Radiator Grille, Lower RH
53124E Moulding, Radiator Grille, Lower LH
53125A Moulding, Radiator Grille, Center RH
53126A Moulding, Radiator Grille, Center LH
53381H Seal, Hood TO Radiator Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
