Toyota Avensis
2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe
Supported model
Data version 2019-01

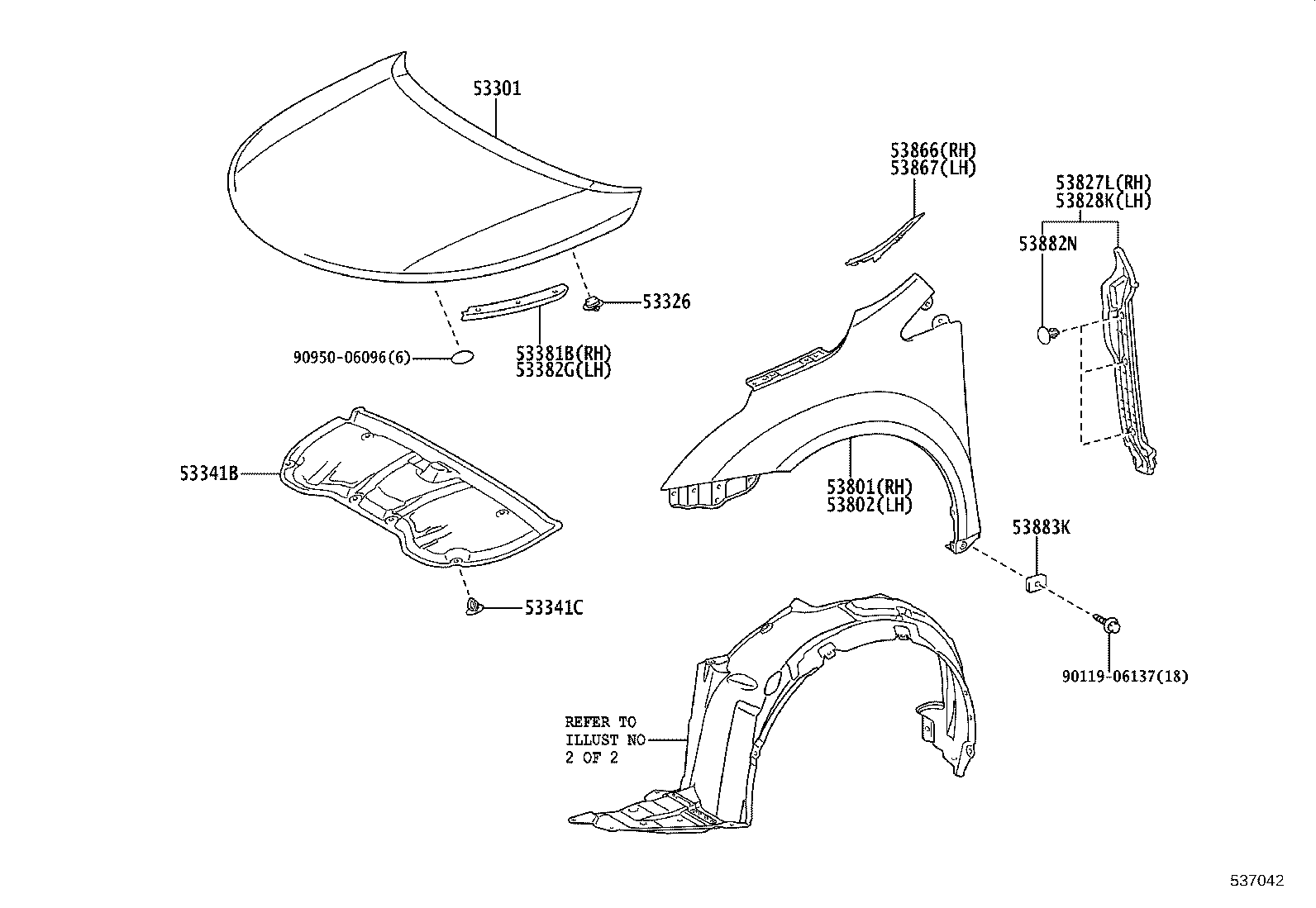

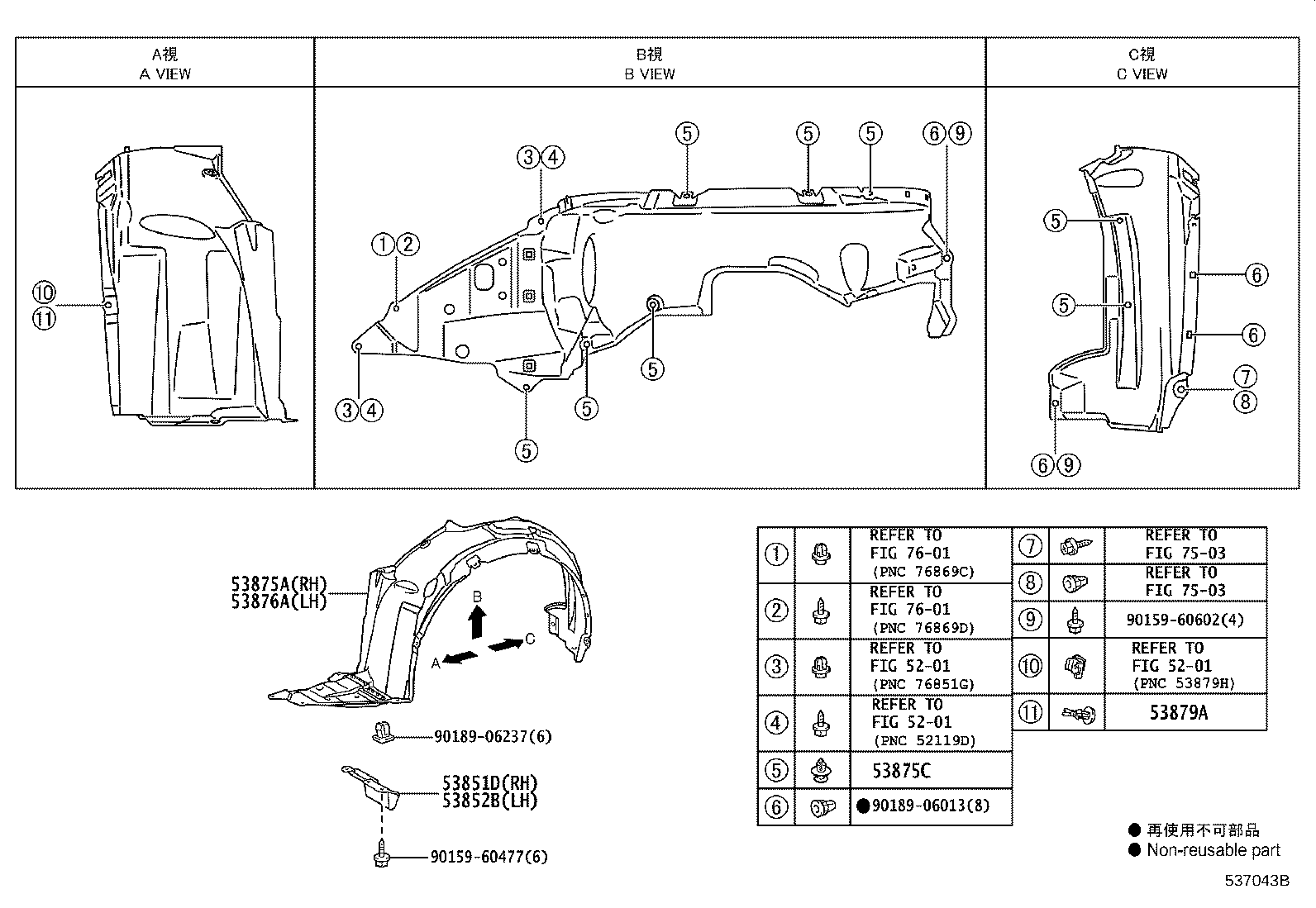

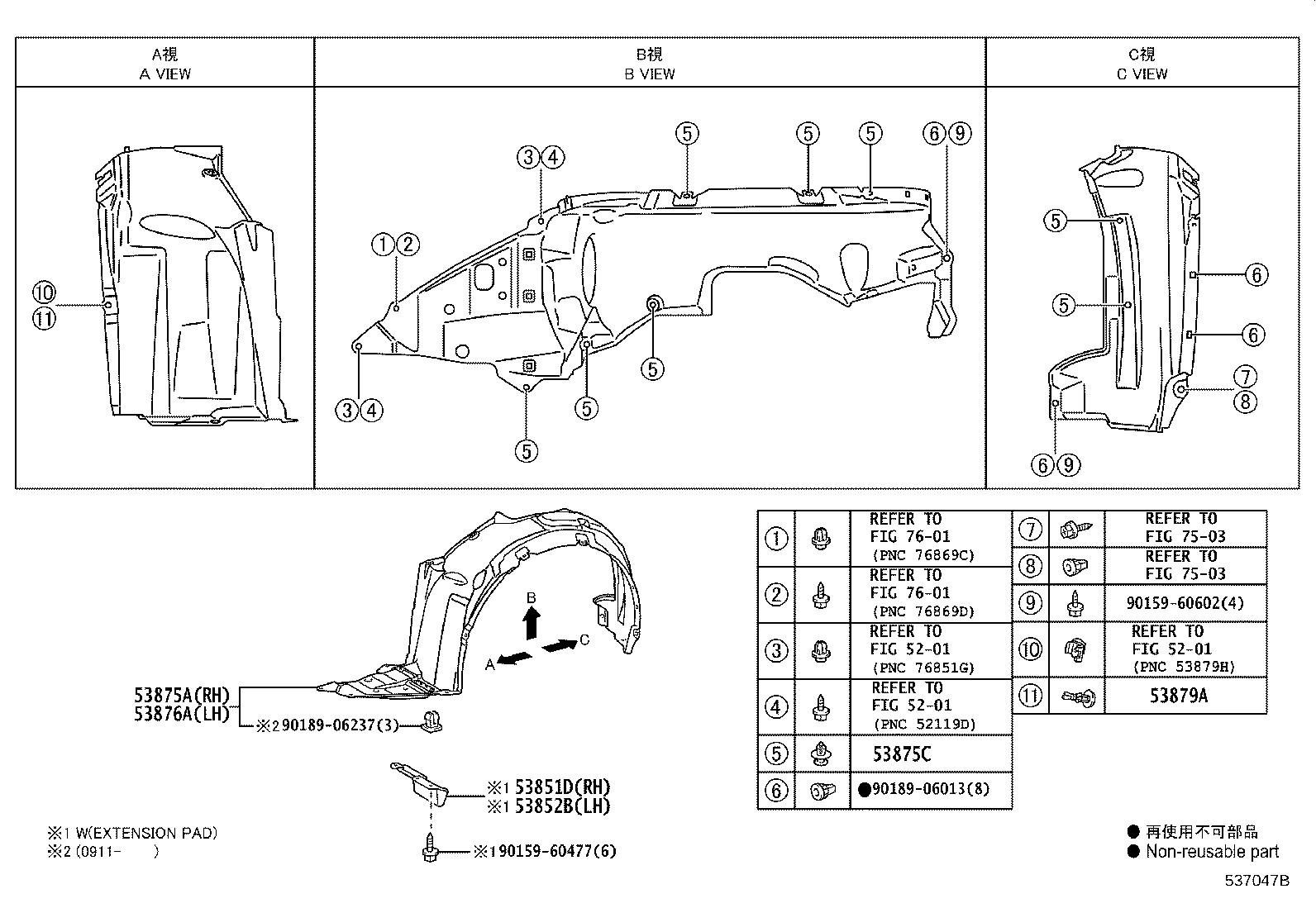

Hood & Front Fender
20 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53301 | Hood Sub-assy |
| 53326 | Clip, Hood Protector |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53381B | Seal, Hood TO Radiator Support, RH |
| 53382G | Seal, Hood TO Radiator Support, LH |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53827L | Protector, Front Fender Side Panel, RH |
| 53828K | Protector, Front Fender Side Panel, LH |
| 53851D | Pad, Front Wheel Opening Extension, RH |
| 53852B | Pad, Front Wheel Opening Extension, LH |
| 53866 | Seal, Front Fender TO Cowl Side, RH |
| 53867 | Seal, Front Fender TO Cowl Side, LH |
| 53875A | Liner, Front Fender, RH |
| 53875C | Clip, Front Fender Liner |
| 53876A | Liner, Front Fender, LH |
| 53879A | Retainer, Front Fender Liner |
| 53882N | Clip(FOR FRONT FENDER SEAL) |
| 53883K | Seal, Front Fender, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
