Toyota Avensis

2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe

Supported model Data version 2019-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

52 part groups · 23 illustrations

Illustrations

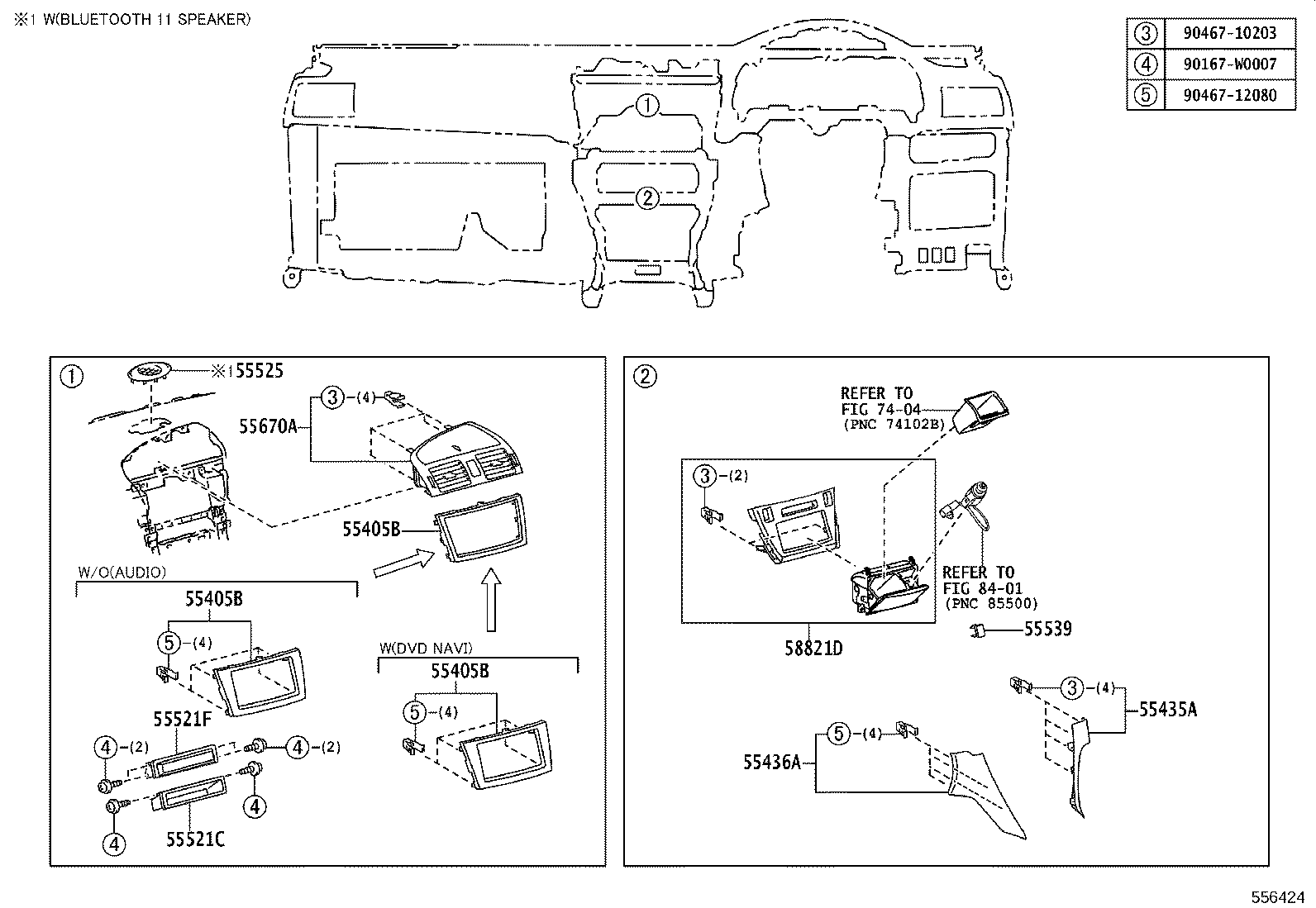

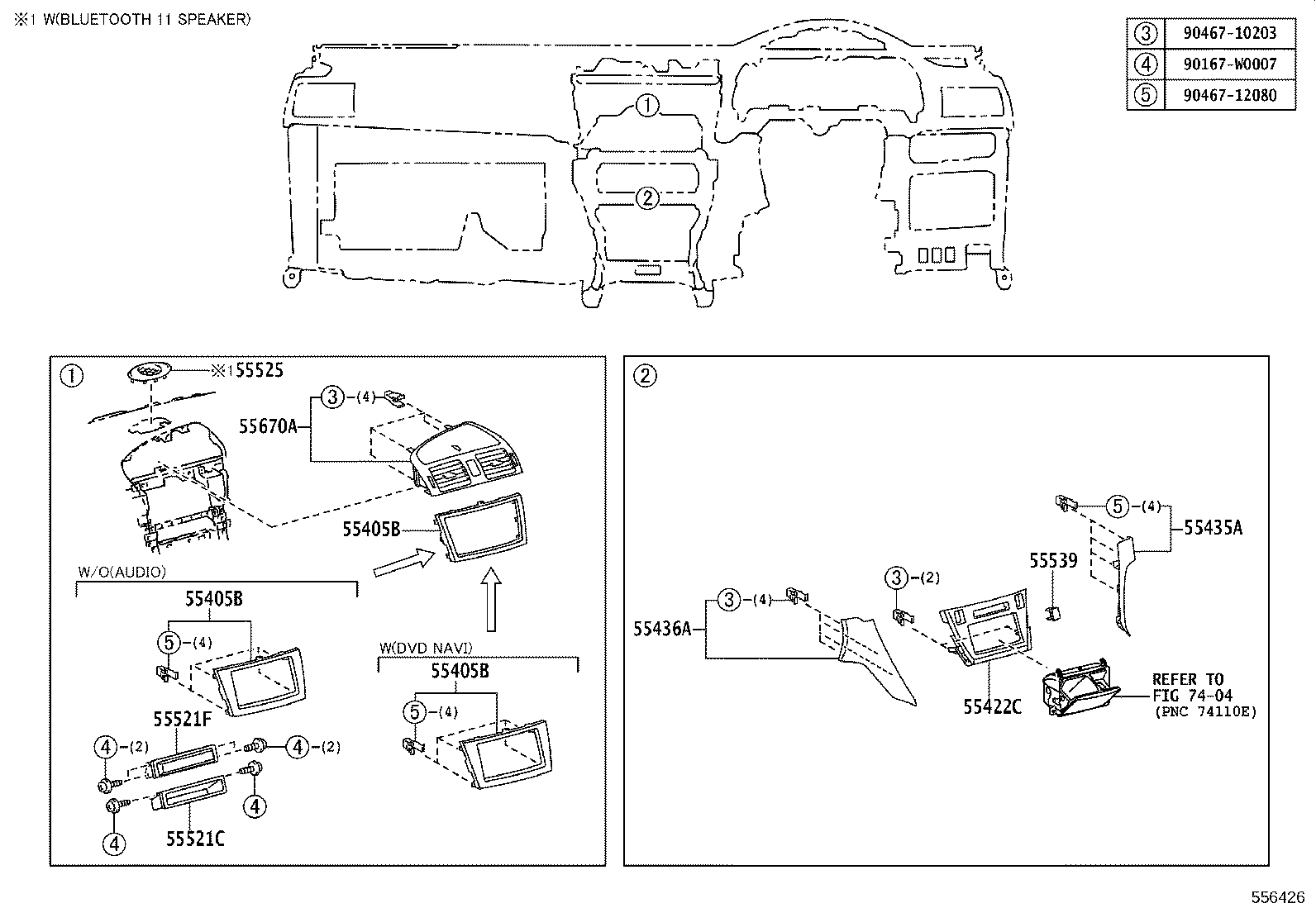

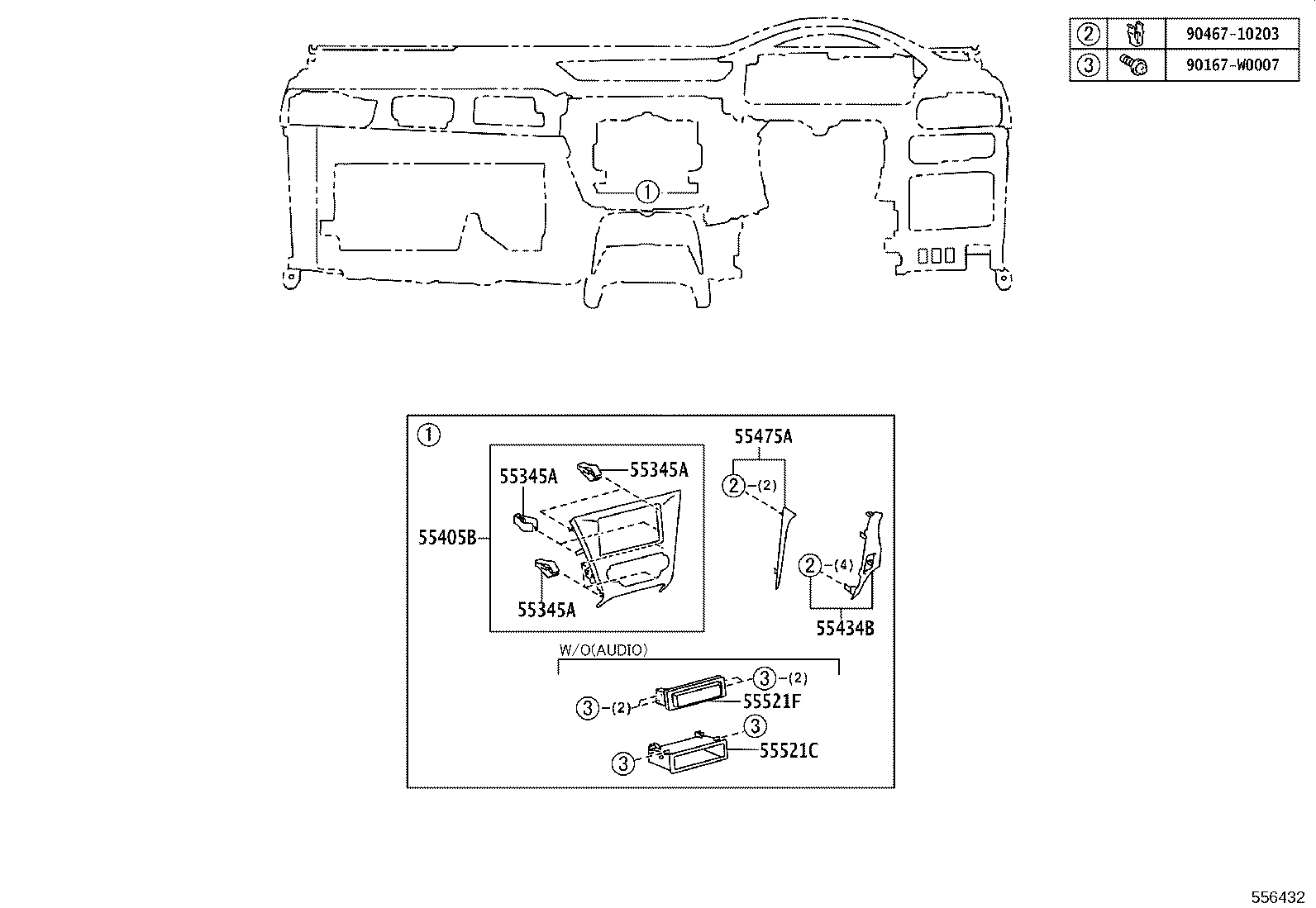

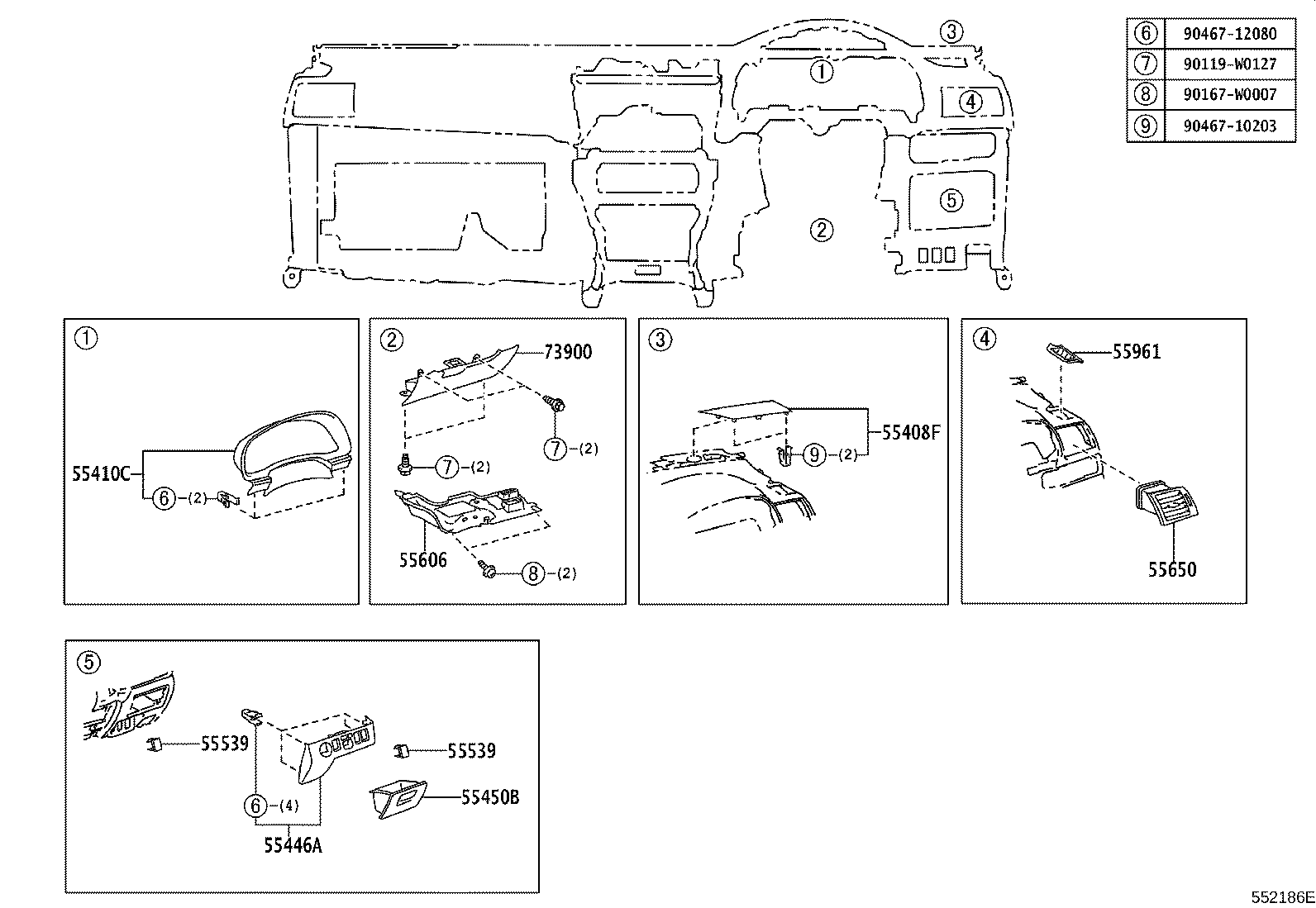

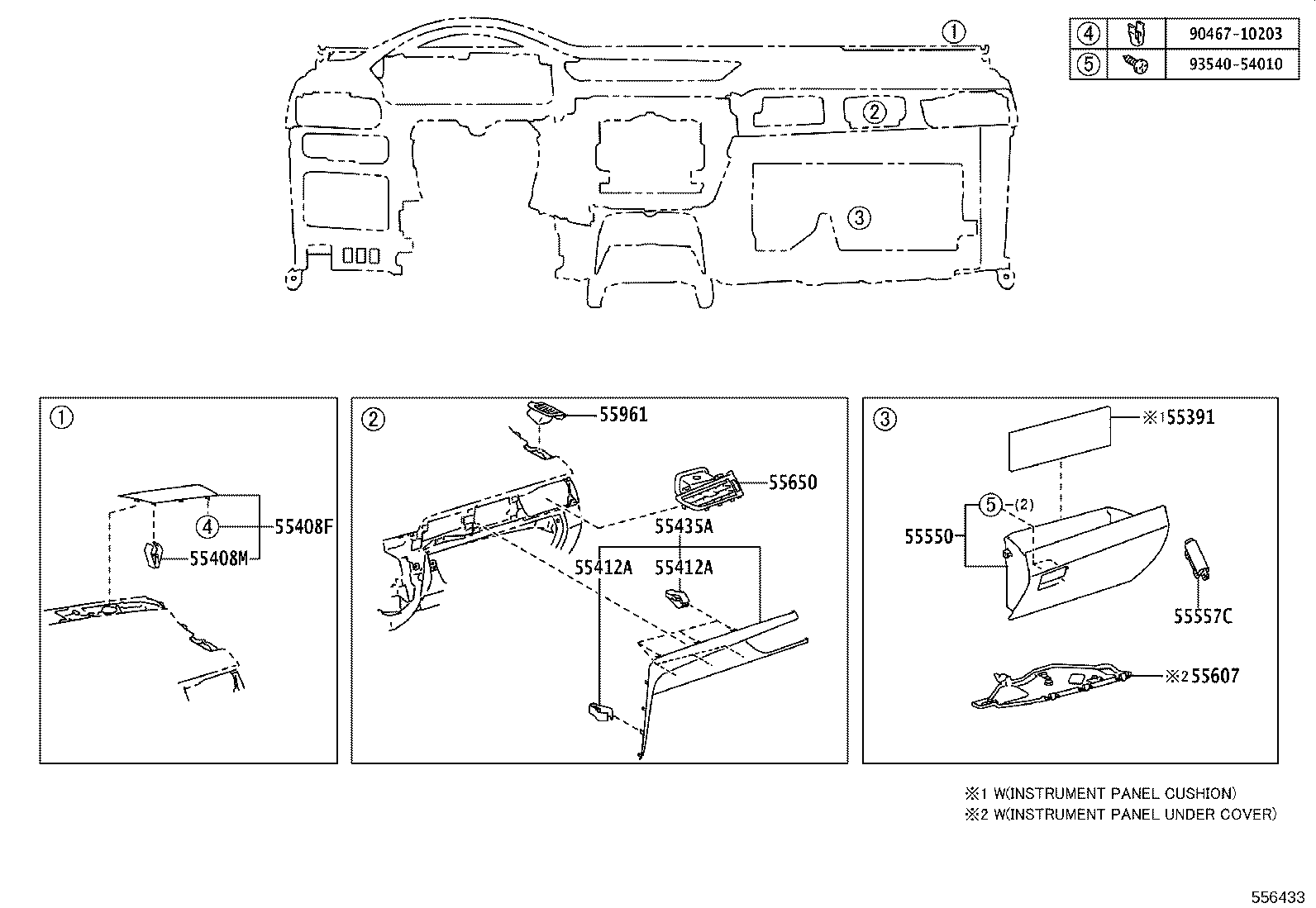

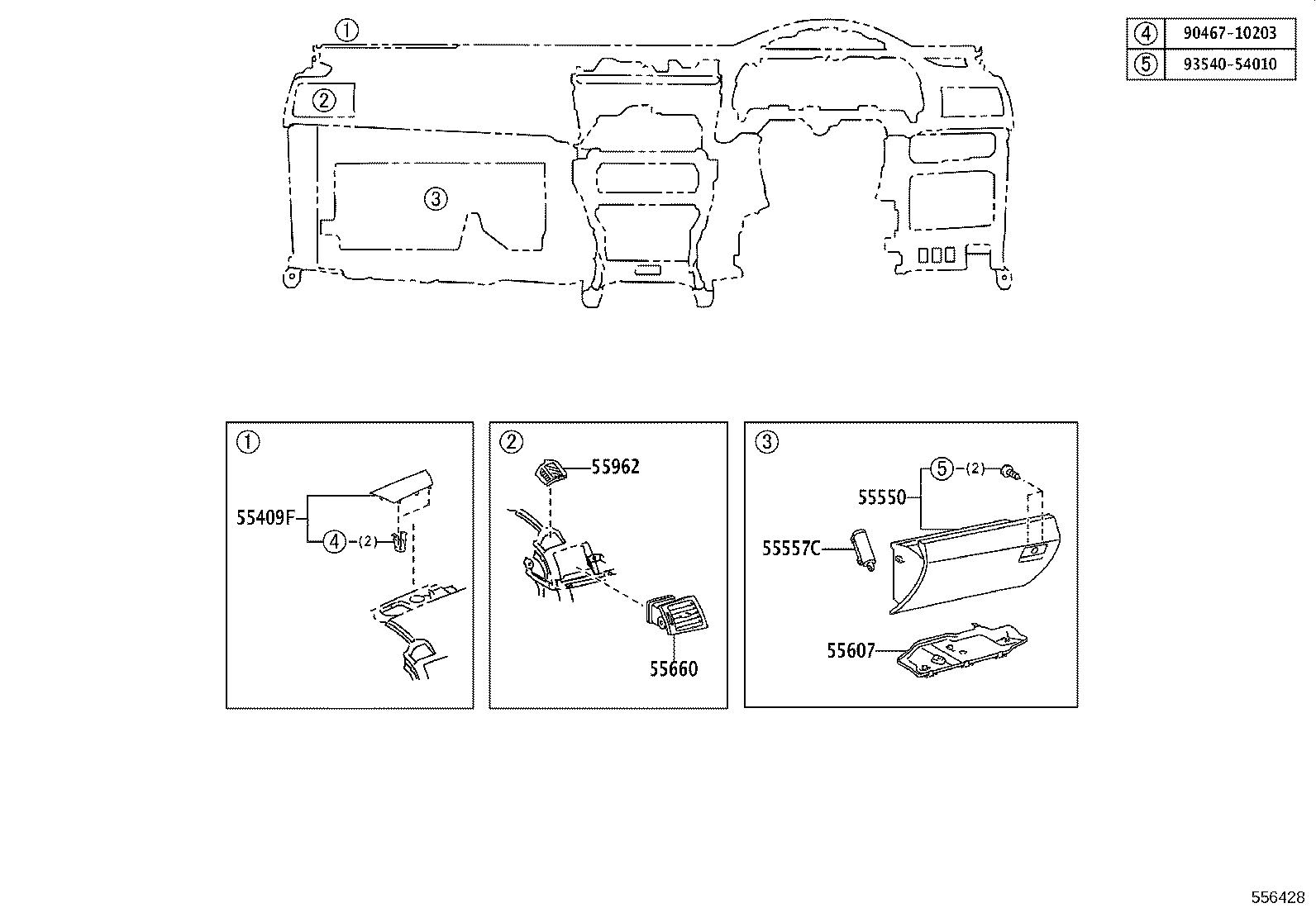

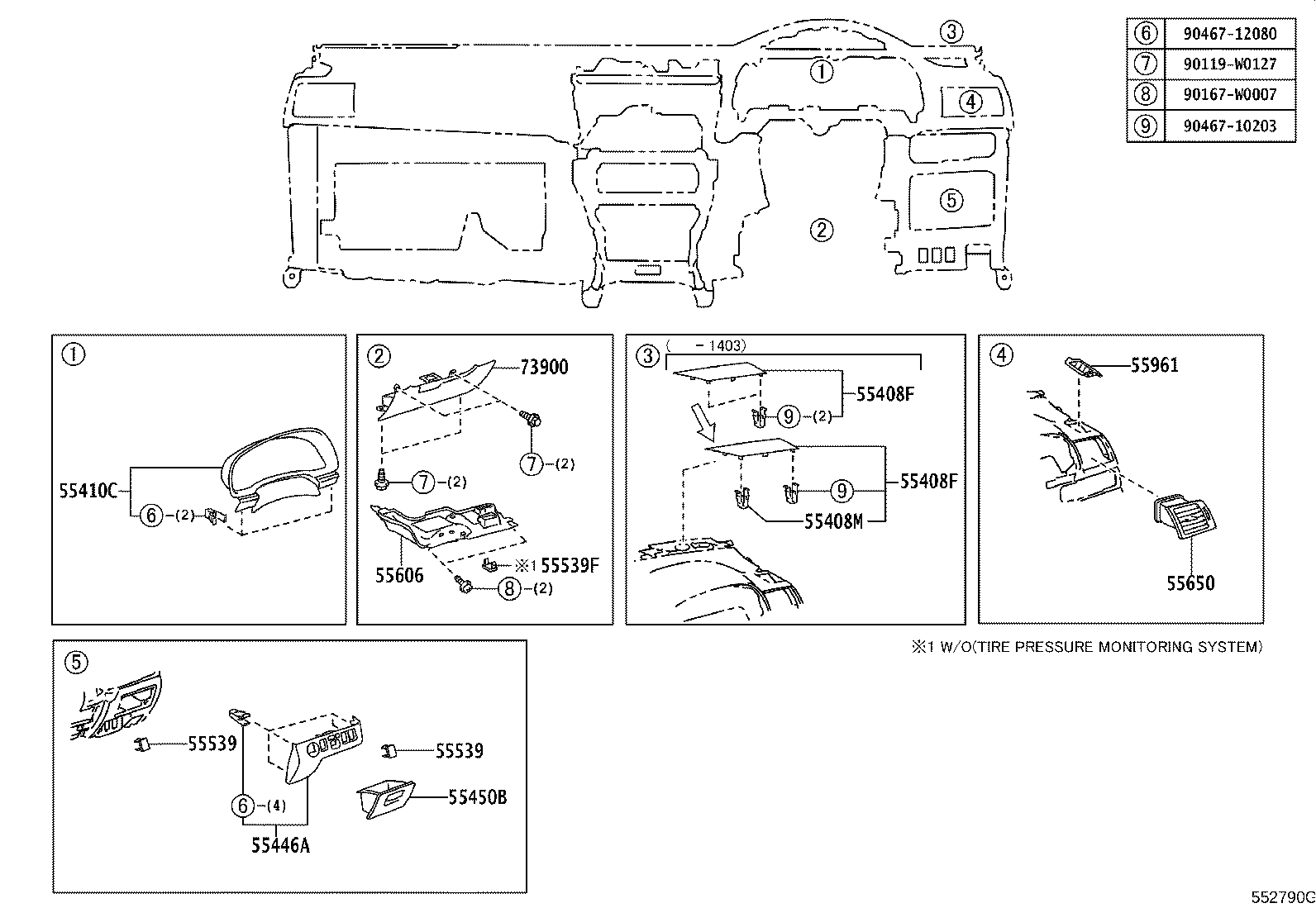

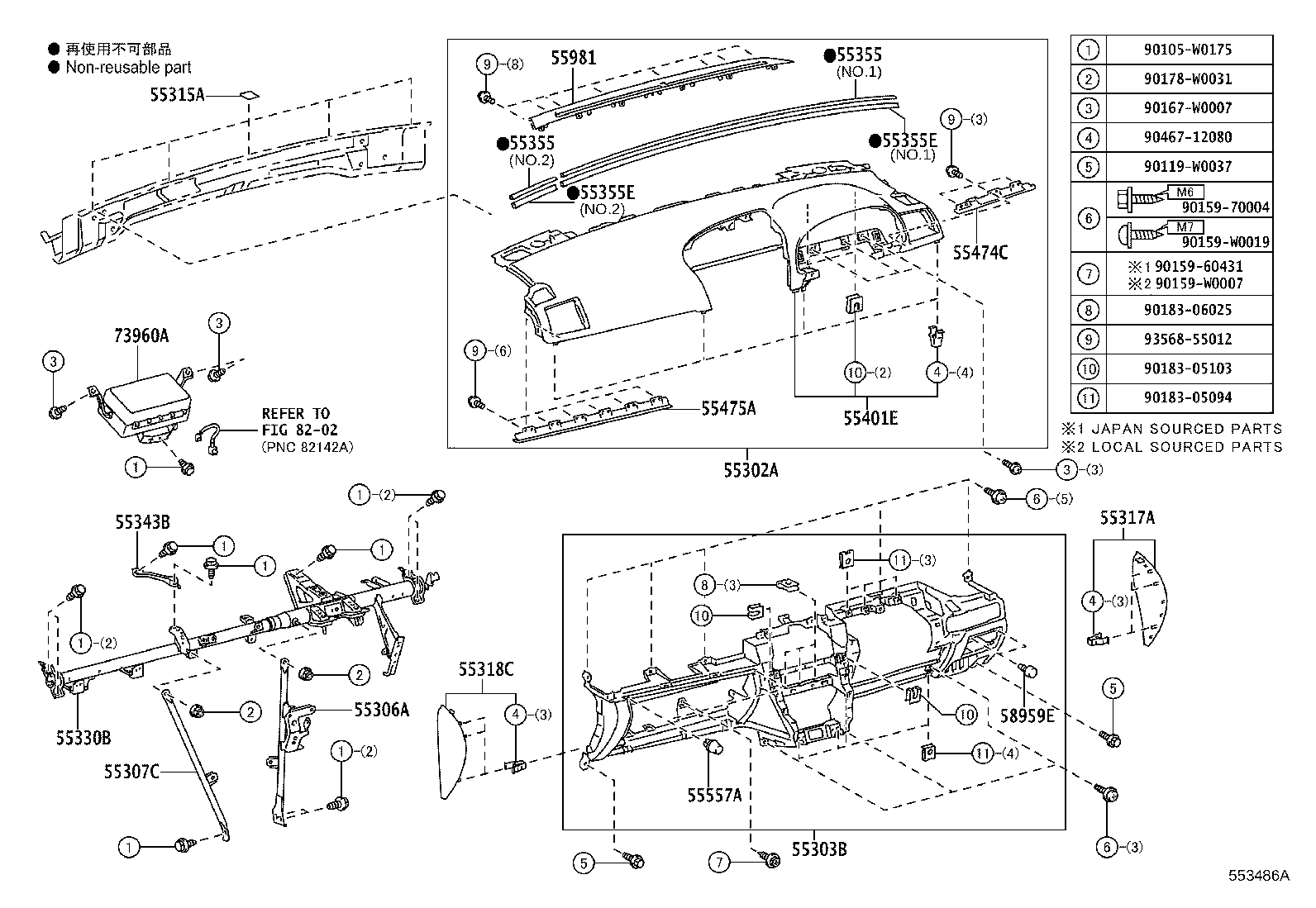

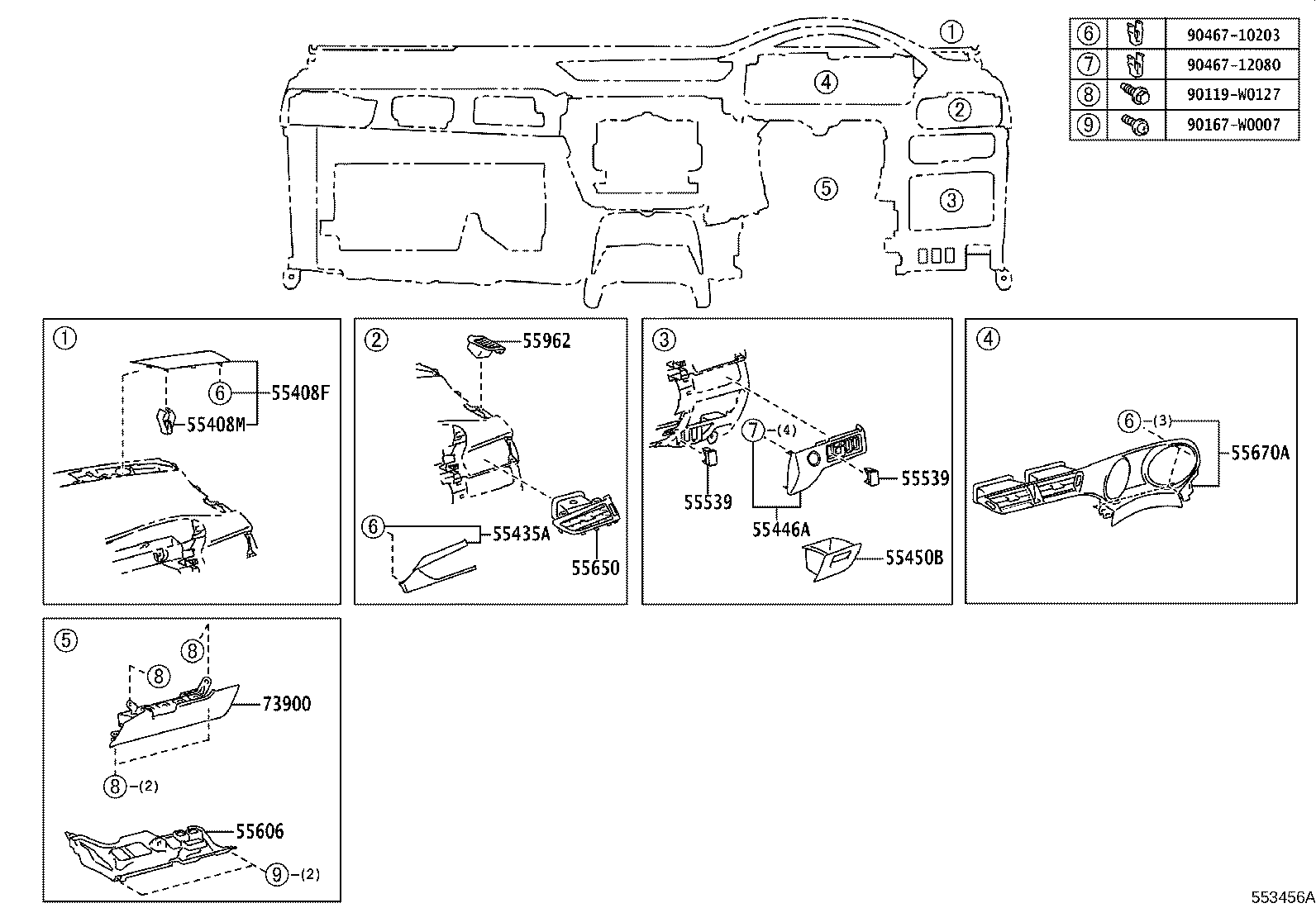

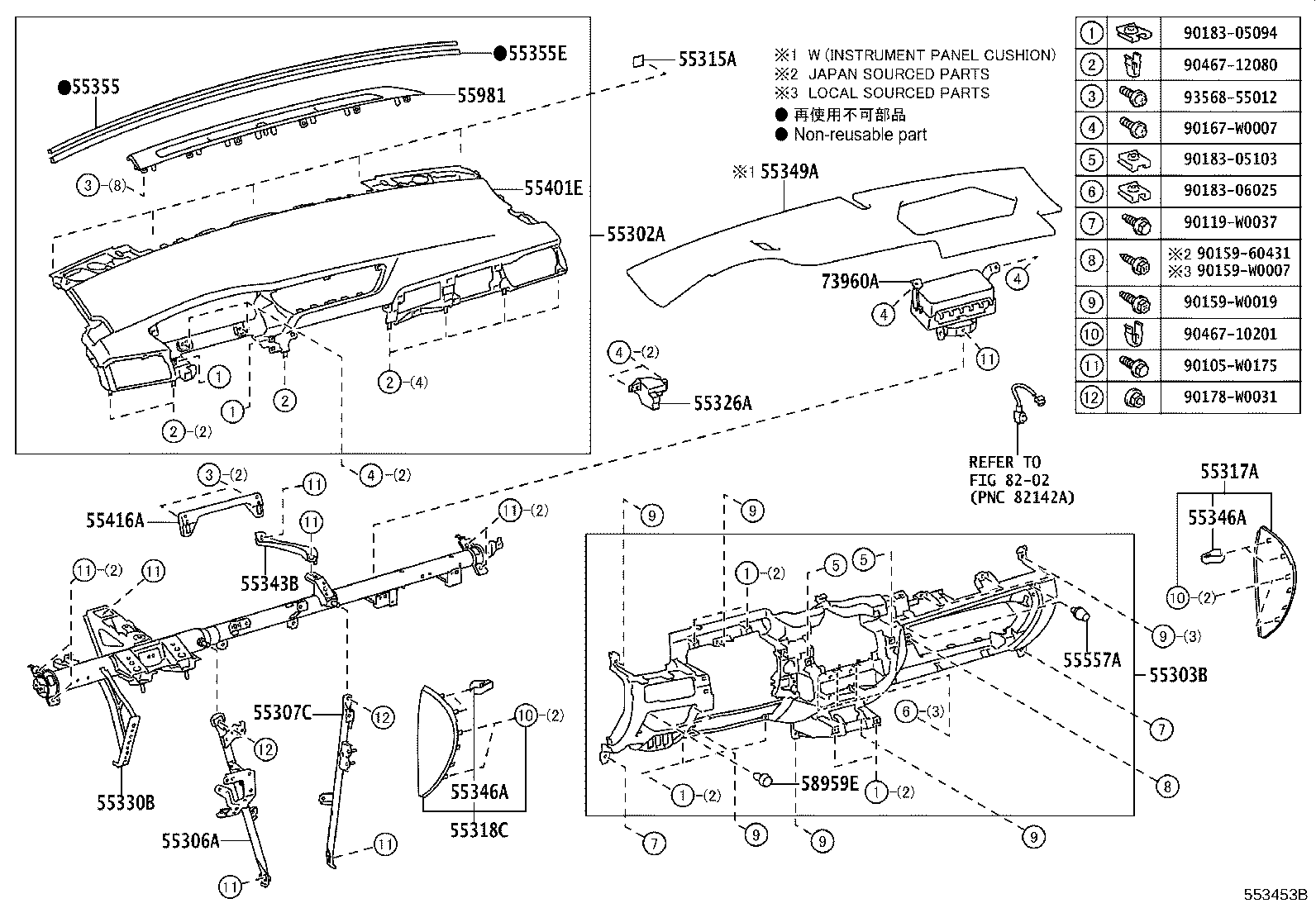

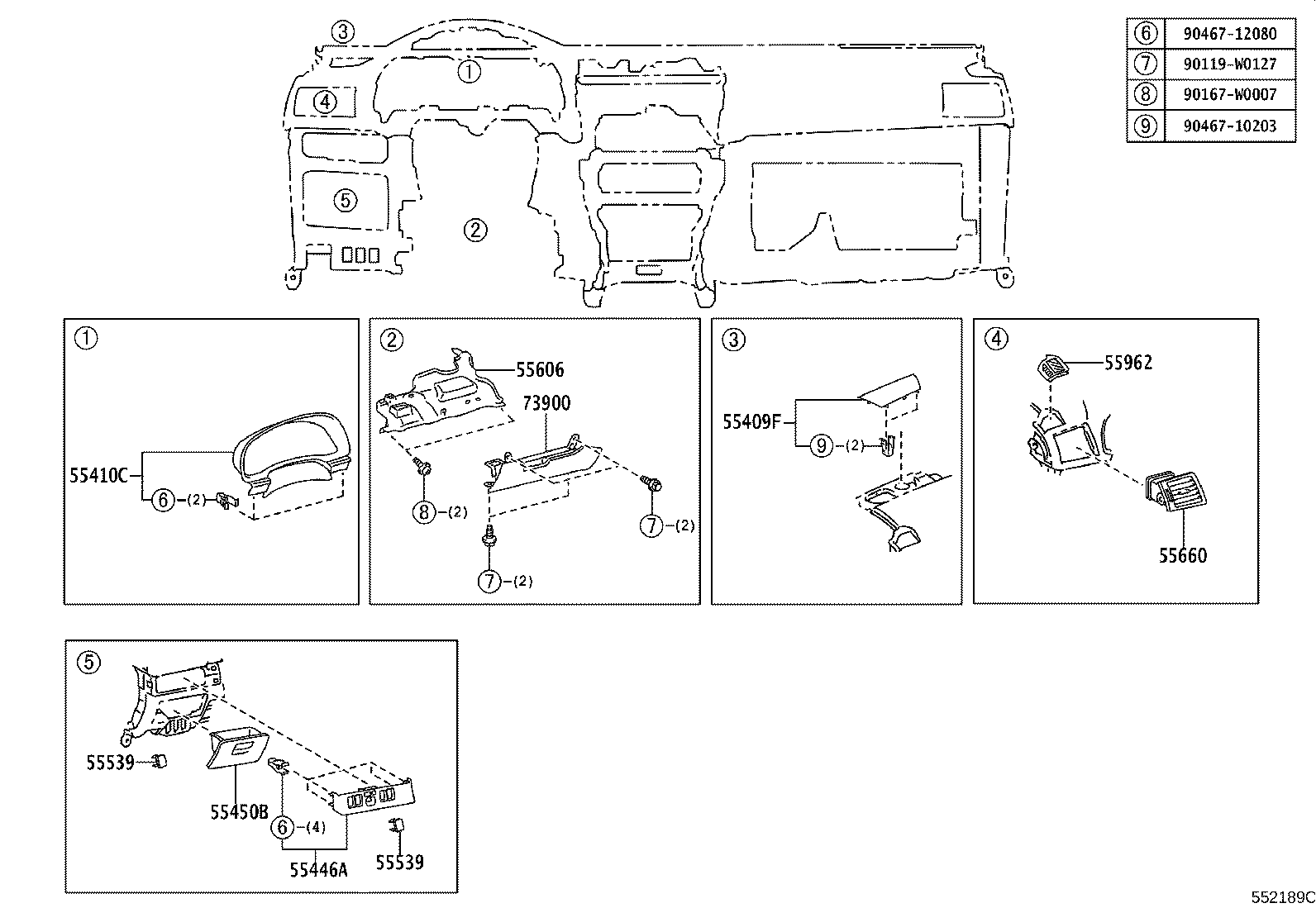

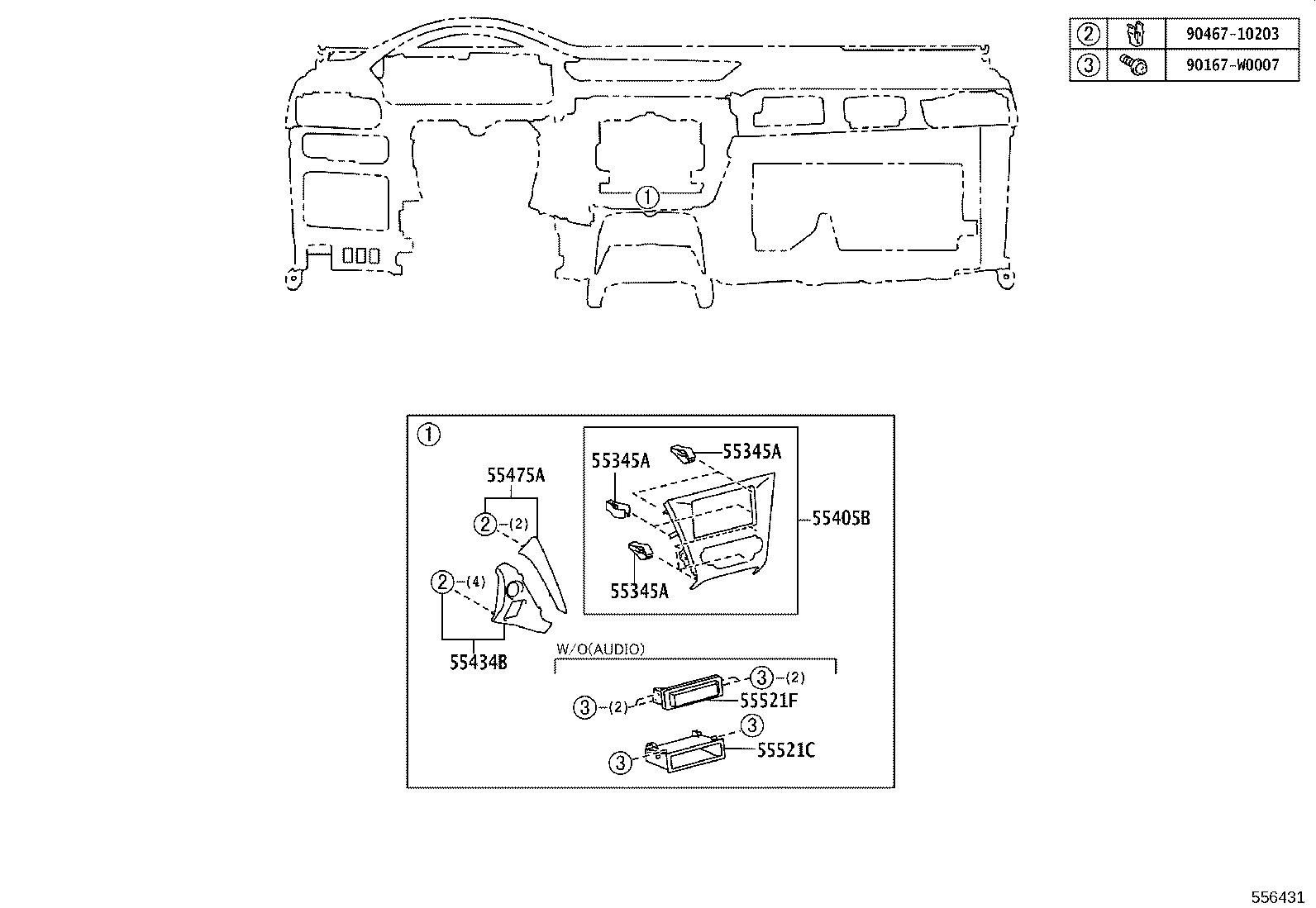

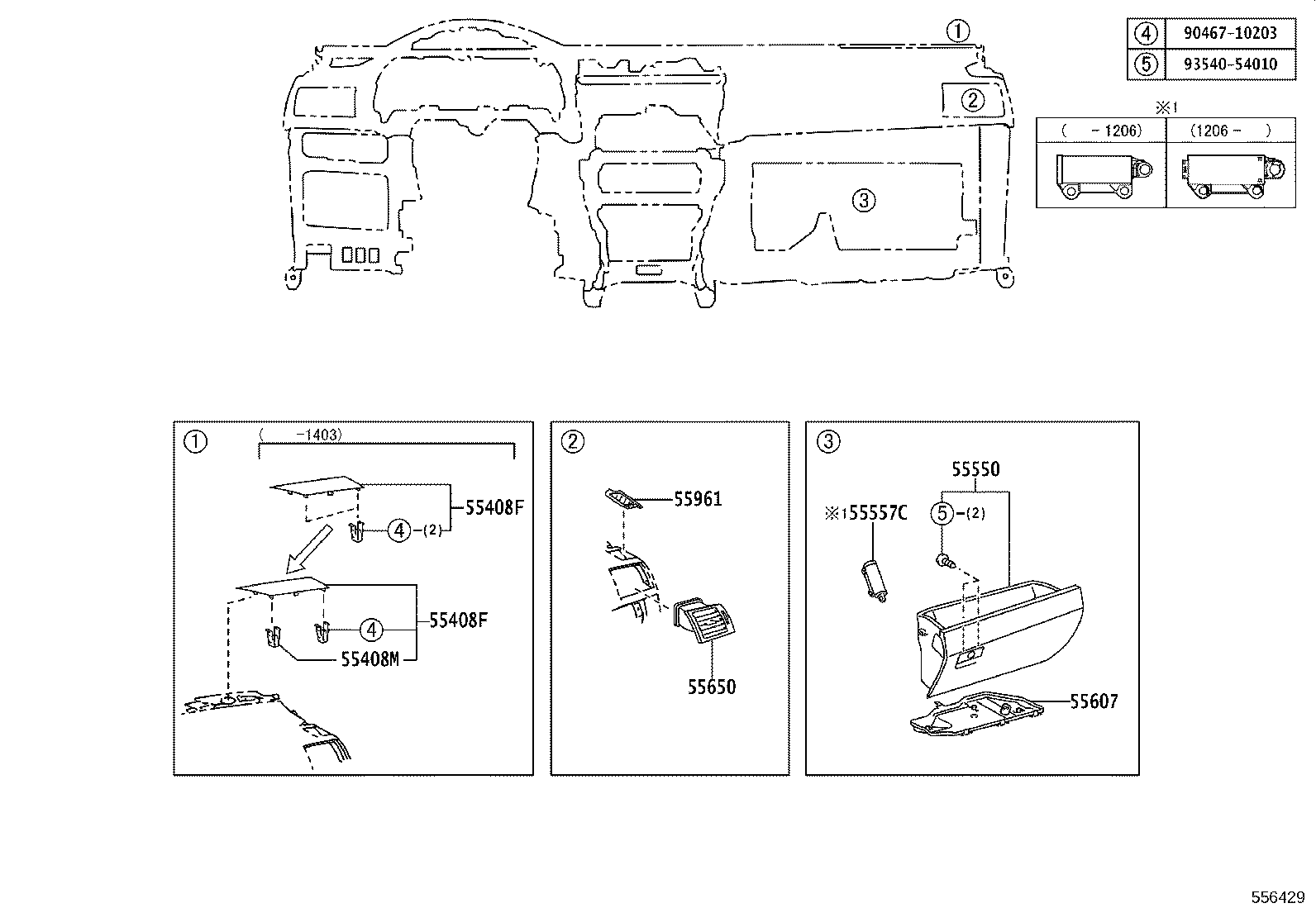

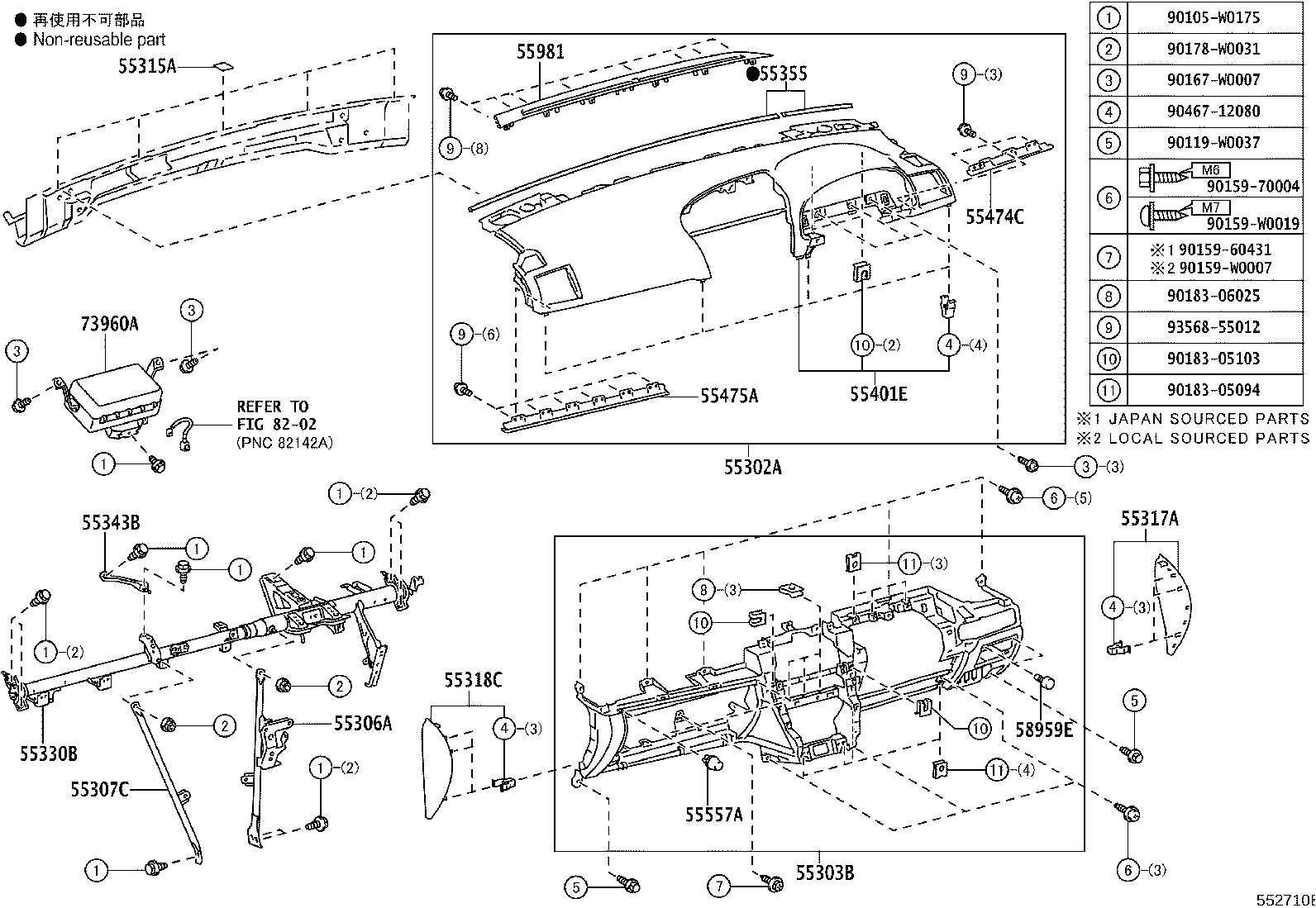

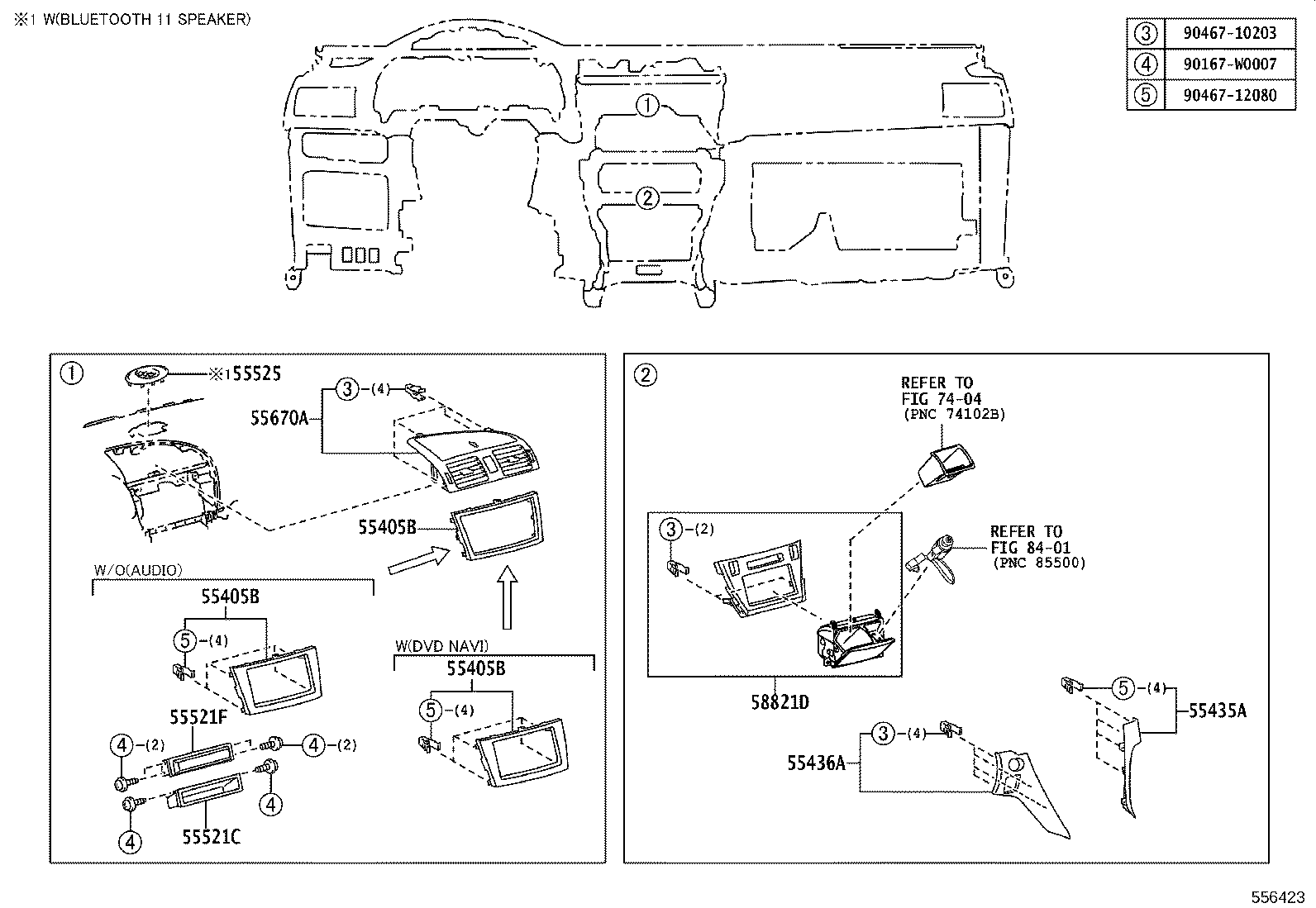

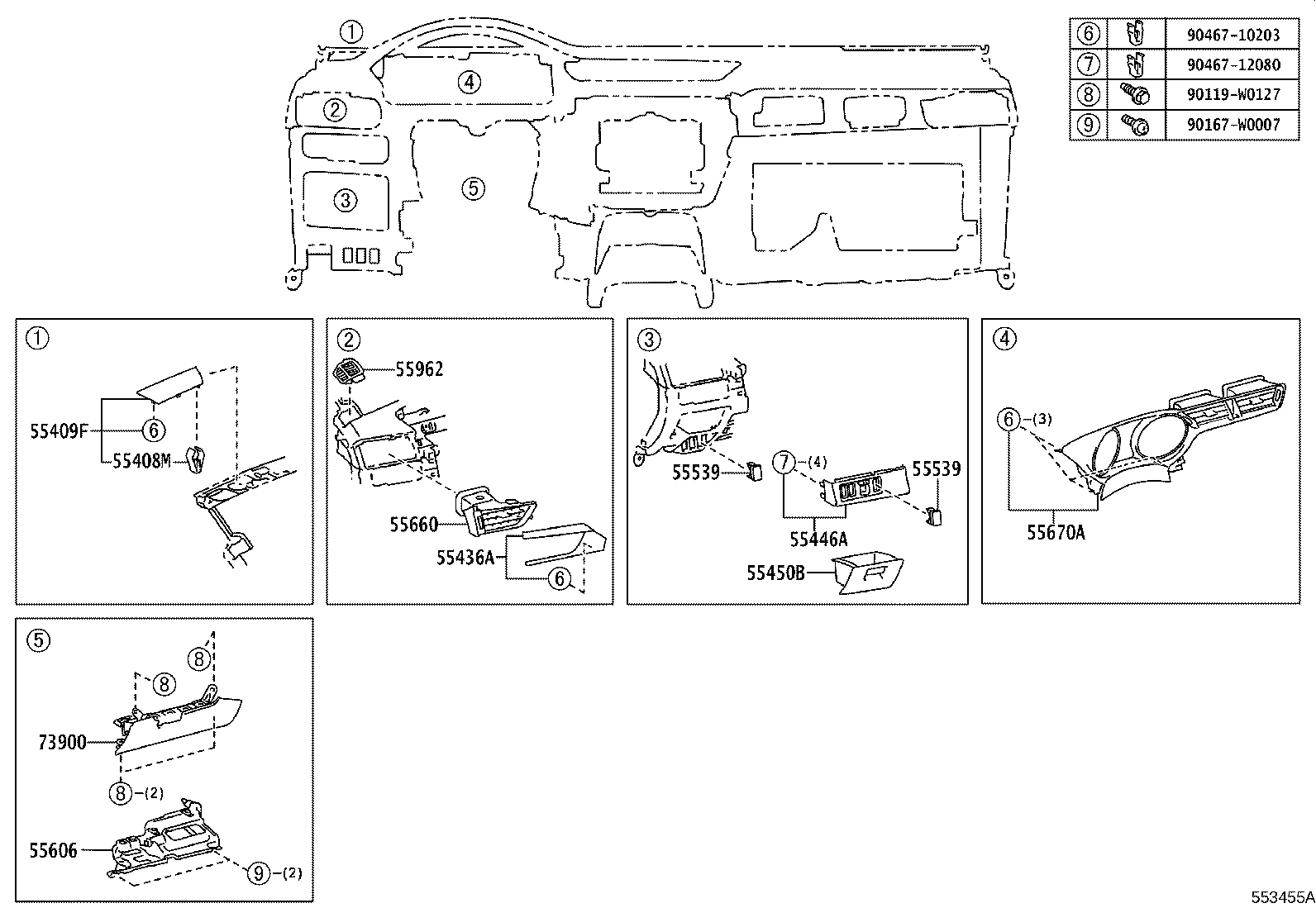

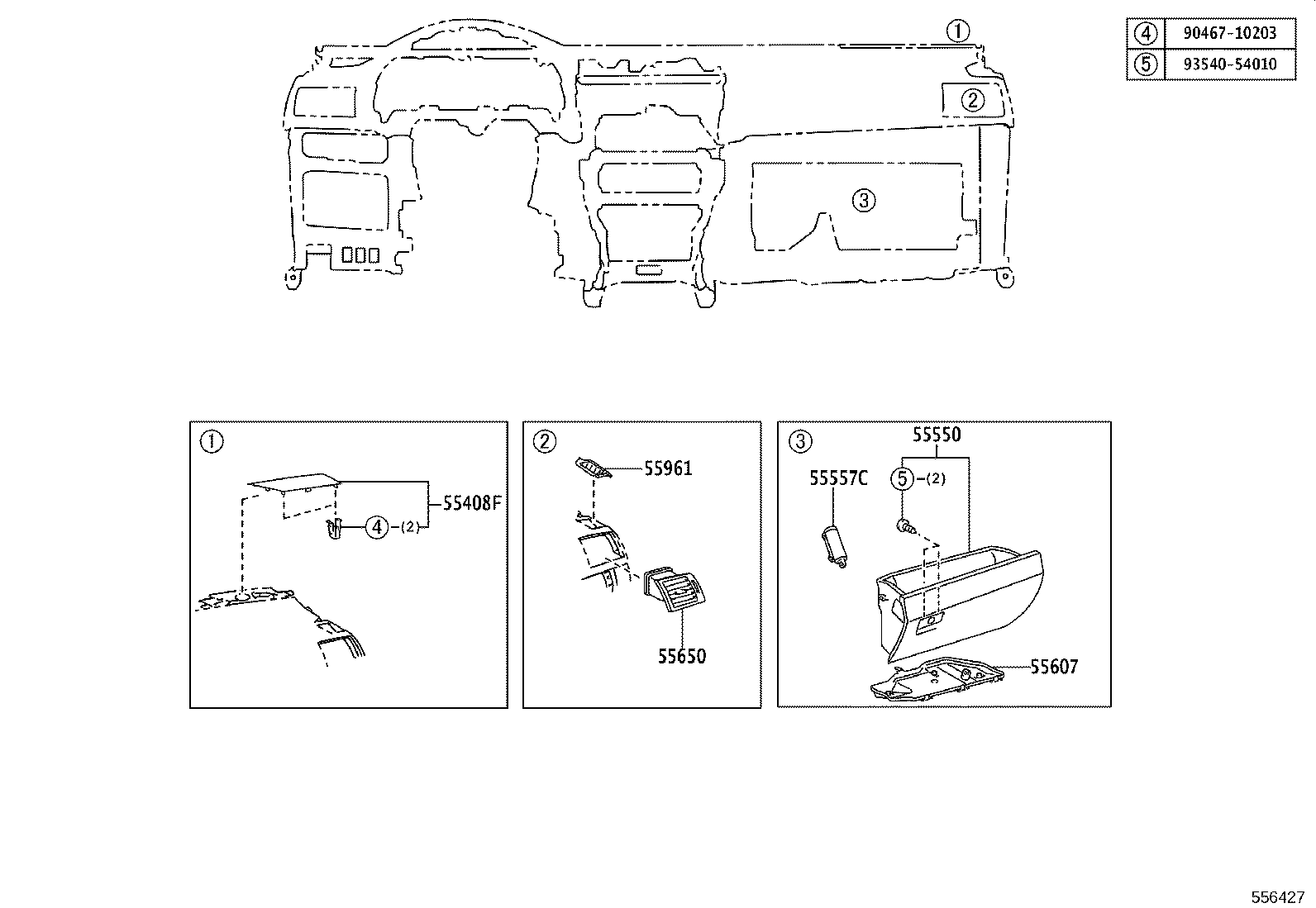

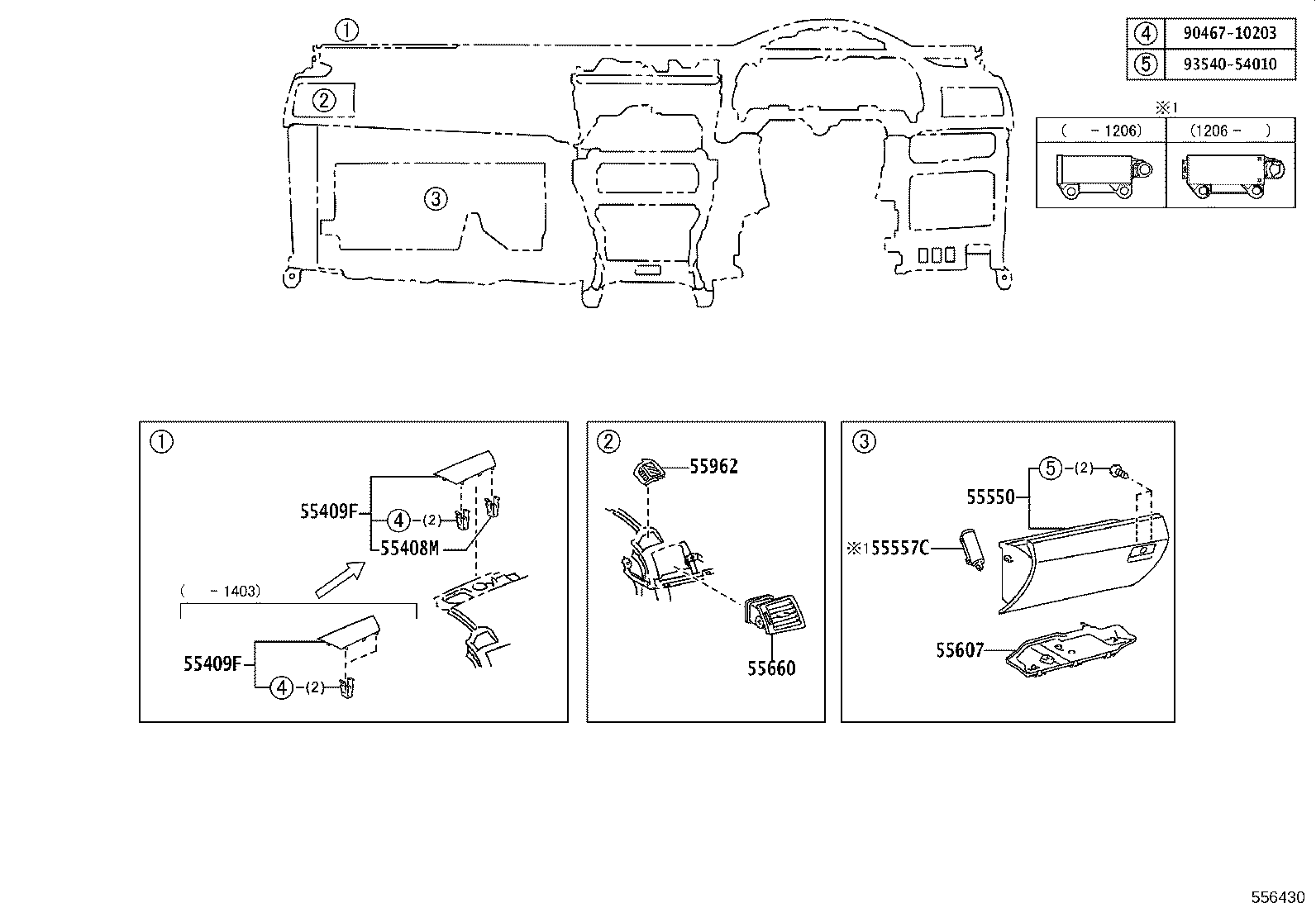

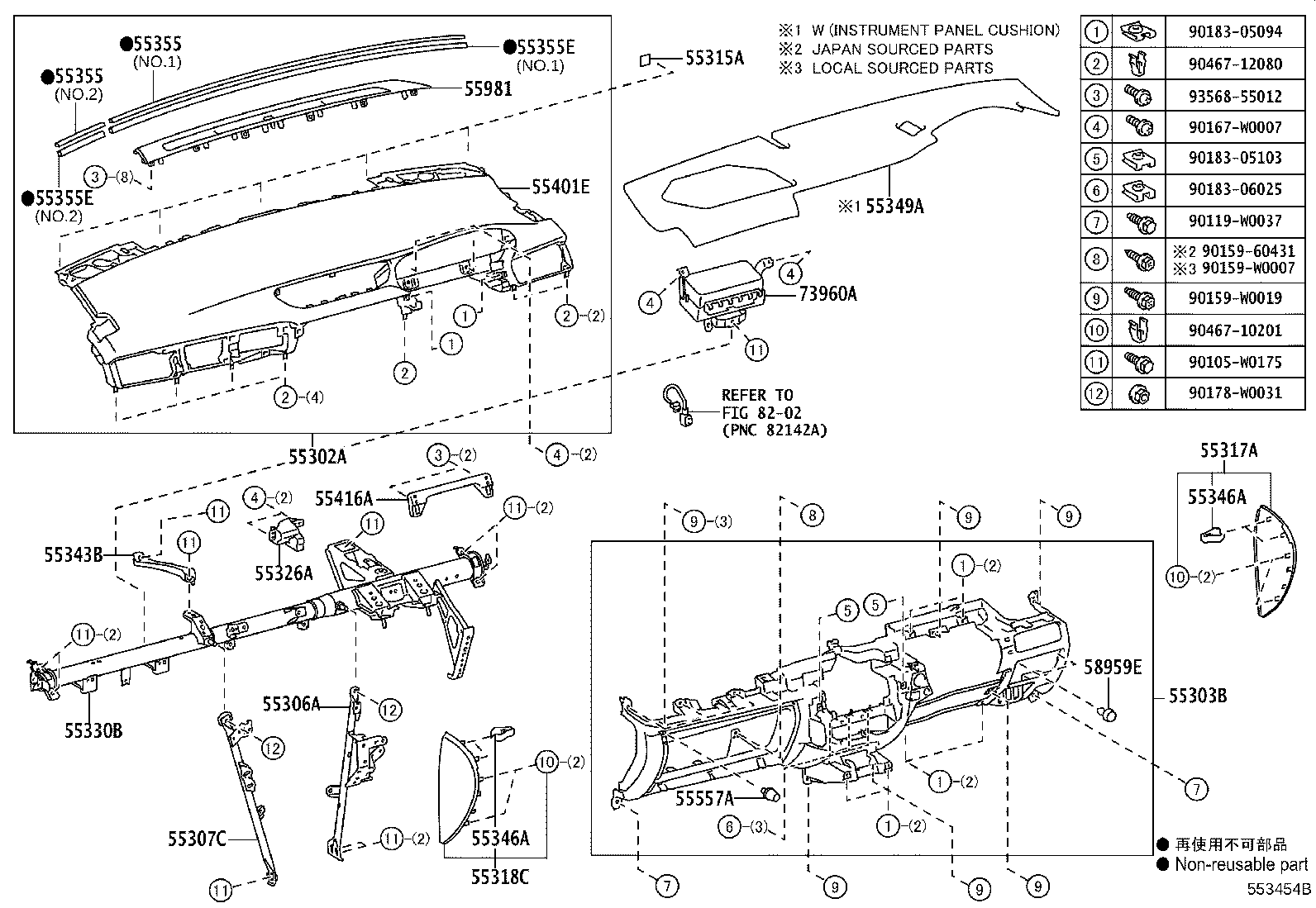

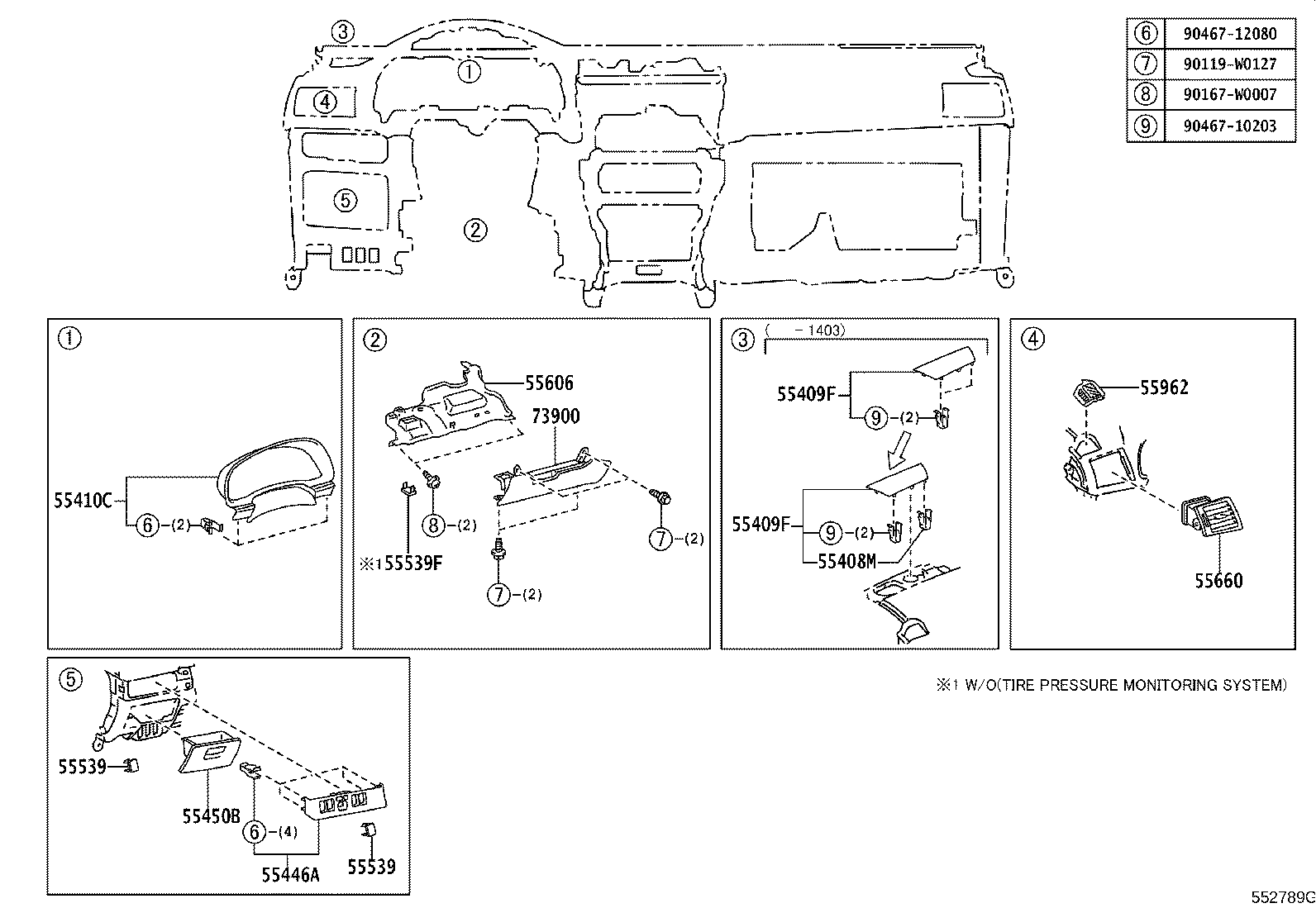

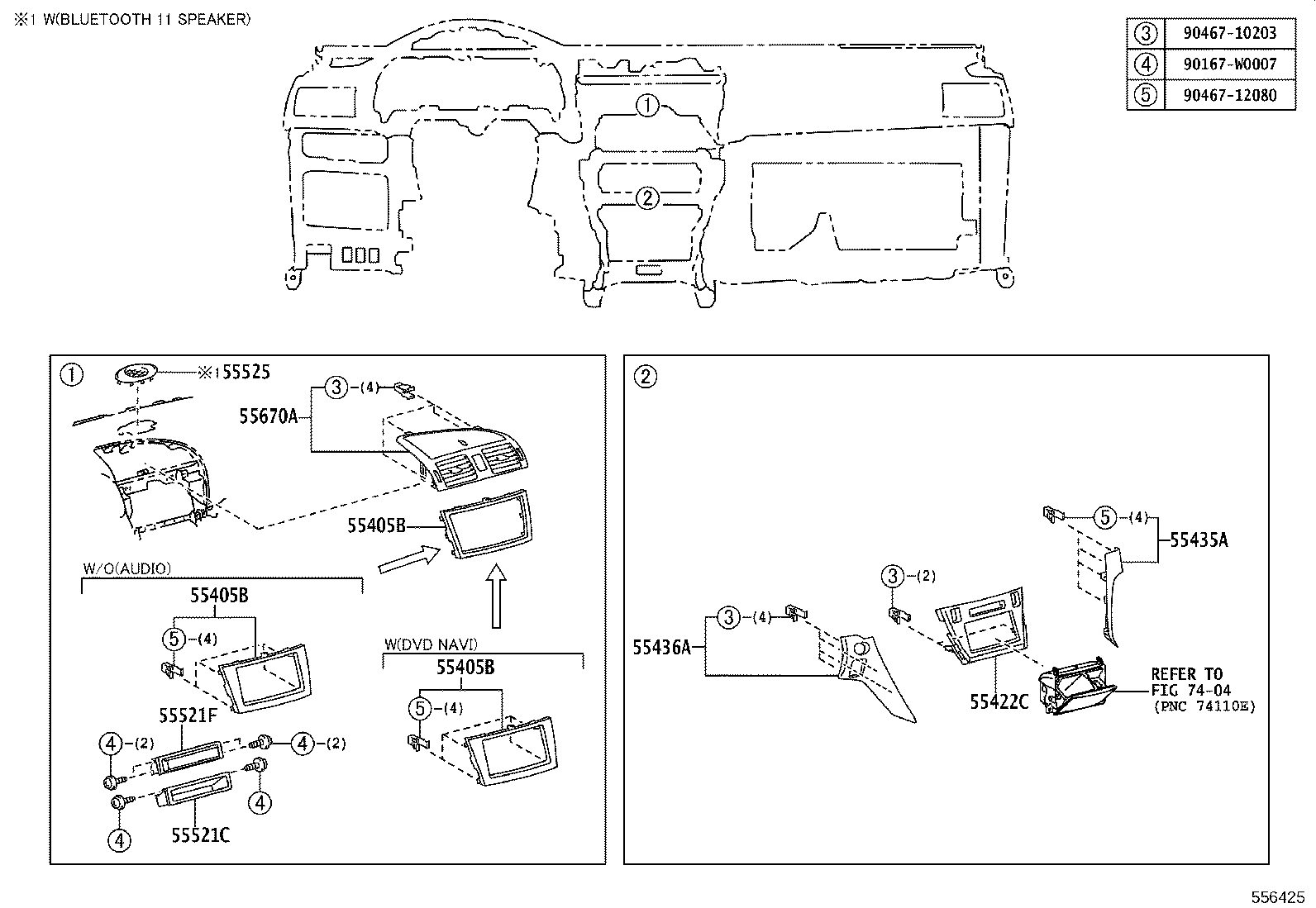

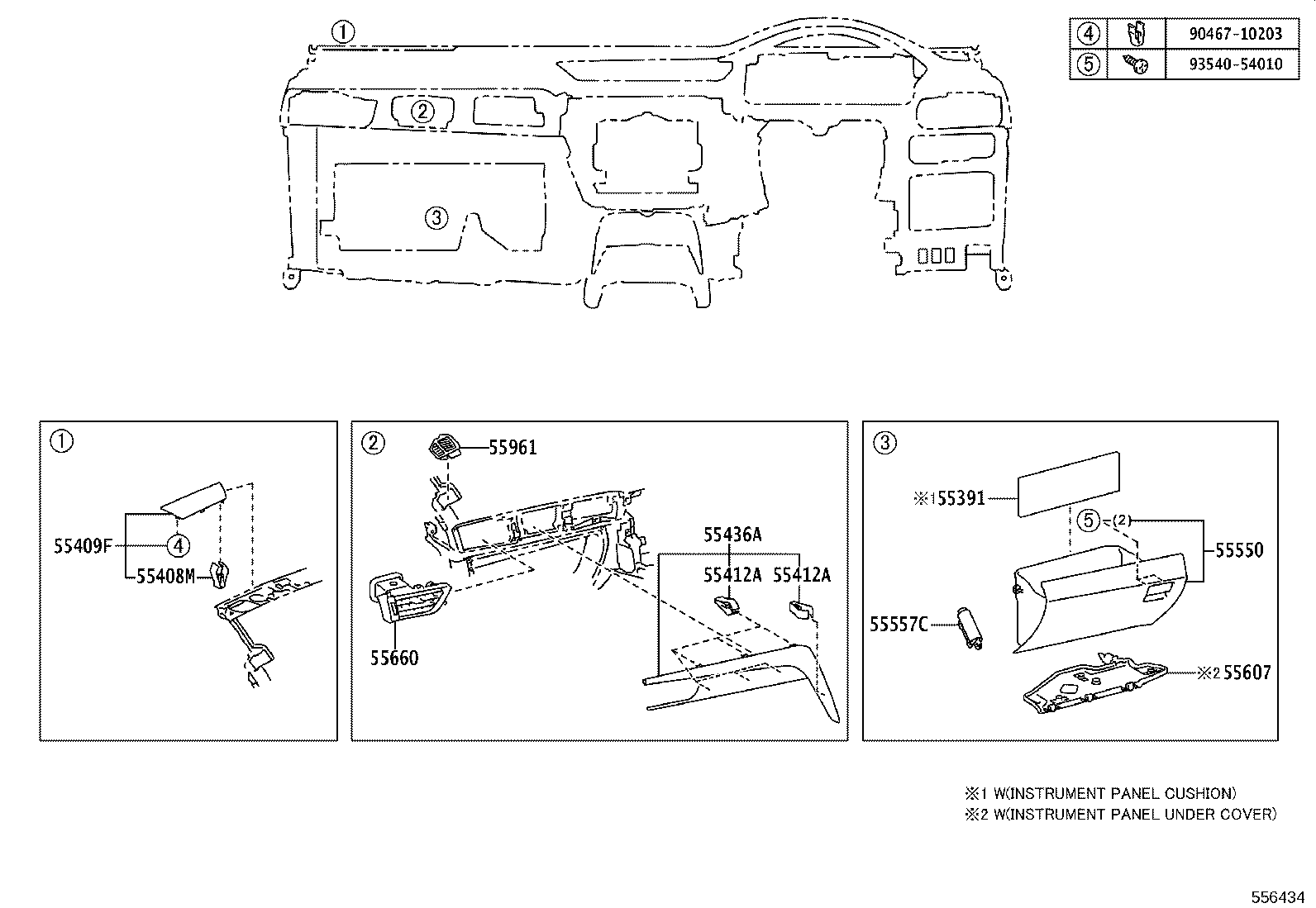

Figure 552188E 552188E 2008-11 → 2015-05 Figure 552710B 552710B 2008-11 → 2015-03 Figure 553486A 553486A 2015-03 → 2015-05 Figure 552189C 552189C 2008-11 → 2011-11 Figure 552186E 552186E 2008-11 → 2011-11 Figure 552789G 552789G 2011-11 → 2015-05 Figure 552790G 552790G 2011-11 → 2015-05 Figure 556423 556423 2008-11 → 2011-11 Figure 556424 556424 2008-11 → 2011-11 Figure 556425 556425 2011-11 → 2015-05 Figure 556426 556426 2011-11 → 2015-05 Figure 556427 556427 2008-11 → 2011-11 Figure 556428 556428 2008-11 → 2011-11 Figure 556429 556429 2011-11 → 2015-05 Figure 556430 556430 2011-11 → 2015-05 Figure 553453B 553453B 2015-05 → — Figure 553454B 553454B 2015-05 → — Figure 553455A 553455A 2015-05 → — Figure 553456A 553456A 2015-05 → — Figure 556431 556431 2015-05 → — Figure 556432 556432 2015-05 → — Figure 556433 556433 2015-05 → — Figure 556434 556434 2015-05 → —

Part groups

PNCDescription
55302A Panel Sub-assy, Instrument, Upper
55303B Panel Sub-assy, Instrument, Lower
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55315A Spacer, Instrument Panel, NO.1
55317A Panel, Instrument Side, RH
55318C Panel, Instrument Side, LH
55326A Stay, Instrument Panel, NO.1
55330B Reinforcement Assy, Instrument Panel
55343B Brace, Instrument Panel TO Cowl, Center
55345A Clip, Instrument Panel, NO.1
55346A Clip, Instrument Panel, NO.2
55349A Cushion, Instrument Panel
55355 Cushion, Instrument Panel, NO.1
55355E Cushion, Instrument Panel
55391 Cushion, Instrument Panel, Lower NO.1
55401E Pad Sub-assy, Instrument Panel Safety
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55408F Panel Sub-assy, Instrument Panel Speaker, NO.1
55408M Clip(FOR INSTRUMENT PANEL SPEAKER PANEL)
55409F Panel Sub-assy, Instrument Panel Speaker, NO.2
55410C Panel Assy, Instrument Cluster Finish
55412A Clip, Panel, Instrument Cluster Finish, End
55416A Retainer, Meter Hood, NO.1
55422C Panel, Instrument Cluster Finish, Center Upper
55434B Panel, Instrument Panel Finish, Lower Center
55435A Panel, Instrument Panel Finish, End RH
55436A Panel, Instrument Panel Finish, End LH
55446A Base, Switch Hole, NO.1
55450B Box Assy, Coin
55474C Garnish, Instrument Cluster Finish Panel, NO.1
55475A Garnish, Instrument Cluster Finish Panel, NO.2
55521C Cover, Stereo Opening
55521F Cover, Stereo Opening, NO.2
55525 Cover, Speaker Hole, NO.1
55539 Cover, Spare Switch Hole
55539F Cover, Spare Switch Hole
55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55557C Damper, Glove Compartment Door
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670A Register Assy, Instrument Panel, Center
55961 Nozzle, Side Defroster, NO.1
55962 Nozzle, Side Defroster, NO.2
55981 Garnish, Defroster Nozzle, NO.1
58821D Panel, Console, Upper Front
58959E Cushion, Console Compartment Door
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
