Toyota Avensis
2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe
Supported model
Data version 2019-01

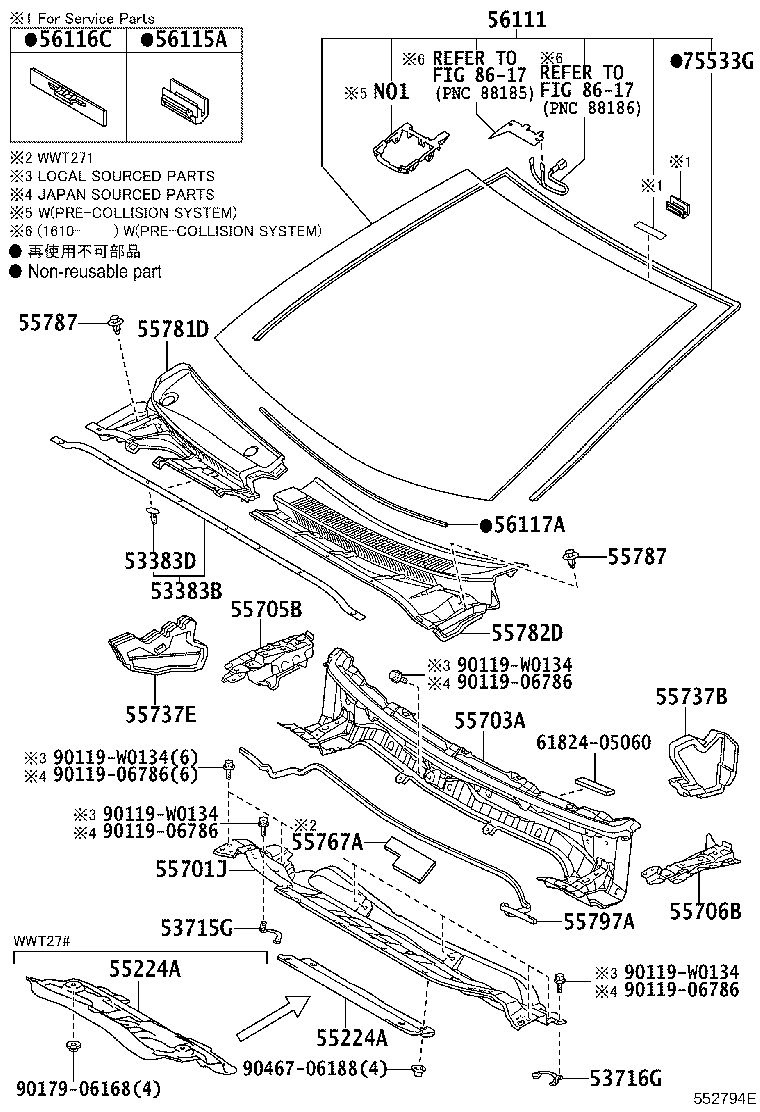

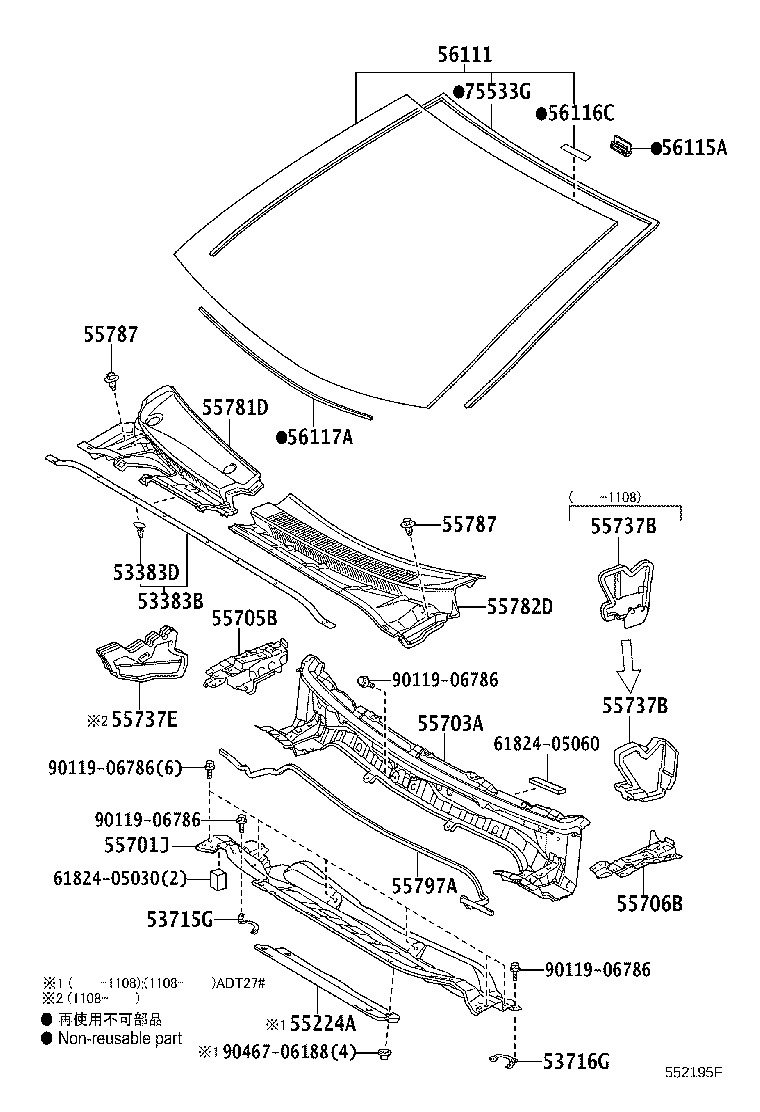

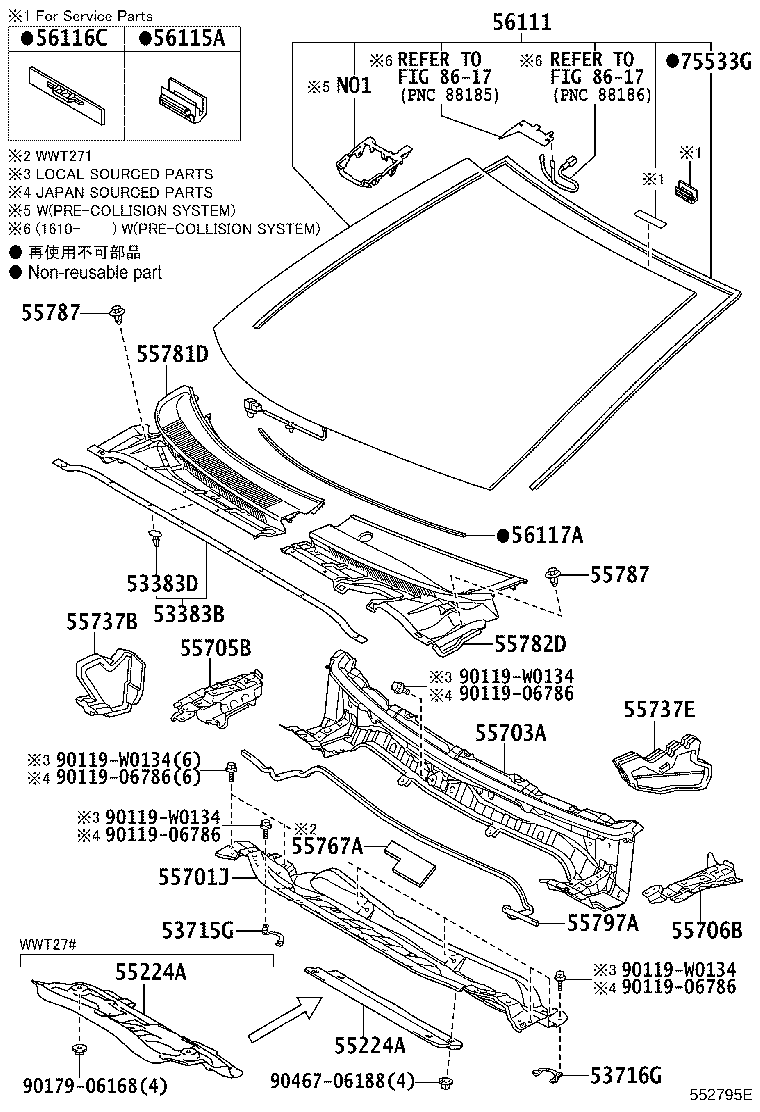

Cowl Panel & Windshield Glass
21 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53383B | Seal, Hood TO Cowl Top |
| 53383D | Clip(FOR HOOD TO COWL TOP SEAL) |
| 53715G | Extension, Front Fender Apron, Rear RH |
| 53716G | Extension, Front Fender Apron, Rear LH |
| 55224A | Insulator, Dash Panel, Outer NO.2 |
| 55701J | Panel Sub-assy, Cowl Top, Outer |
| 55703A | Panel Sub-assy, Cowl Top, Inner |
| 55705B | Panel Sub-assy, Cowl Top Side, RH |
| 55706B | Panel Sub-assy, Cowl Top Side, LH |
| 55737B | Seal, Heater Air Duct Splash Shield, NO.1 |
| 55737E | Seal, Heater Air Duct Splash Shield, NO.2 |
| 55767A | Sheet, Cowl Top Insulator, NO.5 |
| 55781D | Louver, Cowl Top Ventilator, RH |
| 55782D | Louver, Cowl Top Ventilator, LH |
| 55787 | Clip, Cowl Ventilator Louver, Inner |
| 55797A | Seal, Cowl Water Extract |
| 56111 | Glass, Windshield |
| 56115A | Stopper, Windshield Glass, NO.1 |
| 56116C | Stopper, Windshield Glass, NO.2 |
| 56117A | Dam, Window Glass Adhesive |
| 75533G | Moulding, Windshield, Outside |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
