Toyota Avensis
2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe
Supported model
Data version 2019-01

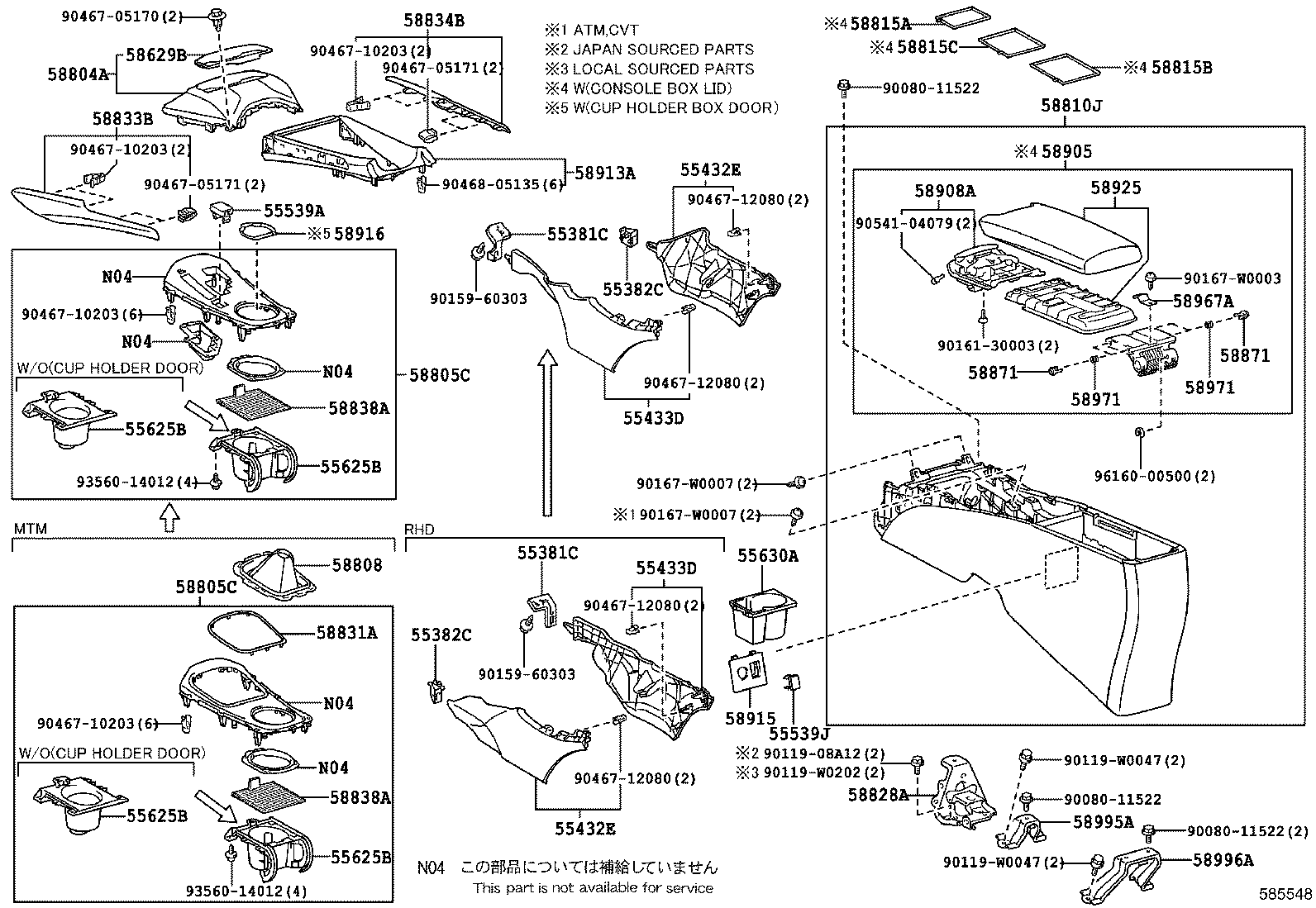

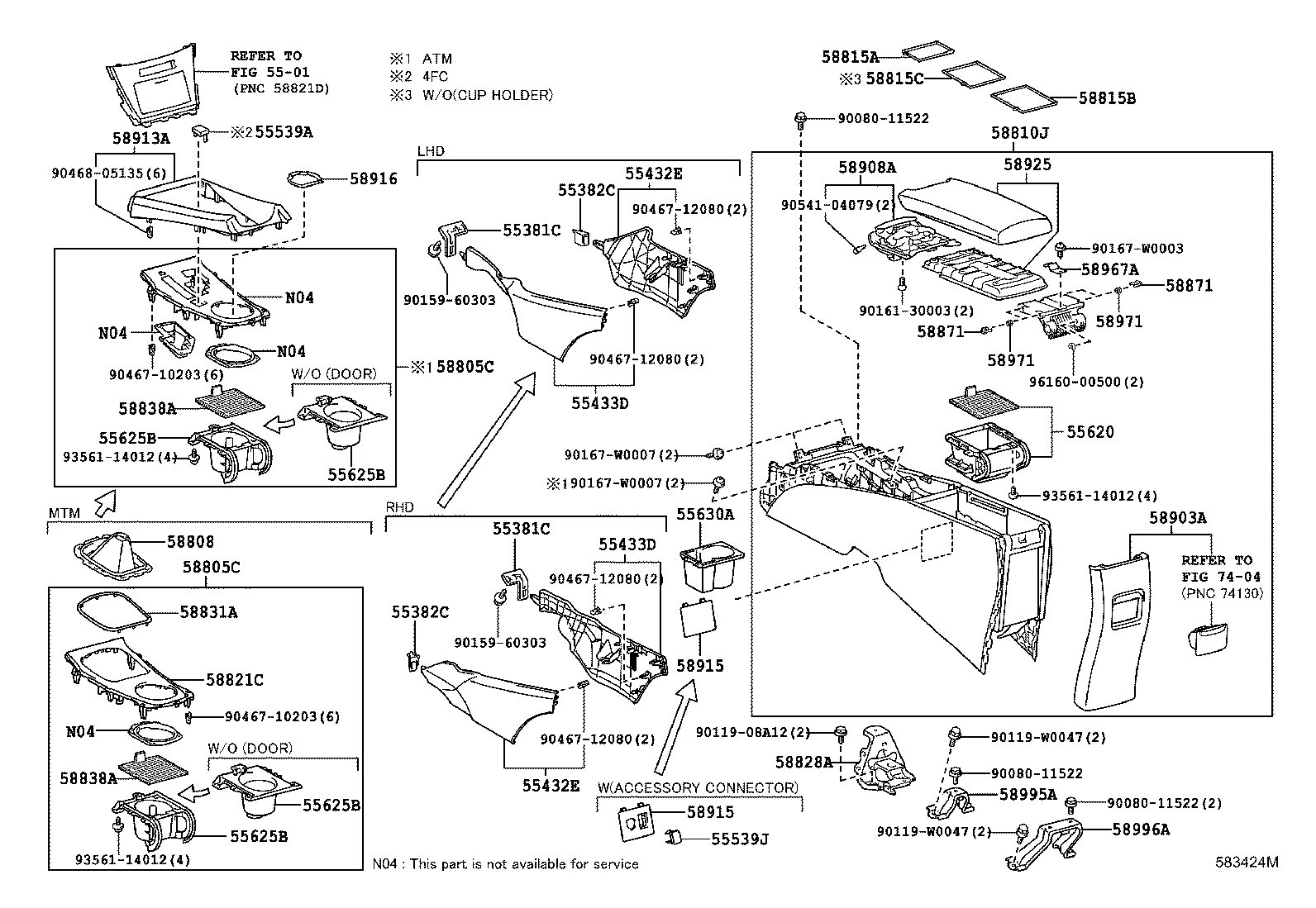

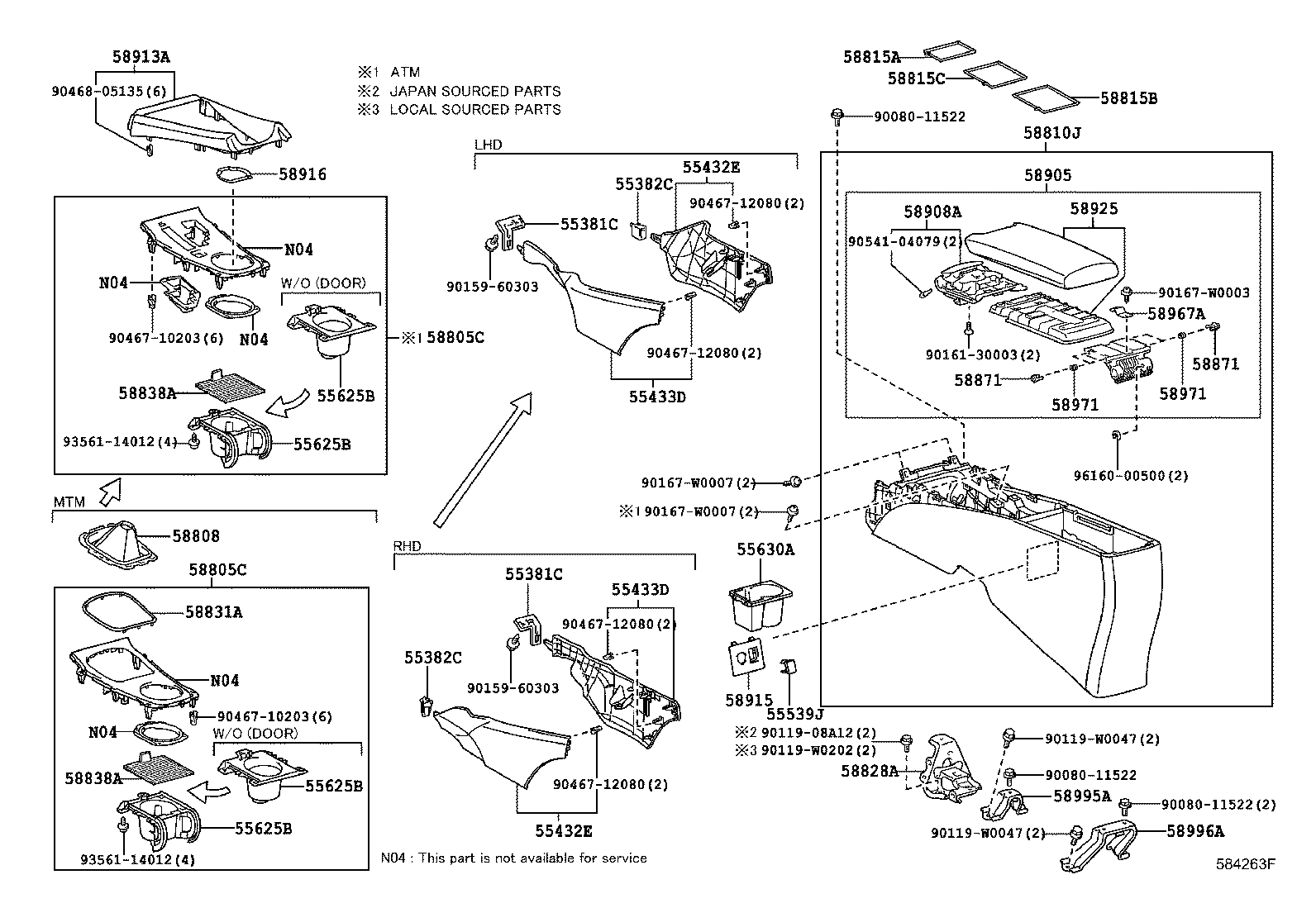

Console Box & Bracket
35 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55381C | Bracket, Finish Panel Mounting, NO.1 |
| 55382C | Bracket, Finish Panel Mounting, NO.2 |
| 55432E | Panel, Instrument Panel Finish, Lower NO.1 |
| 55433D | Panel, Instrument Panel Finish, Lower NO.2 |
| 55539A | Cover, Spare Switch Hole |
| 55539J | Cover, Spare Switch Hole |
| 55620 | Holder Assy, Instrument Panel Cup |
| 55625B | Tray, Instrument Panel Cup Holder |
| 55630A | Holder, Rear Console Box, Cup |
| 58629B | Mat, Center Console |
| 58804A | Panel Sub-assy, Console, Upper |
| 58805C | Panel Sub-assy, Console, Upper Rear |
| 58808 | Cover Sub-assy, Shifting Hole |
| 58810J | Box Assy, Console |
| 58815A | Carpet, Console Box |
| 58815B | Carpet, Console Box |
| 58815C | Carpet, Console Box |
| 58821C | Panel, Console, Upper |
| 58828A | Bracket, Console Box, Lower |
| 58831A | Garnish, Console Upper Panel, Front |
| 58833B | Garnish, Console Upper Panel, NO.1 |
| 58834B | Garnish, Console Upper Panel, NO.2 |
| 58838A | Door, Console Cup Holder Box |
| 58871 | Cushion, Console Box |
| 58903A | Panel Sub-assy, Console Rear End |
| 58905 | Door Sub-assy, Console Compartment |
| 58908A | Lock Sub-assy, Console Compartment Door |
| 58913A | Panel, Box, NO.3 |
| 58915 | Panel, Box Bottom |
| 58916 | Mat, Box Bottom |
| 58925 | Lid, Rear Console Armrest |
| 58967A | Spring, Console Door Stopper |
| 58971 | Lock, Console Compartment Door |
| 58995A | Bracket, Console Box Mounting, NO.1 |
| 58996A | Bracket, Console Box Mounting, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
