Toyota Avensis

2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe

Supported model Data version 2019-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

82 part groups · 4 illustrations

Illustrations

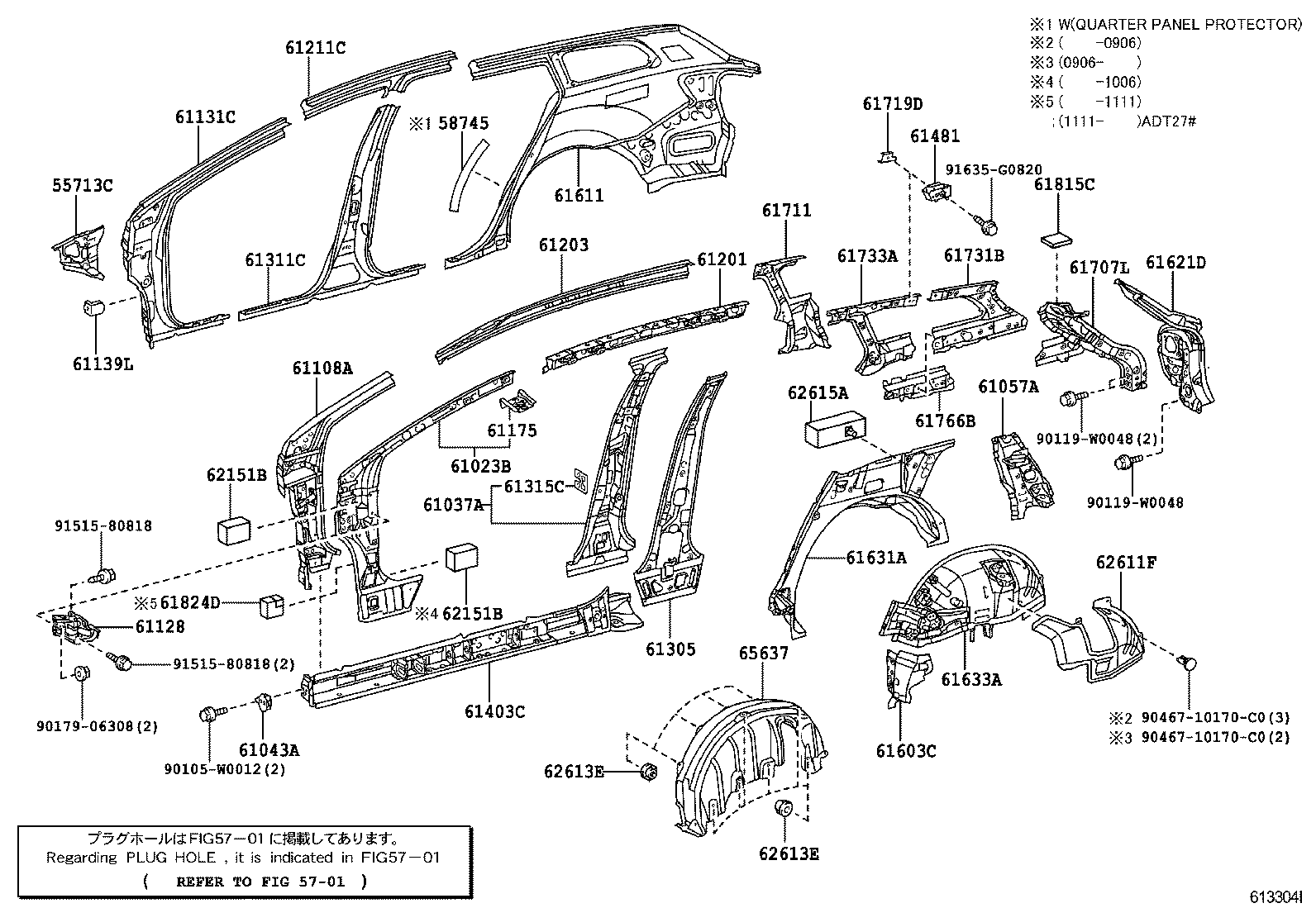

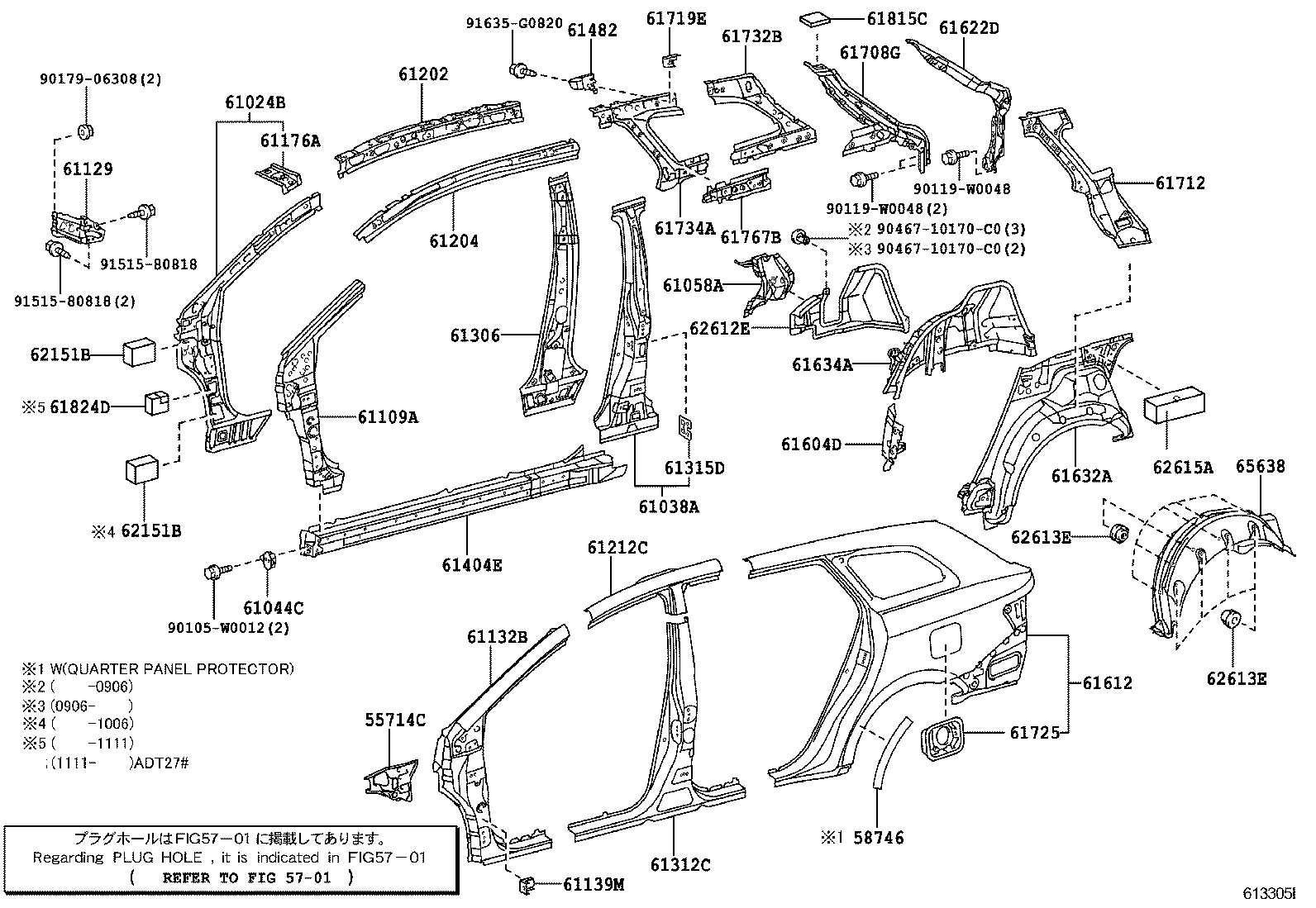

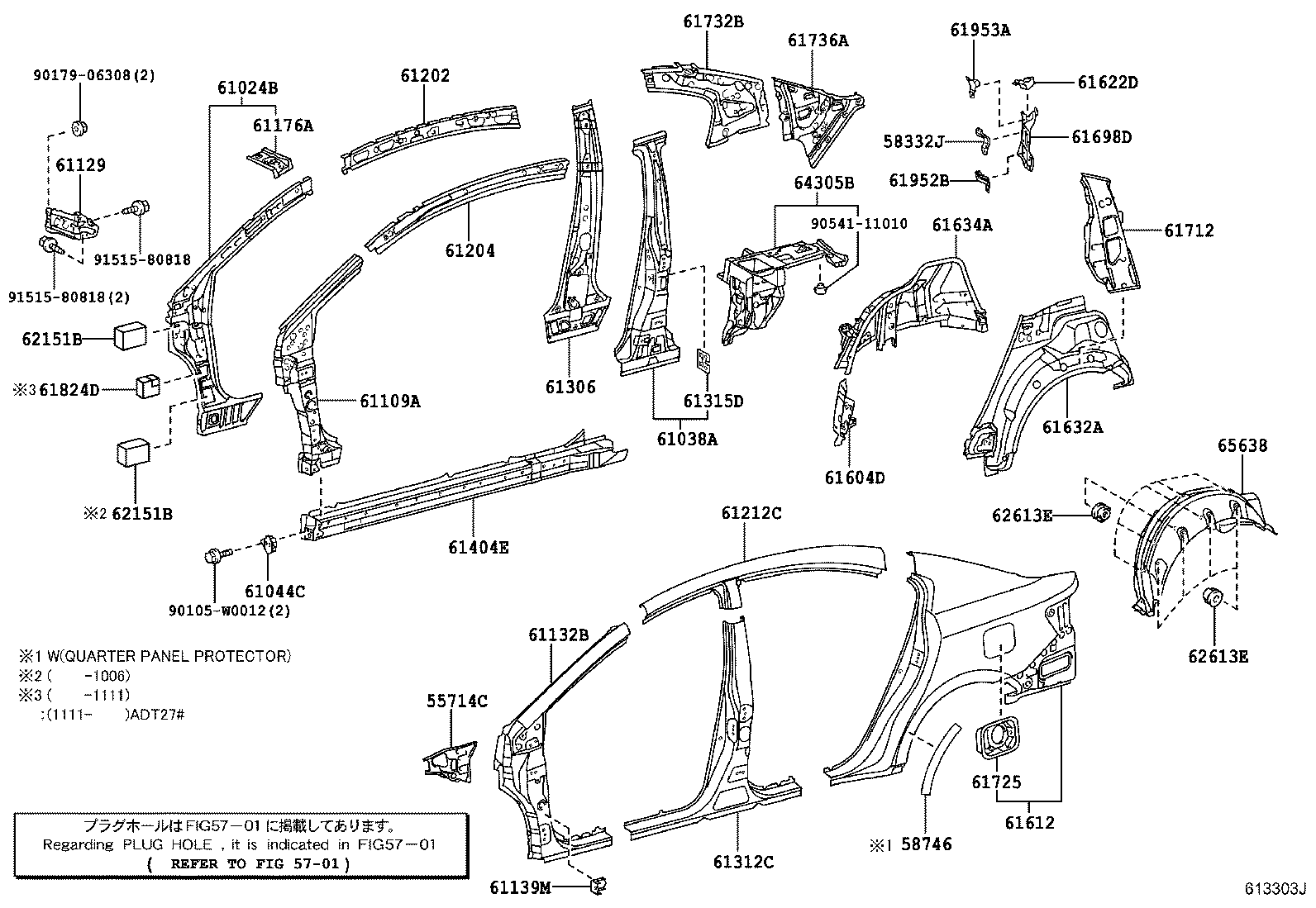

Figure 613302J 613302J 2008-11 → — Figure 613303J 613303J 2008-11 → — Figure 613304I 613304I 2008-11 → — Figure 613305I 613305I 2008-11 → —

Part groups

PNCDescription
55713C Panel, Cowl Top Side, RH
55714C Panel, Cowl Top Side, LH
58331D Bracket, Luggage Compartment Trim, NO.1
58332J Bracket, Luggage Compartment Trim, NO.2
58745 Protector, Quarter Panel, Front RH
58746 Protector, Quarter Panel, Front LH
61023B Pillar Sub-assy, Front Body, Inner RH
61024B Pillar Sub-assy, Front Body, Inner LH
61037A Reinforcement Sub-assy, Center Body Pillar, RH
61038A Reinforcement Sub-assy, Center Body Pillar, LH
61043A Extension Sub-assy, Front Body Pillar, Outer RH
61044C Extension Sub-assy, Front Body Pillar, Outer LH
61057A Extension Sub-assy, Quarter Lock Pillar
61058A Extension Sub-assy, Quarter Lock Pillar, LH
61108A Reinforce Sub-assy, Front Body Pillar, Lower RH
61109A Reinforce Sub-assy, Front Body Pillar, Lower LH
61128 Reinforcement, Cowl Side Panel, RH
61129 Reinforcement, Cowl Side Panel, LH
61131C Pillar, Front Body, Outer RH
61132B Pillar, Front Body, Outer LH
61139L Bracket, Front Body Pillar Outer
61139M Bracket, Front Body Pillar Outer
61175 Reinforcement, Front Body Pillar, Inner NO.2 RH
61176A Reinforcement, Front Body Pillar, Inner NO.2 LH
61201 Rail Sub-assy, Roof Side, RH
61202 Rail Sub-assy, Roof Side, LH
61203 Rail Sub-assy, Roof Side, Inner RH
61204 Rail Sub-assy, Roof Side, Inner LH
61211C Rail, Roof Side, RH
61212C Rail, Roof Side, LH
61305 Reinforce Sub-assy, Center Body Pillar, Lower RH
61306 Reinforce Sub-assy, Center Body Pillar, Lower LH
61311C Panel, Rear Body Front Outside, RH
61312C Panel, Rear Body Front Outside, LH
61315C Retainer, Door Lock Striker, RH
61315D Retainer, Door Lock Striker, LH
61403C Reinforce Sub-assy, Rocker, Outer RH
61404E Reinforce Sub-assy, Rocker, Outer LH
61481 Bracket, Roof Side Rail Reinforce, NO.1
61482 Bracket, Roof Side Rail Reinforce, NO.2
61603C Panel Sub-assy, Quarter Wheel House, RH
61604D Panel Sub-assy, Quarter Wheel House, LH
61611 Panel, Quarter, RH
61612 Panel, Quarter, LH
61621D Trough, Back Door Opening, RH
61622D Trough, Back Door Opening, LH
61631A Panel, Quarter Wheel House, Outer RH
61632A Panel, Quarter Wheel House, Outer LH
61633A Panel, Quarter Wheel House, Inner RH
61634A Panel, Quarter Wheel House, Inner LH
61697D Housing, Quarter Panel End, RH
61698D Housing, Quarter Panel End, LH
61707L Panel Sub-assy, Roof Side, Inner Front RH
61708G Panel Sub-assy, Roof Side, Inner Front LH
61711 Panel, Roof Side, Outer RH
61712 Panel, Roof Side, Outer LH
61719D Bracket, Roof Side, Inner RH
61719E Bracket, Roof Side, Inner LH
61725 Box, Fuel Inlet
61731B Panel, Roof Side, Inner RH
61732B Panel, Roof Side, Inner LH
61733A Panel, Roof Side, Inner Front RH
61734A Panel, Roof Side, Inner Front LH
61735A Panel, Roof Side, Inner Rear RH
61736A Panel, Roof Side, Inner Rear LH
61766B Reinforcement, Belt Anchor TO Roof Side, Inner RH
61767B Reinforcement, Belt Anchor TO Roof Side, Inner LH
61815C Cover, Roof Side, Inner Upper
61824D Plate, Noise Control, NO.1
61951 Bracket, Side Trim, RH
61952 Bracket, Side Trim, RH
61952B Bracket, Side Trim, LH
61953A Bracket, Side Trim, LH
62151B Pad, Cowl Side Silencer
62611F Insulator, Quarter Wheel House, RH
62612E Insulator, Quarter Wheel House, LH
62613E Clip (FOR QUARTER WHEEL HOUSE COVER)
62615A Pad, Quarter Wheel House, NO.3
64304B Reinforce Sub-assy, Package Tray Bracket, RH
64305B Reinforce Sub-assy, Package Tray Bracket, LH
65637 Liner, Rear Wheel House, RH
65638 Liner, Rear Wheel House, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
