Toyota Avensis
2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe
Supported model
Data version 2019-01
Roof Panel & Back Window Glass
35 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 56115B | Stopper, Back Window Glass, NO.1 |
| 56116D | Stopper, Back Window Glass, NO.2 |
| 61247F | Reinforcement, Roof Side Rail, Inner |
| 61248F | Reinforcement, Roof Side Rail, Inner, LH |
| 63102A | Panel Sub-assy, Windshield Header |
| 63105A | Frame Sub-assy, Back Door Opening |

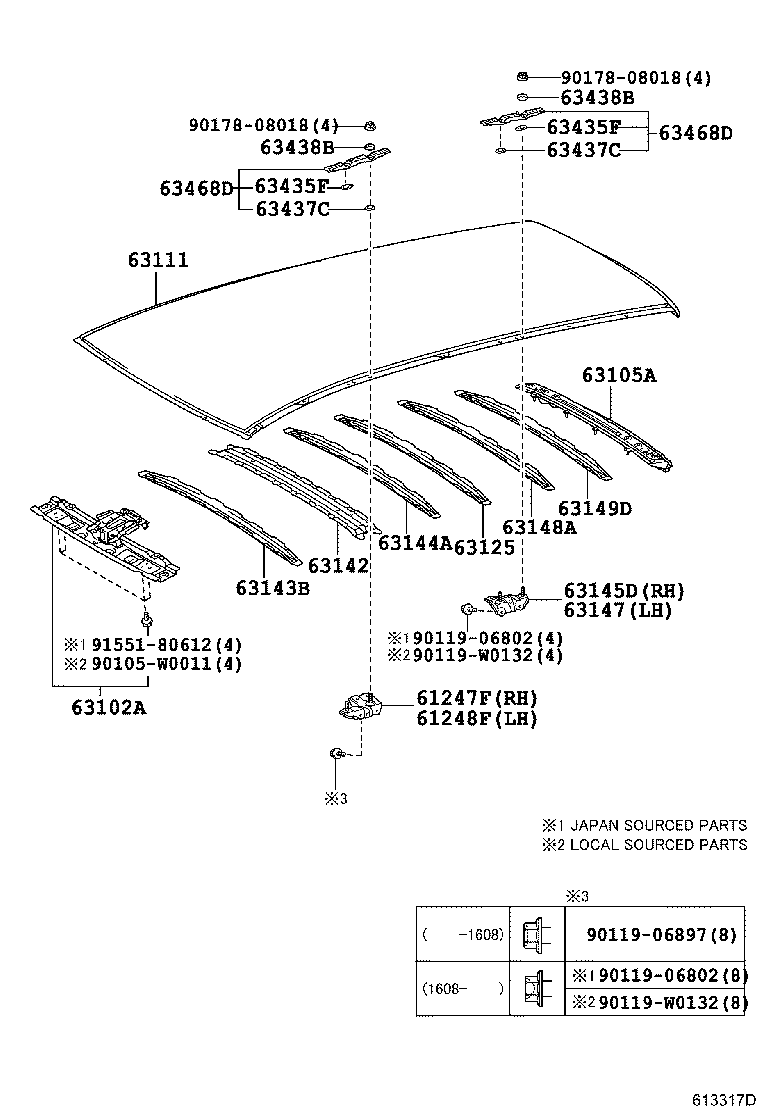

| 63111 | Panel, Roof |
| 63113A | Panel, Roof, NO.3 |
| 63125 | Reinforcement, Roof Panel, NO.2 |
| 63126B | Reinforcement, Roof Panel, Rear NO.2 |
| 63133B | Frame, Back Window |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144A | Reinforcement, Roof Panel, NO.4 |
| 63145D | Bracket, Roof Reinforcement |
| 63147 | Bracket, Roof Panel Reinforcement |
| 63148A | Reinforcement, Roof Panel, NO.7 |
| 63149D | Reinforcement, Roof Panel, NO.8 |
| 63185A | Bracket, Roof Rack, Front RH |
| 63186A | Bracket, Roof Rack, Front LH |

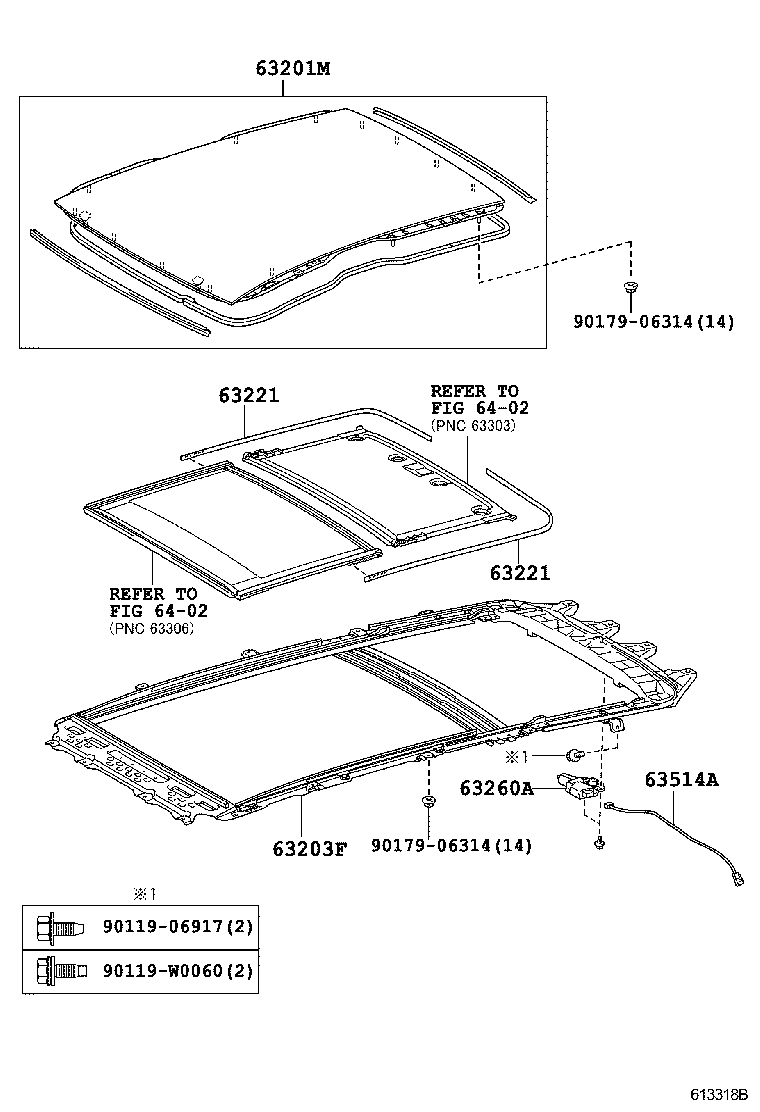

| 63201M | Glass Sub-assy, Roof Window, NO.1 |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63221 | Casing, Sliding Roof Cable Guide |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63435F | Seal, Roof Carrier, NO.1 |
| 63437C | Seal, Roof Carrier |
| 63438B | Seal, Roof Carrier, NO.3 RH |
| 63468D | Frame, Roof Rack, Upr |
| 63514A | Wire, Connector |
| 64101 | Panel Sub-assy, Upper Back |
| 64111D | Panel, Upper Back |
| 64115A | Reinforcement, Back, Upper |
| 64811 | Glass, Back Window |
| 64813D | Dam, Back Window Glass Adhesive |
| 75571G | Moulding, Back Window, Outside Upper, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
