Toyota Avensis

2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe

Supported model Data version 2019-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

24 part groups · 2 illustrations

Illustrations

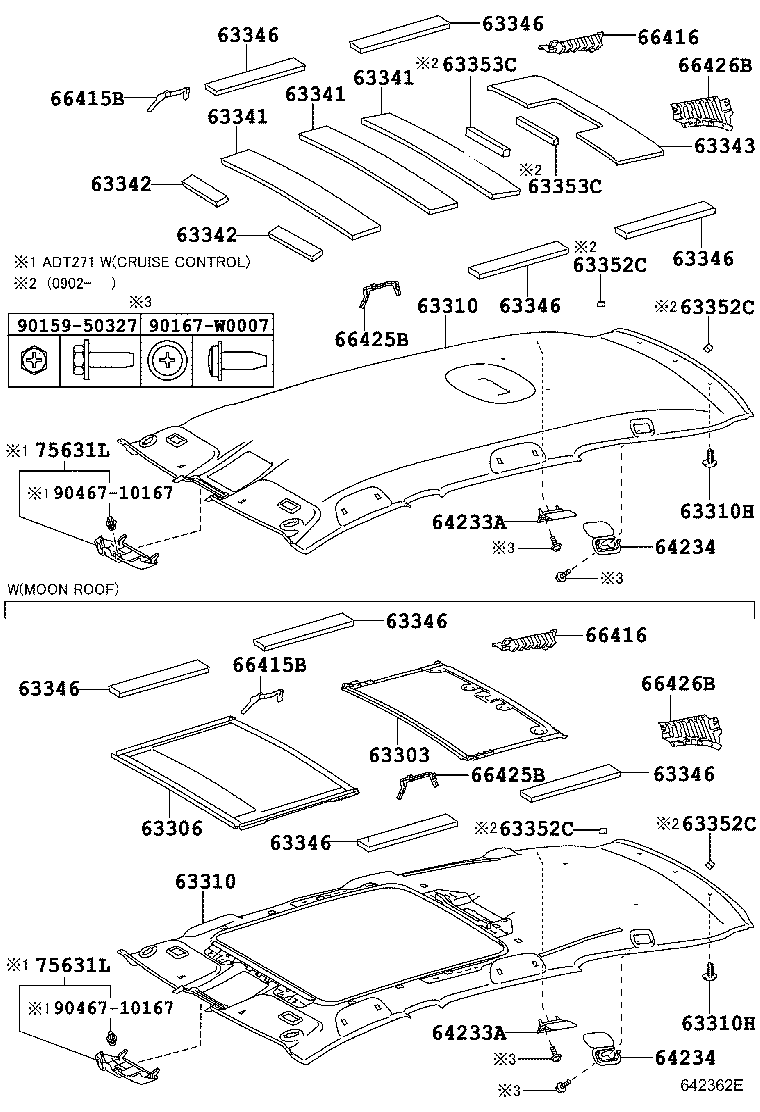

Figure 642361E 642361E 2008-11 → — Figure 642362E 642362E 2008-11 → —

Part groups

PNCDescription
63303 Trim Sub-assy, Sunshade, NO.2
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63346 Pad, Roof Silencer, NO.6
63351B Pad, Roof Headlining
63352C Pad, Roof Headlining, End
63353C Pad, Roof Headlining, Center
63354C Pad, Roof Headlining Front Side
63356C Holder, Sunshade Trim
64233A Hook, Room Partition Net, Rear RH
64234 Hook, Room Partition Net, Rear LH
66413B Spacer, Side Rail, Front RH
66414A Spacer, Side Rail, Rear RH
66415B Spacer, Side Rail, Rear NO.2 RH
66416 Spacer, Side Rail, Rear NO.3 RH
66423 Spacer, Side Rail, Front LH
66424 Spacer, Side Rail, Rear LH
66425B Spacer, Side Rail, Rear NO.2 LH
66426B Spacer, Side Rail, Rear NO.3 LH
75631L Garnish, Roof Top, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
