Toyota Avensis
2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe
Supported model
Data version 2019-01

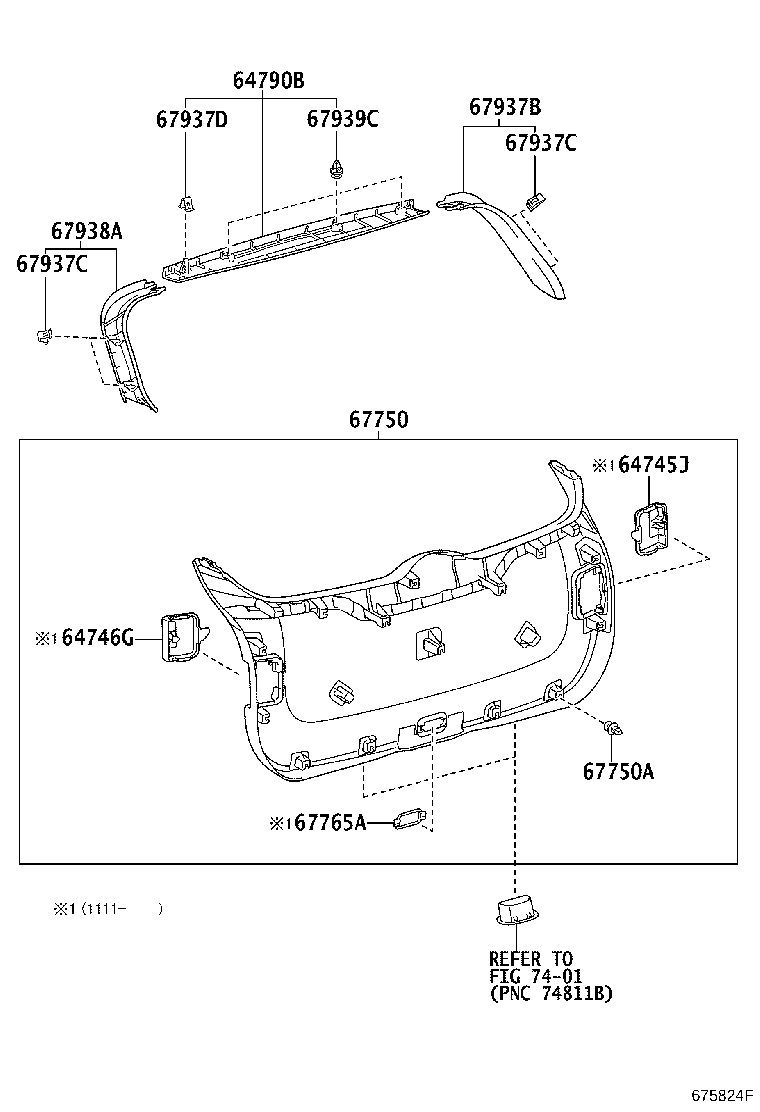

Back Door Panel & Glass
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62785F | Spacer, Back Door Glass |
| 64745J | Cover, Rear Combination Lamp Service, RH |
| 64746G | Cover, Rear Combination Lamp Service, LH |
| 64790B | Panel Assy, Back Door Trim, Upper |
| 64813B | Dam, Back Window Glass Adhesive |
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67290 | Damper Assy, Back Door |
| 67750 | Board Assy, Back Door Trim |
| 67750A | Clip(FOR BACK DOOR TRIM) |
| 67765A | Cover, Back Door Service Hole, NO.1 |
| 67881A | Weatherstrip, Back Door |
| 67937B | Garnish, Back Door Side, RH |
| 67937C | Clip(FOR BACK DOOR SIDE GARNISH) |
| 67937D | Retainer, Door Trim |
| 67938A | Garnish, Back Door Side, LH |
| 67939C | Clip(FOR BACK DOOR CENTER GARNISH) |
| 67989 | Extension, Back Door, Inside Upper |
| 68131 | Glass, Back Door |
| 68294A | Dam, Back Door Glass Adhesive |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
