Toyota Avensis

2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe

Supported model Data version 2019-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

16 part groups · 7 illustrations

Illustrations

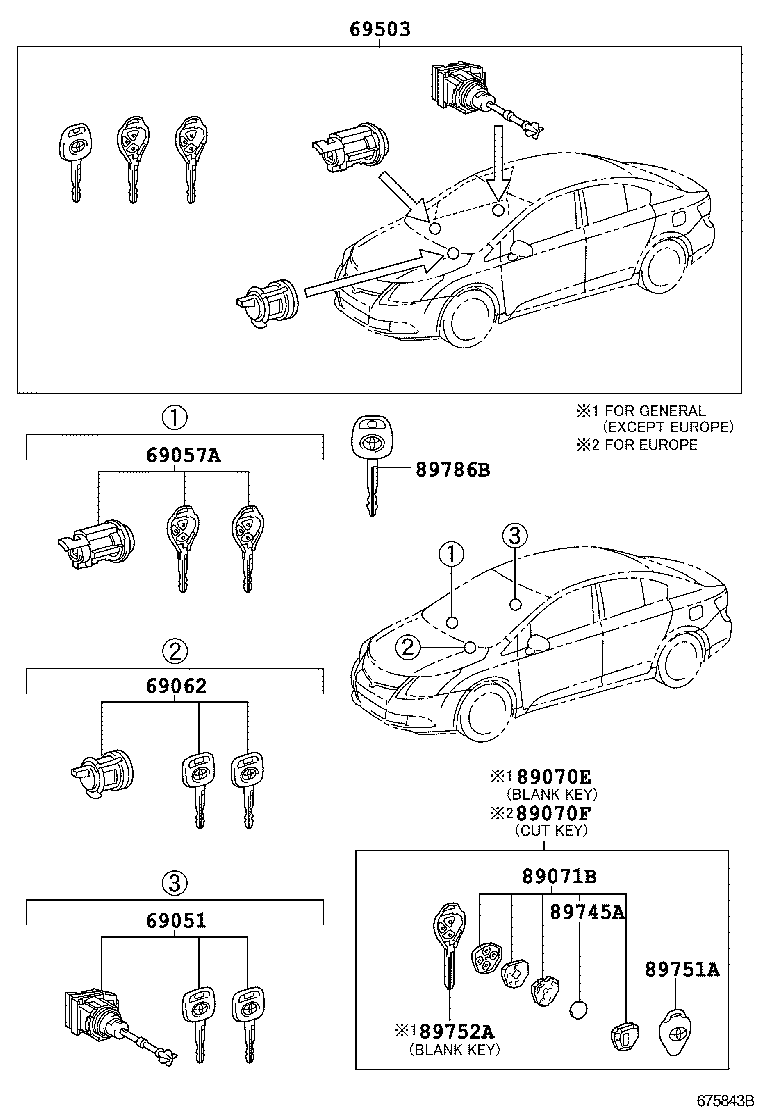

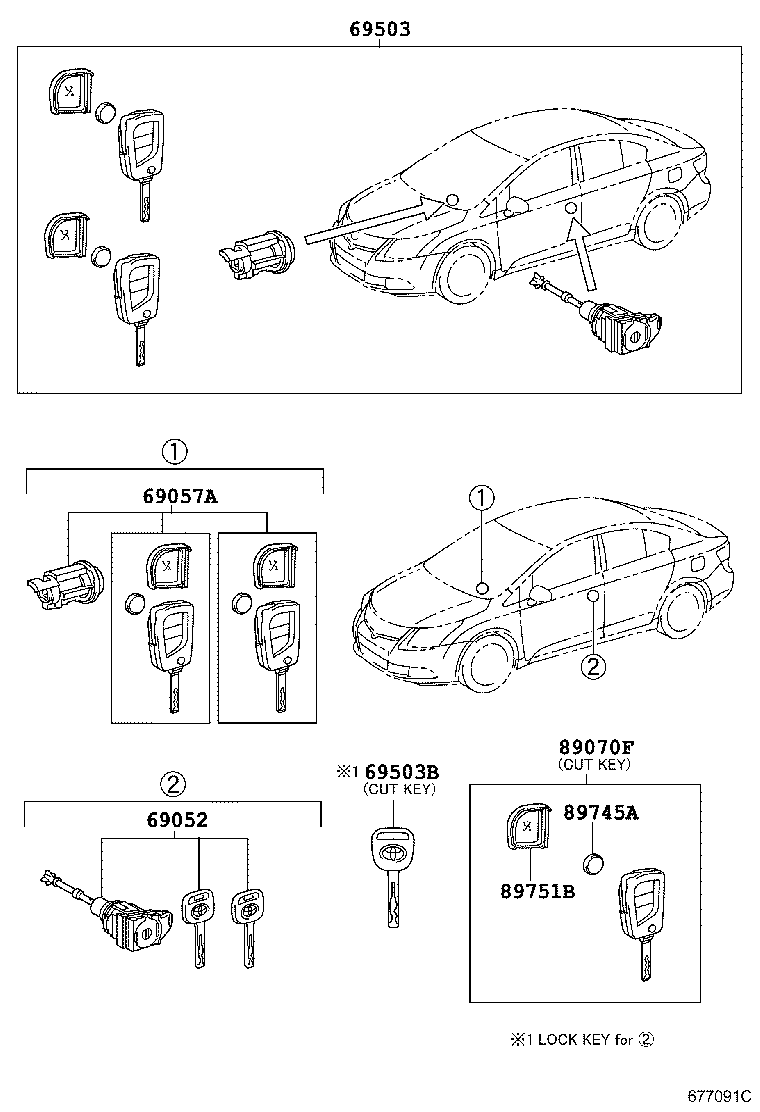

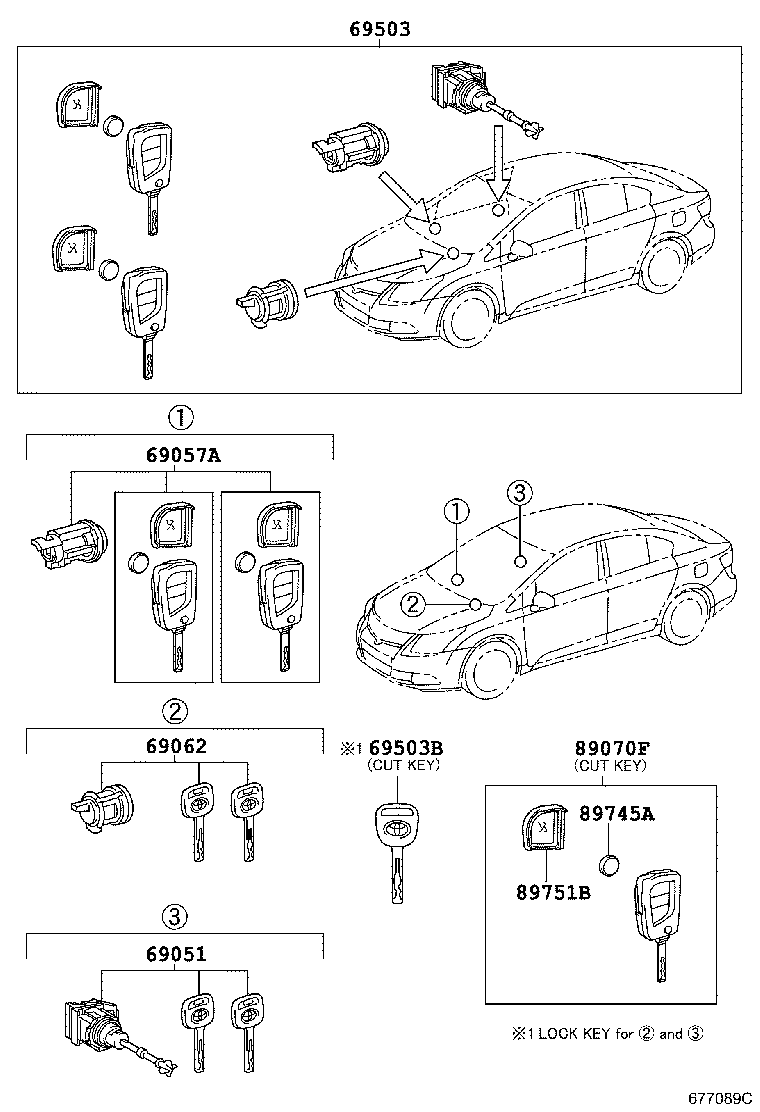

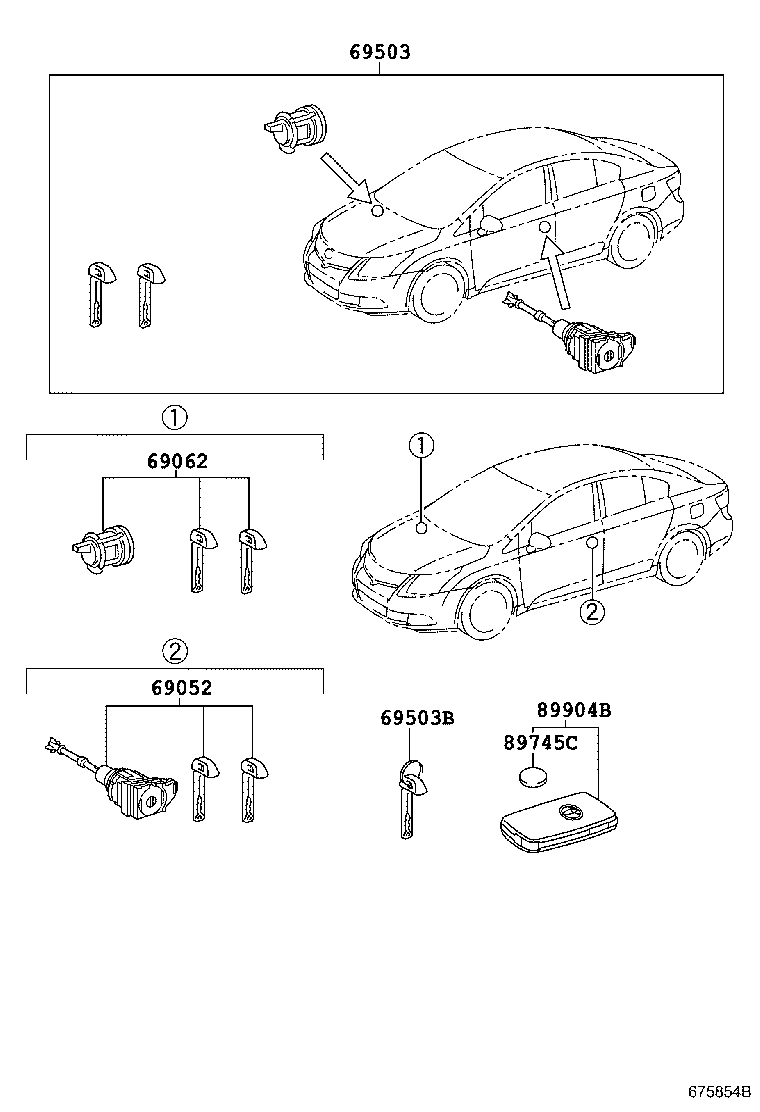

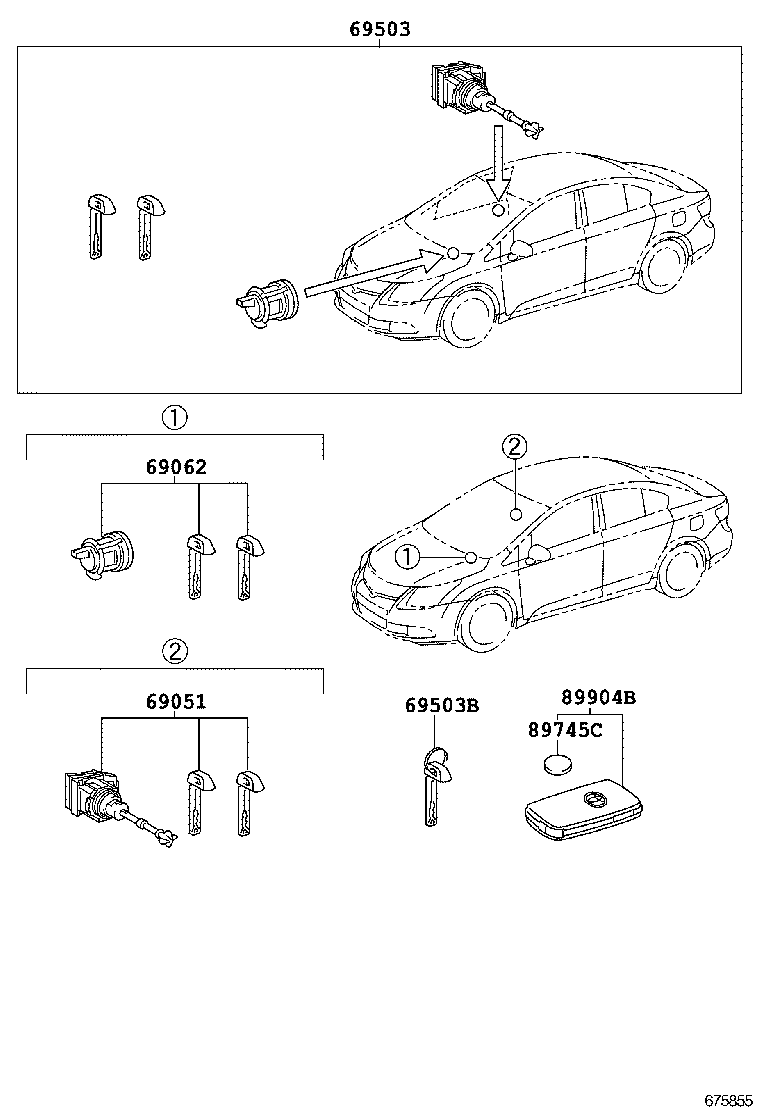

Figure 675844C 675844C 2008-11 → 2011-11 Figure 677091C 677091C 2011-11 → — Figure 675854B 675854B 2008-11 → 2010-10 Figure 679087 679087 2010-10 → — Figure 675843B 675843B 2008-11 → 2011-11 Figure 677089C 677089C 2011-11 → — Figure 675855 675855 2008-11 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69057A Cylinder & Key Set, Ignition Switch Lock
69062 Cylinder & Key Set, Glove Compartment Lock
69503 Cylinder Set, Lock
69503B Key, Cut
89070E Transmitter Assy, Door Control
89070F Transmitter Assy, Door Control (CUT KEY)
89071B Module Set, Transmitter Sub-assy, Door Control
89745A Battery, Transmitter
89745C Battery, Transmitter
89751A Cover, Transmitter Housing
89751B Cover, Transmitter Housing
89752A Case, Transmitter Housing
89786B Transmitter, Transponder Key Sub
89904B Transmitter Sub-assy, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
