Toyota Avensis

2008-11 → 2018-07 · chassis ADT27#,WWT27#,ZRT27# · catalogue 273560 · Europe

Supported model Data version 2019-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

62 part groups · 13 illustrations

Illustrations

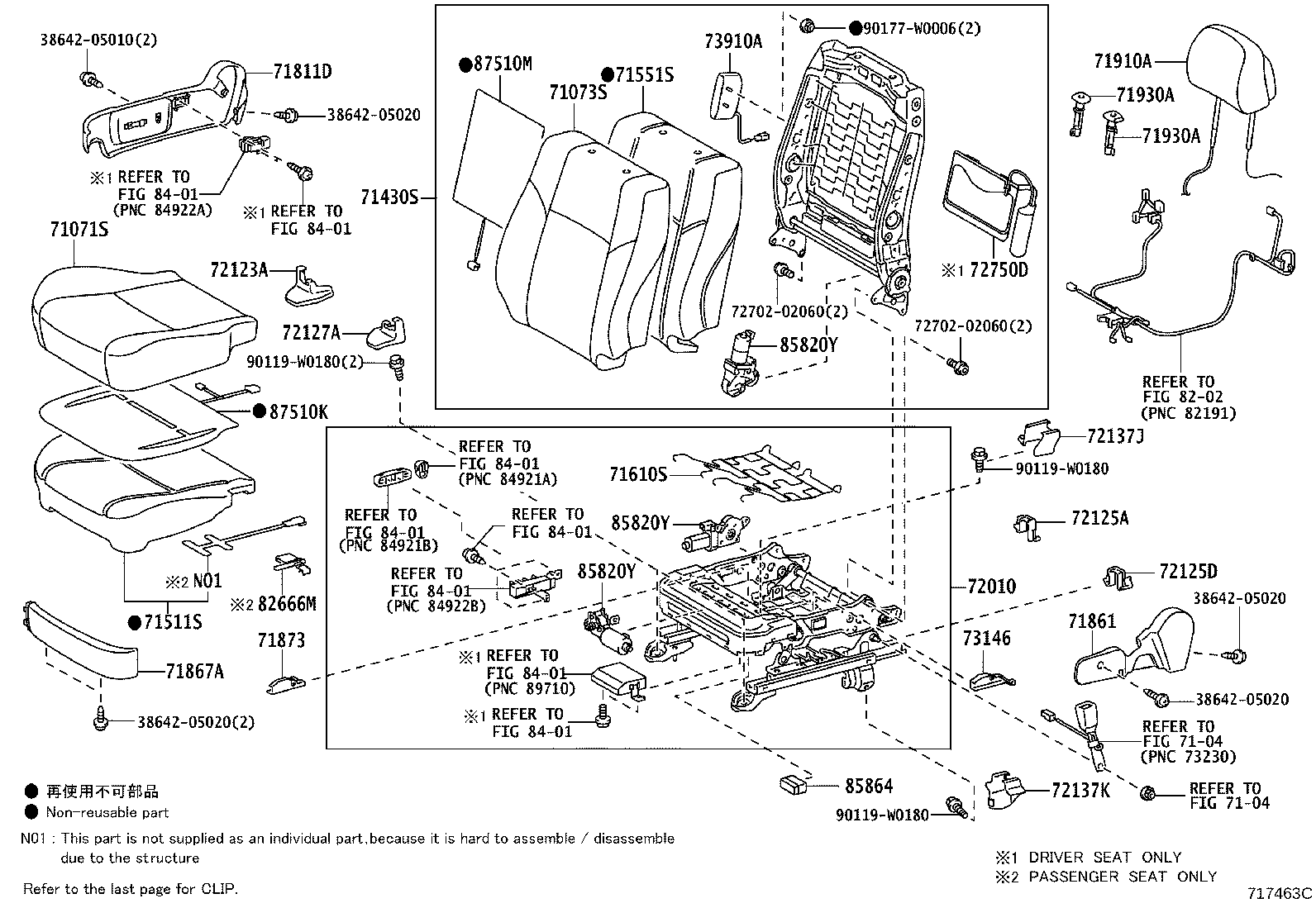

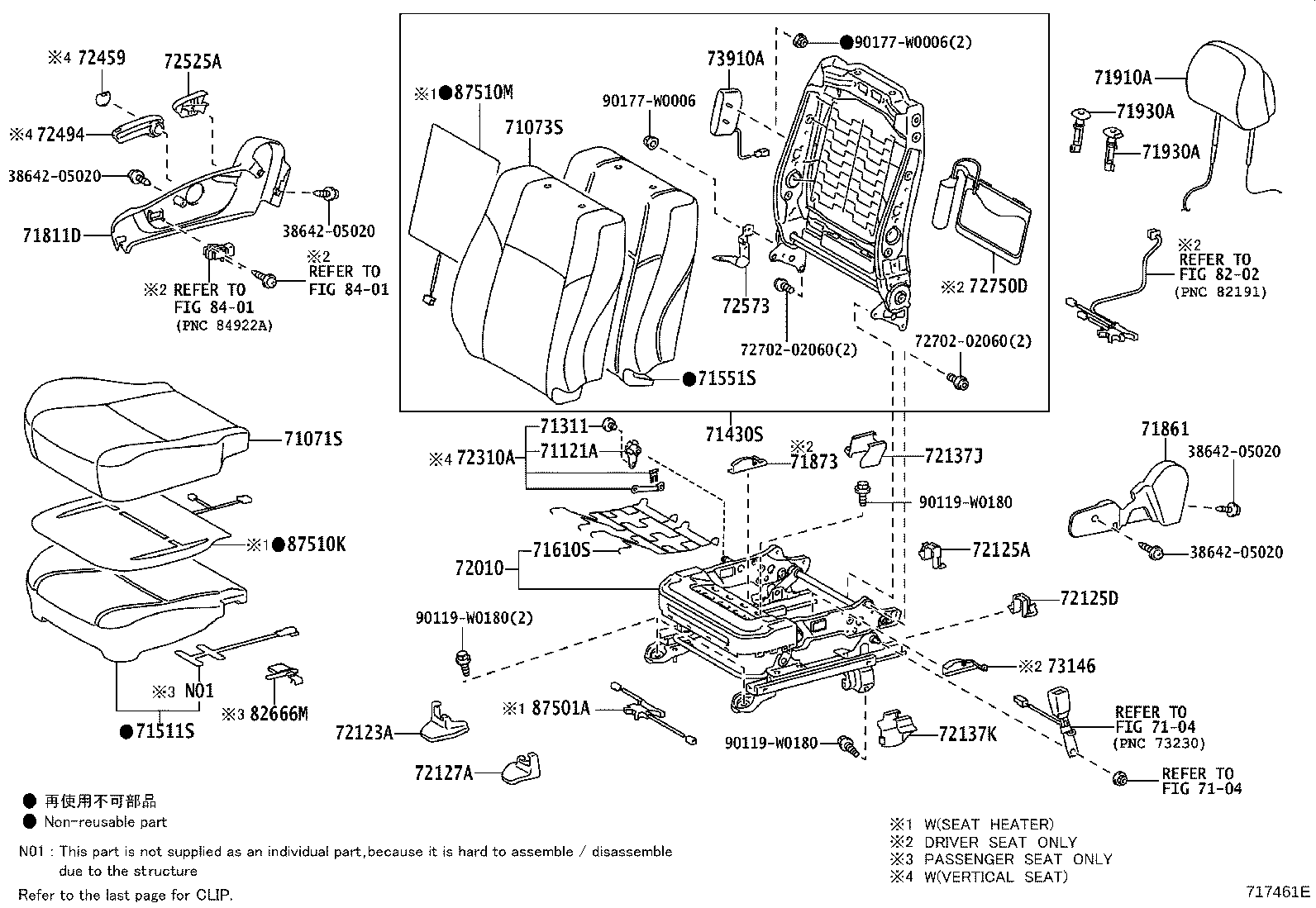

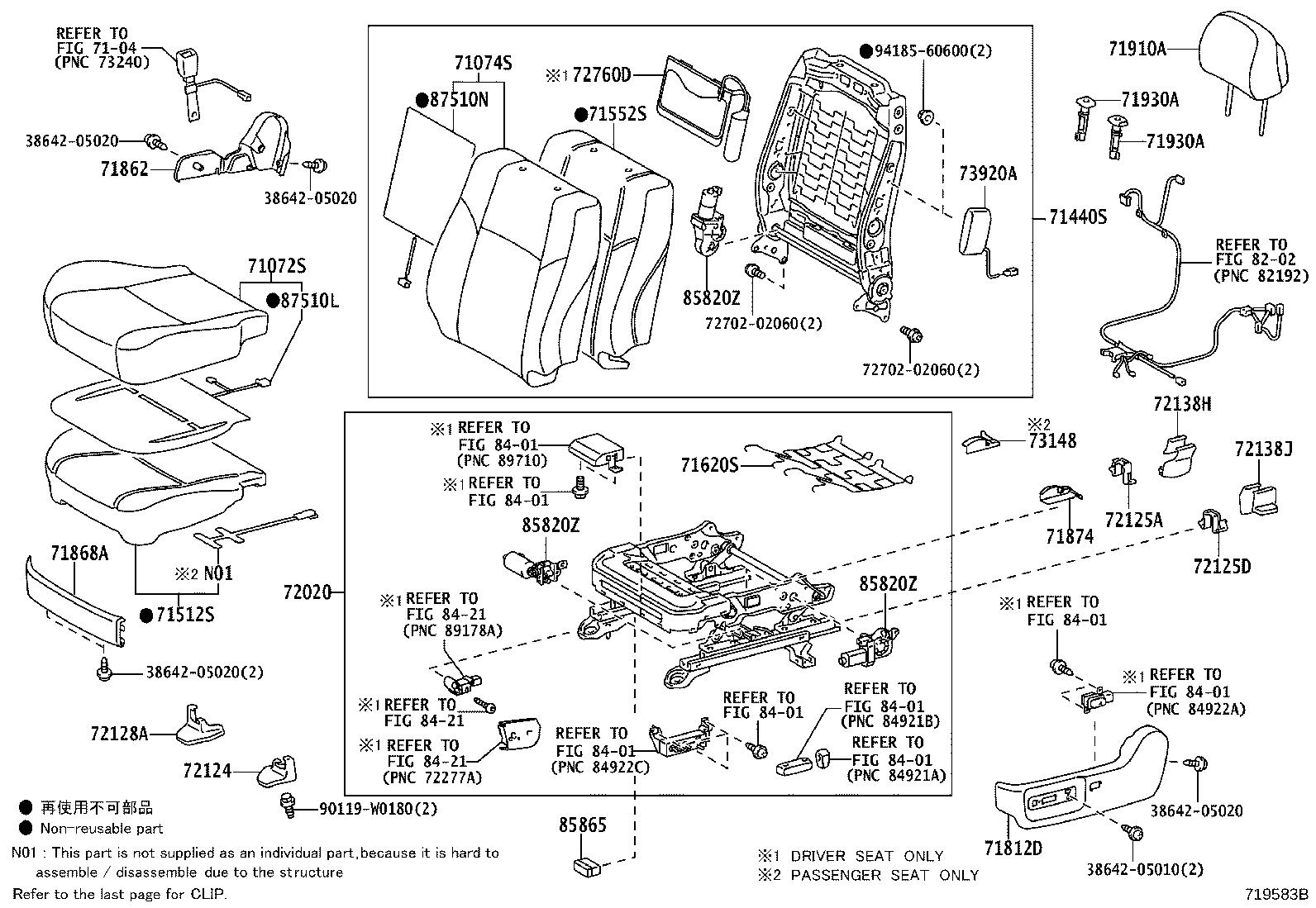

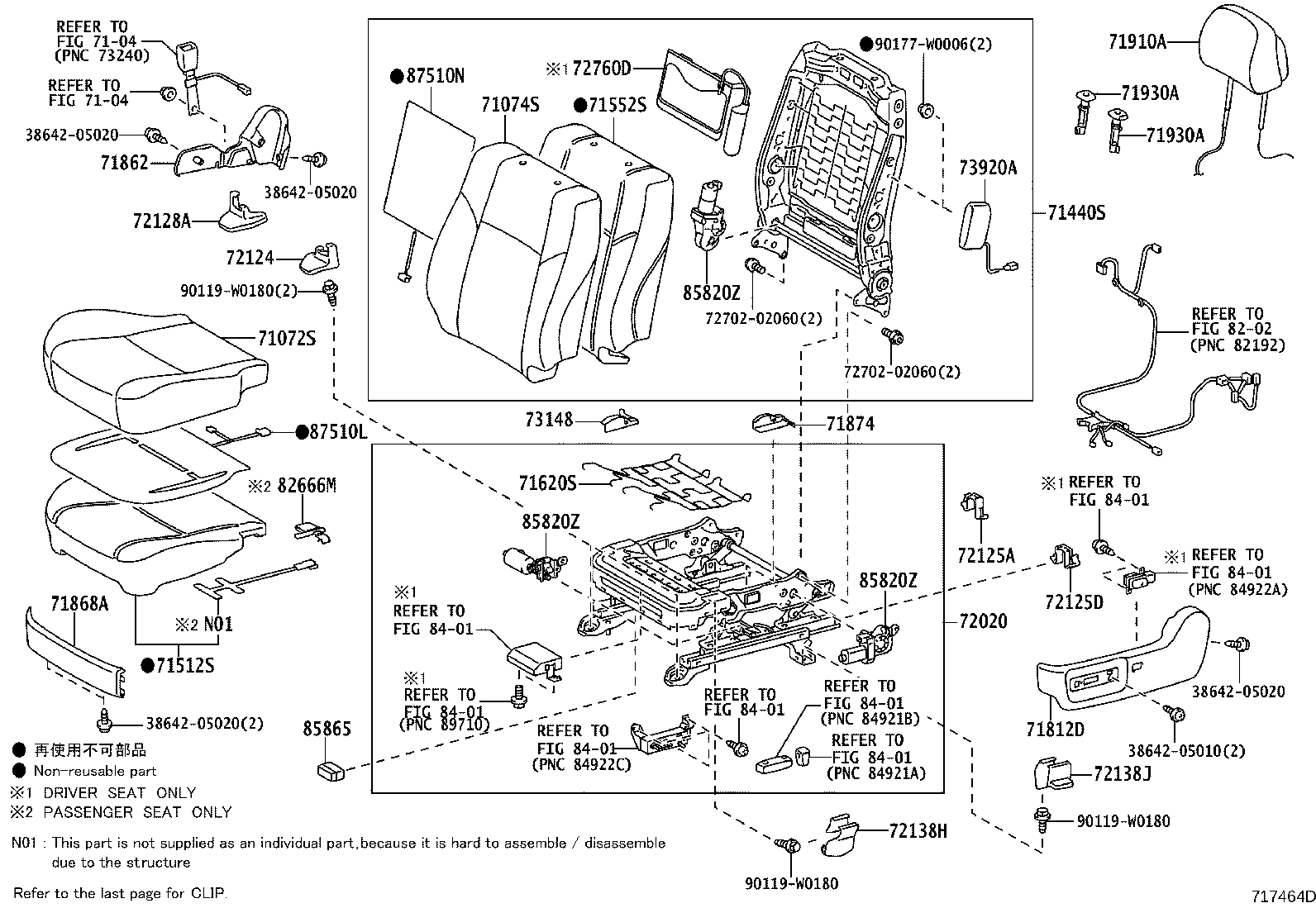

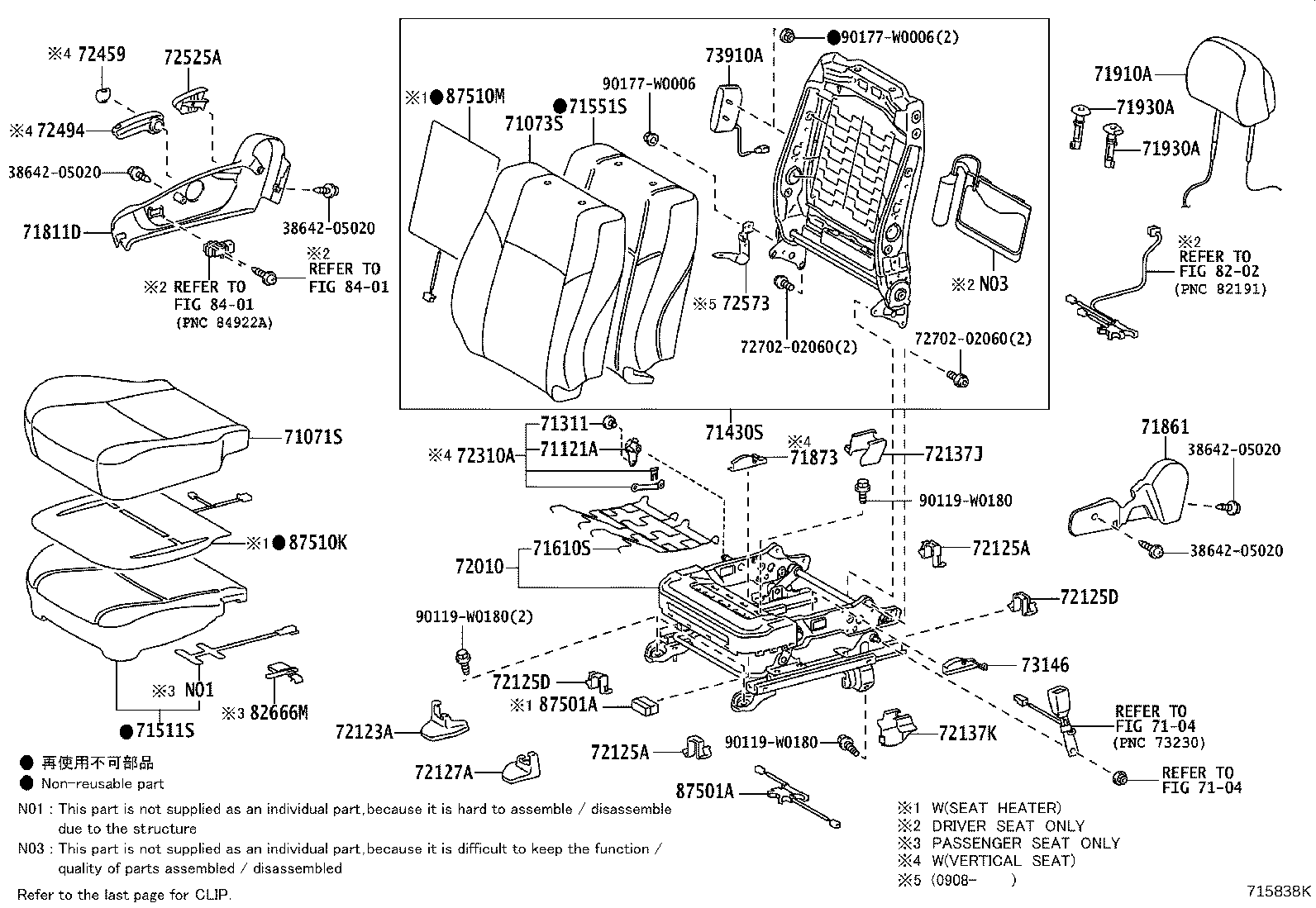

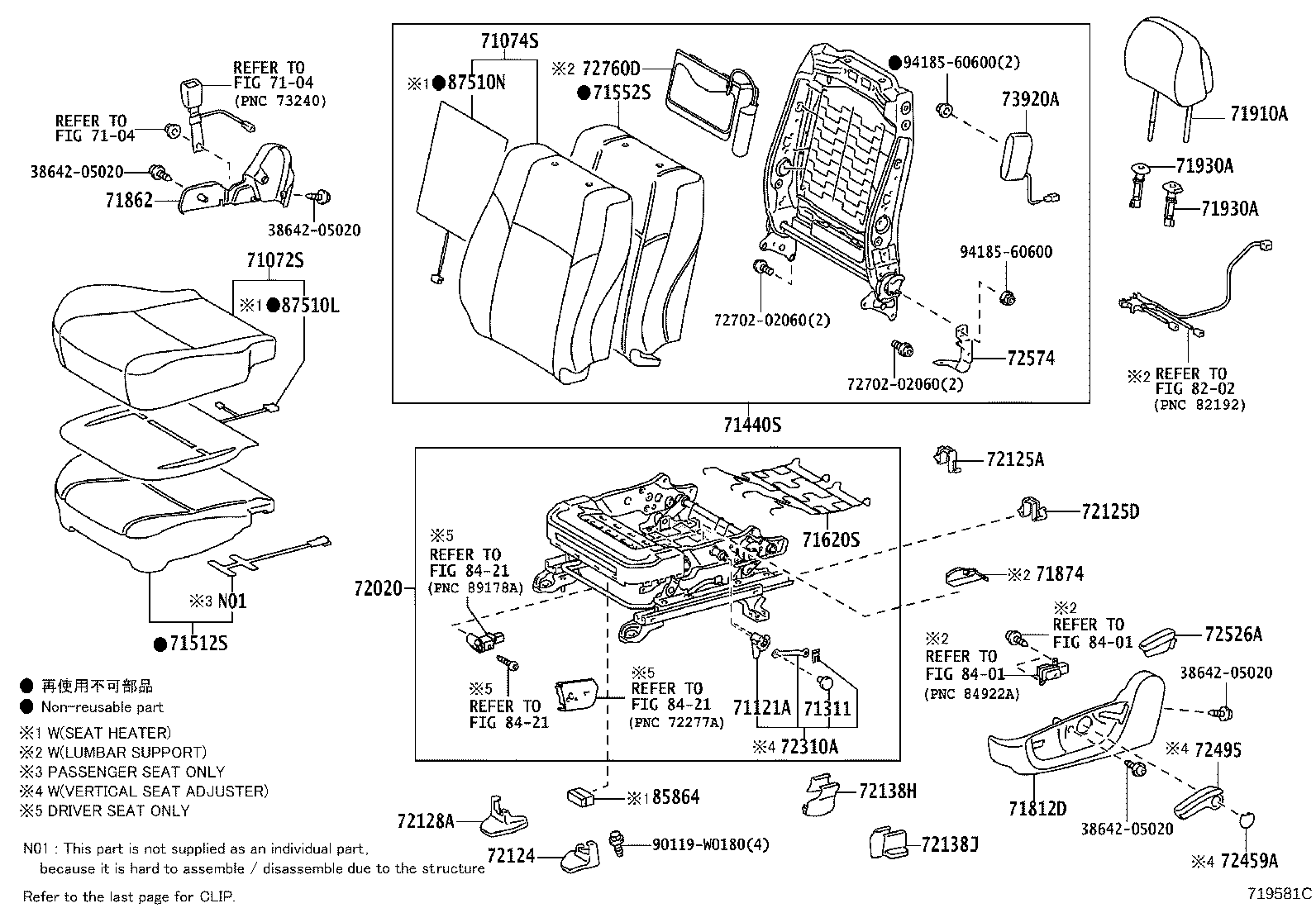

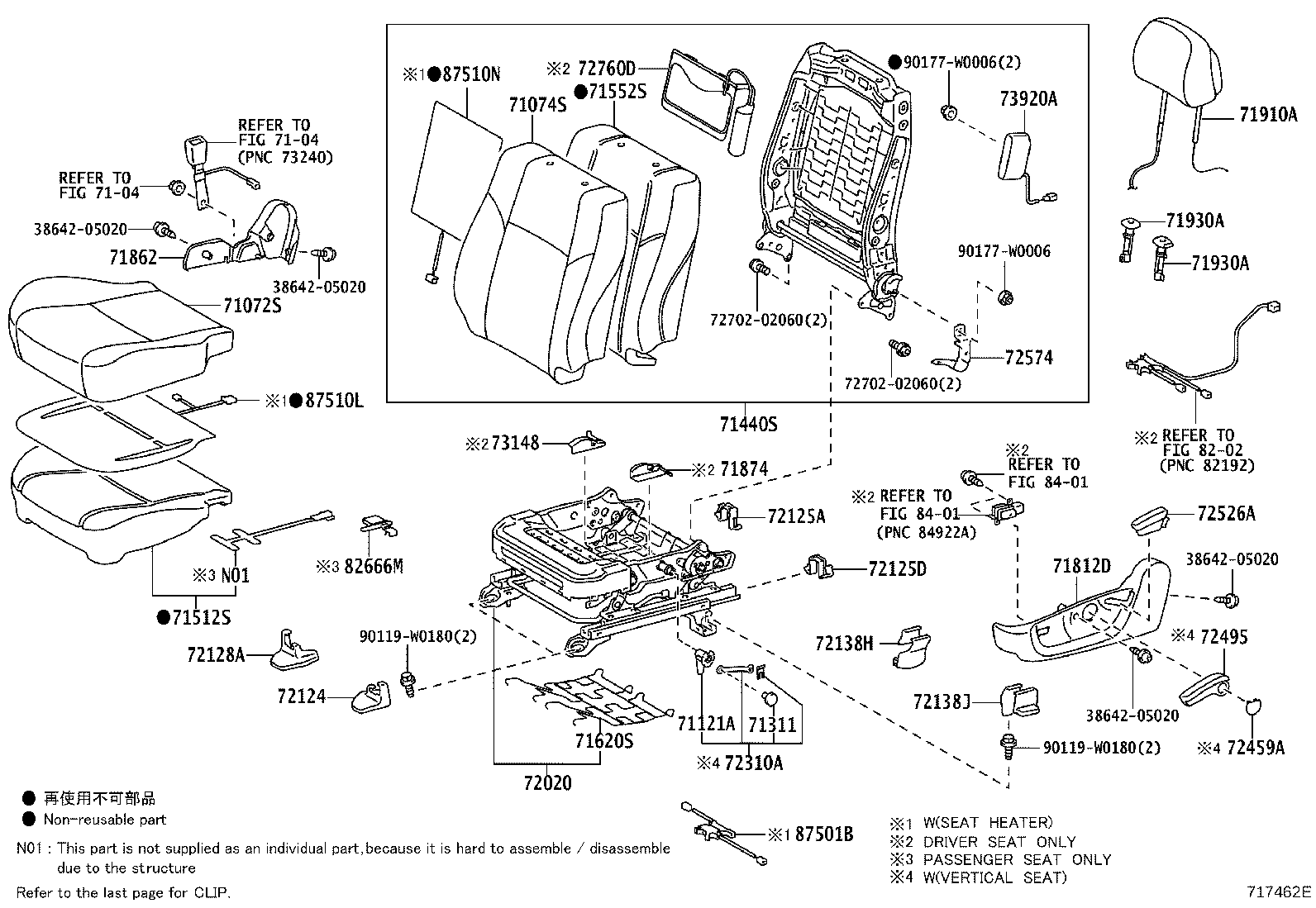

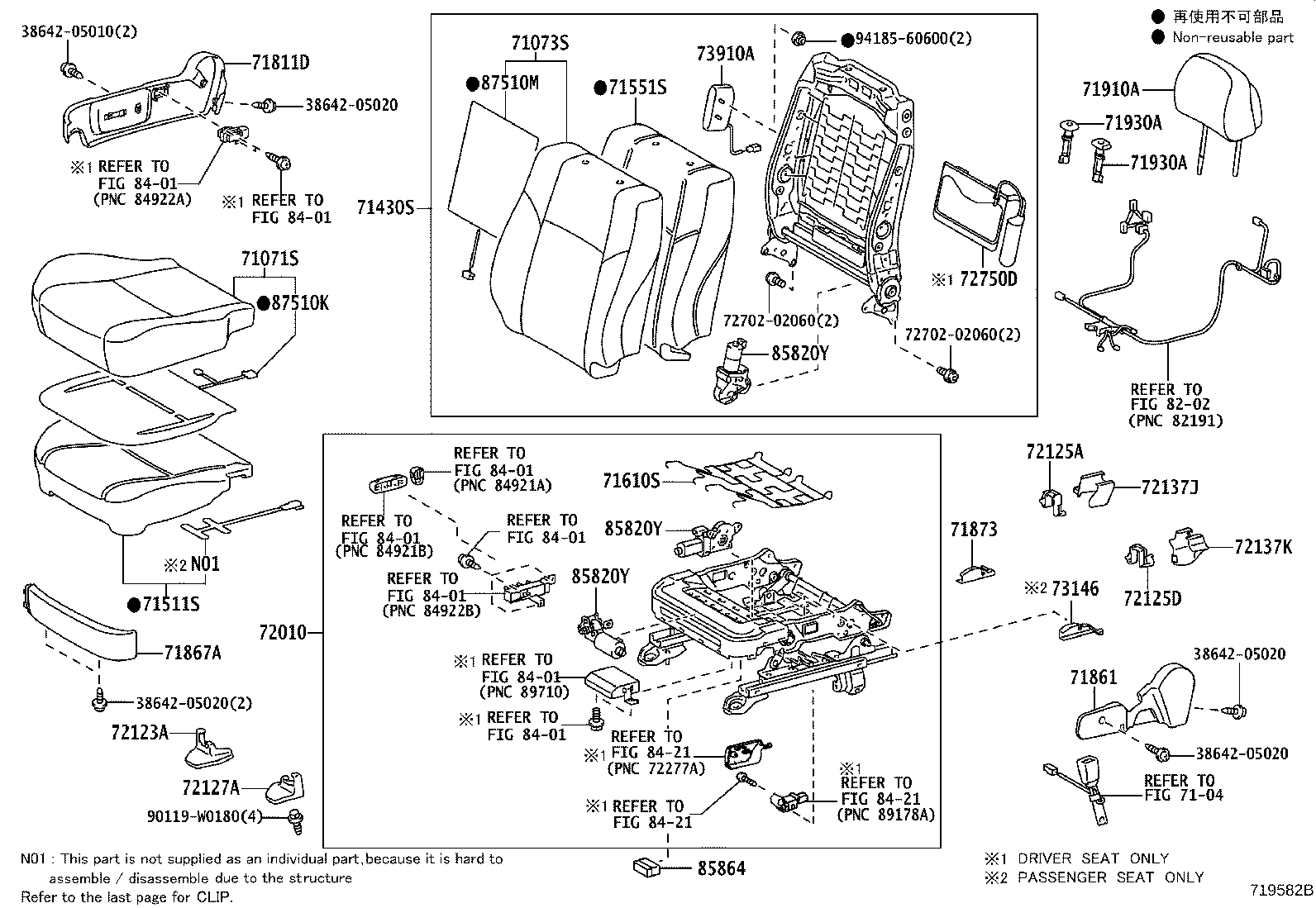

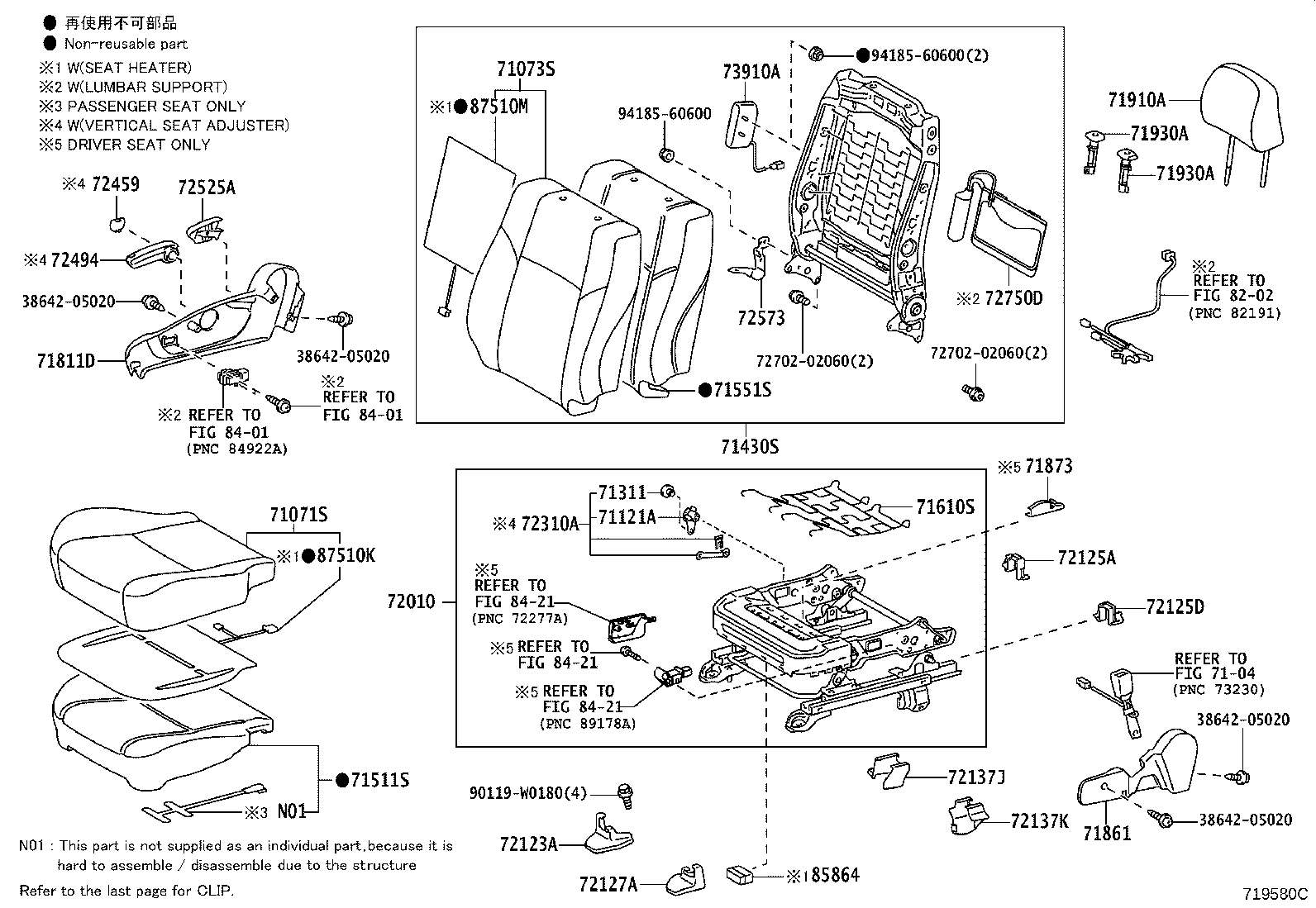

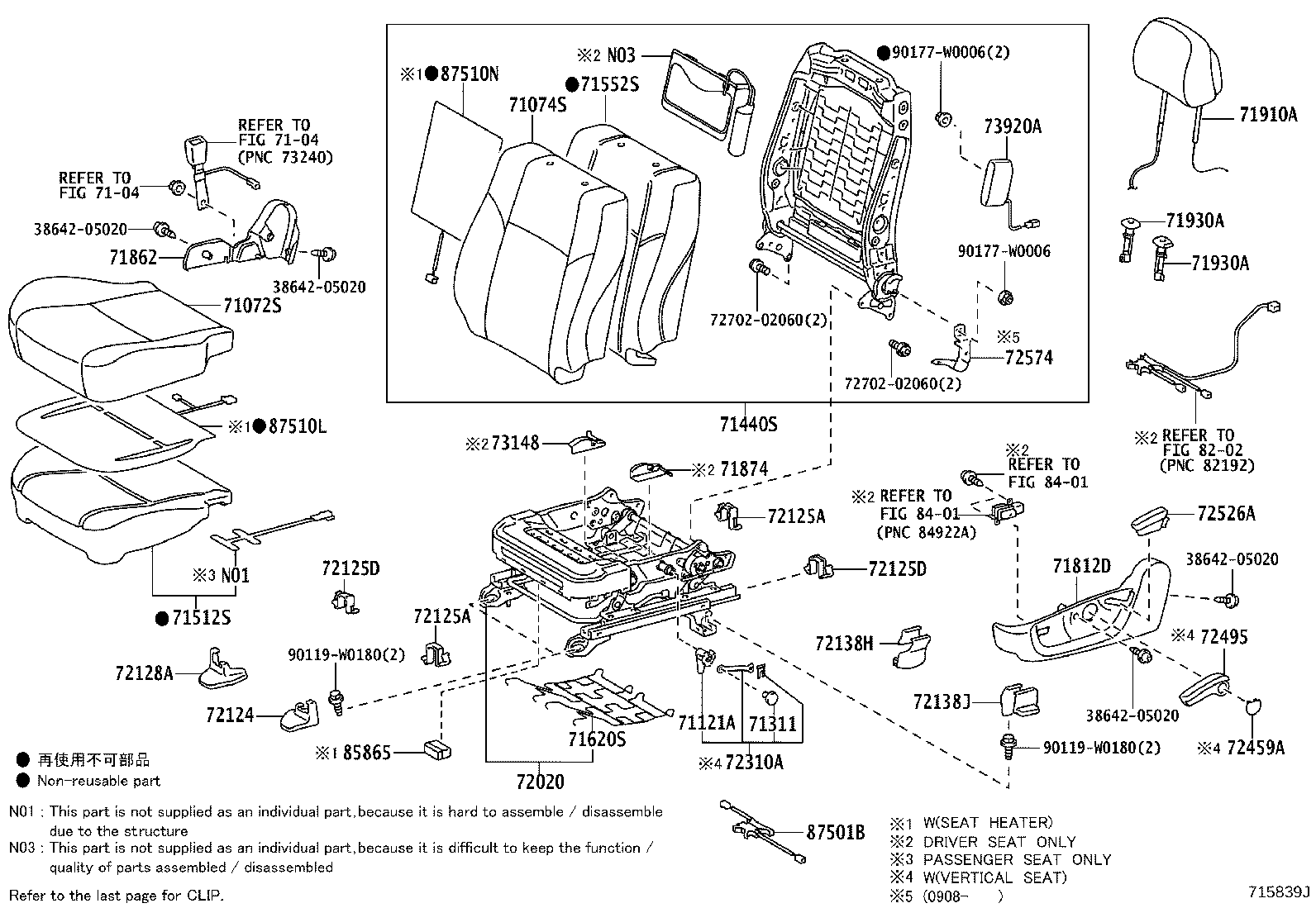

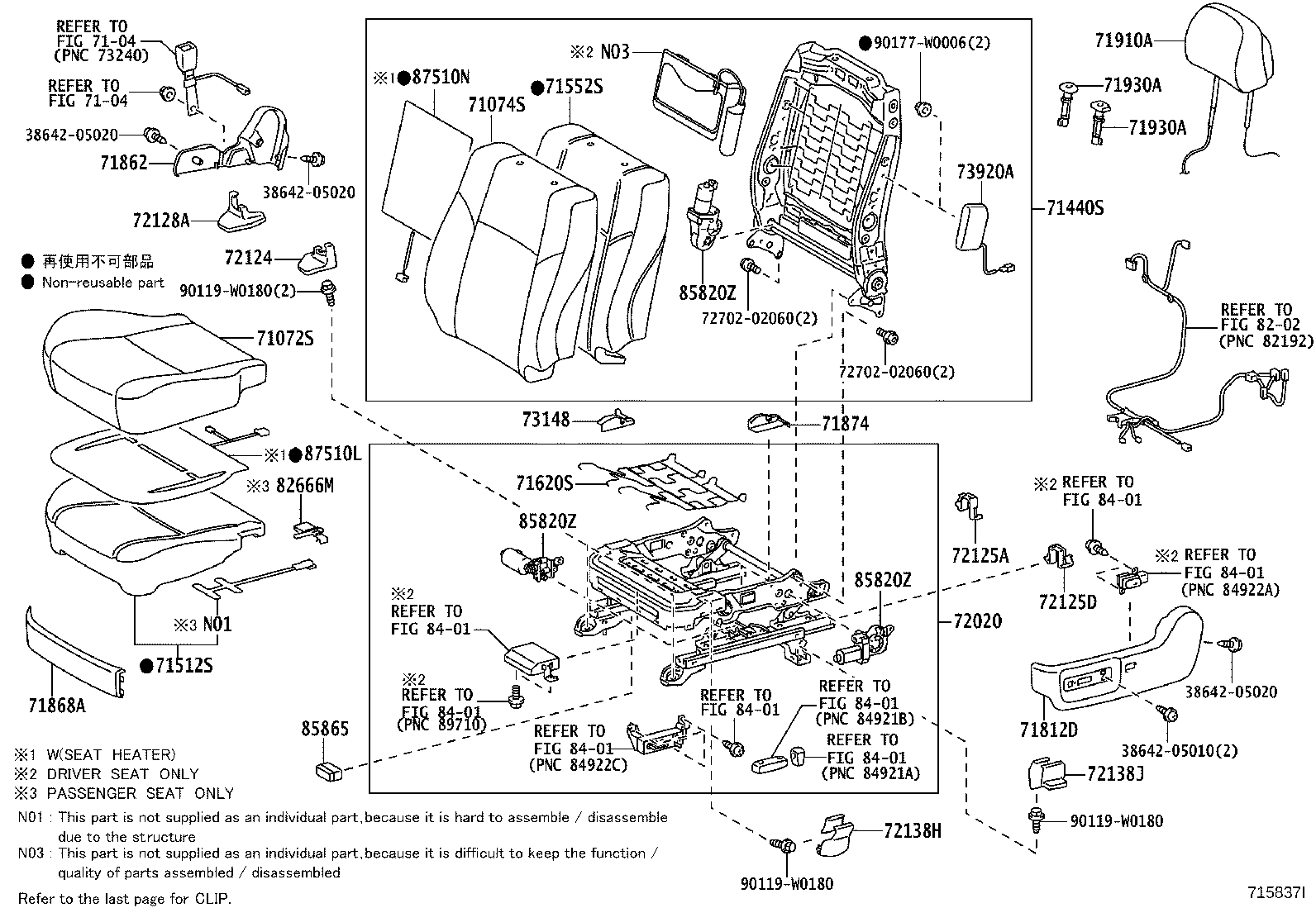

Figure 715836I 715836I 2008-11 → 2011-11 Figure 715838K 715838K 2008-11 → 2011-11 Figure 715837I 715837I 2008-11 → 2011-11 Figure 715839J 715839J 2008-11 → 2011-11 Figure 717463C 717463C 2011-11 → 2015-05 Figure 717461E 717461E 2011-11 → 2015-05 Figure 717464D 717464D 2011-11 → 2015-05 Figure 717462E 717462E 2011-11 → 2015-05 Figure 719580C 719580C 2015-05 → — Figure 719582B 719582B 2015-05 → — Figure 719581C 719581C 2015-05 → — Figure 719583B 719583B 2015-05 → — Figure 71F764 71F764 2008-11 → —

Part groups

PNCDescription
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71121A Bracket, Front Seat Cushion, Outer
71311 Pin, Front Seat Hinge
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71873 Shield, Front Seat Cushion, Lower RH
71874 Shield, Front Seat Cushion, Lower LH
71910A Headrest Assy, Front Seat
71930A Support Assy, Front Seat Headrest
72010 Adjuster Assy, Front Seat, RH
72020 Adjuster Assy, Front Seat, LH
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72125A Cover, Seat Track, Upper Rear
72125D Cover, Seat Track, Upper Rear NO.2
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72137J Cover, Front Seat Track, RH Rear Outer
72137K Cover, Front Seat Track, RH Rear Inner
72138H Cover, Front Seat Track, LH Rear Inner
72138J Cover, Front Seat Track, LH Rear Outer
72310A Adjuster Assy, Front Seat Vertical
72459 Cap, Vertical Seat Adjuster Knob
72459A Cap, Vertical Seat Adjuster Knob
72494 Handle, Vertical Adjusting, RH
72495 Handle, Vertical Adjusting, LH
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
72573 Lever, Reclining Control, RH
72574 Lever, Reclining Control, LH
72750D Adjuster Assy, Lumbar Support, RH
72760D Adjuster Assy, Lumbar Support, LH
73146 Cover, Front Seat Belt Inner Anchor Bracket, RH
73148 Cover, Front Seat Belt Inner Anchor Bracket, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
82666M Holder, Connector
85820Y Motor Assy, Power Seat
85820Z Motor Assy, Power Seat
85864 Controller, Seat Climate Control,RH
85865 Controller, Seat Climate Control,LH
87501A Control Sub-assy, Seat Heater, RH
87501B Control Sub-assy, Seat Heater, LH
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
87510M Heater Assy, Front Seatback, RH
87510N Heater Assy, Front Seatback, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
